For Models:

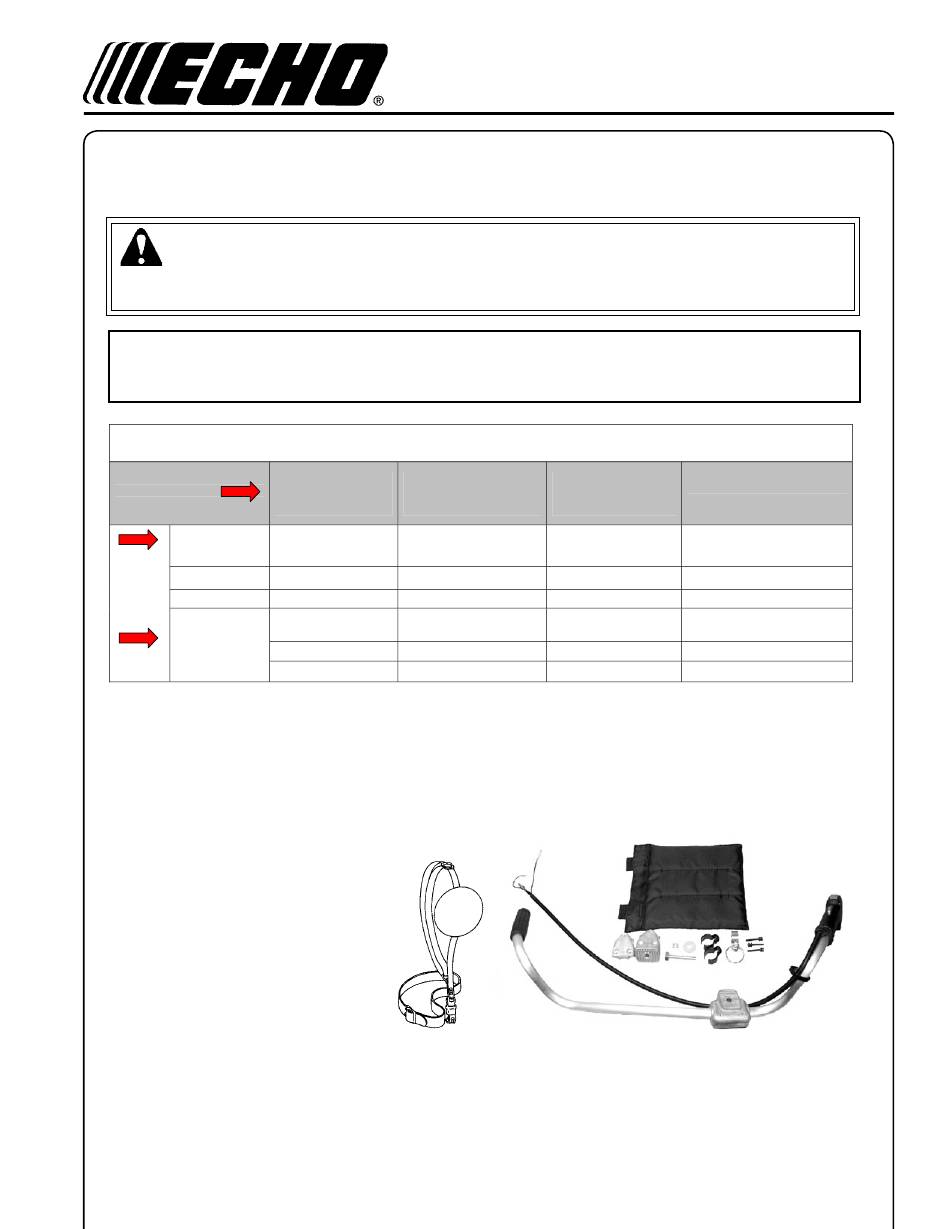

SRM-2500/3100 SERIES P/N 35130455730
SRM-3000/3001/3400 SERIES P/N 35130455830
WARNING
You must install a Barrier Bar or U-Handle Kit and all Blade Conversion parts shown in the following instruc-
tions before operating this unit with blades, otherwise serious injury may result.
IMPORTANT
If non-standard monofilament heads, METAL/PLASTIC blades or cultivators etc., are used, THE CARBURETOR
MUST BE RESET or serious engine damage can occur. See "Carburetor Adjustment" in the unit Operator's Manual.
TO USE
THESE BLADES
Loop Handle, w/or
Handle
You
must
Debris Shield
install
Harness
these
parts!
Blade
Mounting
Hardware
*
WARNING! DO NOT INSTALL BLADES ON GT (CURVED SHAFT) MODEL TRIMMERS
** Arbor diameter of Upper Blade Plate must match arbor diameter of metal blades.
*** New cotter pin required each time blade is installed.
**** Brushcutters over 16.5 lbs (7.5 kg) dry weight (weight w/o fuel) require a double shoulder harness
C
ontents
1
U-handle assembly
1
Lower u-handle bracket (2 halves)
1
Harness clamp w/ring
1
5 x 12 mm bolt
1
8 x 55 mm bolt
1
Circular washer
1
Square nut
2
Throttle cable clips
3
5 x 30 mm bolts w/washers
1
Hip pad
1
Shoulder harness
X7502125102
INSTALLATION INSTRUCTIONS
SRM/PAS/SB BLADE SET-UP GUIDE*
Pro Maxi-Cut
Rigid Plastic
Grass/Weed
Tri-Cut
Plastic Cutters
Grass/Weed Blade
Loop Handle
w/Barrier Bar,
w/o Barrier Bar
or U-Handle
Metal Shield
Metal Shield
Shoulder Harness
Shoulder Harness
Upper Plate &
Upper Plate
Flat Washer
& Glide Cup
Hex Nut
Hex Nut
New Cotter Pin***
New Cotter Pin***
U-HANDLE KIT
Metal
Metal 80T Brush Blade
Tri-Cut/8 Tooth
Metal 22T Clearing Saw Blade
Grass/Weed Blade
Loop Handle
w/Barrier Bar,
or U-Handle
Metal Shield
Shoulder Harness
Shoulder Harness****
Upper/Lower
Blade Plates**
Hex Nut
New Cotter Pin***
U-Handle
Metal Shield
Upper/Lower
Blade Plates**
Hex Nut
New Cotter Pin***
89861955731
05/10
