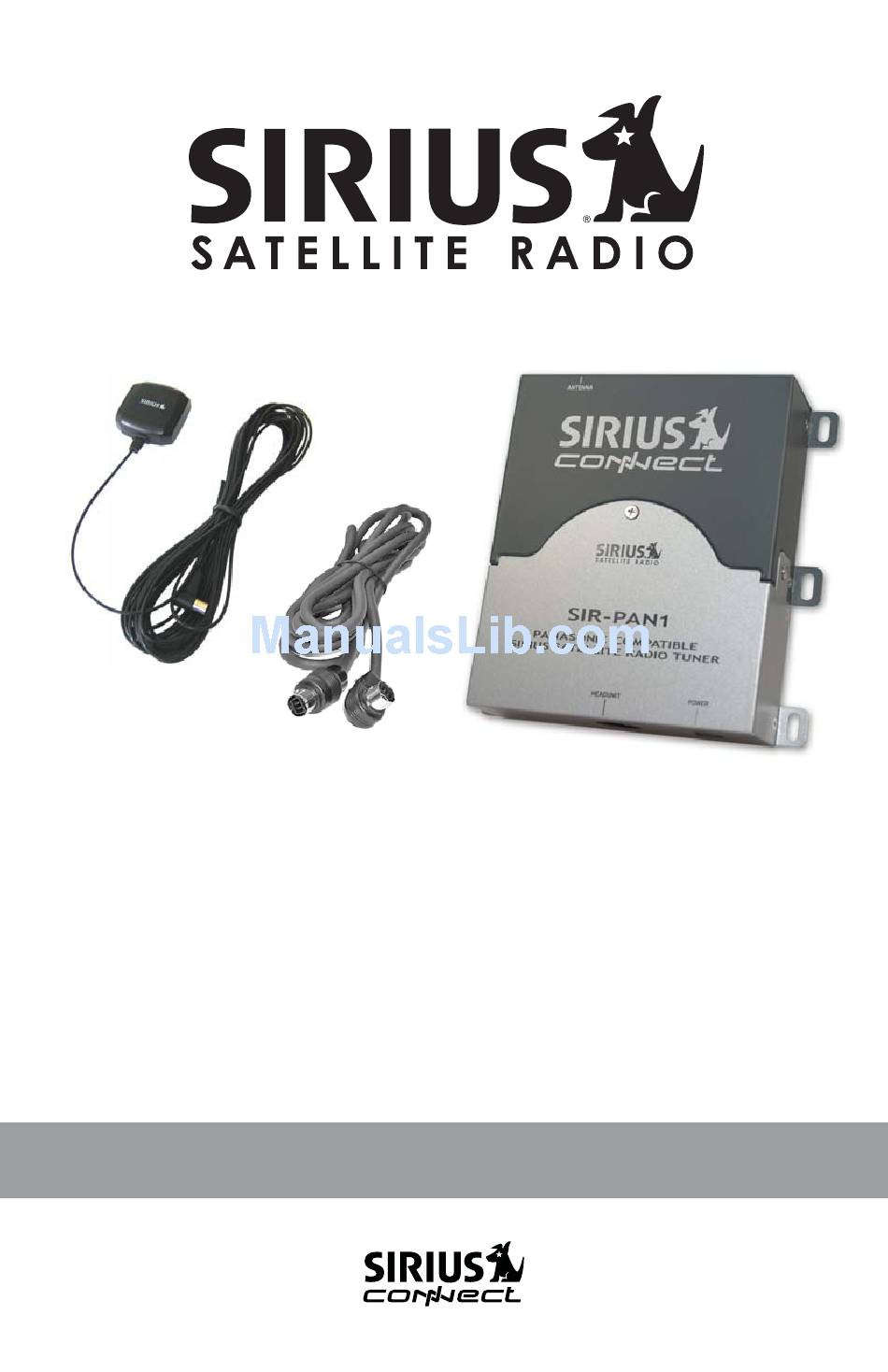

- Page 1 SIR-PAN1 PANASONIC COMPATIBLE SIRIUS SATELLITE RADIO TUNER Installation Guide...
- Page 2 Congratulations on your purchase of the SIR-PAN1 Panasonic-Compatible SIRIUS Satellite Radio Tuner! Your new SIRIUS Tuner is designed to work with 2006 models of Panasonic headunits that are designated as “SAT RADIO READY”. Contact Panasonic or SIRIUS for model compatibility, or see page 11 for a list of compatible models.
-
Page 3: Table Of Contents
Package Contents SIR-PAN1 PANASONIC COMPATIBLE SIRIUS SATELLITE RADIO TUNER SIR-PAN1 Tuner Mini Magnetic Antenna Antenna Cable Cover/Tail Alcohol Swab Power Harness With In-Line Filter 2.5-Meter Panasonic Bus Cable 6 Mounting Screws SIR-PAN1 Installation Guide SIR-PAN1 Operation and Installation Guide ALCOHOL SWAB... -
Page 4: Warnings And Cautions
• Relocate the receiving antenna. • Consult the dealer or an experienced technician for help. SIR-PAN1 Installation Guide... - Page 5 SIR-PAN1 Installation Guide SIR-PAN1 Operation and Installation Guide USE THE SPECIFIED ACCESSORY PARTS AND INSTALL THE PRODUCT SECURELY. Be sure to use only the specified accessory parts.
-
Page 6: Installation
• Any location that would interfere with moving parts on the vehicle or hamper driving. Mounting the SIR-PAN1 Tuner Be sure that you find a location that is flat and has clearance above the unit to prevent any damage as well as allow for ventilation. -
Page 7: Optimum Antenna Mounting Locations
Take advantage of any existing cable channels or wiring conduits. SIR-PAN1 Installation Guide SIR-PAN1 Operation and Installation Guide • For SUVs, minivans and five-door vehicles, bring the cable into the vehicle under the rubber molding for the tailgate, and continue under the interior trim. -
Page 8: Wiring And Cable Connections
Wiring and Cable Connections SIR-PAN1 PANASONIC COMPATIBLE SIRIUS SATELLITE RADIO TUNER Antenna Input (SMB) Headunit Connector Power Connector Antenna Input Connect the right-angle SMB connector from the antenna. Push firmly to attach. Panasonic Headunit Connector Use the supplied Panasonic bus cable to connect to the Panasonic headunit –... - Page 9 Right-angle SMB Connector Yellow (Pin 2) – Connect to Battery Positive (+) SIR-PAN1 Operation and Installation Guide SIR-PAN1 Installation Guide Antenna (21’ cable) Mount on Roof of Vehicle Red (Pin 1) – ACC, Connect to Ignition Switched Circuit FILTER &...
-
Page 10: System Connection Examples
System 1: Panasonic Headunit and SIR-PAN1 SIR-PAN1 Panasonic SAT Radio Ready Headunit PANASONIC COMPATIBLE SIRIUS SATELLITE RADIO TUNER System 2: Panasonic Headunit, CD Changer, and SIR-PAN1 Panasonic SAT Radio Ready Headunit SIR-PAN1 PANASONIC COMPATIBLE SIRIUS SATELLITE RADIO TUNER Panasonic CD Changer... -
Page 11: Activating Your Sirius Subscription
Activating Your SIRIUS Subscription You must activate the SIR-PAN1 before you can start to receive the SIRIUS Satellite Radio broadcast. 1. Make sure that the SIR-PAN1 is properly connected and that the antenna is oriented to receive the SIRIUS satellite signal. -
Page 12: Specifications
Included Cable ... 2.5 Meter Panasonic Bus (Male/Male) Please write down your SIRIUS ID in the space provided below: SIRIUS ID: SIRIUS Customer Service: 1-888-539-7474 105mm x 126mm x 35mm (WxHxD) 127mm x 126mm x 35mm (WxHxD) SIR-PAN1 Installation Guide... -
Page 13: Warranty
12 MONTH LIMITED WARRANTY Sirius Satellite Radio warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s... - Page 14 SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com © 2006 SIRIUS Satellite Radio Inc. “SIRIUS” and the SIRIUS dog logo Panasonic-SIR-PAN1-Install-Manual-(03232006a) are registered trademarks of SIRIUS Satellite Radio Inc.
