- Page 1 TI-Nspire™ Lab Cradle Guidebook This guidebook applies to TI-Nspire™ software version 3.1. To obtain the latest version of the documentation, go to education.ti.com/guides.
-
Page 2: Important Information
"as-is" basis. In no event shall Texas Instruments be liable to anyone for special, collateral, incidental, or consequential damages in connection... - Page 3 Modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC rules.
-
Page 5: Table Of Contents
Managing Power ................7 Charging the Lab Cradle ..............9 Upgrading the Operating System ..........10 Appendix: Service and Support ...........15 Texas Instruments Support and Service........15 Service and Warranty Information ..........15 Precautions for Rechargeable Batteries........16 Index ..................19... -
Page 7: Ti-Nspire™ Lab Cradle
Lab Cradle so you can start using it immediately. Note: Any TI-Nspire™ OS earlier than 3.0 will not recognize the Lab Cradle. For more information about upgrading a handheld OS, see Getting Started with the TI-Nspire™ CX Handheld or Getting Started with the TI-Nspire™... -
Page 8: Exploring The Lab Cradle

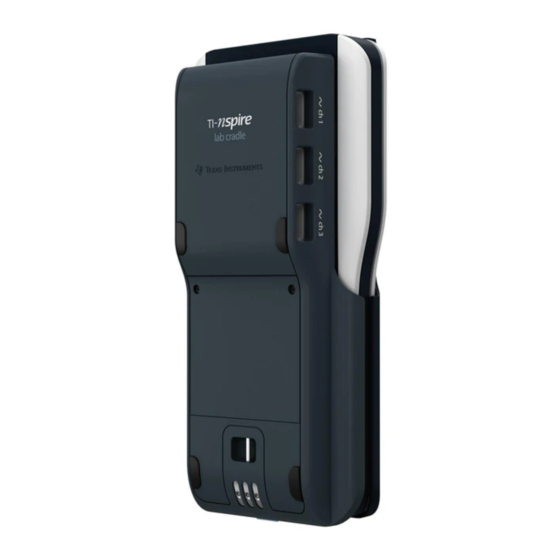

Exploring the Lab Cradle The following graphic shows the front and back of the Lab Cradle. TI-Nspire™ logo. The TI-Nspire™ name. Analog ports. The three BT analog ports used to connect analog sensors. The other side of the cradle has two digital ports for digital sensors. -
Page 9: Setting Up The Lab Cradle For Data Collection
Lab Cradle’s mini-USB port. Then plug the cable’s standard USB connector into the computer’s standard USB port. Defining Collection Parameters You must have the TI-Nspire™ software loaded on the computer or handheld. Use the built-in Vernier DataQuest™ app to: •... -
Page 10: Learning About The Lab Cradle
You do not have to reconnect the Lab Cradle to the same computer or handheld to download the data. You can use any computer or handheld running a compatible OS and TI-Nspire™ software to download the data. Learning About the Lab Cradle... - Page 11 The maximum sampling rate for a Lab Cradle using a single BT sensor is 100,000 samples per second. This sampling rate allows you to collect data for high-sample sensors, such as microphones, blood pressure monitors, and hand-grip heart rate monitors. TI-Nspire™ Lab Cradle...
-
Page 12: Viewing Data Collection Status
One blink per second: The sensor is configured and set up for sampling. • Slow blink: The Lab Cradle is connected to a computer or handheld running TI-Nspire™ software but not set up for sampling. • Fast blink: The Lab Cradle is ready for data collection when you press the trigger. -
Page 13: Managing Power
There are two ways to view battery status: when attached to a handheld, or by looking at the LED light. When the Lab Cradle is attached to a TI-Nspire™ handheld, you can view the battery status for both. The first value is the handheld and the second value is the Lab Cradle. - Page 14 Amber - Slow blinking LED indicates the Lab Cradle is charging • Green - Slow blinking LED indicates the Lab Cradle is fully charged. When in the TI-Nspire™ Cradle Charging Bay: • Red - Solid LED indicates the charge is low but is still charging.
-
Page 15: Charging The Lab Cradle
You either need to charge the battery or plug the Lab Cradle into an external power source. When using the wall charger, TI-Nspire™ Cradle Charging Bay, or USB cable plugged into a powered computer, the Lab Cradle can be fully charged from a dead state in less than 12 hours when not being used. -
Page 16: Upgrading The Operating System
Instruments website at education.ti.com. You can download an OS upgrade from the Texas Instruments website to a computer, and use a USB cable to install the OS on your TI-Nspire™ Lab Cradle. You will need an Internet connection and the appropriate USB cable to download the updates. - Page 17 By default, this option is turned on. 6. Click to close the dialog box. Upgrading the Operating System In the TI-Nspire™ software, you can select to upgrade the operating system on a connected Lab Cradle from the following workspaces and menus: •...
- Page 18 Follow the prompts to update the operating system. • In all versions of the TI-Nspire™ software, you can use options available in the Documents Workspace: – Open Content Explorer, select the Lab Cradle name, and then click...
- Page 19 The file displayed for selection defaults to the file type required for the selected Lab Cradle. 1. Select the OS file TI-Nspire.tlo. 2. Click to download the OS and update the Lab Cradle. The Install OS confirmation message “You are about to upgrade your handheld/Lab Cradle operating system.
- Page 20 TI-Nspire™ Lab Cradle...
-
Page 21: Appendix: Service And Support
For Technical Support For Product (Hardware) Service Customers in the U.S., Canada, Mexico, Puerto Rico and Virgin Islands: Always contact Texas Instruments Customer Support before returning a product for service. For All Other Countries: For general information For more information about TI products and services, contact TI by e-mail or visit the TI Internet address. -
Page 22: Precautions For Rechargeable Batteries
Precautions for Rechargeable Batteries Take these precautions when replacing rechargeable batteries: • Use only the charger recommended for the cell or battery, or the one that was provided with the original equipment. • Remove the cell or battery from the charger or alternating current adapter when not in use or being charged. - Page 23 AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician. • Protect Power Cords: Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them.
- Page 24 Use and Maintenance • Unplug Power Before Cleaning: Do not used liquid or aerosol cleaners. Use a damp cloth for cleaning. • Keep Objects Out of Openings: Never push objects of any kind into the TI product through openings such as the ventilation holes, as they may touch high voltage circuits and "short out"...
-
Page 25: Index
Index upgrading 11 operating system upgrades 10 copyright statement 20 upgrading 11 finding upgrades 10 sampling rate 5 sensors Lab Cradle multi-channel 5 battery status 7 LEDs 6 overview 6 triggering setting up 3 methods 5 upgrading OS 10 Upgrading the OS 11 Operating System...
