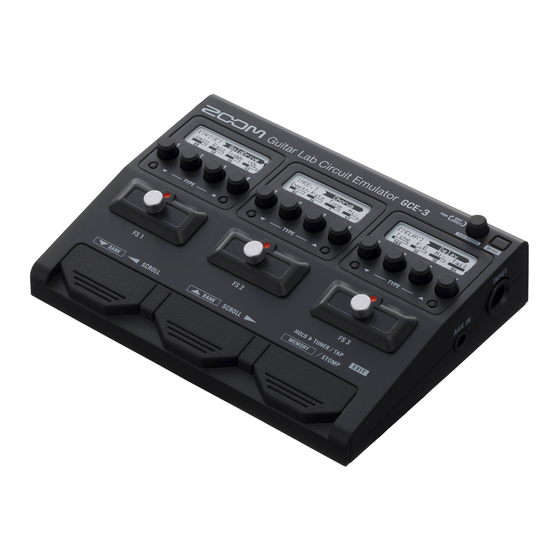

Guitar Lab Circuit Emulator
You must read the Usage and Safety Precautions before use.
This Operation Manual can be downloaded from the ZOOM website (https://www.zoom.jp/docs/gce-3).
This page has files in PDF and ePub formats.
The PDF file format is suitable for printing on paper and reading on a computer.
The ePub file format is suitable for smartphones and tablets and can be read on electronic book readers.
© 2019 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
Product names, registered trademarks and company names in this document are the property of their respective companies.
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this manual and the specifications of the product could be changed without notice.
Operation Manual
Advertisement
Table of Contents
Related Manuals for Zoom GCE-3
Summary of Contents for Zoom GCE-3

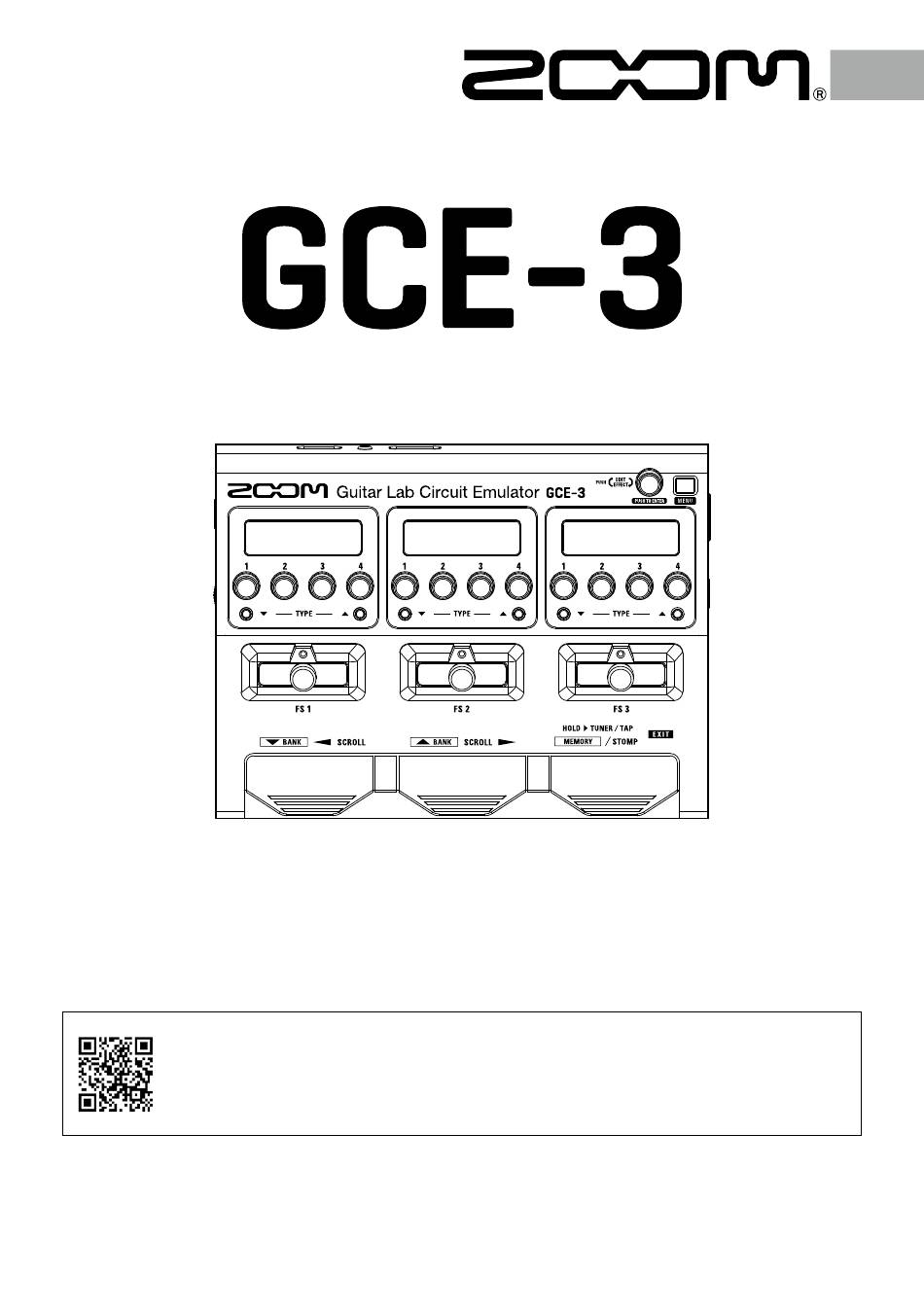

- Page 1 Operation Manual You must read the Usage and Safety Precautions before use. This Operation Manual can be downloaded from the ZOOM website (https://www.zoom.jp/docs/gce-3). This page has files in PDF and ePub formats. The PDF file format is suitable for printing on paper and reading on a computer.
-
Page 2: Table Of Contents
For example, you can use a compact at home and a ZOOM multi-effect processor unit with high mobility for rehearsals and live perfor- mances. Use the model that is best for your circumstances. You can also use as a USB audio interface. -
Page 3: Names Of Parts
Names of parts ■ Top ■ Back ① USB port ② POWER indicator ③ DC 5V connector ① USB port Connect this to a computer. ② POWER indicator This lights red when the power is on and lights green when connected to a computer. ③... -
Page 4: Installing The Driver
Download the ZOOM GCE-3 Driver for the computer from https://www.zoom.co.jp/. NOTE • You can download the latest version of the ZOOM GCE-3 Driver from the above website. • Download the driver for the operating system that you are using. Install the driver. -
Page 5: Connecting To A Computer
If the power supplied by the USB bus is low, or you want to operate the unit with an adapter, use the ZOOM AD-17 adapter that was designed for use with this unit. Connect a guitar or bass to the INPUT Right side jack. -
Page 6: Troubleshooting
There is a lot of noise • Confirm that a shielded cable is not the cause. • Use the dedicated AC adapter (ZOOM AD-17). Sound breaks up during playback or recording when used as an audio interface • If you can adjust the audio buffer size of the software that you are using, increase the buffer size. -
Page 7: Specifications
Specifications Sampling frequency 44.1 kHz A/D conversion 24-bit 128× oversampling D/A conversion 24-bit 128× oversampling Signal processing 32-bit Inputs INPUT Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 470 kΩ AUX IN Stereo mini jack Rated input level: −10 dBu Input impedance (line): 1 kΩ Output PHONES Stereo mini jack Maximum output level: Headphones 15 mW + 15 mW (typ. 32 Ω load) Input S/N 120 dB (typ) - Page 8 ZOOM CORPORATION 4-4-3 Kanda-surugadai, Chiyoda-ku, Tokyo 101-0062 Japan https://www.zoom.co.jp Z2I-3553-02...
