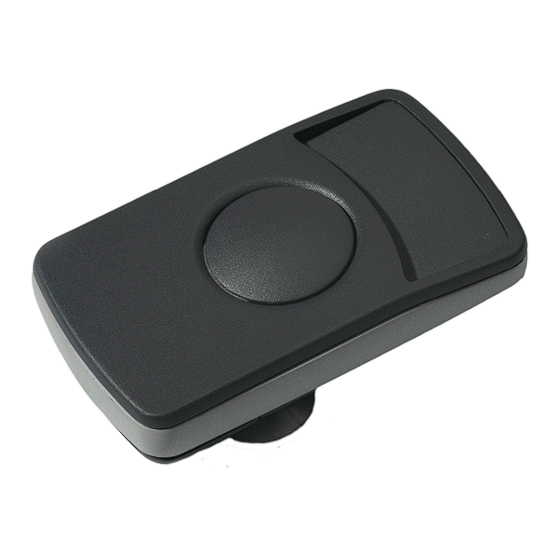

Smartcard-Booster LEGIC
Installation Guide
2012-02-21
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys
no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifica-
tions and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in
whole or in part, without the written consent of the publisher.
© Nedap AVI, P.O. Box 103 NL-7140 AC GROENLO
Page 1 of 16
Advertisement
Table of Contents
Summary of Contents for Nedap Smartcard-Booster LEGIC
- Page 1 © Nedap AVI, P.O. Box 103 NL-7140 AC GROENLO Page 1 of 16...
-
Page 2: Table Of Contents
USING THE SMARTCARD-BOOSTER LEGIC ........................13 READING THE SMARTCARD-BOOSTER LEGIC ......................13 BUZZER INDICATIONS ..................................14 BATTERY REPLACEMENT ................................... 15 TECHNICAL SPECIFICATIONS ................................16 PART NUMBERS ....................................16 © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 2 of 16... -
Page 3: Introduction
The Smartcard-Booster LEGIC supports LEGIC Advant and Prime cards. NEDAP can also supply Booster devices that are able to read NEDAP, EM410x, HID prox or Mifare cards. The Booster was developed based upon the unique patent of the Nedap dual band technology. This technology enables reading of the low frequency credit card sized tag by the TRANSIT microwave reader. -
Page 4: Installation
2.56" Overall height 1.26" Body height 0.95" Smartcard-Booster 2G dimensions Dimension inches millimeters Overall length 4.57" Overall width 2.83" Overall height 1.22" Body height 1.02" Smartcard-Booster dimensions © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 4 of 16... -
Page 5: Temperature Considerations
Booster may not be designed to withstand such temperatures and could suffer damage as a result. Nedap advises to remove the LEGIC card when not in use. CAUTION: DO NOT LEAVE CARD IN ACCESS DEVICE WHEN LEAVING THE VEHICLE, AS THIS PRESENTS A SECURITY RISK. -
Page 6: Configuration
Smartcard-Booster LEGIC 3 CONFIGURATION The Smartcard-Booster LEGIC is configured by means of configuration cards. This configuration card is a LEGIC Advant transponder that contains all the information that is required to find the user's segment and read the data. The Smartcard-Booster LEGIC only accepts a configuration card after configuration is enabled with a master token card. -
Page 7: Configuration Software
Smartcard-Booster LEGIC 3.3 CONFIGURATION SOFTWARE NEDAP has developed a software application that allows system integrators to create configuration cards. This software can be downloaded from our website www.nedapavi.com Note: A LEGIC Advant programmer is required. For example the KABA B-Net 91 07. -
Page 8: Create A Configuration Card
Dual-ID (Vehicle-ID + Driver-ID) Driver-ID max. 88 bits (=11 bytes) from LEGIC smart card. Single-ID (only Driver-ID) Driver-ID max. 128 bits (=16 bytes) from LEGIC smart card. © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 8 of 16... - Page 9 Search string to search a segment with a specific stamp. Stamp length (prime only) Stamp length for access to LEGIC prime transponders. This parameter is not interpreted with LEGIC Advant transponders. © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 9 of 16...
- Page 10 Constant Data For each data definition optionally 1 or 2 bytes of constant data can be added. This data can be located before or after the transponder data. © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 10 of 16...
-
Page 11: Example Configuration
Your configuration can be saved into a Booster Config File (*.bcf). These files contain all the configuration settings as you have defined them. Saved Booster Config Files can be easily opened from within the File menu. © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 11 of 16... -
Page 12: Testing The Configuration
When a transponder is found that meets the configured search definitions a message appears with the data that was read. Read data information message The reading can be aborted by clicking 'Configuration', 'Test' and 'Stop Reading' (or press Shift + F9). © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 12 of 16... -
Page 13: Usage Information
Example: driver-id = 871111111117100944, TXD = U00871111111117100944 If 'Extended Driver-ID length' is enabled, the following message is transmitted to the host. Example: driver-id = 871111111117100944, TXD = Z00000000000000871111111117100944 © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 13 of 16... -
Page 14: Buzzer Indications
Busy initializing (please wait) 2 long high beeps Configuration reset 3 high beeps · · · – – – · · · Battery low (only Smartcard-Booster LEGIC 2G) © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 14 of 16... -
Page 15: Battery Replacement
Replace with two new batteries of the same type. Make sure that the polarity matches the indicated polarity. Close the battery compartment and verify if the booster is working properly. Battery replacement smartcard-booster 2G Battery replacement smartcard-booster © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 15 of 16... -
Page 16: Atechnical Specifications
Directive 1999/5/EC, EN300 330, EN60950, EN50357, EN50364, EN301 489 PART NUMBERS SMARTCARD-BOOSTER LEGIC 2G Smartcard-Booster LEGIC 2G part number: 9961798 TRANSIT LONG RANGE READER TRANSIT PS270 long range reader part number: 9990410 © Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 16 of 16...
