Rheem RCSL series Installation Instructions

INSTALLATION INSTRUCTIONS

FOR REPLACEMENT UNCASED COILS FOR
AIR HANDLERS:
RCSA: featuring R-22 Refrigerant
RCSL: featuring earth-friendly R-410A
RCSL: Refrigerant
!
RECOGNIZE THIS SYMBOL AS AN INDICATION OF IMPORTANT SAFETY INFORMATION!
WARNING
▲ ▲ WARNING
!
!
THESE INSTRUCTIONS ARE INTENDED AS AN AID TO
These instructions are intended as an aid to qualified licensed
QUALIFIED, LICENSED SERVICE PERSONNEL FOR PROPER
service personnel for proper installation, adjustment and opera-
INSTALLATION, ADJUSTMENT AND OPERATION OF THIS UNIT.
tion of this unit. Read these instructions thoroughly before
READ THESE INSTRUCTIONS THOROUGHLY BEFORE
attempting installation or operation. Failure to follow these
ATTEMPTING INSTALLATION OR OPERATION. FAILURE TO FOL-
instructions may result in improper installation, adjustment, serv-
LOW THESE INSTRUCTIONS MAY RESULT IN IMPROPER
ice or maintenance possibly resulting in fire, electrical shock,
INSTALLATION, ADJUSTMENT, SERVICE OR MAINTENANCE
property damage, personal injury or death.
POSSIBLY RESULTING IN FIRE, ELECTRICAL SHOCK,
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
PLEASE READ CAREFULLY AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE BY A SERVICEMAN
DO NOT DESTROY THIS MANUAL
r e f r i g e r a n t

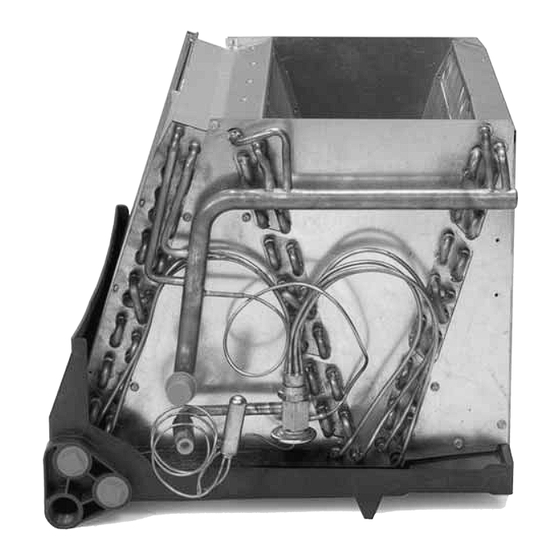

NOTE: Shown with Horizontal Drip Shield.
(Requires RXHH- Horizontal Adapter Kit.)
