Summary of Contents for Linksys WAP11 V2.2
- Page 1 LINKSYS WAP11 V2.2 Version:1.0 Date:2001/12/21...
- Page 2 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
SECTION 2 HARDWARE INSTALLATION ............5 2-1 E QUIPMENT EQUIREMENT ........................5 2-2 H ARDWARE NSTALLATION .........................5 SECTION 3 INSTALLING & CONFIGURING WAP11 V2.2 ....6 3-1 I WAP11 V2.2 NSTALLING ONFIGURING .................6 3-1-1 Setup ..................................6 3-1-2 Advanced Setup............................... 11 APPENDIX A SPECIFICATIONS ..................13... -
Page 4: Section 1 About Wap11 V2.2

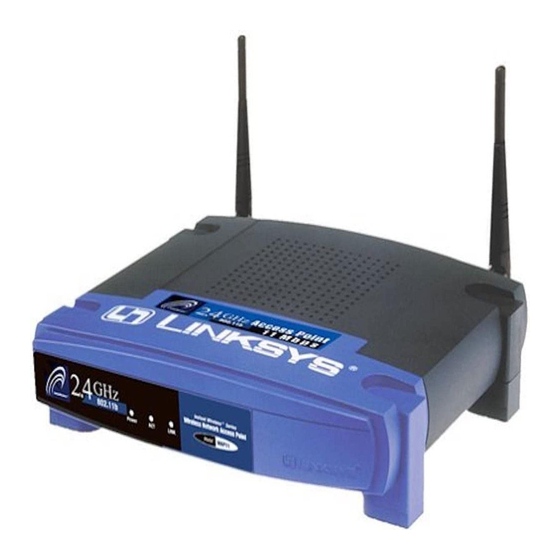

The 22 Mbps WAP11 V2.2 is a long-range, high performance and high powered LAN product, which provides WAP11 V2.2 services to a 2,4 GHz RF network and bridges to an Ethernet backbone. The design of this product is based on Taxes Instrument’s ACX100 chip, a highly integrated ASIC designed to combine legacy LANs with wireless LANs. -
Page 5: Product Kit
1-4 Product Kit WAP11 V2.2… … … … … … … … … … … … … … … … … … … … … … … .x 1 Ethernet Cable (UTP Straight cable)… … … … … … … … … … … … x 2 A/C Power Adapter…... -
Page 6: Section 2 Hardware Installation
1. Site Selection Choose a proper location for your WAP11 v2.2. In general, the best location to place your WAP11 v2.2 is the center of your wireless coverage, with line of sight to all your mobile stations. 2. Adjust the direction of the Antenna Adjust the direction of the antenna placement to improve the WAP11 v2.2’... -
Page 7: Section 3 Installing & Configuring Wap11 V2.2
LAN port then start your web browser and type http://192.168.1.1 the address box. This number is the default IP address of your WAP11 V2.2. A user name and password prompt will appear. Type in “admin” as user name and “admin” as the password. - Page 8 On the Setup page, you are able to find: Ø The current firmware version and dates. Ø LAN IP Address Ø Wireless setting You may “Enable” or “Disable” wireless services, if you choose to enable it, please setup your “ESSID” and “Channel” numbers. You may also disable the WEP or change it to “Mandatory” by clicking “WEP Key Setting”.
- Page 9 WEP Encryption key can be generated in one of two ways: 1. You can create an encryption key by using a Passphrase. To generate the encryption key using a passphrase, enter a text string in the Passphrase box and press the Generte button. The passphrase can be any text string with a maximum of 31 alphanumeric characters.
- Page 10 When you click on “backup” it will prompt you a location to save the “config.bin”file. When you try to restore the settings you have saved, click “Browse” to locate the file and perform the restore procedure. You may enable or disable the logging and send the log to different location within your network.
- Page 11 Help From the help page, you may find various help files to help you setup or upgrade your firmware for your access point. For Firmware upgrade, click “Browse” and locate the file, click “Send” to perform the upgrade.
-
Page 12: Advanced Setup
Advanced Setup On this page, you will find the Firmware version plus following settings: Beacon Interval – By default, it is set to 100mps. RTS Threshold – By default, it is set to 2432. The value should remain on its default setting 2432 bytes. If you encounter any date flow, only minor modifications are recommended. - Page 13 This concludes the user guide for Linksys WAP11 V2.2.
-
Page 14: Appendix A Specifications
Appendix A Specifications WAP11 V2.2 Wired Interface Ethernet, 10/100 BaseT Wireless Interface IEEE 802.11b standard Wireless LAN Frequency Band 2. 412~2.462 GHz (FCC, Canada) 2.412~2.472 GHz (ETSI) 2.412~2.472 GHz (Japan STD-T66) 2.484 GHz (Japan STD-33) (Customized) RF Technology Spread Spectrum Direct Sequence... -
Page 15: Appendix B Glossary
Bridge ─ An internetworking function that incorporates the lowest 2 layers of the OSI network protocol model. BSS ─ BSS stands for “Basic Service Set”. It is an WAP11 V2.2 and all the LAN PCs that associated with it. Channel ─ The AP and the with it associated stations will work in this channel. You must set the channel by consulting Appendix B from violating the Specifications. - Page 16 address and set the Subnet Mask of the AP to 255.255.255.0. Ethernet Mac Address ─ Don’t change it, as this will disable the AP. Infrastructure ─ An integrated wireless and wired LAN is called an Infrastructure configuration. PLCP ─ physical layer convergence protocol PPDU ─...
