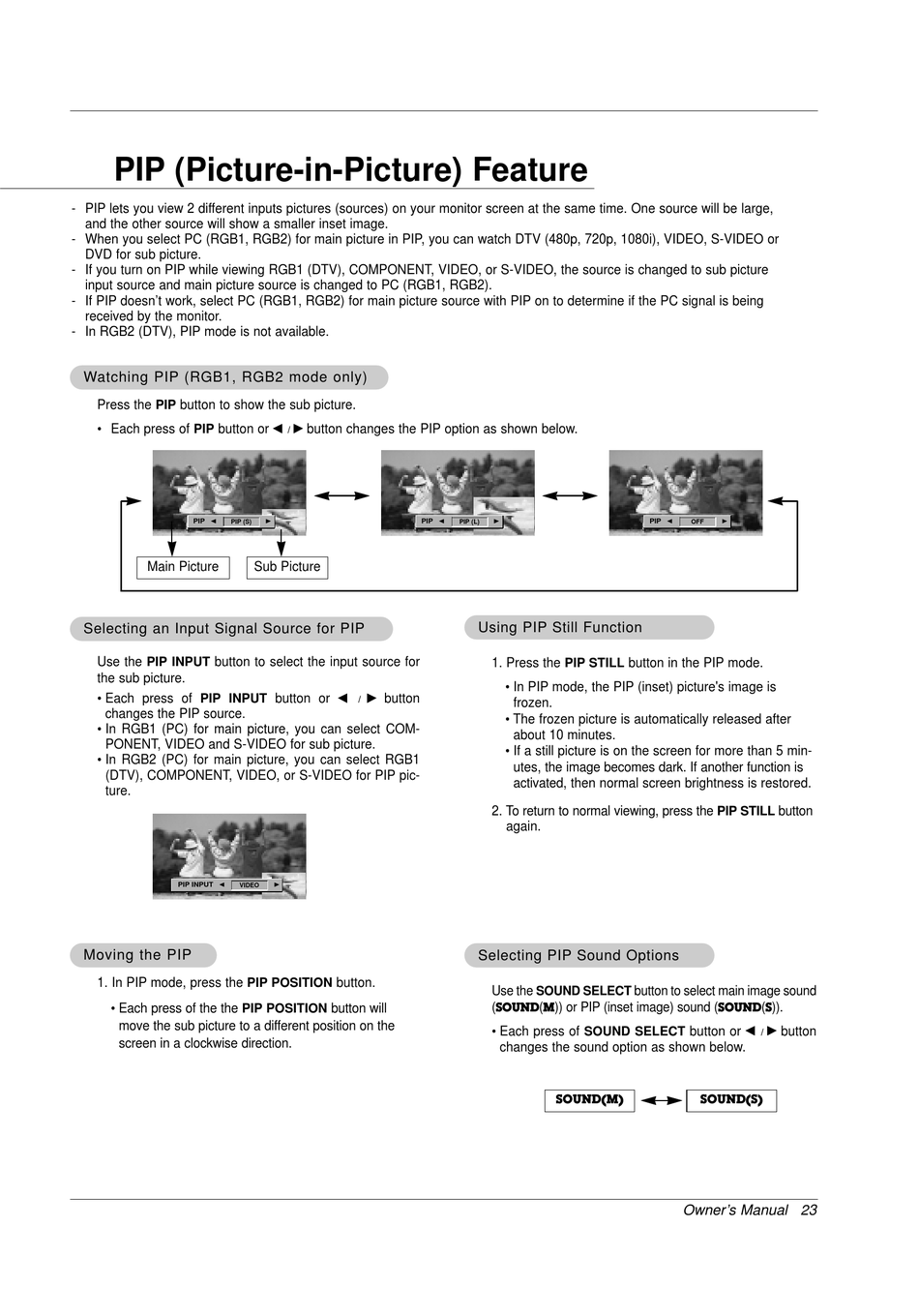

PIP (Picture-in-Picture) Feature

- PIP lets you view 2 different inputs pictures (sources) on your monitor screen at the same time. One source will be large,
and the other source will show a smaller inset image.
- When you select PC (RGB1, RGB2) for main picture in PIP, you can watch DTV (480p, 720p, 1080i), VIDEO, S-VIDEO or
DVD for sub picture.
- If you turn on PIP while viewing RGB1 (DTV), COMPONENT, VIDEO, or S-VIDEO, the source is changed to sub picture
input source and main picture source is changed to PC (RGB1, RGB2).
- If PIP doesn't work, select PC (RGB1, RGB2) for main picture source with PIP on to determine if the PC signal is being
received by the monitor.
- In RGB2 (DTV), PIP mode is not available.
W atching PIP (RGB1, RGB2 mode only)
W atching PIP (RGB1, RGB2 mode only)
Press the PIP button to show the sub picture.
• Each press of PIP button or
PIP F
PIP (S)
Main Picture

Selecting an Input Signal Source for PIP

Selecting an Input Signal Source for PIP
Use the PIP INPUT button to select the input source for
the sub picture.
• Each press of PIP INPUT button or
changes the PIP source.
• In RGB1 (PC) for main picture, you can select COM-
PONENT, VIDEO and S-VIDEO for sub picture.
• In RGB2 (PC) for main picture, you can select RGB1
(DTV), COMPONENT, VIDEO, or S-VIDEO for PIP pic-
ture.
PIP INPUT F
VIDEO

Moving the PIP

Moving the PIP
1. In PIP mode, press the PIP POSITION button.
• Each press of the the PIP POSITION button will
move the sub picture to a different position on the
screen in a clockwise direction.
F / G
button changes the PIP option as shown below.
G PIP
Sub Picture
F / G
button
G
F G
PIP (L)
Using PIP Still Function
Using PIP Still Function
1. Press the PIP STILL button in the PIP mode.
• In PIP mode, the PIP (inset) picture's image is
frozen.
• The frozen picture is automatically released after
about 10 minutes.
• If a still picture is on the screen for more than 5 min-
utes, the image becomes dark. If another function is
activated, then normal screen brightness is restored.
2. To return to normal viewing, press the PIP STILL button
again.
Selecting PIP Sound Options
Selecting PIP Sound Options
Use the SOUND SELECT button to select main image sound
( SOUND ( M )) or PIP (inset image) sound (
• Each press of SOUND SELECT button or
changes the sound option as shown below.
SOUND(M)
PIP F G
OFF
SOUND ( S )).
F / G
button
SOUND(S)
Owner's Manual 23
