- Page 1 Packet Power™ Ethernet Gateway Version 3 Users Manual Version 1.1...
- Page 2 Installation and maintenance must be performed by qualified personnel. Follow basic safety precautions to reduce the risk of electrical shock and damage Packet Power, LLC to equipment. 233 Park Avenue, Suite 203 ...
- Page 3 Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this product not expressly approved by Packet Power LLC might cause harmful interference and void the FCC authorization to operate this product.
-
Page 4: Introduction To The Gateway

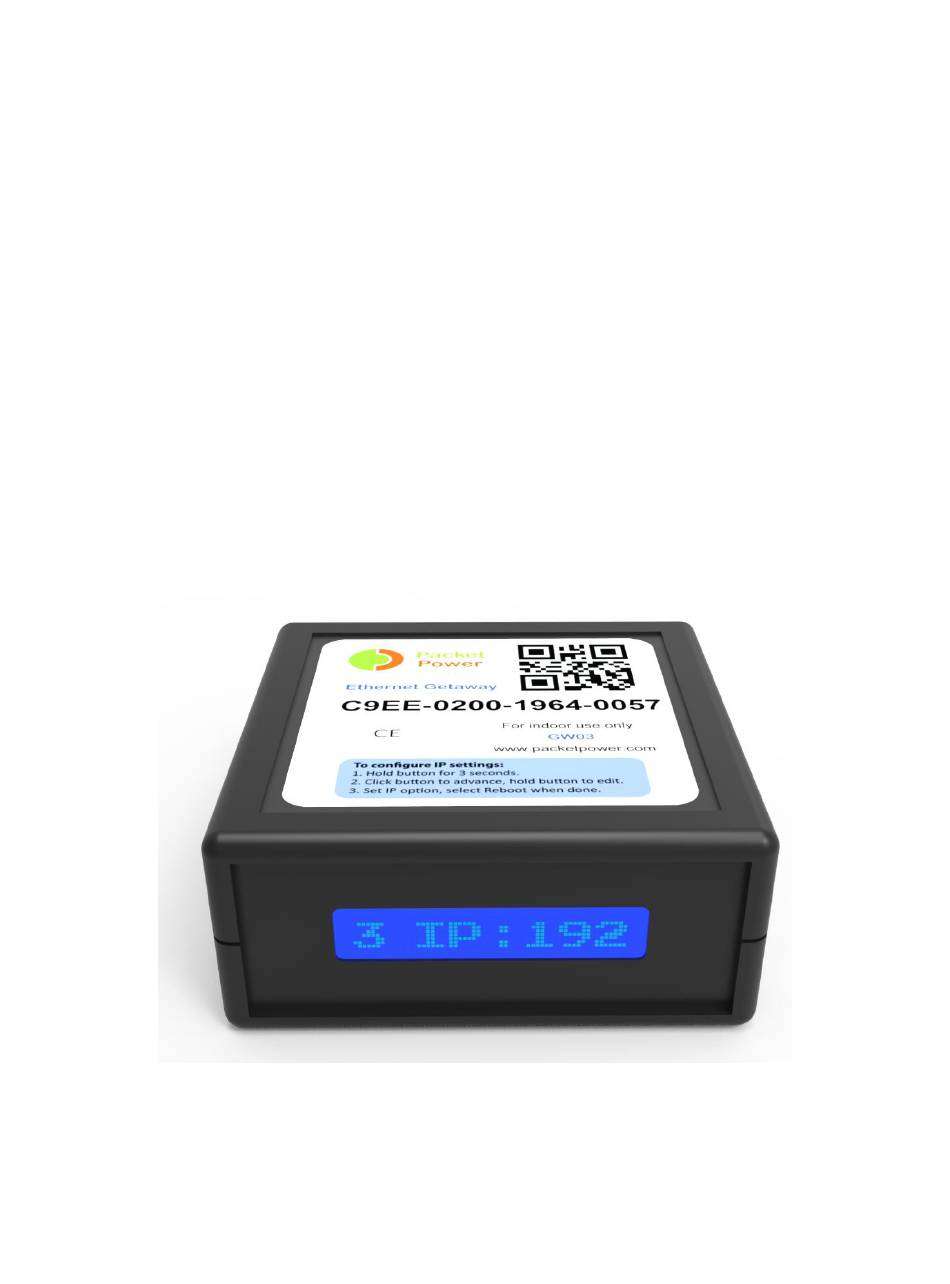

Packet Power™ Ethernet Gateway Version 3 Product Manual Overview The Ethernet Gateway version 3 is the central Gateway by which all Packet Power monitoring nodes (environmental and power) communicate. This guide is intended to provide a high level overview of how to commission a Gateway module. Refer to the support section of www.packetpower.com... -
Page 5: Device Setup
Packet Power™ Ethernet Gateway Version 3 Product Manual Device Setup Connect the Gateway to a router (using a standard network cable) with network access using the Ethernet port on the back of the Gateway. Connect the power supply provided or any 5 VDC source to the DC input of the Gateway. -
Page 6: Menu Access And Navigation
Packet Power™ Ethernet Gateway Version 3 Product Manual Menu Access and Navigation To access the menu for the Gateway, press and hold the selector button on the back of the device for three seconds. To navigate the menu, use short clicks of the selection button; to change a setting or advance into a menu item press and hold the button. - Page 7 Packet Power™ Ethernet Gateway Version 3 Product Manual To properly configure the IP address, the Gateway, Netmask and DNS server address must also be entered. To change these parameters use the same menu navigation style as described above. After the DNS Server address is set you will need to reboot to have implement your changes.
- Page 8 Packet Power™ Ethernet Gateway Version 3 Product Manual Gateway Placement and Mounting Bracket The Gateway mounting bracket is designed to allow optimal placement of Gateway and Environmental Monitor modules away from metallic surfaces and optimize signal strength. It can be secured to mounting structures using bolts, screws or adhesive tabs provided.
-
Page 9: Device Placement
Never inside of a metal structure (exterior of the rack) Ideally with-in 30-100 feet of another Packet Power device (gateway or monitoring module) 2-4” (5-10 cm) away from a large metallic surface or mounted on a non-metallic platform (use the mounting bracket for optimal placement ... -
Page 10: Specifications
Packet Power™ Ethernet Gateway Version 3 Product Manual Specifications Copyright 2014 © Packet Power, LLC. - Page 11 Packet Power™ Ethernet Gateway Version 3 Product Manual Copyright 2014 © Packet Power, LLC.
