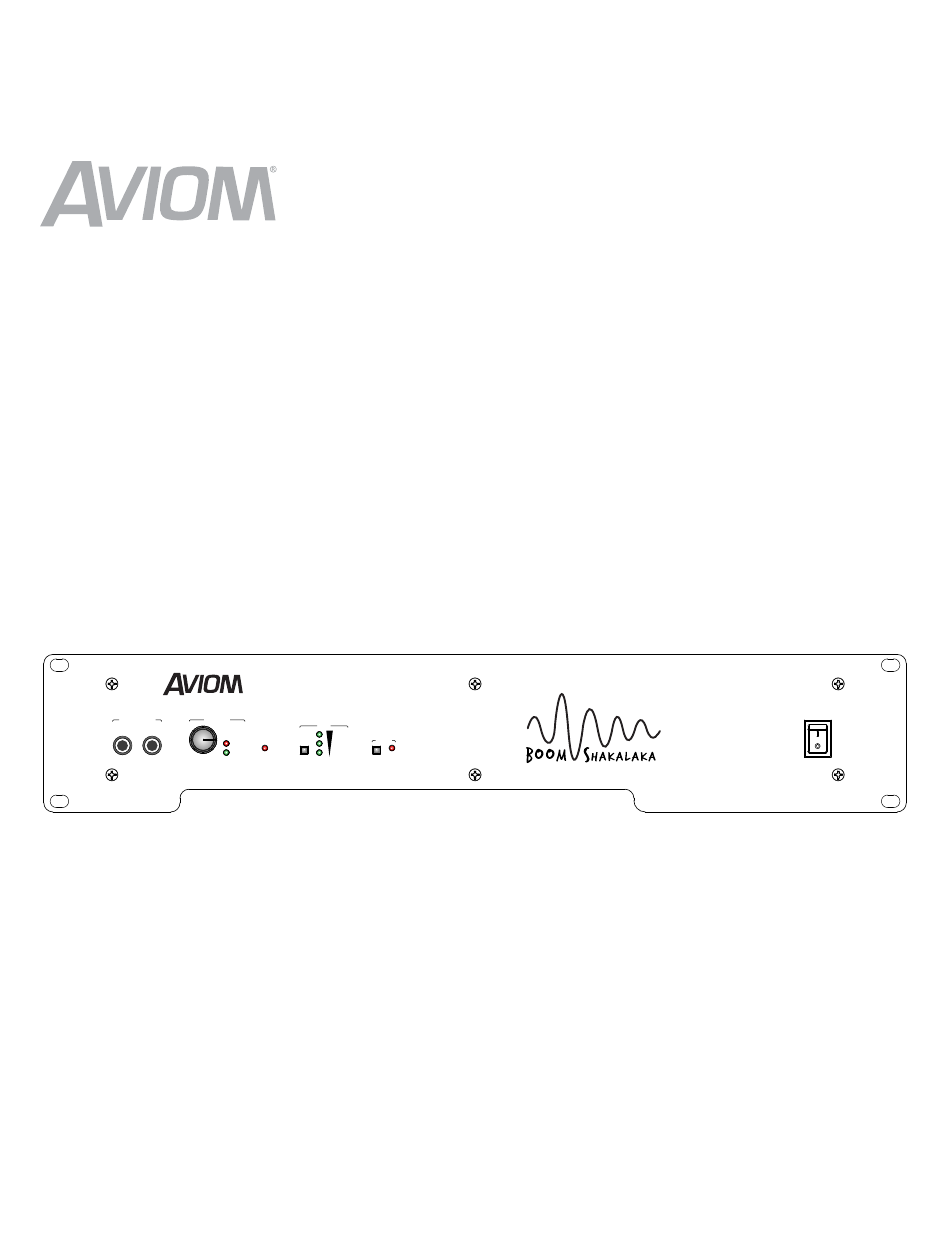

- Page 1 BOOM-1 Tactile Transducer Processor Headphones Strength Feel Thru Loose Mute Clip Signal Tight Clip/Protect BOOM-1 Tactile Transducer Processor User Guide 9310-1034-0001F v1.0 © 2018 Aviom, Inc.
-
Page 2: Important Safety Instructions
15. No on/off power switches are included in the system. The external power supply should be used to control power to an Aviom device. This power supply should remain readily operable. 16. The solid line over dashed line symbol ( ) indicates that the input voltage must be a DC voltage. - Page 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC authority to operate the equipment. CAUTION: •...
-
Page 4: Certifications
Trademarks Aviom, A-Net, the A-Net icon, Pro16, Pro16e, Pro64, Virtual Data Cables, m-control, One-Touch Ambience, Dual Profile Channel, Network MixBack, and AllFrame are trademarks of Aviom, Inc. All other trademarks are the property of their respective owners. ©2018 Aviom, Inc. All rights reserved. -
Page 5: Aviom, Inc. Limited Warranty
Quality Assurance label has been damaged, modified, or removed. If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service will be performed on any product returned without prior authorization. Aviom, Inc. will, at its option, repair or replace the product at no charge to you. -
Page 6: Warranty Information
Authorized Aviom Repair Station, check the Aviom web site at www.aviom.com. To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom warranty is void. -
Page 7: Table Of Contents
Certifications ....... iv Aviom, Inc. Limited Warranty ..... . . v Warranty Information . - Page 8 Specifications ..... . . 25 BOOM-1 Tactile Transducer Processor ........25 Specifications .
-
Page 9: Boom-1 Tactile Transducer Processor
Clip/Protect Feature Overview The BOOM-1 Tactile Transducer Processor is the perfect companion to Aviom’s Pro16® Series of personal mixing products It is designed to add low frequency tactile information to a performer’s monitor mix for applications in live performance, recording, and broadcast. Designed by the personal monitor experts, it’s easy to use and provides a natural low-frequency extension to your monitoring environment. -
Page 10: The Boom System
A-Net digital signal and split it into multiple copies so that personal mixers may be connected in parallel. Button Presses When instructed to press a specific button on the BOOM-1 Tactile Transducer Processor a special font style is used. For example, “Press the M button.”... -
Page 11: Package Contents
A-16II Personal Mixer AC Line Conditioning Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line voltage. Changes in the line voltage from lightning, power outages, etc. can sometimes damage electronic equipment. - Page 12 Then use the dampened cloth to clean the product. Never use solvents or abrasive cleaners on the finished surfaces of your Aviom products. BOOM-1 T acTile ransducer...
-
Page 13: Boom-1 Front Panel
BOOM-1 Front Panel The following section covers the basic functions of the BOOM-1 Tactile Transducer Processor’s user interface. See “System Setup” on page 15 for information about adding the BOOM-1 to your personal mixing system Controls and Switches BOOM-1 Tactile Transducer Processor... -
Page 14: Stereo Headphone In And Thru
This provides an easy way eadpHone to feed your personal mixer’s stereo mix to the BOOM-1 digital signal processor while retaining the use of its unprocessed stereo output for your headphones or earbuds. The Headphone In and Thru are duplicated on the BOOM-1’s front and rear panel for convenience sake. -
Page 15: Strength Control
C LED to light steadily should be avoided as this indicates that the source audio is clipping the BOOM-1 DSP processor input. Lower the audio level at its source to avoid clipping. Headphones Strength... -
Page 16: Feel Control
Feel Control The BOOM-1 Tactile Transducer Processor offers three distinct options that allow you to tailor the response of the unit’s DSP processing to the incoming audio and allow you to choose the most musical setting based on your own tastes. The easy-to-use F... -
Page 17: Mute Switch
Medium to Loose and then back down to Medium and finally to Tight. The BOOM-1 unit’s current Feel setting is retained across power cycles. The Feel control also interacts with the rear panel’s DSP Profile setting that is used to fine-tune the BOOM-1 performance for the specific tactile transducer and mounting method being used. -
Page 18: Boom-1 Rear Panel
BOOM-1 Rear Panel This section outlines the basic functions of the BOOM-1 Tactile Transducer Processor’s connections and interface found on its rear panel. See “System Setup” on page 15 for information about adding the BOOM-1 to your personal mixing system Connectors and Switches ... -
Page 19: Power Connections
Power Connections The BOOM-1 has a switching power supply that allows the unit to be used with AC power service anywhere in the world. The AC power inlet uses a standard, detachable IEC power connector. Always use the IEC power connector with the plug designed for your local power service; avoid using adapters. -
Page 20: Line-Level Output
Line-Level Output The BOOM-1 provides a mono, balanced XLR line-level audio output which makes it easy to connect the unit’s processed audio signal to an external amplifier. The L is useful when you want to use an array of tactile transducers in a large area such as a stage floor, powered by one or more external amplifiers. -
Page 21: Transducer System Select
BOOM-1 output to be fine tuned to suit the specific type and model of tactile device as well as the mounting method that you are using. Drum thrones, keyboard seats, platforms, performance stools, etc., all have natural resonant frequencies that can enhance and/or detract from the response of a given tactile transducer device connected to it. -
Page 22: Polarity
Polarity Changing the polarity of the audio from BOOM-1 can be useful when you need to compensate for the orientation of a tactile transducer mounted on a platform, stool, etc. Use the p DIP switch in the up oLarIty position to invert the polarity of the processed audio signal sent to both the Transducer Out and Line Out. -
Page 23: System Setup
The BOOM-1 Tactile Transducer Processor brings Aviom-optimized DSP to the tactile experience. -
Page 24: Ctt-1
BOOM System Products Aviom makes adding tactile transducers to your monitoring system as easy as possible by providing a set of products that are designed to be plug-and-play simple. We’ve partnered with some of the industry’s leading manufacturers to offer tactile-enhanced versions of their products that can be directly connected to the BOOM-1 Tactile Transducer Processor. -
Page 25: Connecting A Headphone Output
BOOM-1 along with a drum throne-mounted transducer such as Aviom’s CTT-1 helps return some of the low frequency energy that may have been lost when switching from an acoustic to an electronic drum kit. - Page 26 The personal mixer headphone out connects to the BOOM-1 Headphone In with a TRS cable. Use the M switch on the front panel of the BOOM-1 to easily compare the mix with and without the tactile transducer. BOOM-1 T acTile...
-
Page 27: Connecting A Line-Level Source
This system example uses a device with a dedicated mono line-level audio output such as a mixing console’s Aux send or the Aviom A360 Personal Mixer’s Mono Mix Out connected to the BOOM-1’s line- level input on the rear panel. If your mono line-level audio source has a balanced TRS 1/4-inch connector, use a TRS-to-XLR male adapter cable. -
Page 28: Transducer Response
Do not connect a balanced line-level mono audio signal to the 1/4-inch headphone inputs. Transducer Response To fine tune the drum-throne-mounted transducer’s response, use the Transducer System Select DIP switches on the BOOM-1 rear panel. See “Transducer System Select” on page 13 for more info. BOOM-1 T acTile... -
Page 29: Connecting A Performance Platform
If the performance platform being used contains multiple transducers, be sure that the total impedance for the platform is in the 4-8 Ohm range to avoid damage to the BOOM-1 internal amplifier. Connecting a Performance Platform This example uses a personal mixer with a stereo headphone audio output such as an Aviom A320 Personal Mixer. - Page 30 Try the three Feel presets on the BOOM-1 front panel; choose the one that works best for your musical application. An A320 Personal Mixer feeds its headphone mix to a BOOM-1 and a PLF-1 platform.
- Page 31 Example 2 This example uses an audio device or personal mixer with a mono line-level audio output such as an Aviom A360 Personal Mixer. The following items will be used: • Personal mixer • XLR mic cable • BOOM-1 Tactile Transducer Processor •...
- Page 32 1. Set up the performance platform and its tactile transducer(s) according to the manufacturer’s instructions. 2. If you are using the Aviom PLF-1, set the Transducer System Select DIP switches on the BOOM-1 rear panel for th PLF-1. See “Transducer System Select” on page 13 for more info.
-
Page 33: Specifications
Specifications BOOM-1 Tactile Transducer Processor Headphone In 1/4” TRS stereo (front & rear) Tip: Audio Left; Ring: Audio Right; Sleeve: Ground Headphone Thru 1/4” TRS stereo; (front & rear) Tip: Audio Left; Ring: Audio Right; Sleeve: Ground XLR female, with Volume control;... -
Page 34: Specifications
Frame Width 15.7”, 40 cm Frame Depth 18.5”, 47 cm Weight Capacity 242.5 lbs, 110 kg Dimensions, shipping 50 x 9 x 18 inches, 450 x 215 x 125 mm Weight 38 lbs, 17.24 kg BOOM-1 T acTile ransducer rOcessOr uide... -
Page 35: Plf-1 Performance Platform
Depth 12.5”, 31.75 cm Seat Thickness 2.5”, 63.5 mm Weight Capacity 360 lbs, 163.3 kg Dimensions, shipping 29 x 11 x 17 inches, 74 x 28 x 43.2 mm Weight 24 lbs, 10.88 kg BOOM-1 T acTile ransducer rOcessOr uide... -
Page 36: Dimensions
(c) Copyright 20 All Rights DRAWN BY: T. CO ENGINEER: T. CO 8.62 7.39 2.64 WEIGHT - 6 LBS BOOM-1 T acTile ransducer rOcessOr uide UNLESS OTHERWISE SPECIFIED 1157 Phoenixville Pike, Suite 201 DIMENSIONS ARE IN INCHES AND West Chester, PA 19380 USA... - Page 37 Connecting a Performance Platform 21 Connectors and Switches 10 Cool waveform 5 IEC 10, 11 CTT-1 Clamp-On Tactile Transducer 2, 16 Impedance 11, 21, 25 CTT-1 Clamp-On Transducer 13, 17, 19, 26 Input 14 BOOM-1 T acTile ransducer rOcessOr uide...
- Page 38 Unbalanced 6 Platform System 21 UPS 3 PLF-1 Performance Platform 27 PLF-1 Platform 2, 13, 16 Polarity 14 Power Supply 11, 25 Pro16 1 Volume control 10 Profile 12 Line-Level 12 Protect LED 7 BOOM-1 T acTile ransducer rOcessOr uide...
- Page 39 Warranty Registration 3 Weight 25, 26, 27 XLR 6, 9, 10, 12, 14, 17, 19, 25 XLR Line Out 9, 12 XLR mic cable 19, 23 BOOM-1 T acTile ransducer rOcessOr uide...
-
Page 40: Warranty Registration
Warranty Registration Please take a moment to fill in this warranty registration form. Return it to Aviom via mail or fax. All information will be kept confidential. Model Product Serial Number Model Product Serial Number Model Product Serial Number Model... - Page 41 1157 Phoenixville Pike, Suite 201 • West Chester, PA 19380 USA Voice: +1 610.738.9005 • Fax: +1 610.738.9950 • www.Aviom.com...
