Simplicity 1693920 Parts Manual

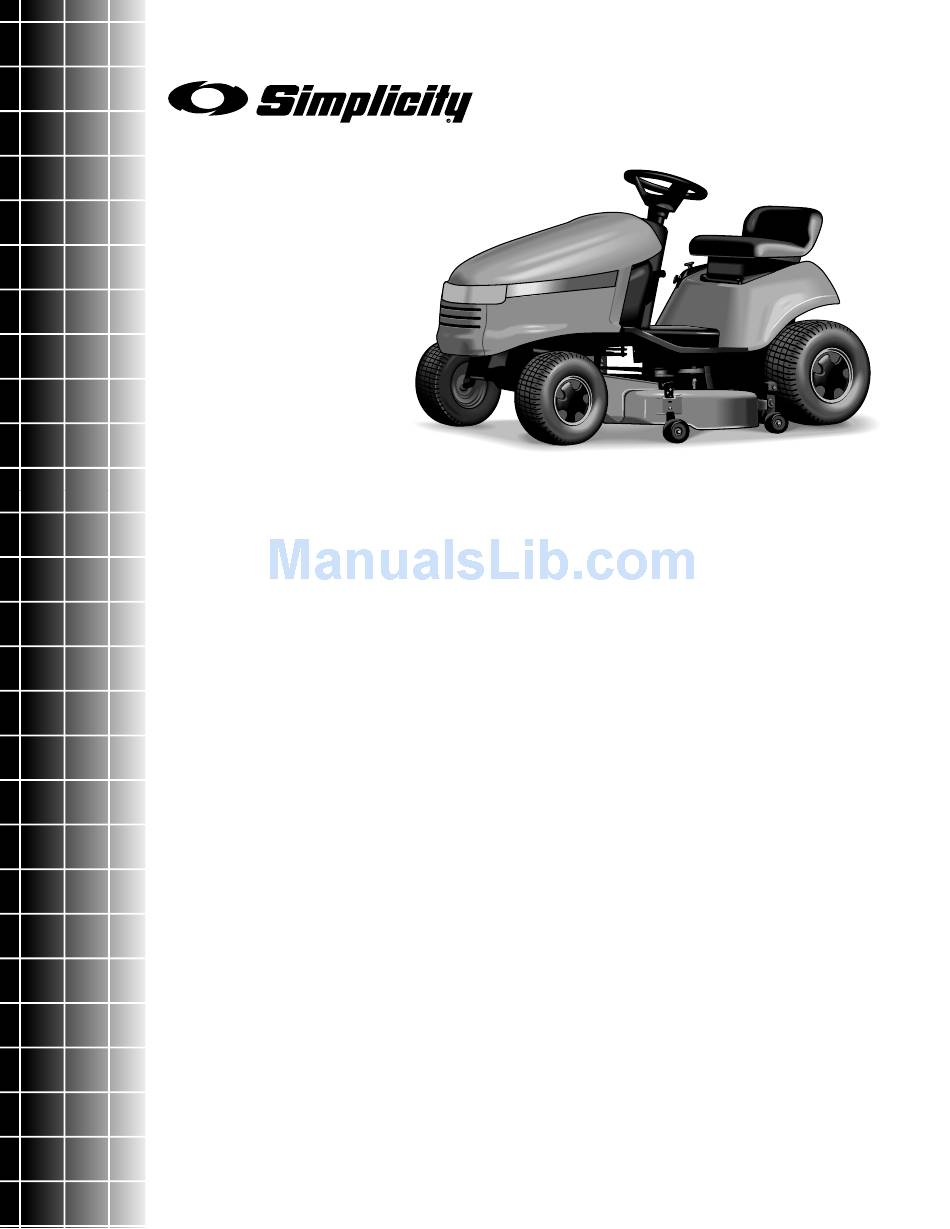

Regent series lawn tractors & mower decksparts manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Series Lawn Tractors & Mower Decks
15HP Tractors
Mfg. No.
Description
1694310
Regent, 15HP Hydro (CE)
1694314
Regent, 15HP Hydro
Mower Decks
Mfg. No.
Description
1693920
38" Mower Deck
1693930
38" Mower Deck (CE)

Parts Manual

Regent
04/2003
Rev.
TP 400-3829-00-RG-S

Advertisement

Table of Contents
loading

Related Manuals for Simplicity 1693920

Summary of Contents for Simplicity 1693920

  • Page 1: Parts Manual

    Series Lawn Tractors & Mower Decks 15HP Tractors Mfg. No. Description 1694310 Regent, 15HP Hydro (CE) 1694314 Regent, 15HP Hydro Mower Decks Mfg. No. Description 1693920 38" Mower Deck 1693930 38" Mower Deck (CE) Parts Manual Regent 04/2003 Rev. TP 400-3829-00-RG-S...

  • Page 3: Table Of Contents

    TRACTOR / MOWER DECK COMPONENTS Frame Group ... Steering Group ... Engine Group - 15HP Briggs & Stratton ... Engine Group - 15HP Briggs & Stratton ... 10 Transmission Group ... 14 Transmission SERVICE PARTS - Tuff Torq K51 Transaxle Group ... 18 Controls Group ...

  • Page 4: Frame Group

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Insert Must Face Out 986202 TP 400-3829-00-RG-S...
  • Page 5 1960614 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION FRAME ASSEMBLY PLUG, Hole PAD, Footrest RH PAD, Footrest LH FASTENER, Panel NUT, Speed 5/16-18 "J"...

  • Page 6: Steering Group

    The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 17 ft/lbs (23) Nm Torque to 28-36 ft/lbs (35-48) Nm...
  • Page 7 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION STEERING WHEEL CAP, Steering Wheel TUBE, Cover PIN, Spring SHAFT & PINION ASSEMBLY...

  • Page 8: Engine Group - 15Hp Briggs & Stratton

    The above parts group applies to the following Mfg. Nos.: 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 19-23 ft/lbs (26-31) Nm Torque to 19-23 ft/lbs (26-31) Nm...
  • Page 9 See your local Briggs & Stratton distributor for parts. The above parts group applies to the following Mfg. Nos.: 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION VALVE-SHUT OFF LOCKWASHER, External Tooth 3/8 NUT, Hex 3/8-16...

  • Page 10: Engine Group - 15Hp Briggs & Stratton

    The above parts group applies to the following Mfg. Nos.: 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 19-23 ft/lbs (26-31) Nm Torque to 19-23 ft/lbs (26-31) Nm...
  • Page 11 * See your local Briggs & Stratton distributor for parts. The above parts group applies to the following Mfg. Nos.: 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION VALVE-SHUT OFF LOCKWASHER, External Tooth 3/8 NUT, Hex 3/8-16...
  • Page 12 The above parts group applies to the following Mfg. Nos.: 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 19-23 ft/lbs (26-31) Nm Torque to 19-23 ft/lbs (26-31) Nm...
  • Page 13 * See your local Briggs & Stratton distributor for parts. The above parts group applies to the following Mfg. Nos.: 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION CAPSCREW, 5/16-18 x 3/4, G8 PIPE, Exhaust GASKET CABLE, Choke, 16"...

  • Page 14: Transmission Group

    Orientation of Key The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. See Wheels & Tires in Miscellaneous Group(s) 23 23 TP 400-3829-00-RG-S 986200...
  • Page 15 Footnotes The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION TRANSMISSION ASSEMBLY KNOB, Plastic, Gear Shift ROD, Shift PIN, Cotter, 3/32 x 1...
  • Page 16 Orientation of Key The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. See Wheels & Tires in Miscellaneous Group(s) 23 23 TP 400-3829-00-RG-S 986200...
  • Page 17 The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION CAPSCREW, Hex Head, M10-1 1/2 x 25MM NUT, Hex Flange Lock, 5/16-18 NUT, Hex Flange Whiz-Lock, 5/16-18...

  • Page 18: Transmission Service Parts - Tuff Torq K51 Transaxle Group

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. 18 17 57 56 TP 400-3829-00-RG-S 1724414...
  • Page 19 1718061 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION LOWER HOUSING UPPER HOUSING CMP. VENT VALVE FILTER SPRING, Filter SEALING CAP...
  • Page 20 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. 18 17 57 56 TP 400-3829-00-RG-S 1724414...
  • Page 21 1707789 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION SWASH PLATE CMP. THRUST PLATE B BEARING THRUST PLATE A KNOCK PIN WASHER CYLINDER BLOCK CMP.

  • Page 22: Controls Group

    34 29 The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Connects to notch in top of frame 986272 Part of Carrier TP 400-3829-00-RG-S...
  • Page 23 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION PAD, Brake FOOT PEDAL ASSEMBLY PIN, Cotter, 1/8 x 3/4 WASHER, Plain, 5/16...

  • Page 24: Electrical Group

    Solenoid Charging Starter Circuit The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Starter Switch From Battery Fuel Shutoff Negative Magneto Engine GND 19 21...
  • Page 25 Footnotes The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION WIRE ASSEMBLY TUBE, Shrink PLATE, Neutral Switch SWITCH, Neutral Safety LOCKWASHER, Spring, 1/8...
  • Page 26 Solenoid Charging Starter Circuit The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Starter Switch From Battery Fuel Shutoff Negative Magneto Engine GND 19 21...
  • Page 27 172434 Footnotes The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION NUT, Hex Flange, Whiz Lock, 1/4-20 COVER, Terminal CLIP, Tinnerman TP 400-3829-00-RG-S...

  • Page 28: Hood, Dash & Fuel Tank Group

    The above parts group applies to the following Mfg. Nos.: 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Panel, Left Side Panel, Right Side 12 12 TP 400-3829-00-RG-S 986034...
  • Page 29 1719483 41719483 1723127 Footnotes The above parts group applies to the following Mfg. Nos.: 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION ELBOW BUSHING TANK CAP, Fuel Tank STRAP FASTENER, Panel NUT, Hex Lock, 5/16-18 WASHER, 1/4 (2 used for Hood, A/R for Bulkhead) BULKHEAD &...

  • Page 30: Hood, Dash & Fuel Tank Group

    The above parts group applies to the following Mfg. Nos.: 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Panel, Left Side Panel, Right Side 12 12 TP 400-3829-00-RG-S 986175...
  • Page 31 1960295 1719483 1723127 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION ELBOW BUSHING TANK, Fuel CAP, Fuel Tank STRAP FASTENER, Panel NUT, Hex Lock, 5/16-18 WASHER, 1/4 (2 used for Hood, A/R for Bulkhead) BULKHEAD &...

  • Page 32: Seat & Seat Deck Group

    8 1 3 The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. 8 1 4 TP 400-3829-00-RG-S 986201...
  • Page 33 Footnotes The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION SEAT WASHER SWITCH, Seat CARRIAGE BOLT, 5/16-18 x 3/4 SCREW, Flat Head, 5/16-18 x 1-1/4...

  • Page 34: Wheels & Tires Group

    REAR WHEELS & TIRES FRONT WHEELS & TIRES The above parts group applies to the following Mfg. Nos.: 1694314 - Regent 1694310 - Regent TP 400-3829-00-RG-S © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 35 1694314 - Regent 1694310 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION KEY, 3/16 x 2 WHEEL & TIRE ASSEMBLY (Includes Ref. Nos. 3, 4, & 5) WHEEL & TIRE ASSEMBLY (Includes Ref. Nos. 3, 4, & 5) (CE) TIRE, 18 x 8.50, Turf Saver II Carlisle...

  • Page 36: Decals Group - Brand & Model

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. 2, 3 The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent TP 400-3829-00-RG-S © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 37 Footnotes The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION DECAL, Simplicity Icon DECAL, Simplicity Stripe RH DECAL, Simplicity Stripe LH DECAL, Simplicity DECAL, Touch Up Paint DECAL, Silver &...

  • Page 38: Decals Group - Safety & Common

    The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. 2, 3 C986215 THROTTLE Choke Fast DO NOT TOW TRACTOR!
  • Page 39 The above parts group applies to the following Mfg. Nos.: 1694310 - Regent 1694314 - Regent © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION DECAL, Belts & Mower Blades DECAL, Operating Instructions DECAL, Operating Instructions (CE) DECAL, Patent (Not Serviced)

  • Page 40: 38" Mower Deck - Belt, Idler Arm & Hitch

    The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Note: Item Ref. No. 9 must be assembled from inside of tractor as shown. Outside...
  • Page 41 The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION V-BELT WASHER, 3/8 NUT, Hex Head Flange Lock, 5/16 ACTUATOR & PAD ASSEMBLY...

  • Page 42: 38" Mower Deck - Height Adjustment & Roller Bar

    380 in Hole prior to assembling on rod 43 43 The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Insert Must Face Out TP 400-3829-00-RG-S 86068AA...
  • Page 43 The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4 BRACKET, Upstop CAPSCREW, Hex Head, 5/16-18 x 1-1/4...
  • Page 44 380 in Hole prior to assembling on rod 43 43 The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Insert Must Face Out TP 400-3829-00-RG-S 86068AA...
  • Page 45 1721620 1931352 Footnotes The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION E-RING, 1/2 ARM ASSEMBLY, Adjustable WASHER, Flat, 3/8 SPACER SPACER CAPSCREW, Hex Head, 3/8-16 x 2...

  • Page 46: 38" Mower Deck - Height Adjustment & Roller Bar Group

    43 38 The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Insert Must Face Out Lower hole for swing away roller TP 400-3829-00-RG-S...
  • Page 47 The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4 BRACKET, Upstop CAPSCREW, Hex Head, 5/16-18 x 1-1/4...

  • Page 48: 38" Mower Deck - Housing, Arbors & Blades

    27 14 Enhanced Deck & Quadrant The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 50-70 ft/lbs (68-95 Nm) 6 1 8 38 33...
  • Page 49 1713089 1656916 Footnotes The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION DEFLECTOR, Plastic NUT, Push On NUT, Hex ESNA Lock, 3/8-16 WASHER, 1/4 CLAMP...
  • Page 50 27 14 Enhanced Deck & Quadrant The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 50-70 ft/lbs (68-95 Nm) 6 1 8 38 33...
  • Page 51 Footnotes The above parts group applies to the following Mfg. Nos.: 1693920 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION CAPSCREW, Hex, Head, 7/16-14 x -1/4 BLADE, Mower, 22-1/4" CARRIAGE BOLT, 3/8-16 x 1 TP 400-3829-00-RG-S...

  • Page 52: 38" Mower Deck - Housing, Arbors & Blades

    25 25 39 39 Viewed From Bottom The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 45-55 ft/lbs (61-75 Nm) Export Only 17 17...
  • Page 53 1720388 Footnotes The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION NUT, Hex, Flange, 9/16-8 WASHER, Belleville PULLEY, LH, 4" OD NUT, Hex, 5/16-18 COVER, Arbor Housing...
  • Page 54 25 25 39 39 Viewed From Bottom The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Torque to 45-55 ft/lbs (61-75 Nm) Export Only 17 17...
  • Page 55 Footnotes The above parts group applies to the following Mfg. Nos.: 1693930 - 38" Mower © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. DESCRIPTION STOP, Belt, RH CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1 PLUG, Plastic COVER ASSEMBLY LH, Arbor (Export)

  • Page 57: Torque Specification Chart

    Hardware Identification & Torque Specifications Common Hardware Types Hex Head Capscrew Carriage Bolt Standard Hardware Sizing When a washer or nut is identified as 1/2”, this is the Nominal size , meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size , or body diameter is 1/2 inch;...
  • Page 58 MANUFACTURING, INC. 500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA www.simplicitymfg.com © Copyright 2003 Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.
