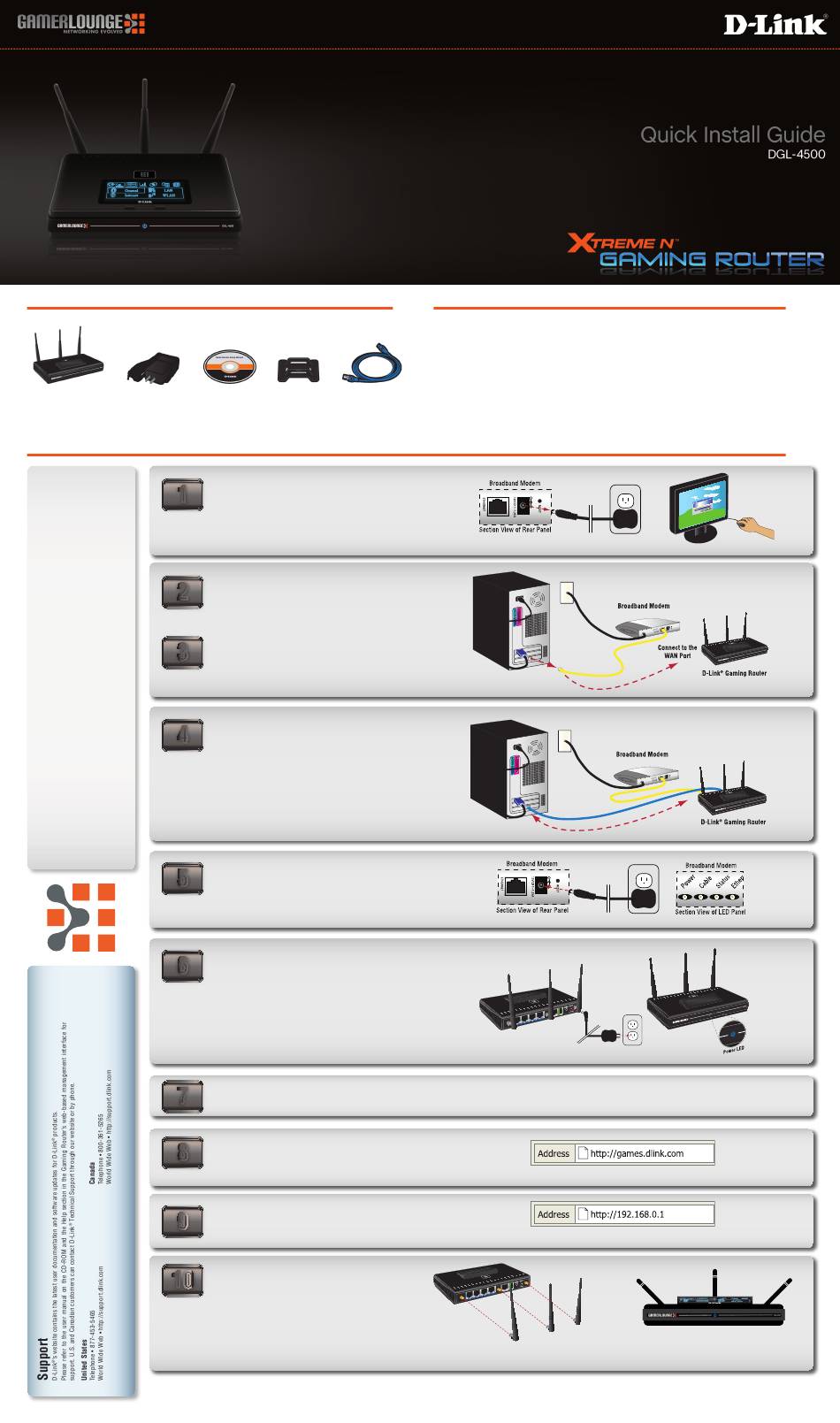

D-Link GamerLounge DGL-4500 Extreme-N User Manual

Remove Contents from the Box
DGL-4500 Gaming Power Adapter
Router (3 detachable
antennas included)

Hardware Installation

TCP/IP Settings
1
IP Address:
____.____.____.____
Subnet Mask:
____.____.____.____
2
Default Gateway:
____.____.____.____
3
Primary DNS:
____.____.____.____
Secondary DNS:
____.____.____.____
4

PPPoE Settings

Name:
__________________
Password:
__________________
5
6
7
8
9
10
CD-ROM Stand Ethernet Cable
(Includes manual
and Router Setup
Wizard)
Unplug the power from your broadband modem and
shut down your computer.
Disconnect the Ethernet cable connected from your
computer to your broadband modem. Leave the end
connected to your broadband modem attached.
Connect the end of the Ethernet cable removed from
your computer to the WAN port on the router.
Connect the provided Ethernet cable from a numbered
port on the router to your computer.
Plug the power back into your broadband modem and
wait for the broadband modem to sychronize to the
network (refer to the Modem manual for information
on this).
Plug the power adapter (provided with the router) into
the router, then connect the other end to a power outlet
and verify that the POWER LED on the router is on.
Note: If the Power LED is not lit, verify that the power
adapter is properly connected to the D-Link
Router and to a working power outlet.
Power on your computer.
Launch your web browser and type in a web address
such as http://games.dlink.com to verify that you have
an Internet connection.
If a web address is not accessible, enter http://192.168.0.1
in your web browser address bar. Once the main screen
appears, press the button labeled Internet Connection
Setup Wizard and proceed through the wizard.
Connect the antennas to the router. The large open
end of the antenna screws onto the threaded post on
the router.
© 2007 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. Version 1.0 August 17, 2007

Getting Started

The DGL-4500 includes a Quick Router Setup Wizard CD. Insert the CD to run the Setup Wizard
to guide you quickly through the installation process. If you would like to manually connect and
configure your router, follow the steps below.
• Please configure the router with the computer that was last connected directly to your modem.
• If you were using the USB connection before using the router, then you must turn off your modem,
disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and
then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE
software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be
able to connect to the Internet.
Gaming
®
For additional details on the Internet Connection Setup Wizard, please refer to the User Manual on the CD-ROM
Recommended Antenna Configuration
