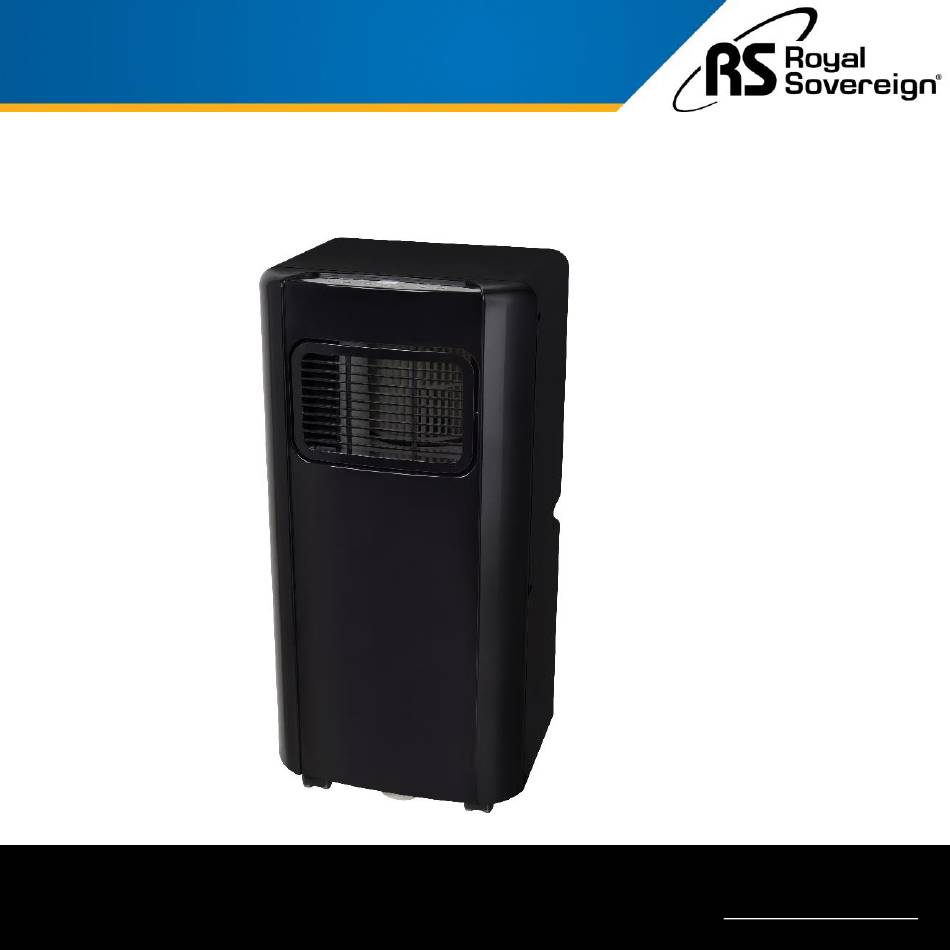

- Page 1 Owner’s Manual Portable Air Conditioner ARP-5008 ARP-5010 Please read and retain these instructions. Royal Sovereign International, Inc. To register your product, please go to www.royalsovereign.com...
-
Page 2: Table Of Contents
Thank you for purchasing the Royal Sovereign Portable Air Conditioner, ARP-5008 / ARP-5010. This manual will provide you with safety information, instructions for optimal use, and proper care and maintenance for your product. Please read this manual carefully before operating. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS When using this appliance follow these safety precautions to reduce risk of fire, electric shock, or injury. WARNING Electrical Safety For your safety, this appliance should be properly grounded on a level surface indoors. The appliance should be placed near an electrical outlet so that the outlet is easily accessible. Make sure the voltage meets the appliance’s electricity requirements (115V/60Hz, 15 amps or more). -
Page 4: Product View
PRODUCT VIEW Rear cover Air inlet Front cover Operation panel Castor wheels Power line Air inlet SPEED button TEMPERATURE + button MODE button TIMER button POWER button TEMPERATURE – button TEMPERATURE + button TEMPERATURE – button POWER button Signal Receiver Window Operation Mode button Fan Speed Adjustment button TIMER ON/OFF button... -
Page 5: Installation
Installation Part 1: Placement • Place the air conditioner on a flat surface and near a power supply outlet at least 12 in. (30 cm.) away from any wall or object that could block the airflow (See Fig.7). • Socket wiring should be in accordance with the local electric safety requirements. Part 2: Exhaust Hose Installation •... -
Page 6: Product Operation
PRODUCT OPERATION BEFORE PLUGGING IN THE UNIT TO A POWER SOURCE: Let the appliance stand upright for about 2 hours. This will reduce the chance of malfunction in the cooling system from possible mishandling during delivery. Check to make sure the rubber drain plugs are securely plugged into the drain ports on the back of the unit to prevent water leaks. - Page 7 PRODUCT OPERATION Temperature Settings: Celsius to Fahrenheit (or Fahrenheit to Celsius) • To change press temp + and temp - simultaneously. Cooling operation • Press the “Mode” button until the “Cool” icon appears. • Press the “Temp +” or “ Temp -” button to select a desired room temperature (60-90°F/16-31°C). •...
-
Page 8: Machine Maintenance
Machine Maintenance WARNING: Before maintenance, turn the power switch off and disconnect the power cord from the wall. Drainage The internal water tank in the air conditioner has one water level safety switch that controls water level. When the water level reaches an anticipated height, the water full indicator lamp lights up. NOTE: If water pump is damaged, drainage can be performed both manually and continuously. - Page 9 Machine Maintenance WARNING: Before maintenance, turn the power switch off and disconnect the power cord from the wall. If the unit will not be used for a long time: • Drain the air conditioner (See page 8). • After draining, keep the air conditioner running on FAN mode for at least 8 hours to dry the unit completely to prevent mold.
-
Page 10: Troubleshooting
• E0 Code Replace the room temperature sensor. Contact for repair. • E2 Code Empty the water tank NOTE: For all replacements and repairs that need to be made, contact Royal Sovereign Customer Service at +1) 800-397-1025... -
Page 11: Specifications
SPECIFICATIONS MODEL ARP-5008 ARP-5010 8,000 BTU ASHRAE 10,000 BTU ASHRAE Cooling Capacity 4,000 BTU DOE 5,000 BTU DOE Room Size (Sq. ft.) Up to 350 Up to 450 Voltage / Frequency 115V / 60 Hz 115V / 60 Hz Standard Cooling Input Power... -
Page 12: Warranty
ONE YEAR LIMITED WARRANTY Royal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only. This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided.
