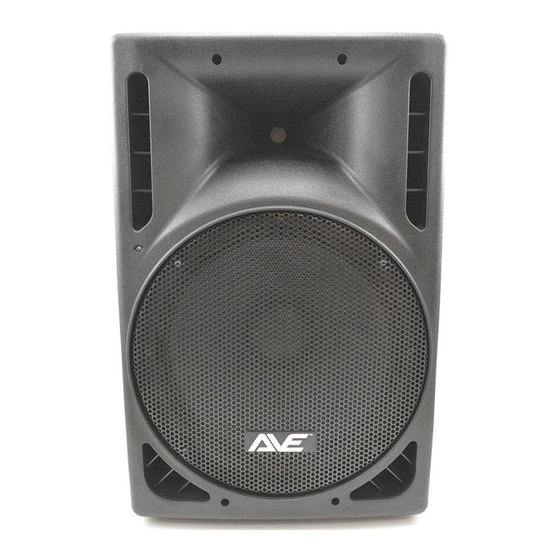

- Page 1 REVO15 DSP POWERED LOUDSPEAKER User Manual...
-
Page 3: Table Of Contents
T able of Contents Safety ..................4 Important Safety Instructions ............4 Precautions..................4 Suspension ..................5 Description ................6 ................Features ..............DSP Settings ..............Quick Start Guide Specifications................8... -
Page 4: Safety
Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS SPEAKER TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR AMPLIFIER COVER OR ATTEMPT TO OPEN THE SPEAKER. -
Page 5: Precautions
Precautions If an AVE Loudspeaker is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE speakers in environments that are below 0°C OR exceed +40°C. -
Page 6: Description
Monitor, DJ, and Vocal presets. The Revo15 uses the combination of a 15" Bass driver and 1.75" High frequency tweeter to reproduce a broad frequency response from 40Hz to 20,000Hz with a clean and punchy sound. -
Page 7: Dsp Settings
Designed for external EQ and DSP processors. Quick Start Guide To set up your AVE Revo15 DSP speaker up, follow the below steps; 1. Connect the AC power cord from a grounded mains 240v power source. 2. Connect the XLR line input, or mic input into the speaker. -
Page 8: Specifications
Specifications Type: Powered 2-Way Frequency Response: 40Hz – 20kHz Maximum SPL: 128dB 800W (peak) Power Rating: 350W (RMS) Amplifier: Class A/B & Class D Total Harmonic Distortion (THD): <0.5% (1kHz, -9dB) Signal to Noise (S/N): 90dB (A-Weighted) LF Driver: 15” Woofer HF Driver: 1.75”...
