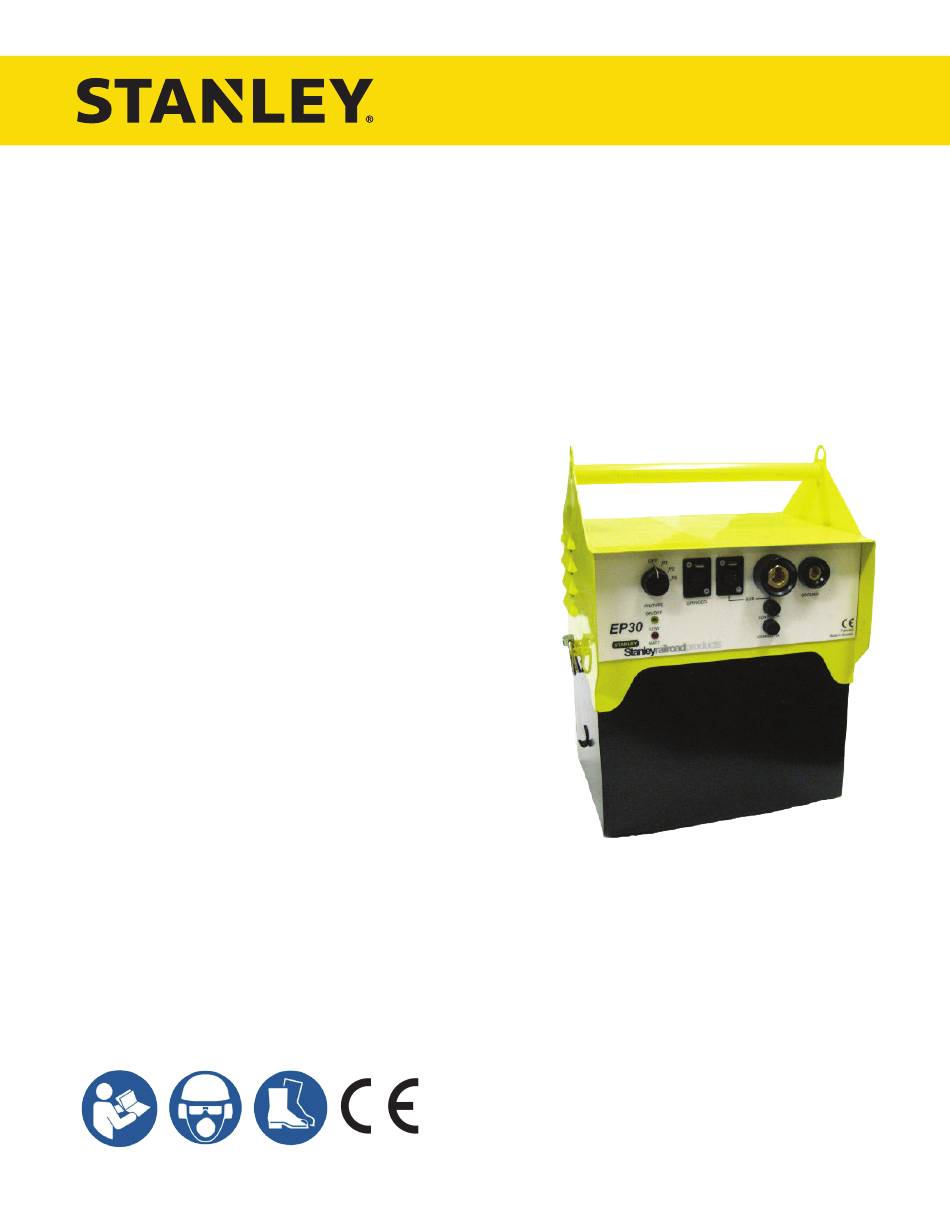

- Page 1 EP30200 ELECTRONIC PIN BRAZING UNIT USER MANUAL Safety, Operation and Maintenance © 2017 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 69924 1/2019 Ver. 15...
- Page 2 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. EP30200 User Manual ◄ 3... -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► EP30200 User Manual... -
Page 5: Safety Precautions
Ensure battery charging is only done in a dry environment. Charging batteries in the rain or near standing water presents an electrocution hazard. Read the safety and operation instructions provided with the battery charger before using the battery charger. EP30200 User Manual ◄ 5... -
Page 6: Ep30200 Operation
Keep tool labels and stickers legible. Use only battery charger specially made for pin PREPARATION PROCEDURES brazing units (36V DC) approved by STANLEY. Before putting a new Pin Brazer into initial service, or after an extended period of being unused, perform a visual inspection 2. - Page 7 - not the face of the wheel. 8. Plug the battery charger into a standard 110 Volt AC Note: Use only grinding wheels furnished by STANLEY. outlet. Other wheels have shown to leave residues which cause faulty brazing.
- Page 8 The BG10100 automatically adjusts the correct distance of the brazing pin to the surface to be brazed. Note: The BG10100 may be adjusted manually if necessary using the dial located on the back of the gun. 8 ► EP30200 User Manual...
- Page 9 3. After the braze has cooled, knock the shank off the braz- ing pin using a hammer. 4. Use a new ceramic ring for each new pin braze. Note: A red light indicates low batteries on the unit. Charge as soon as possible. EP30200 User Manual ◄ 9...
-
Page 10: Troubleshooting
Use only Tyrolit grinding wheels or carbide Incorrect grinding wheel is used. burr. Ceramic ring was not positioned Ensure ring is positioned correctly. square to the lug. Brazing pin not positioned correctly in Ensure pin is positioned correctly. lug hole. 10 ► EP30200 User Manual... -
Page 11: Equipment Maintenance & Care
Always keep critical equipment markings, such as warning stickers and tags, legible. • Equipment repair should be performed by experienced personnel only. • Do not use the equipment for applications for which it was not intended. EP30200 User Manual ◄ 11... -
Page 12: Specifications
