Avocent SwitchView 130 Quick Installation Manual

QUICK INSTALLATION GUIDE
The following instructions will help you
install your SwitchView 130 KVM switch.
Should you require further assistance,
please contact Avocent Technical Support.

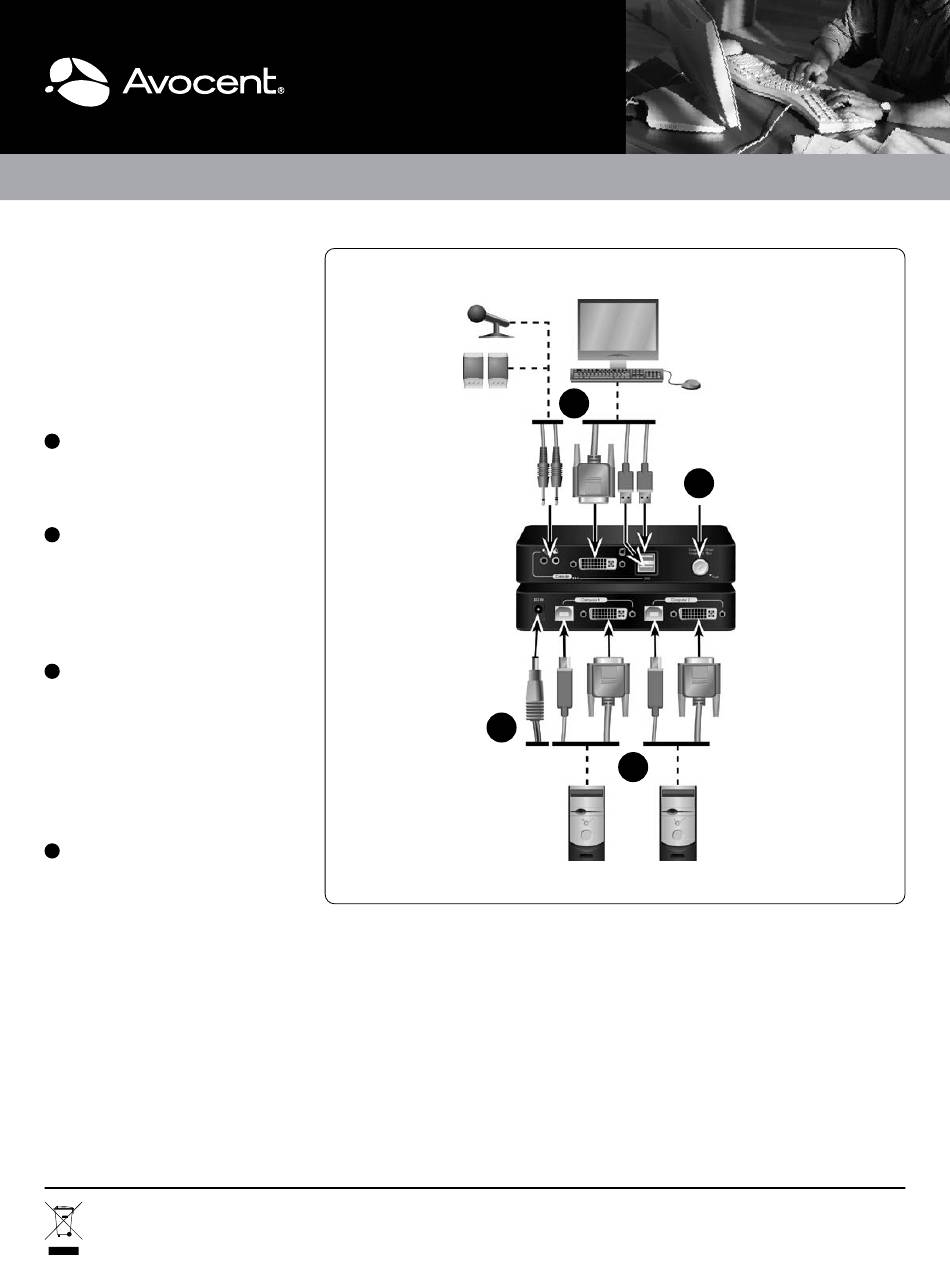

The SwitchView 130 2-port switch
enables access and management of
attached DVI/USB PCs, while supporting
audio and microphone capabilities.
Connecting power
1
Plug in the power adaptor to the power
receptacle located on the back of the
SwitchView 130 switch.
Connecting local peripherals
2
Connect the keyboard, monitor, mouse,
speakers and microphone to the
appropriate console connectors on the
front of the SwitchView 130 switch
using the supplied cables.
Connecting your PCs
3
Connect one end of the included DVI
cable to the switch, then connect the
other end to a PC. Connect the included
USB cable with Type A connecting to
the PC and Type B connecting to the
switch. Repeat these steps to connect
your second PC.
4 Operating the SwitchView 130
switch
There are two ways to switch channels
(PCs) on the SwitchView 130 switch: a
front panel push-button or a configurable
hotkey sequence.
Using the front panel button
Press the front panel button to switch
PCs. The button will illuminate green for
Port 1 and blue for Port 2.
To Contact Avocent Technical Support: Visit www.avocent.com
Avocent, the Avocent logo, The Power of Being There and SwitchView are registered trademarks of Avocent Corporation or its affiliates in the U.S. and other countries. ©2008 Avocent Corporation.
SwitchView 130
®
2-port DVI/USB KVM Switch
SwitchView 130 switch (2-port)
Using the hotkey sequence
To select your PC, activate the hotkey
sequence by pressing ScrLk + ScrLk.
You will automatically switch PCs.
Each keystroke must be pressed within
two seconds to validate the hotkey
sequence.
2
Front
Back
1
3
PCs
User
4
