Whirlpool LHB 802 Service Manual

Vertical axis washing machine
Hide thumbs Also See for LHB 802:
Table of Contents

Advertisement

Quick Links

_______________________________________________________________________________________

SERVICE MANUAL

Vertical axis Washing Machine
Model: LHB 802
Caution :
In this Manual. some parts/technical specification can
be changed for improving, their performance without
notice in the parts list. So, if you need the latest parts
information, please refer to Spare parts list in service
information.
Page | 1

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool LHB 802

Summary of Contents for Whirlpool LHB 802

  • Page 1: Service Manual

    _______________________________________________________________________________________ SERVICE MANUAL Vertical axis Washing Machine Model: LHB 802 Caution : In this Manual. some parts/technical specification can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to Spare parts list in service information.

  • Page 2: Table Of Contents

    _______________________________________________________________________________________ INDEX VERTICAL AXIS WASHING MACHINE SERVICE MANUAL 1. TOP LOAD WASHING MACHINE 2. WASHER SPECIFICATION 3. PARTS LIST BY ASS'Y 4. CONTROLS PART FUNCTION SPECIFICATION 5. WARNINGS & ERROR MESSAGE 6. ERROR DISPLAY & ITS DIAGNOSIS 7. PROBLEMS & CHECKLIST 8.

  • Page 3: Top Load Washing Machine

    _______________________________________________________________________________________ 1.TOP LOAD WASHING MACHINE Lint Management System The wash plate has radial vanes at the bottom which repeatedly force water through the filter and ensures maximum lint collection, resulting lower lint deposition in your clothes. Flexi Loading/ Add a Garment The machine allows you to add clothes in between cycles such that precious time, water and energy are saved by avoiding repetition of a cycle for the clothes that were left out.
  • Page 4 _______________________________________________________________________________________ 2. PRODUCT SPECIFICATION Model LHB 802 Dimension (mm) 540x560x965 Maximum Mass Of Fabric(kg) 8.0 Kg Dry Linen Machine Weight(kg) Power supply 220 V AC, 60 Hz, 16 A Spin Speed(RPM) 740 rpm Operating Water Pressure 0.2 - 7.0 Kg/cm2...
  • Page 5 _______________________________________________________________________________________ 3. FULL MACHINE ASSEMBLY Page | 5...
  • Page 6 _______________________________________________________________________________________ 3. FULL MACHINE ASSEMBLY Sl.No. Description CABINET TOP AND LID WASH UNIT DRIVE SYSTEM CABINET-ENCLOSURE HYDRAULIC INLET SYSTEM UI-CONTROLS HYDRAULIC SYSTEM OUTLET Page | 6...
  • Page 7 _______________________________________________________________________________________ 4a. CABINET ASSEMBLY Page | 7...
  • Page 8 _______________________________________________________________________________________ 4A. CABINET ASSEMBLY Sl. No Part No Description W10446043 FRONT STIFFENER - 54CM VARI P018821140A DAMPER PAD EPE WITH ADHESIVE W10797242 C-CABINET ASSY - L1 - GRAPHITE W10810272 BRIDGE PLATE - 120 mm TOP W10797240 UNDERBASE ASSY 33 MM - LUMINA- CHARCOAL W10797241 UNDERBASE 33 MM - LUMINA - CHARCOAL GREY P018821140A...
  • Page 9 _______________________________________________________________________________________ 4b. TOP & LID ASSEMBLY Page | 9...
  • Page 10 _______________________________________________________________________________________ 4b. TOP & LID ASSEMBLY Sl. No Part No Description W10453789 LID ASSY - 54CM VARI W10505923 PLUG LEFT GRAPHITE- 54CM W10505925 PLUG RIGHT GRAPHITE - 54CM W10860417 TOP FRAME GRAPHITE-54CM W10520394 HINGE PIN - VARI W10746911 SCREW ST 4.2x13 ( OLIVE DRAB) P018830060B BRACKET LID SWITCH 24 INCH W10732247...
  • Page 11 _______________________________________________________________________________________ 5. WASH UNIT Sl. No Part No Description W10694249 BASKET BASE - 6KG GLOBAL WHITE W10821186 SUSPENSION ASSY FRONT WITH 80MM SS - L1 W10487530 TUB,6KG - WITH END CAP - HEATER Page | 11...
  • Page 12 _______________________________________________________________________________________ AGIPELLER ASSEMBLY Sl. No Part No Description P016110110A CAP AGIPELLER GLOBAL WHITE W10608506 SCREW-M6 X 21 SS PAN HD. WITH WASHERS W10837129 AGIPELLER - 6KG GLOBAL WHITE Page | 12...
  • Page 13 _______________________________________________________________________________________ TUB ASSEMBLY Sl. No Part No Description W10697241 TUB RING-GLOBAL WHITE,G62 P010100040A SUSPENSION BALL UPPER S011320940A SCREW-ST3.5X10-F,SPAN;SS-PHILIPS-BT-CUT Page | 13...
  • Page 14 _______________________________________________________________________________________ DRIVE ASSEMBLY Page | 14...
  • Page 15 _______________________________________________________________________________________ S.NO Part No Description W10564455 TUB SUPPORT ASSEMBLY - L1 W10486927 SELF TAPPING SCREW,TUB SUPPORT W10522583 BRAKE BAND ASSY - FORMED 24" S011320100D SCREW - ST 3.5 X 14.0 - F W10781069 BRACKET CAPACITOR(GI) W10887655 P0 CAPACITOR 11 MFD WITH 110 UH W10508762 DRAIN MOTOR ASSEMBLY W10657280...
  • Page 16 _______________________________________________________________________________________ P010111390A SPRING SPLUTCH (CONICAL) S011280010B SCREW (M8 X 16) P018711010A MOTOR - WASH -QUARTZ Page | 16...
  • Page 17 _______________________________________________________________________________________ CONSOLE ASSEMBLY Page | 17...
  • Page 18 W10870335 SCREW - ST 3.5 X 14.0 - F W10879603 RIGHT HARNESS - STAIN WASH PHIL S011320980A SCREW 4.2 X 13 - BT W10904527 ESCUTCHEON- LHB 802 W10880801 CCU ASSY- SW-UA6AA-PHIL W10881601 POWER CORD ASSM PHILIPPINES 250V/15A Page | 18...
  • Page 19 _______________________________________________________________________________________ DISPENSER ASSEMBLY Page | 19...
  • Page 20 _______________________________________________________________________________________ Sl. No Part No Description S011320100D SCREW - ST 3.5 X 14.0 - F W10524448 BRACKET-INLET VALVE W10673124 WATER INLET VALVE ASSEMBLY W10453847 HOUSING DISPENSER ASSY-54CM VARI(H P W) W10486105 COUNTER SUNK SCREW (BLACK COATED) W10697939 TRAY DISPENSER ASSY 54VARI GRAPHIT PAINT Page | 20...
  • Page 21 _______________________________________________________________________________________ DRAIN ASSEMBLY Page | 21...
  • Page 22 _______________________________________________________________________________________ Sl. No Part No Description W10499657 HOSE L BEND TO TCC WITH FOAM - LUMINA P011000010B DRAIN HOSE-DIA 32 P011210040B THROUGH CAB. CONNECTOR W10718978 OVER FLOW HOSE - TUB-6Kg W10860955 CLAMP DIA.31.8 CLOSED ENDS,G62 W10733743 HOSE - TUB TO DUMP VALVE - LUMINA L1 W10750791 DUMP VALVE ASSY W10704962...
  • Page 23 _______________________________________________________________________________________ COMPONENT SPECIFICATION S.no COMPONENT PART COMPONENT SPECIFICATION NAME NUMBER INLET VALVE W10530891 a. Nominal voltage : 220/230V Single In Single b. Nominal frequency : 50/60 Hz c. Nominal current : 0.02A d. Nominal power : 7w PRESSURE W10520586 a. Nominal Voltage : 5±0.5 V DC SENSOR b.
  • Page 24 _______________________________________________________________________________________ CCU ASSY SW- W10880801 a. Nominal Voltage: 220V AC @ UA6AA-PHIL 60 Hz. b. Operating Voltage range : 170V AC to 270V AC c. Operating frequency : 60 Hz ± 3 Hz d. Standby Power at nominal voltage : < 0.5W e.

  • Page 25: Warnings & Error Message

    _______________________________________________________________________________________ WARNINGS & ERROR MESSAGES RID#1 Main Function RID#1 .1 LOAD SENSING 1) Decides the Required Water level with respect to the Mass of Cloth Load Evaluates the water level with dry laundry at the of wash process P1 (Daily Wash), P4 (Easy Iron), P6(Bed linen), P8(Colors) will follow this Load sensing process Finalize the water level by software algorithm output data during 60 sec of sensing between 30-150 rpm...

  • Page 26: Error Display & Its Diagnosis

    _______________________________________________________________________________________ RID#1 .6 SUPERSOAK Super soak option selection improves the Wash performance whenever the dirt level in the Wash loads found to be higher. RID#1 .7 DELAY END Delay End key is used to set the “Delay End” time for the selected wash program RID#2 ERROR DISPLAY &...
  • Page 27 _______________________________________________________________________________________ RID#2.3 SS1 ERROR SS1 Error will be detected if there is no feedback from slot sensor for 10 secs during Load Sensing, Indexing, SIS and Speed based spin. Need to check : Run a Spin Program and check the basket is running if not check for Motor, Capacitor, Torque motor connections (from PCB to specific loads) and its operation.
  • Page 28 _______________________________________________________________________________________ Ensure that the capacitor doesn’t have degraded. Check whether the system is running smooth. RID#2.7. POWER ERROR When the input voltage at consumer end falls below 170V & above 270V then “PE” error will be detected. Need to check: Ensure that the Input voltage is above 170V &...
  • Page 29 _______________________________________________________________________________________ Page | 29...

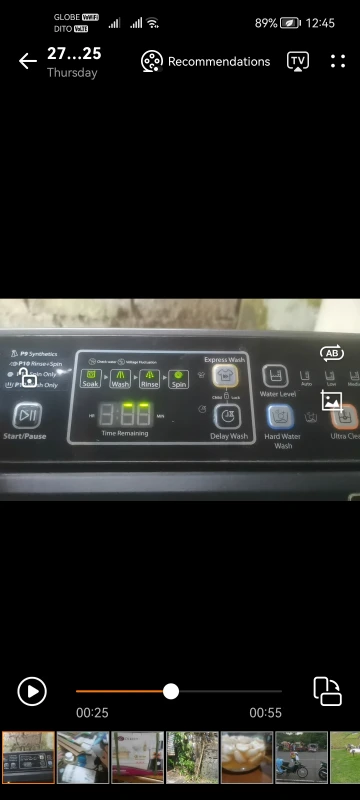

  • Page 30: Control Panel

    _______________________________________________________________________________________ CONTROL PANEL Page | 30...
  • Page 31 _______________________________________________________________________________________ Page | 31...
  • Page 32 _______________________________________________________________________________________ Page | 32...
  • Page 33 _______________________________________________________________________________________ Page | 33...

  • Page 34: Wiring Diagram

    _______________________________________________________________________________________ WIRING DIAGRAM Page | 34...
