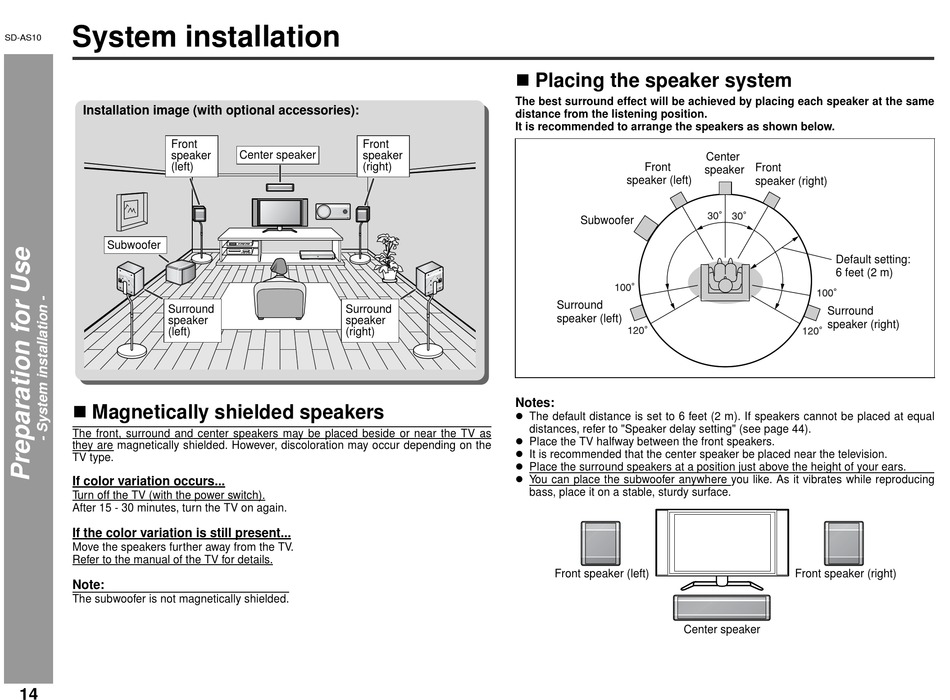

System installation
SD-AS10
Installation image (with optional accessories):
Front
speaker
(left)
Subwoofer
Surround
speaker
(left)
" Magnetically shielded speakers
The front, surround and center speakers may be placed beside or near the TV as
they are magnetically shielded. However, discoloration may occur depending on the
TV type.
If color variation occurs...
Turn off the TV (with the power switch).
After 15 - 30 minutes, turn the TV on again.
If the color variation is still present...
Move the speakers further away from the TV.
Refer to the manual of the TV for details.
Note:
The subwoofer is not magnetically shielded.
14
Front
Center speaker
speaker
(right)
Surround
speaker
(right)
" Placing the speaker system
The best surround effect will be achieved by placing each speaker at the same
distance from the listening position.
It is recommended to arrange the speakers as shown below.
Front
speaker (left)
Subwoofer
Surround
speaker (left)
Notes:
! The default distance is set to 6 feet (2 m). If speakers cannot be placed at equal
distances, refer to "Speaker delay setting" (see page 44).
! Place the TV halfway between the front speakers.
! It is recommended that the center speaker be placed near the television.
! Place the surround speakers at a position just above the height of your ears.
! You can place the subwoofer anywhere you like. As it vibrates while reproducing
bass, place it on a stable, sturdy surface.
Front speaker (left)
Center speaker
Center
Front
speaker
speaker (right)
Default setting:
6 feet (2 m)
Surround
speaker (right)
Front speaker (right)
