Controls and Indicators

7
8
1
9
2
3
5
4
6
1
2 3 4
6
7

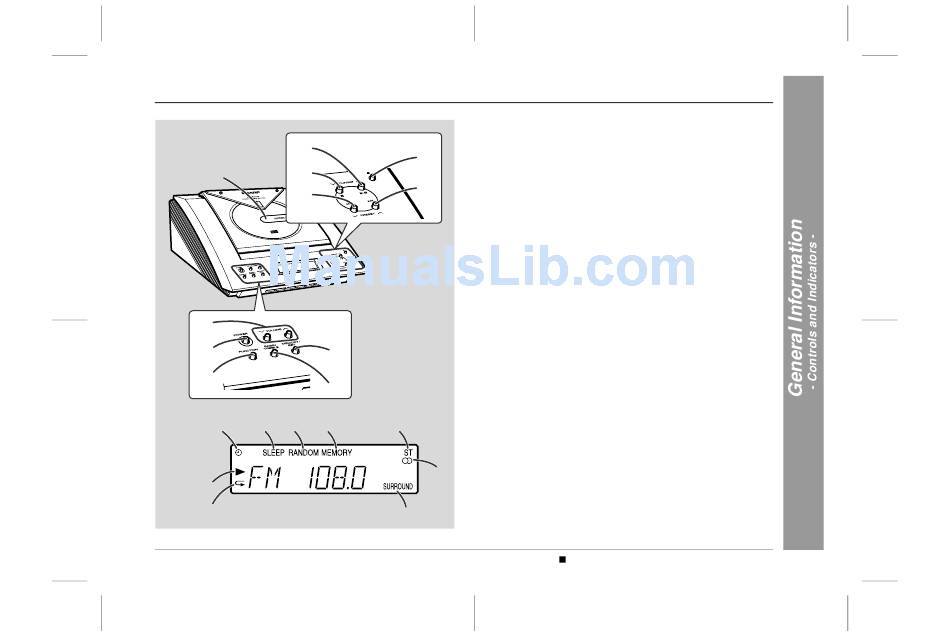

„ Front panel
1. CD Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 16
10
3. Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Function Selector Button . . . . . . . . . . . . . . . . . . . . . 18, 22, 28
11
5. Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 24
6. Bass/Treble Selector Button . . . . . . . . . . . . . . . . . . . . . . . . 16
7. CD Play or Pause, Tuning Up Button . . . . . . . . . . . 18, 19, 22
8. CD Stop, Tuning Down Button . . . . . . . . . . . . . . . . . . . 19, 22
9. CD Track Down or Fast Reverse,
Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . . 20, 24
10. CD Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
11. CD Track Up or Fast Forward,
Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . 20, 24
„ Display
1. Timer Play Indicator
2. Sleep Indicator
3. CD Random Play Indicator
4. Memory Indicator
5. FM Stereo Mode Indicator
6. CD Play Indicator
7. CD Repeat Play Indicator
5
8. FM Stereo Receiving Indicator
9. Surround Indicator
8
9
Description of remote control (See page 9.)
