Panasonic RX-D50EE Service Manual

Portable stereo cd system
Hide thumbs Also See for RX-D50EE:
Table of Contents

Advertisement

Quick Links

Download this manual
Notes: Please refer to the original service manual for:
• CD Mechanism Unit (DLS6F), Order No. PSG1002024AE
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attem pt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
TABLE OF CONTENTS
Panasonic'
Model No.
A
WARNING
IMPORTANT SAFETY NOTICE
Portable Stereo CD System
RX-D50EE
A

Advertisement

Table of Contents
loading

Related Manuals for Panasonic RX-D50EE

Summary of Contents for Panasonic RX-D50EE

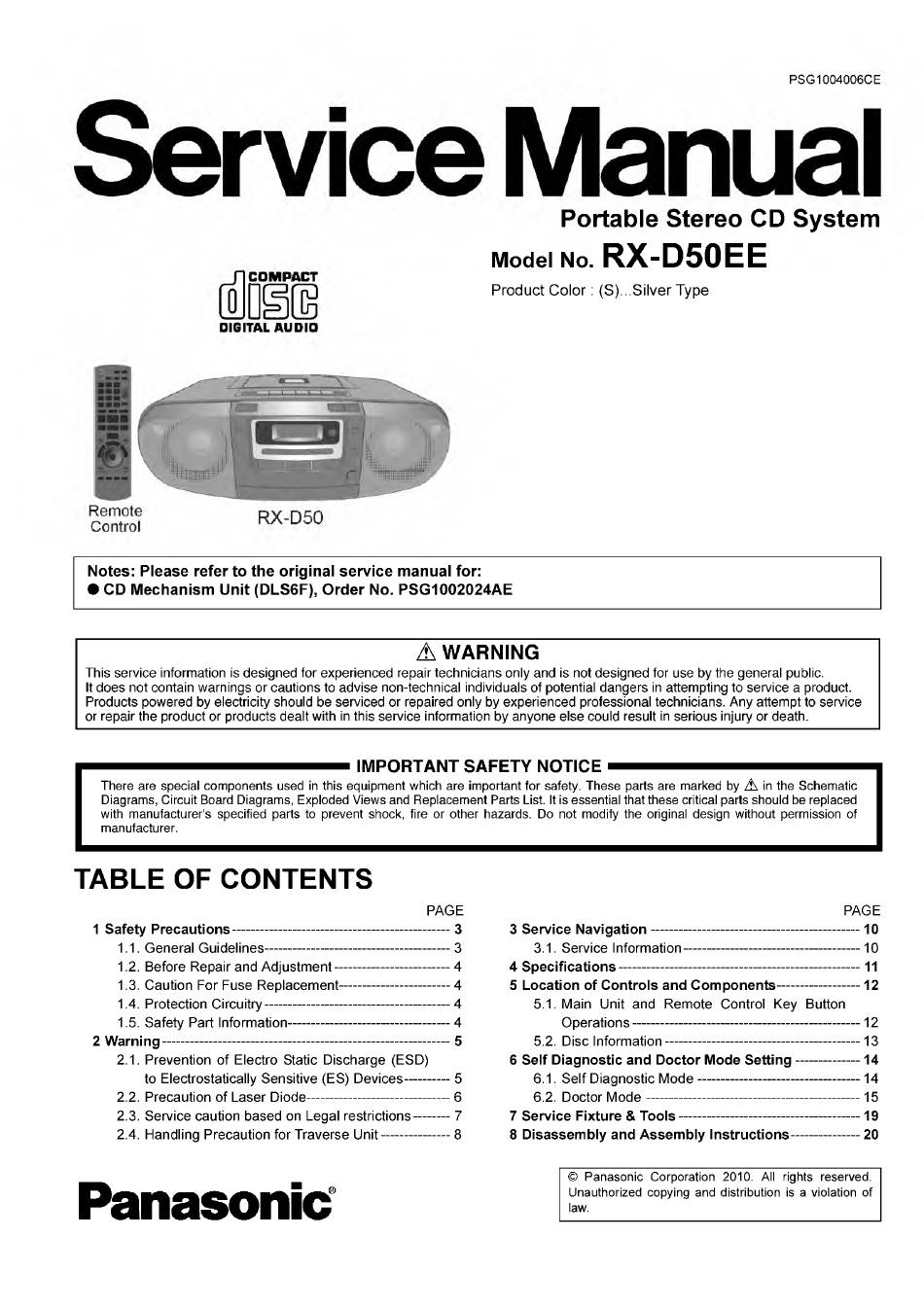

  • Page 1 Portable Stereo CD System RX-D50EE Model No. Notes: Please refer to the original service manual for: • CD Mechanism Unit (DLS6F), Order No. PSG1002024AE WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public.
