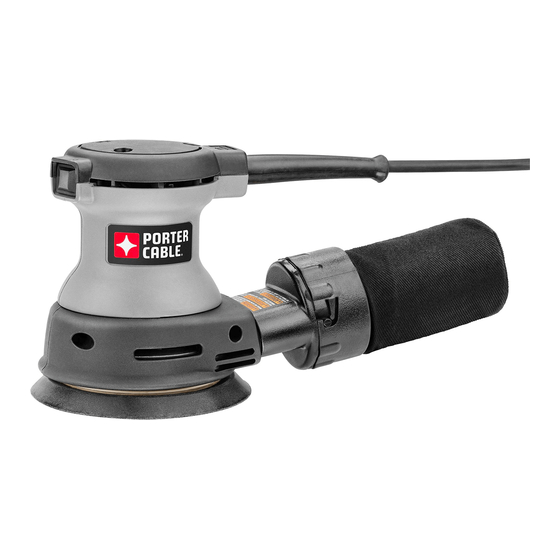

Porter-Cable 382 Instruction Manual

5" (127 mm) RANDOM
ORBIT PALM SANDER
with Dust Collection and Hook & Loop Pad
LIJADORA DE ÓRBITA
ALEATORIA DE
127 mm (5 PULG)
con recolección de polvo y
base de unión por contacto
PONCEUSE DE FINITION
ORBITALE EXCENTRIQUE, DE
127 mm (5 PO)
avec dépoussiéreur et tampon
de type boucles et crochets
Instruction manual
Manuel d'instructions
Manual de'instrucciones
www.portercable.com
INSTRUCTIVO DE OPERACIÓN, CENTROS
DE SERVICIO Y PÓLIZA DE GARANTÍA.
LÉASE ESTE INSTRUCTIVO
ANTES DE USAR EL PRODUCTO.
N232180 OCT12
The following are PORTER-CABLE trademarks for one or more power tools and accessories: a gray and black color
scheme; a "four point star" design; and three contrasting/outlined longitudinal stripes.
DEFINITIONS - SAFETY GUIDELINES
indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
indicates a potentially haz ard ous situation which, if not avoided,
may result in minor or mod er ate injury.
NOTICE
used without the safety alert symbol indicates potentially haz-
ardous situation which, if not avoided, may result in property damage.
To reduce the risk of injury, read the instruction manual.
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and all instructions Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energizing power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
382
Copyright © 2010, 2012 PORTER-CABLE
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool's operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could result
in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SPECIFIC SAFETY RULES

• Hold power tools by insulated gripping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will
make exposed metal parts of the tool "live" and shock the operator.
• Do not sand metal of any kind with your sander. Sparks may be generated by sanding
screws, nails or other metals which may ignite dust particles.
• Do not wet sand with this sander. Liquids may enter the motor housing and cause electric
shock.
• Empty dust collection system frequently, especially when sanding resin-coated surfaces
such as polyurethane, varnish, shellac, etc. Dispose of coated dust particles according to the
finish manufacturer's guidelines, or place in a metal can with a tight fitting metal lid. Remove
coated dust particles from the premises daily. The accumulation of fine sanding dust particles
may self ignite and cause fire.
• Do not operate this tool for long periods of time. Vibration caused by the operating action
of this tool may cause permanent injury to fingers, hands, and arms. Use gloves to provide extra
cushion, take frequent rest periods, and limit daily time of use.
• Sanding of lead-based paint, chemically pressure treated lumber or other materials that
may contain carcinogens is not recommended. Sanding of these materials should only be
performed by a professional.
• Clean out your tool often, especially after heavy use. Dust and grit containing metal particles
often accumulate on interior surfaces and could create a risk of serious injury, electric shock or
electrocution. Always disconnect the sander from the power source before cleaning. Always wear
safety glasses that conform to ANSI Z87.1.
• Always disconnect tool from the power source before changing abrasive sheets. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
• Replace worn CFS disc when it causes high tool rpm. High tool rpm caused by a worn out
CFS disc may result in separation of sanding pad from the sander, possibly causing personal
injury. for instructions on replacing the CFS disc, see the section of this manual titled "Tool Care."
• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long
hair can be caught in moving parts.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for
safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is
16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using more than one extension to make up
the total length, be sure each individual extension contains at least the minimum wire size. The
following table shows the correct size to use depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the
cord.
Minimum Gauge for Cord Sets
Volts
Ampere Rating 120V
240V
More Not More
Than
Than
0 6
6 10
10 12
12 16
ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use
face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote
absorption of harmful chemicals.
Use of this tool can generate and/or disperse dust, which may cause serious and
permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles away from face and body.
Always wear proper personal hearing protection that conforms to ANSI S12.6
(S3.19) during use. Under some conditions and duration of use, noise from this product may
contribute to hearing loss.
• The label on your tool may include the following symbols. The symbols and their definitions are
as follows:
V .....................volts
Hz ...................hertz
min .................minutes
or DC .....direct current
...................Class I Construction
.......................(grounded)
...................Class II Construction
(double insulated)
.../min ............per minute
IPM.................impacts per minute
SPM ...............strokes per minute
OPM ............orbits per minute
Total Length of Cord in Feet (meters)
25 (7.6) 50 (15.2) 100 (30.5)
50 (15.2) 100 (30.5) 200 (61.0)
AWG
18 16 16
18 16 14
16 16 14
14 12 Not Recommended
A.........................amperes
W .......................watts
or AC ............alternating current
or AC/DC .....alternating or direct current
n o .......................no load speed
n .........................rated speed
.......................earthing terminal
........................safety alert symbol
BPM ...................beats per minute
RPM ...................revolutions per minute
sfpm ...................surface feet per minute
150 (45.7)
300 (91.4)
14
12
12
