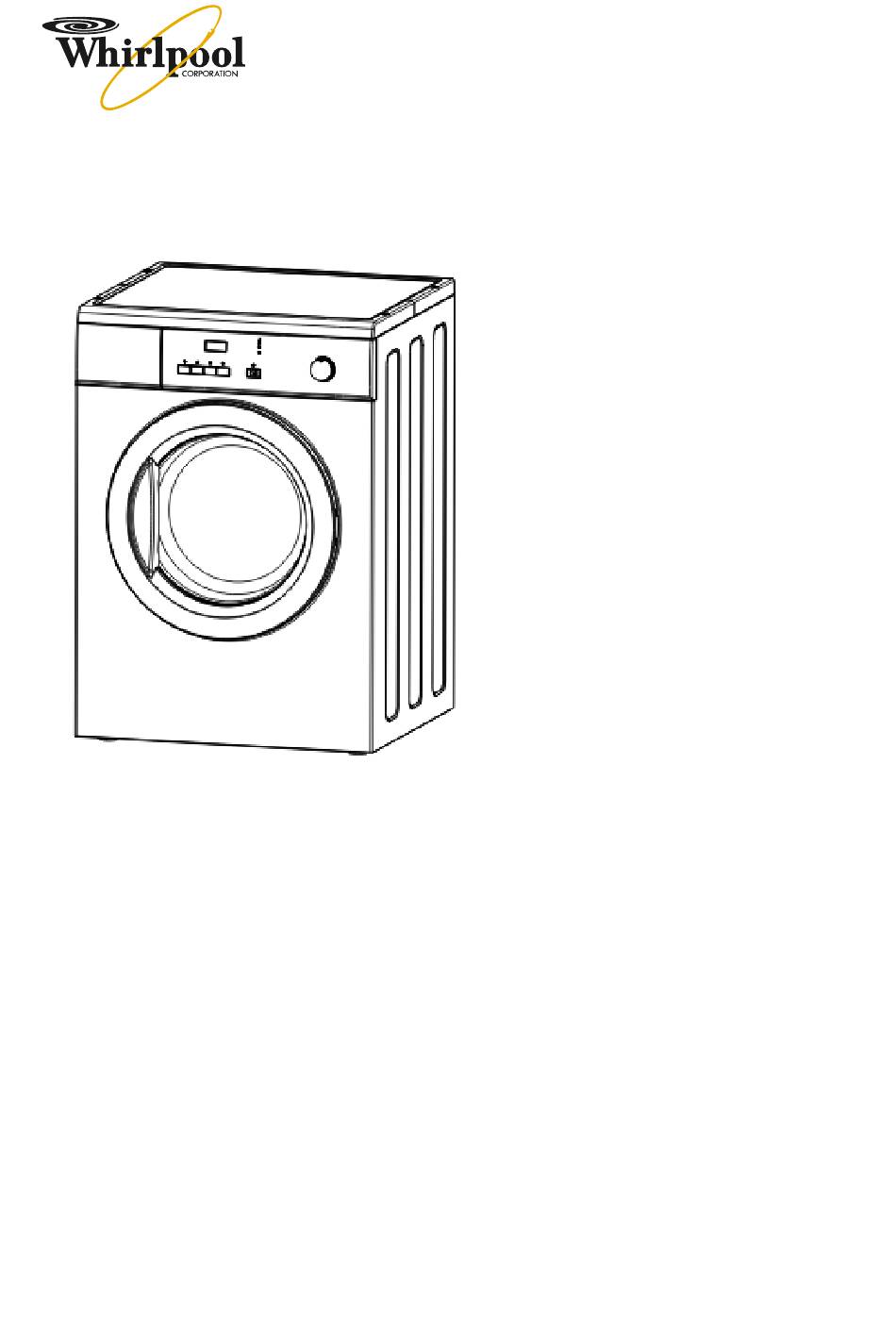

- Page 1 SERVICE MANUAL Model: AWD80AGP Contents...
-
Page 2: Table Of Contents
1．Introduction ---------------------------------------------------------------------------------2 2．Technical data----------------------------------------------------------------------------------2 3．Control panel--- -------------------------------------------------------------------------------2 4．Functions---------------------------------------------------------------------------------------4 5．Constructive parts-----------------------------------------------------------------------------4 6．Installation--------------------------------------------------------------------------------------8 7．Alarms-------------------------------------------------------------------------------------------9 8．Diagnostics system-----------------------------------------------------------------------------9 9．Electrical circuit--------------------------------------------------------------------------------10 1. Introduction... -
Page 3: 2．Technical Data
1.1 Purpose of this manual The purpose of this service manual is to provide service engineers who already have basic Knowledge necessary to repair air vent dryers with electronic control systems. 1.2 Important Repairs to electrical appliances must be carried out only by qualified service engineers Before touching internal components, always remove the plug from the power socket 2. -
Page 4: 4．Functions
2. Quick Drying 3. Half Load Cooling 4. Start Delay Anti-Crease 5. Display (LED) Filter 6. Start/Pause 8.Program Selector 4. Functions... -
Page 5: 5．Constructive Parts
Cooling: It shows the dryer is in cooling phase ,there will be 10 minutes in this phase. Anti-Crease: It shows the drying is finished and the anti-creasing routine begin ,it last 10 minutes for consul model,30 minutes for whirlpool model. Filter： After use the dryer ,the indicator will blink and tell you should clean the filter. - Page 6 Door As Vent Pipe Control Panel As Vent Pipe Cuff Cabinet Back Cover Top Cover As Reset Button As Door Lock AS Power Cord Screw Cap Vent Pipe Cover Door Gasket Under Base Drum Supporter As Adjustable Leg Motor As 10.
- Page 7 Front Fan Cover Motor Fixture Fan As Motor Rear Fan Cover Capacitance Venting Gasket Motor Bracket Motor Cushion Relay Bracket 5.3 Door As Door Outer Frame Door Hinge Cap Door Inner Window Door Hinge Door Inner Frame Hinge Support Plate Door Hook...
- Page 8 5.4 Drum Supporter As Drum Support Cover Lamp Gasket Filter As Lamp Cap Lamp Socket Felt Lamp Moisture Sensor Drum Supporter Venting Gasket B Drum Guide Plate 5.5 Door Lock AS Door Lock Body Micro Switch Hook Holder Micro Switch Cover Door Lock Cover Hook Holder Spring 5.6 Drum As...
- Page 9 Inside Small Cover Drum As Fixture Lifter Drum Shaft Inside Bucket Rivet Joint Module Inside Bucket Bearing Module Heater Fixture B Bearing Supporter B Heater Spring Heater Plate Spring Washer φ8 Thermostat 170℃ Thermostat Fixture Thermostat Fixture Bracket Thermostat 85℃ Attachment Name Quantity...
-
Page 10: 7．Alarms
6.22 Level adjustment Adjust the level to avoid vibration and noise ● Machine must be placed in a clean place ,no water ,ice and combustible materials there. To keep vibration and noise to a minimum when the dryer is in use ,it should be placed on a firm level surface. -
Page 11: 8．Diagnostics System
·The dryer is not level on the ·Adjust the adjustable foot ground ·Connect the right voltage Abnormal noise ·The voltage is not 220-230V ·Replace the motor ·The motor faulty ·Replace the micro-v belt ·The micro-v belt faulty 9 .Electrical circuit Model: AWD80AGP (Galanz Model: DV-70Q1K)
