Contact Customer Service (see warranty) for examination, repair, or electrical or mechanical adjustment. 7. The use of accessory attachments not recommended by Rival ® cause injury. 8. Do not use outdoors.
Page 3
SAVE THESE INSTRUCTIONS This appliance is for HOUSEHOLD USE ONLY. This Deep fryer is equipped with Rival’s exclusive SureRELEASE™ Power Cord System, which includes a detachable magnetic cord designed to separate from the unit when certain amounts of force are applied. (See details on pg.6 for instructions on proper usage of the SureRELEASE™...

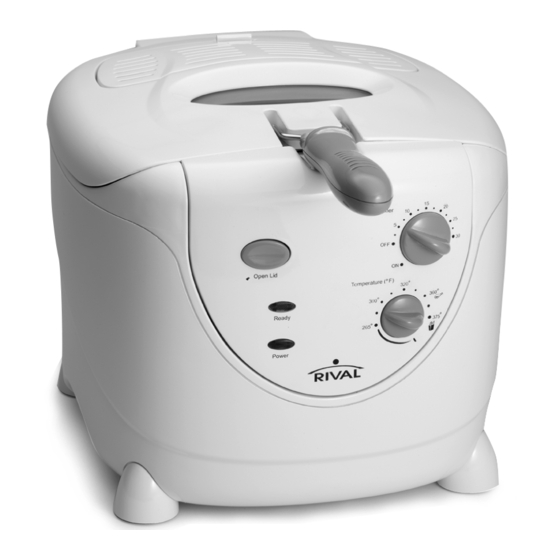

All manuals and user guides at all-guides.com KNOW YOUR DEEP FRYER Filter Cover Charcoal Odor Filter White Grease Filter Frying Basket Handle Oil Reservoir T im e T im e Condensation Trap Detachable Cord Mount Control Panel Power Cord Housing...
All manuals and user guides at all-guides.com PREPARING YOUR DEEP FRYER FOR USE Prior to first use, remove all packaging materials from the exterior and interior of the fryer. Make sure the fryer is unplugged. Wash the Frying Basket and removable Oil Reservoir in hot soapy water. Gently wipe the Cool-Zone Heating Element with a damp cloth.
All manuals and user guides at all-guides.com USING YOUR DEEP FRYER NOTE: Never turn on the fryer with an empty Oil Reservoir. Always use your fryer on a flat, heat resistant surface. 1. Attach magnetic end of SureRELEASE™ cord assembly directly to the fryer.
All manuals and user guides at all-guides.com USING YOUR DEEP FRYER (CONT.) 13. When finished cooking, make sure fryer is in OFF position. WARNING: DO NOT USE SureRELEASE™ POWER CORD SYSTEM TO DISCONNECT THE FRYER. ALWAYS DISCONNECT PLUG FROM WALL OUTLET FIRST TO DISCONNECT FRYER. Use only Model #PL1215 magnetic cord set with this product.
Page 8
All manuals and user guides at all-guides.com CARE AND CLEANING (CONT.) 8. Carefully lift Oil Reservoir straight up out of the exterior housing by holding the rim of the bowl. Store in an airtight container. See Tips for Oil Use and Storage. Oil Reservoir is also dishwasher safe. WARNING: Do not remove Oil Reservoir until the unit has cooled and is unplugged.
$7.99 plus $6.00 for shipping and handling (MA add 5% sales tax and TX add appropriate sales tax) payable to: Rival P.O Box 769 Milford, MA 01757-0769 FRYING TIME AND TEMPERATURE The frying times in this chart are a guide and should be adjusted to suit the different quantities or thickness of food and to suit your own taste.
Page 10
All manuals and user guides at all-guides.com TIPS FOR OIL USE AND STORAGE • Do not use seasoned or flavored oil such as walnut, olive oil, lard or drippings because they have a low smoke point. Use blended vegetable oil, pure corn oil, sunflower oil, soybean oil or grape seed oil (canola oil) because these oils have a high smoke point.
All manuals and user guides at all-guides.com TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Fryer not Control Panel Assembly Reinstall Control Panel operating not seated Assembly Power Strip not in Reinstall Power Strip correctly Not turned ON Turn to ON Not plugged in Insert plug into outlet Outlet not energized Check fuses or circuit...
All manuals and user guides at all-guides.com RECIPES APPLE FRITTERS 3 cups all-purpose flour 4 tablespoons cooking oil 2 teaspoons baking powder 1 teaspoon vanilla extract 1⁄2 teaspoon salt Juice of 1 orange (1⁄3 cup) 1 cup sugar 1 cup chopped apple 1 egg, lightly beaten Preheat oil to 375°...
All manuals and user guides at all-guides.com RECIPES CHICKEN KIEV 4 whole boneless, skinless chicken breasts 1 stick butter or margarine 1 tablespoon chopped onion 1⁄2 cup flour 1 tablespoon chopped parsley 1 egg, beaten 11⁄2 teaspoon salt 1 cup fine, dry bread crumbs Preheat oil to 375°...
Page 14
All manuals and user guides at all-guides.com NOTE -14-...
Page 15
All manuals and user guides at all-guides.com NOTE...
Page 16
Or, you may write to Rival c/o The Holmes Group, attention: Consumer Returns, 32 B Spur Drive, El Paso, TX 79906. Proof of purchase is required when requesting warranty service - SAVE YOUR SALES RECEIPT. This warranty is extended only to the original purchaser and does not apply to commercial use, unreasonable use, or to damage to the product (not resulting from defect or malfunction) while in the possession of the consumer.
