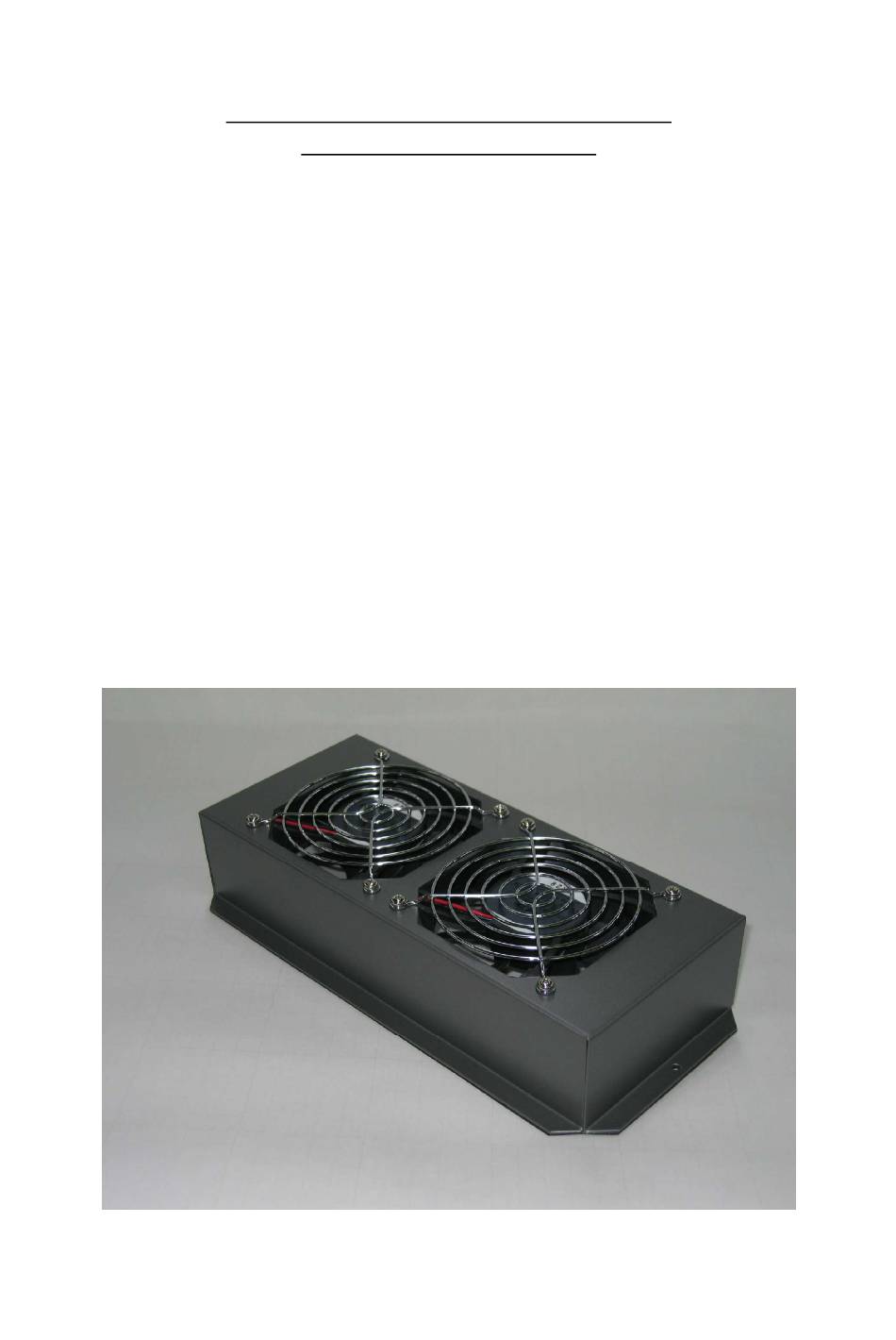

Model HXT-1.5KF Instruction Manual
This fan kit is designed to give an extra cooling effect for HL-1.5KFX HF linear
amplifier working under heavy duty conditions such as RTTY, SSTV, 24 hour
contests etc.
Specifications
Fans
: Type SKUD48Z7 2pcs.
Dimensions
: 105 x 50 x 245 mm (W x H x D)
Weight
: Approx. 0.7 kgs. or 1.6 lbs.
DC Power
: 48 (50) V 0.25 A (0.5 A max., surge)
Fuse
: 125V / 1A
External Cooling Fan Kit
or 4 x 2 x 9.5 inches
(To be inserted into the holder at the chassis bottom.)
Advertisement
Related Manuals for Tokyo Hy-Power HL-1.5KFX
Summary of Contents for Tokyo Hy-Power HL-1.5KFX
- Page 1 Model HXT-1.5KF Instruction Manual External Cooling Fan Kit This fan kit is designed to give an extra cooling effect for HL-1.5KFX HF linear amplifier working under heavy duty conditions such as RTTY, SSTV, 24 hour contests etc. Specifications Fans : Type SKUD48Z7 2pcs.
- Page 2 Installation <Step1> Remove the fuse holder out of the chassis. (Fuse holder is located at the bottom of the chassis.) Insert 125V / 1A fuse into the holder. Plug the holder into the chassis. <Step 2> Remove two screw bolts located at the top of the cover. <Step3>...
