Summary of Contents for Barco P110

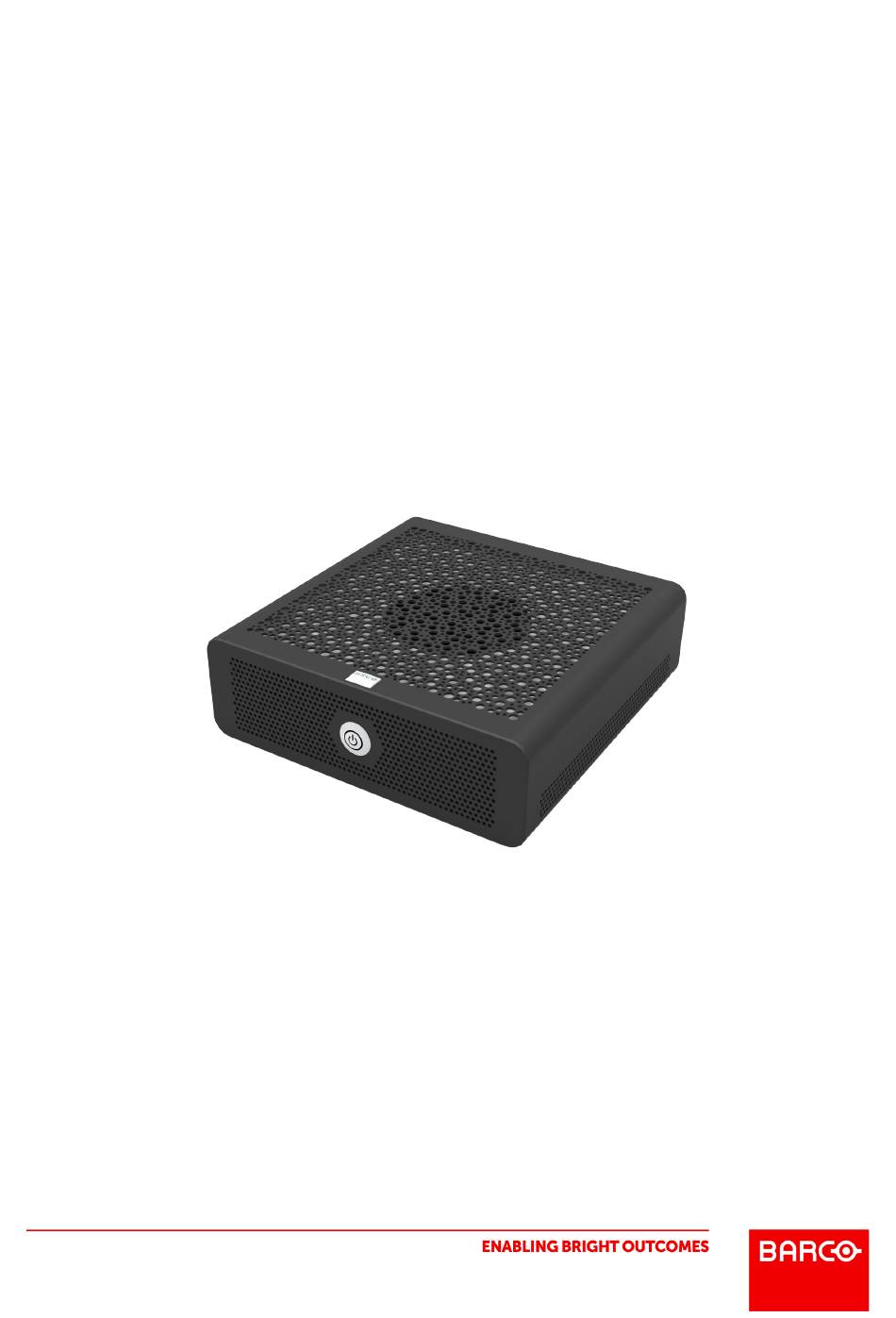

- Page 1 Hardware Reference User Manual Model P110 Based Appliances R591686 Revision 01...
- Page 2 Copyright © 2018 by Barco All rights reserved. No part of this document may be copied, reproduced, or translated. It shall not otherwise be recorded, transmitted, or stored in a retrieval system without the prior written consent of Barco. Warranty Please refer to the warranty page on the Barco website: http://www.barco.com/en/about-barco/legal/warranty-policy.
-
Page 3: Table Of Contents
3.3 Connecting audio ..............................16 3.4 Connecting network ............................17 3.5 Connecting power supply ..........................18 4 Technical data ..............................19 5 Disposal information ............................ 20 5.1 Disposal of batteries ............................20 Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... - Page 4 Contents 5.2 Turkey RoHS compliance ..........................20 5.3 EurAsian Conformity (EAC) ..........................20 6 China RoHS compliance ..........................21 7 Factory Address .............................. 22 8 Contact ................................23 P II Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com...
-
Page 5: Preface
Failure to observe instructions marked by this icon may result in parts exploding! Failure to observe instructions marked by this icon may result in hot parts affecting persons or objects! Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... -
Page 6: Online Manuals
Barco P110 Preface Symbol Description Additional notes. Further information. Tips. Important notes. 1.2 Online manuals Further documentation about your Barco product can be downloaded from the secured Barco website at www.barco.com/mybarco. Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... -
Page 7: Safety Instructions
All these safety standards are the information technology equipment standards, including electrical business equipment. EN55032/CISPR32 class A MME (MultiMedia Equipment) P110 is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Class A ITE (Information Technology Equipment) This is a class A product. -
Page 8: Unpacking Of Devices
The mounting of the equipment should be such that no hazardous condition is achieved due to uneven mechanical loading. 1.3.6 Servicing P110 does not require any servicing or regular maintenance work other than vacuuming the air vents in the housing rear and front at regular intervals. 1.3.7 Cleaning Unplug this product from the wall outlet before cleaning. -
Page 9: Repacking
The month and year of production is indicated on the product ID label on the product itself. 1.7 Importer's contact information To find your local importer, contact Barco directly via www.barco.com, or one of Barco's regional offices via http://www.barco.com/contact/regional-offices. Hardware Reference User Manual - P110, Document No. R591686_01... -
Page 10: Model P110
Model P110 2 Model P110 Based on the model P110 device, Barco is offering various appliances. The notion of an appliance is used in this context for market or use-case specific software packages running on this model P110 hardware. P110 controller... -
Page 11: P110 Front View
Flashing white Access to SSD Switching off the P110 will not disconnect all parts from the power supply. To power down the whole device, short press the power button, then unplug the power plug when the LED is signalling OFF state. -
Page 12: P110 Rear View
Can also be configured in Bios as Headphone-out Line IN Can also be configured in Bios as Mic-in or Rear-Speaker-Out S/PDIF Digital audio interface DC IN DC power input for the P110 Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... -
Page 13: P110 Cooling Concept
The following image shows the air flow into and out of the P110: Air intake [blue] Air output [red] To protect the P110 from overheating, the air vents must be kept free of obstructions! Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... -
Page 14: Mounting Options
It depends on the appliance type, whether the required brackets for a specific mounting option are included or available as an optional accessory. 2.4.1 Horizontal setup The P110 can be placed on and operated from a desk. • Turn the device upside down. -
Page 15: Vertical Setup
2.4.2 Vertical setup Using the vertical stand, the P110 can be placed vertically on any even and stable surface. In this case the rubber feet will be attached to the bottom of the vertical stand. With the 2 provided TX8 screws, the vertical stand can be mounted on either side of the P110. -
Page 16: Mounting Brackets
Barco P110 Model P110 2.4.3 Mounting brackets Using the 2 provided mounting brackets, the P110 can be mounted on top of a surface or below a surface. P110 Mounting bracket variations • Use the 4 provided screws to mount the brackets to the device on both sides in the desired layout. -
Page 17: Installing/Replacing The Hard Drive
Barco P110 Model P110 2.5 Installing/replacing the hard drive P110 controllers feature a flash drive with an SSD storage medium accessible from the bottom. The storage medium can be swapped by accessing the 2.5" slim type hard drive bay. DC in... -
Page 18: Connecting P110
Barco P110 Connecting P110 3 Connecting P110 To prevent damage of the P110 do not connect your device to the power supply until all other cables have been connected! 3.1 Connecting the display ® P110 controller can be connected to a display via DisplayPort cables or via HDMI cables by using Display- ®... -
Page 19: Connecting Keyboard And Mouse
Connecting P110 3.2 Connecting keyboard and mouse You can connect a keyboard and a mouse to the USB ports on your P110 controller, if desired. Keyboard and mouse (or keyboard and mouse extension) are not included in the delivery volume. -
Page 20: Connecting Audio
Barco P110 Connecting P110 3.3 Connecting audio Should you wish to connect audio to your P110, use the audio connectors on the rear (if any). Line in /Line out are configurable for Note that audio jacks Mic in/ Headphone or Rear speaker out. -
Page 21: Connecting Network
LAN for the video data. This would be your video network or video LAN. Prior to connecting your video LAN to the P110 controller(s) for the first time, consult the respective software user manual for instructions on the required initial configuration! The latest editions of our user manuals can be found on the secured Barco website www.barco.com/mybarco. -
Page 22: Connecting Power Supply
Check the power rating on your outlet before connecting the external power supply unit of your P110 to the wall outlet or to a power strip. Contact your facilities manager or a qualified electrician if you are not sure about the type of power supplied to your building. -
Page 23: Technical Data
Barco P110 Technical data 4 Technical data This table provides an overview of the technical data of the P110 device and its built-in components. Intel Core i7-6700 processor Intel Core i5-7500 processor Intel Core i5-7600 processor (depending on configuration) Intel Core i3-7101E processor... -
Page 24: Disposal Information
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at http://www.barco.com/en/AboutBarco/weee. 5.1 Disposal of batteries This product contains batteries covered by the Directive which must be collected and disposed of separately from municipal waste. -
Page 25: China Rohs Compliance
Barco P110 China RoHS compliance 6 China RoHS compliance P 21 Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... -
Page 26: Factory Address
Barco P110 Factory Address 7 Factory Address Kontron Europe GmbH Lise-Meitner-Str. 3-5 D-86156 Augsburg Germany Phone +49 (0) 821 4086-01 Fax +49 (0) 821 4086 111 www.kontron.com P 22 Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com... -
Page 27: Contact
For Sales or other regional contact information visit http://www.barco.com/contact/regional-offices Barco N.V. Beneluxpark 21 – 8500 Kortrijk (Belgium) Registered Office: Barco N.V. Pres. Kennedypark 35 – 8500 Kortrijk (Belgium) RPR Kortrijk - BE0473191041 P 23 Hardware Reference User Manual - P110, Document No. R591686_01 www.barco.com...
