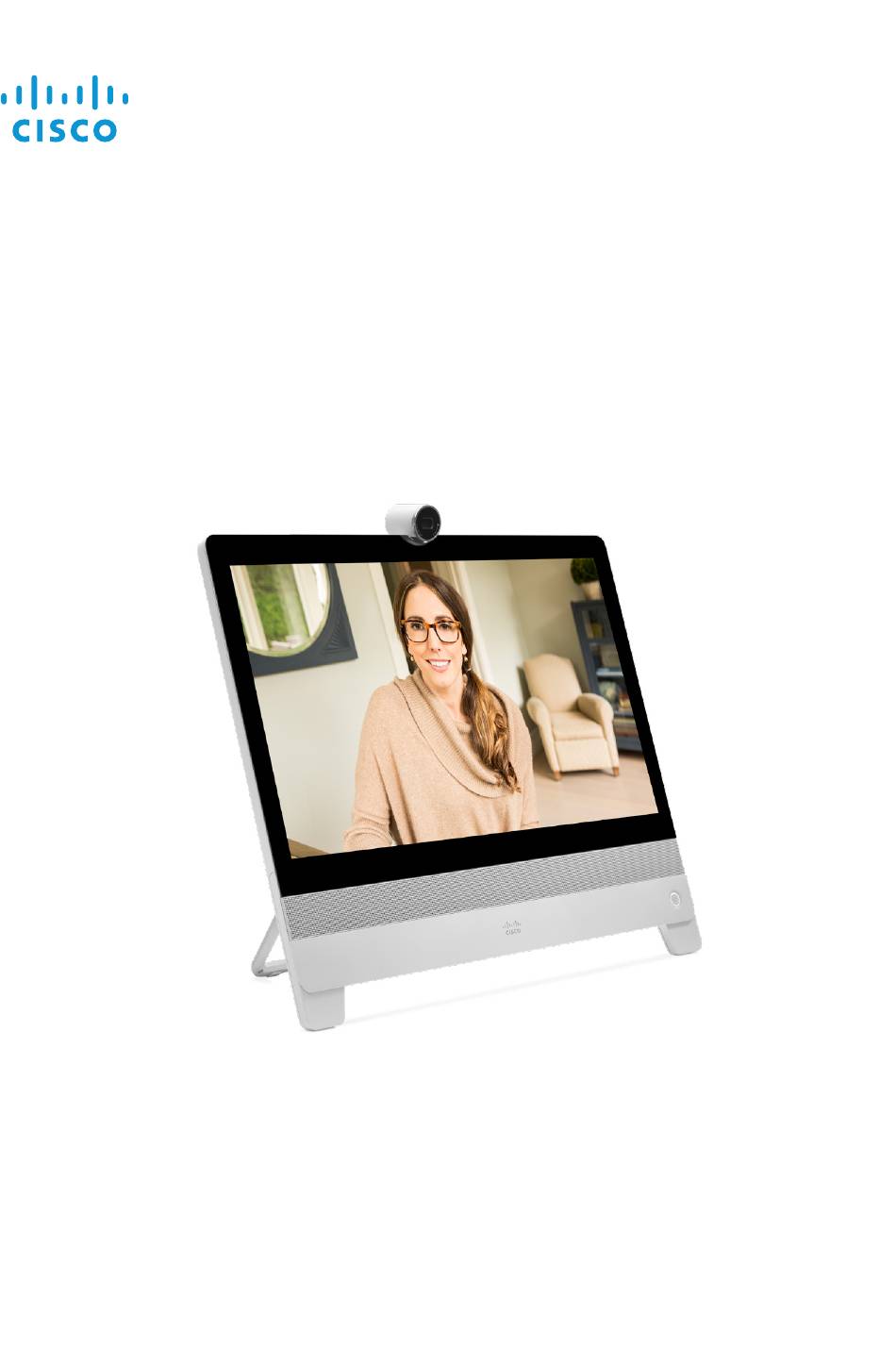

- Page 1 Cisco Webex DX80 INSTALLATION GUIDE...
-
Page 2: Optional Accessories
Visit one of these websites to find out more about setup, management, and use of this product. Use the first link if your device is registered to the Cisco Webex service and the second link if the device is registered to another service. -
Page 3: Connect Cables
Connect Cables Factory HDMI out Micro-SD Computer Kensington reset (not in use) slot network lock pinhole Power HDMI in Network Type B Service port 1. Place the DX80 face down on a flat, clean, surface with the camera off the edge of the table. -
Page 4: Start The System
Start the System 1. Push the power button to start up the DX80. The power button’s LED lights up when the device starts up. 2. Follow the on-screen instructions to set up the system. Connect to Computer Connect your computer to the DX80 to use it as an external monitor, and to enable content sharing. -
Page 5: Front And Side Panels
Front and Side Panels Privacy shutter: Turn the shutter to switch the camera on and off. Mute Volume Speaker Power button Microphone Microphone Adjust Camera and Stand You can tilt the camera to adjust the camera angle, and to activate the document camera feature. - Page 6 170 West Tasman Dr. San Jose, CA 95134 USA Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.
