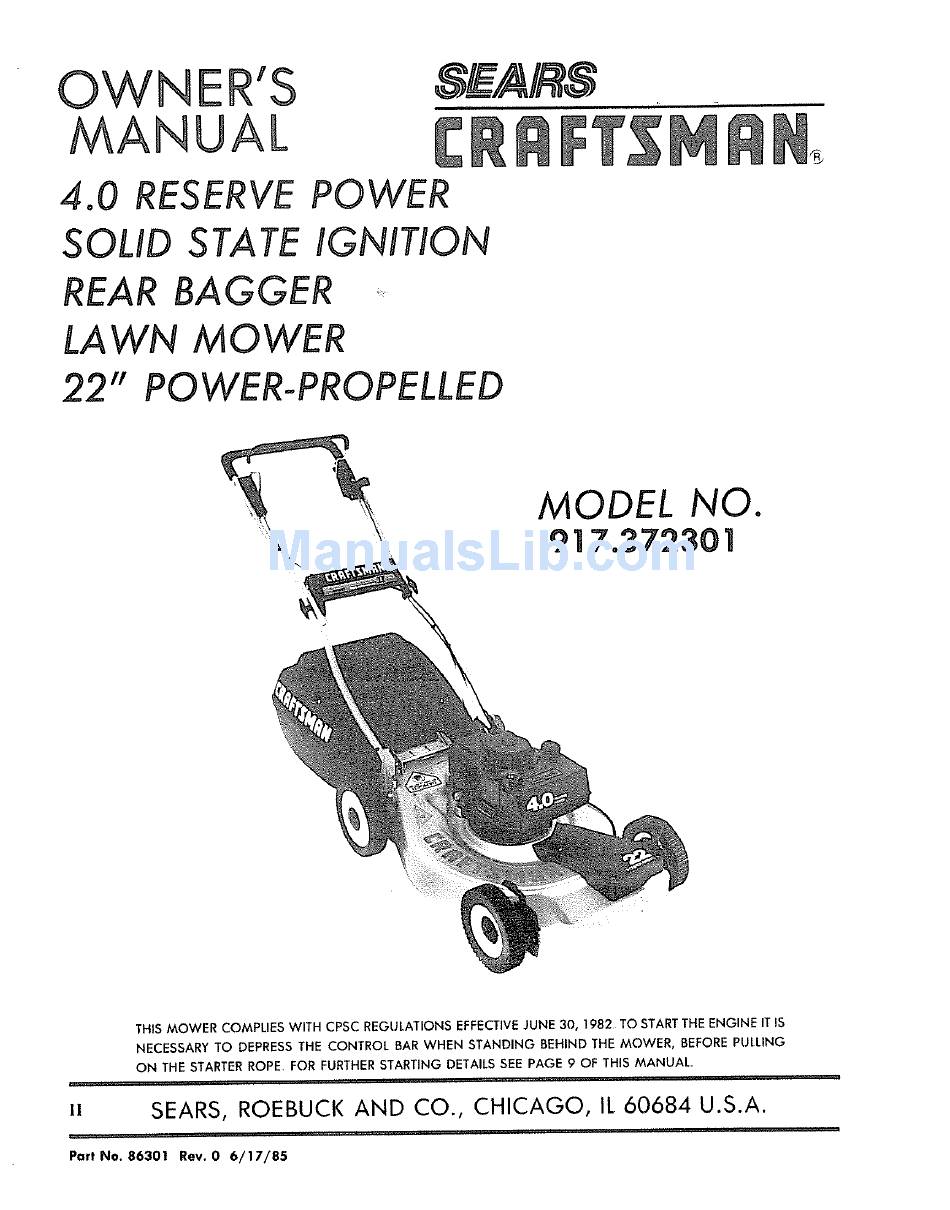

OWNER'S
MANUAL
4.0 RESERVE
SOLID STATE
REAR BAGGER
LAWN M 0 WER
22"
[,
POWER
IGNITION
POWER-PROPELLED
MODEL NO.
917.372301
THIS MOWER
COMPLIES
WITH CPSC REGULATIONS
EFFECTIVE JUNE 30, 1982
TO START THE ENGINE IT IS
NECESSARY
TO DEPRESS THE CONTROL
BAR WHEN
STANDING
BEHIND
THE MOWER,
BEFORE PULLING
ON THE STARTER ROPE, FOR FURTHER STARTING
DETAILS SEE PAGE 9 OF THIS MANUAL
u
SEARS, ROEBUCK AND CO., CHICAGO,
IL 60684
U.S.A.
#ll.,
..
Part No. 86301
Rev, 0
6/17/85
Advertisement
Table of Contents
Related Manuals for Craftsman 917.372301
Summary of Contents for Craftsman 917.372301
- Page 1 LAWN M 0 WER 22" POWER-PROPELLED THIS MOWER COMPLIES WITH CPSC REGULATIONS NECESSARY TO DEPRESS THE CONTROL ON THE STARTER ROPE, FOR FURTHER STARTING SEARS, ROEBUCK AND CO., CHICAGO, #ll., Part No. 86301 Rev, 0 6/17/85 POWER IGNITION MODEL NO. 917.372301...
- Page 2 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state_ SEARS, ROEBUCK and CO. Department A SEARS MAINTENANCE AGREEMENT IS AVAILABLE ON THIS PRODUCT CONTACT YOUR NEAREST SEARS STORE FOR DETAILS_ Read and observe the rules for safe use.
- Page 3 Gasoline: Use unleaded automotive oline, Regular automotive gasoline be used DO NOT use premium or gasoline containing alcohol Sears Rotary Walk-Behind Power Mowers conform stitute, Outdoor Power Equipment CRAFTSMAN CONTROL CONTROL PRIMER AIR FILTER FIG I gas-...
- Page 4 CAUTION: ALWAYS DISCONNECT I1 CANNOT CONTACT WHEN SETTING--UP, YOUR MOWER. FEDERAL REGULATIONS REQUIRE THE ENGINE CONTROL INSTALLED ON THIS MOWER IN ORDER TO MINIMIZE THE RISK OF BLADE CONTACT INJURY DO NOT UNDER ANY CIRCUMSTANCE ATTEMPTTO DEFEAT THE FUNCTION OF THE OPERATOR CONTROL Please read your...
- Page 5 GAS CAN: A new gas can keeps rust and dirt out of fuel system for longer engine life and improved per_ formance_ Craftsman gas cans have built in filters to keep impurities out of your engine THESE ACCESSORIES WERE AVAILABLE AT MOST SEARS STORES AND THROUGH THE CATALOG AT THE TIME THIS MANUAL WAS PRINTED.
- Page 6 Your lawn mower has been completely catcher ftame, To set-up and attach The following parts are included Grass Catcher Frame Grass Catcher Grass Catcher Bottom Hardware Package HOW TO SET-UPYOUR MOWER TO UNFOLD HANDLE I_ Raise the handles until the lower handle mowing position (See Fig°...
- Page 7 1 3/8"o There are two (2) other post. tions_ Pick the position which suits you for best cutting (See Fig. 6), 3. The wheel adjusters on your lawn mower can easily adjusted as shawn change the height of cut, squeeze lever...
- Page 8 1_ Remove engine oil cap with dipstick to the "FULL" line on the dipstick, 1 pint or 0.5 liters of Sears 10W30 oil or equiva- lenh SAE 30 oil can also be used (See Fig_ 11). DO NOT use SAE 10W40 oil.
- Page 9 HOW TO USE YOUR MOWER [IMPo.TA.TI ENGINE CONTROL CAUTION: THE BLADE TURNS WHEN THE ENGINE IS RUNNfNG_ YOUR MOWER IS EQUIPPED WITH AN ATOR ZONE ENGINE CONTROL WHICH REQUIRES THE OPERATOR TO BE POSITIONED BEHIND THE MOWER HANDLE TO START AND OPERATE THE MOWER.
- Page 10 5. Engine may be flooded - wait a few minutes and repeat starting procedure. NOTE: If then your engine will not start, contact your nearest Sears Service Department ZONE/ENGINE CONTROL Your mower is equipped with a zone/engine trol attached arrd requires no adjustments Fig_ 13).
- Page 11 I holding blade. Always use a block of wood whenJ tightening blade nut or blade Use only a Sears authorized replacement to get the best cutting results° CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come in con.
- Page 12 50-65 ft_ Ibs. Use block of wood to prevent blade rotatiom NOTE: Torque wrenches are available Sears retail stores and through the catalog. A loose blade can result in difficult engine, We do not recommend sharpening you do, be sure blade is balanced_ An unbalanced...
- Page 13 If catcher needs replacing, place only with a manufacturer approved ment catcher from Sears. Give the mower model number when ordering, NOTE: The catcher may be hosed with water, but must be dry when used, ZONE/CONTROL...
- Page 14 Use Sears SAE 10W30 oil or equivalent. oil can also be used. DO NOT use SAE 10W40 oil. Use only oil with automotive SD, or SC markings Using Sears SAE 10W30 oil will assist engine start- ing in cool weather'. can cut the Running your engine...
- Page 15 Keep your spark plug clean_ Set spark plug gap at .030. Recommended replacement Sears spark plug no. 7_ZJL33312 o r STD361458 Sears retail stores and through GENERAL DO NOT use gasoline left over from previous sea- son. Old or stale dirty gasoline and running problems.
- Page 16 REPLACE BLADE See "Blade Care" section under To get the best cutting results we recommend replace your blade with a Sears original equipment blade each year, Replacement blade is available stores and through the catalog. your mower model number when ordering...
-
Page 17: Parts
22" POWERTPROPELLED LAWN MOWER NUM E. 9,7 372301 GEAR CASE ASSEMBLY Ref. Part Part Name 53838 Locknut 1/4-20 85178 Adjusting Bracket 83488 Shifter Assembly Seal 57072 57388 Drlv-Lok Pin 1/8 × 1/2 79899 Gear Case Halves (IncL Upper and Lower Halves) - Page 18 REPAIR PARTS CRAFTSMAN 22" POWER-PROPELLED LAWN MOWER MODEL NUMBER 917.372301 * BLADENUT TIGHTENING TORQUE 50-65 FT. LBS._...
- Page 19 Locknut 1/4-20 34372A Bracket Rope Guide (See Engine Parts List)(Source 143) 85827 Control Cable Clip 51793 Hairpin Cotter Handle Lever 81281 85535 Handle Knob 917.372301 MODEL NUMBER Ref. Part 62363 77524 81027 x 2 1/8 77526 77527 STD581025 STD512505 83935...
- Page 20 Spring Washer Shoulder Bolt 84921 74400 Locknut 3/8-16 86455 Wheel Assembly 82854 Bearing 52160 Washer 55015 Retainer Clip 85313 Hub Cap MODEL NUMBER 917.372301 Ref. Part 70385 81276 75449 85283 51433 x 5/8 54867 69385 x 3/4 69334 84918 68205 83629...
- Page 21 Change Engine Oil after Changed Oil: 10W30 or SAE 30 Replaced spark plug: Replaced air filter: Replaced blade: Tuned-up: LAWN MOWER CARE RECORD the first two (2) hours of use, and then DATE DATE every 25 hours of use DATE...
- Page 22 CRAFTSMAN 22" POWER-PROPELLED LAWN MOWER MODEL NUMBER 917.372301 REPAIR PARTS 51-- ,.,_ _--, •,...
- Page 23 81612 Lockwasher Shoulder Nut 81220 5TD601003 Self-Tapping Screw 10-24 x 3/8 83700 Cable Clamp 79949 Gear Case Replacement Kit 83681 Drive Pulley MODEL NUMBER 917.372301 Ref. Part 74976 83691 54388 x 2 1/8 83632 68038 75192 STD580009 STD580014 83590 75725...
- Page 24 EAGER-1 (I_FTS_AN 4=(V(:LE ENGINE...
- Page 25 CRAFTSMAN 4=(YCLE ENGINE Ref.I Part Part Name 35180 Cylinder Assy_ (IncL Nos_ 3 8- 4) 26727 Pin, Dowel 32600 Seal, Oil 29314B Valve, Intake (Std,) (InClr NO I0) 29315C Valve, Intake (1/32" No. 10) 29313C Valve, Exhaust (Std.) (Incl. No, 10) 29315C Valve, Exhaust...
- Page 26 CARBURETOR 632389 • Ref. Ref. 590420A 590409A 590410 590411 590148 590412 590413A 590414 5,90536 590535 590387 590459 ,, ,,,, Part Part Name 632389 Carburetor 631615 Shaft 8 Lever Assy,, Throttle 631616 Shutter, Throttle 650506 Screw, Throttle shutter 631767 Spring, Throttle return 631971 Seat, Dust 631184...
- Page 27 TROUBLE PROBLEM CAUSE Does not 1 Out of gasoline Start "Stale Gasoline Spark plug wire is dis- connected plug Bad spark plug Water in gasoline Loose blade blade flange Zone/Engine released Zone/Engine defective LOSS of 1_ Rear of mower housing/ Power blade dragging...
- Page 28 The MODEL NUMBER - 917.372301 4. The NAME OF THE PRODUCT - CRAFTSMAN POWER-PROPELLED REAR BAGGER LAWN MOWER The ENGINE MODEL NUMBER - 143.364022 Your Sears merchandise has added value when you consider that Sears has service units nationwide trained technlcians,...
