Repair Parts - Kenmore 303.147012 Owner's Manual

repair parts

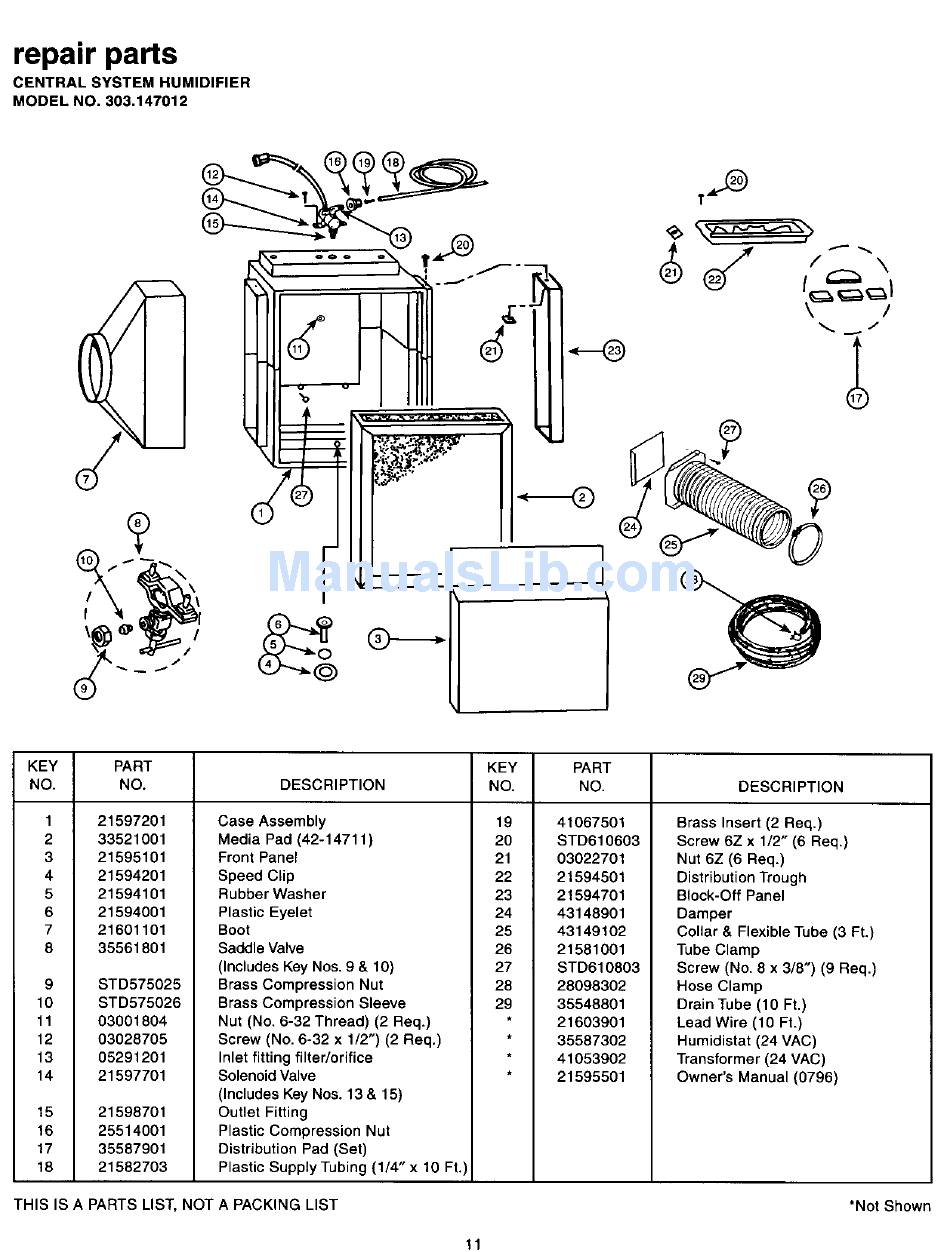

CENTRAL SYSTEM HUMIDIFIER
MODEL NO. 303.147012
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
21597201
33521001
21595101
21594201
21594101
21594001
21601101
35561801
9 STD575025
10 STD575026
11 03001804
12 03028705
13 05291201
14 21597701
15 21598701
16 25514001
17 35587901
18 21582703
DESCRIPTION
KEY
NO.
Case Assembly 19
Media Pad (42-14711 ) 20
Front Panel 21
Speed Clip 22
Rubber Washer 23
Plastic Eyelet 24
Boot 25
Saddle Valve 26
(Includes Key Nos. 9 & 10) 27
Brass Compression Nut 28
Brass Compression Sleeve 29
Nut (No. 6-32 Thread) (2 Req.)
Screw (No. 6-32 x 1/2") (2 Req.)
Inlet fitting filter/orifice
Solenoid Valve
(Includes Key Nos. 13 & 15)
Outlet Fitting
Plastic Compression Nut
Distribution Pad (Set)
Plastic Supply Tubing (1/4" x 10 Ft.)
PART
NO.
41067501
STD610603
03022701
21594501
21594701
43148901
43149102
21581001
STD610803
28098302
35548801
21603901
35587302
41053902
21595501
DESCRIPTION
Brass Insert (2 Req.)
Screw 6Z x 1/2" (6 Req.)
Nut 6Z (6 Req.)
Distribution Trough
Block-Off Panel
Damper
Collar & Flexible Tube (3 Ft.)
Tube Clamp
Screw (No. 8 x 3/8") (9 Req.)
Hose Clamp
Drain Tube (10 Ft.)
Lead Wire (10 Ft.)
Humidistat (24 VAC)
Transformer (24 VAC)
Owner's Manual (0796)
THIS IS A PARTS LIST, NOT A PACKING LIST
*Not Shown
11
