TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2
Recommendations . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . 2 - 4
Operating Instructions . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Preparing for Summer Use . . . . . . . . . . . . . 5
Model Identification . . . . . . . . . . . . . . . . . . . 5
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . 5
Customer Service . . . . . . . . . . . . . . . . . . . . 5
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting Guide . . . . . . . . . . . . . . . . 7
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

SPECIFICATIONS

Product Name: 711-M28 Marine Traveler Toilet
Shipping Information:
Carton Sizes:
Toilet 21" x 18-1/2" x 13-1/2"
(533mm x 470mm x 343mm)
Tank 19-1/4" x 17-1/2" x 11-1/2"
(489mm x 445mm x 292mm)
Weight Approx. 49 lbs. (22Kg)
System:
Average water consumption per flush 1 Qt. (.95 L)
Minimum water consumption per flush 1 Pt. (.47L)
Holding tank capacity . . . . . . . . . . . 9.5 Gal. (36L)
Fresh water supply pressure . . . . . . . . . . 5-80 PSI
Water inlet size . . . . . . . . . . . . . . . . . . . 1/2" NPT
Holding tank discharge fitting . . . . . . . 1-1/2" NPT
Vent fitting . . . . . . . . . . . . . . . . . . . . . . 5/8" Barb
Unit Weight . . . . . . . . . . . . . . . . . 41 Lbs. (19Kg)

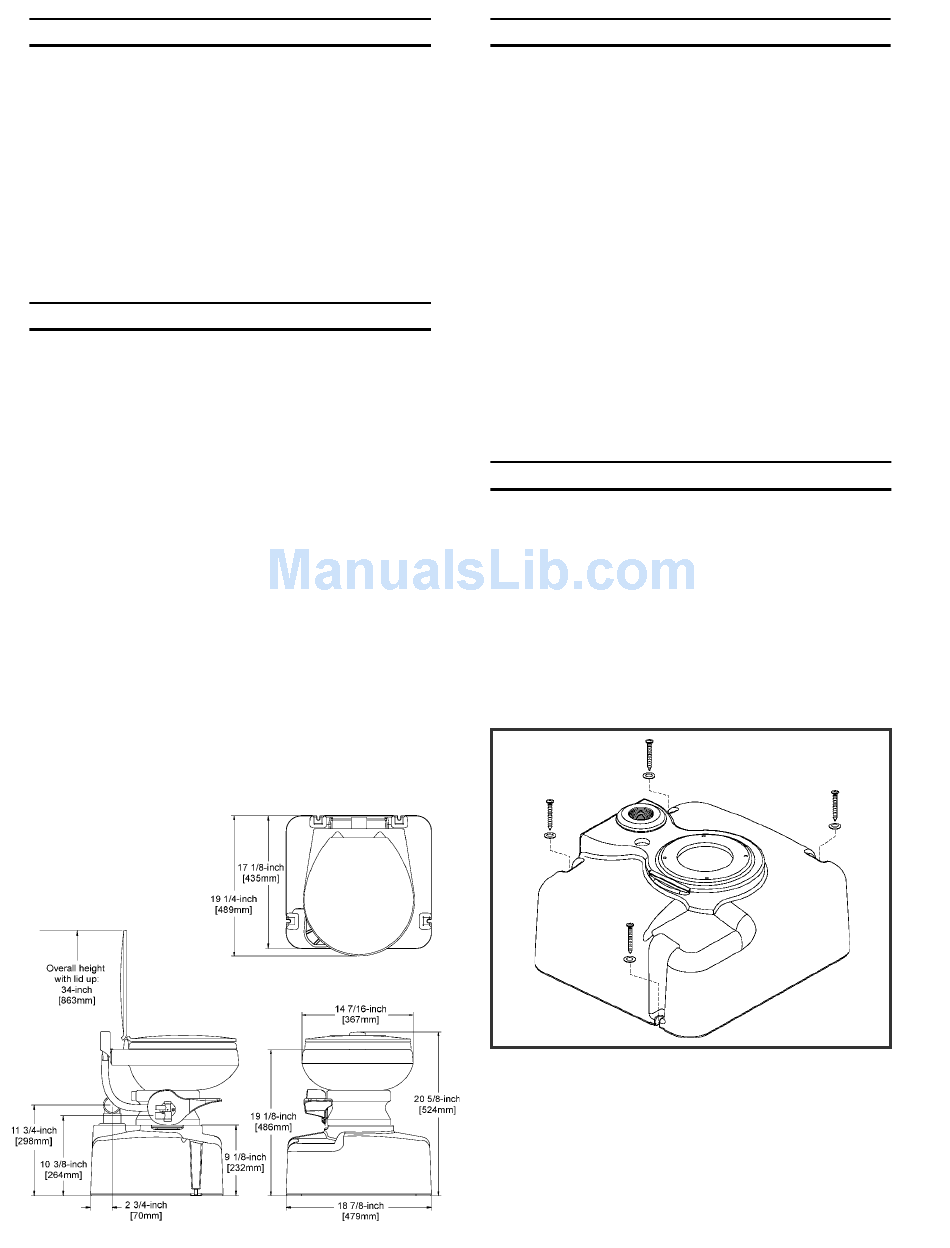

Dimensions:

RECOMMENDATIONS

1. Read the "Operating Instructions" section of the
manual carefully.
2. Make sure all guests understand the operation of
the Traveler toilet.
3. Carry a few spare parts for the maintenance purposes.
SeaLand has developed several repair kits that will
save you both time and expense should a problem
occur. See "Customer Service" section of this manual.
4. Use only SeaLand brand
liquid or SeaLand
to maintain a trouble-free system.
5. Do not use chlorine or caustic chemicals, such as
laundry bleach or drain opening types, in the
system. These products damage the seals in toilets.
6. Do not flush foreign objects through the toilet.
7. Do not allow small problems to go unsolved. As soon
as a problem is detected, correct it.
INSTALLATION INSTRUCTIONS
Tank:
1. Select position in bathroom where unit can operate
properly. Allow room for using the flush lever and
clearance for raising the seat and lid.
2. Position the tank 3/4" (19mm) away from the wall.
Mark four holes at mounts on tank base. After holes
are marked, remove tank, and drill pilot holes. Slide
tank back into position. Secure the tank with four
#14 x 2" long pan head screws and washers on all
tank mounts.
3. Run 5/8" (16mm) I.D. hose to vent fitting and secure
with hose clamps.
Install thru-hull vent fitting:
(not supplied with unit - SeaLand part number 346368)
4. Drill hole through the hull, well above water line and
directly above Traveler toilet. Hole location is deter-
mined by routing and length of hose.
2
® Tissue and Secure
® brand Holding Tank Deodorants
®
