Seagate Cheetah 10K.7 FC ST336807FC Product Manual

Seagate cheetah 10k.7 fc disc drives product manual
Hide thumbs Also See for Cheetah 10K.7 FC ST336807FC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Users Guide
Cheetah 10K.7 FC
ST336807FC

Advertisement

Table of Contents
loading

Related Manuals for Seagate Cheetah 10K.7 FC ST336807FC

Summary of Contents for Seagate Cheetah 10K.7 FC ST336807FC

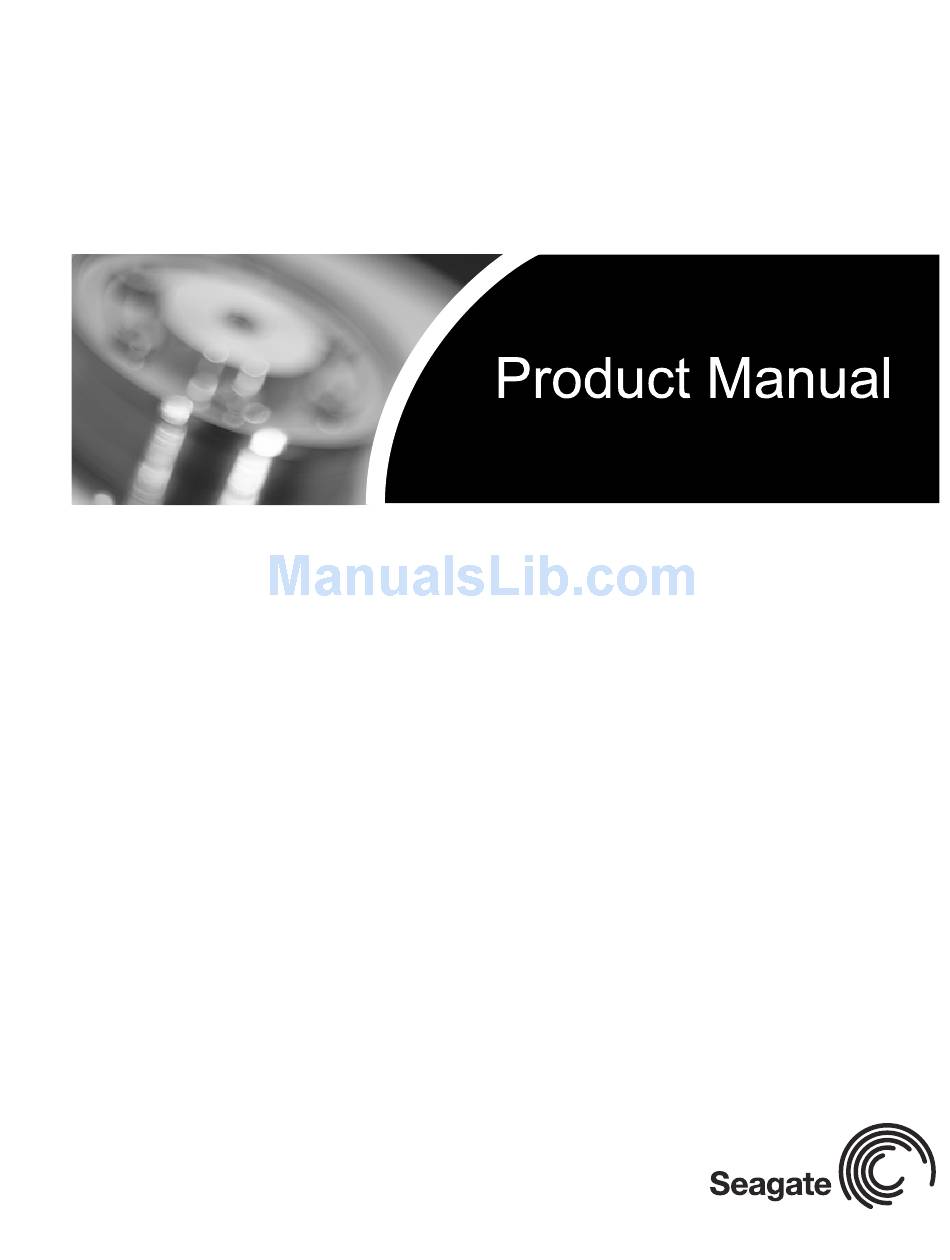

  • Page 1 Users Guide Cheetah 10K.7 FC ST336807FC...
  • Page 3 Users Guide Cheetah 10K.7 FC ST336807FC...
  • Page 4 Seagate Technology LLC. Other product names are regis- tered trademarks or trademarks of their owners. Seagate reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
  • Page 5 Revision status summary sheet Revision Date Sheets Affected Rev. A 05/04/05 All. Initial release.

  • Page 7: Table Of Contents

    Scope ............... . 1 Applicable standards and reference documentation .
  • Page 8 Physical/electrical specifications ..........25 AC power requirements .
  • Page 9 Seagate Technology support services ........
  • Page 10 viii Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 11: List Of Figures

    Typical ST336807FC drive, 2 Gbit, +12V current profile ......27 Figure 3. Typical ST336807FC drive, 2 Gbit, +5V current profile ......27 Figure 4.
  • Page 12 Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 13: Scope

    Cheetah 10K.7 FC drives support the Fibre Channel Arbitrated Loop and SCSI Fibre Channel Protocol specifi- cations to the extent described in this manual. The Fibre Channel Interface Manual (part number 77767496) describes the general Fibre Channel Arbitrated Loop characteristics of this and other Seagate Fibre Channel drives.
  • Page 14 Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 15: Applicable Standards And Reference Documentation

    Mounting by bottom holes must meet the requirements of Section 8.5. Standards The Cheetah 10K.7 FC family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate Fibre Channel Interface Manual, part number 77767496.

  • Page 16: Electromagnetic Compliance

    • External modem • Mouse Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

  • Page 17: Reference Documents

    Specification for 40-pin SCA-2 Connector with Parallel Selection Specification for 40-pin SCA-2 Connector with Bidirectional Enclosure Services Interface (SCSI-2) (SCSI-3) Architecture Model (SCSI-3) Enclosure Services Seagate part number: 30553-001 Seagate P/N 30190-001 (under 100 lb.) Seagate P/N 30191-001 (over 100 lb.)
  • Page 18 Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 19: General Description

    General description Cheetah 10K.7 FC drives combine giant magnetoresistive (GMR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo technology, and a Fibre Channel interface to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers.

  • Page 20: Standard Features

    Standard features Cheetah 10K.7 FC drives have the following standard features: • Integrated dual port FC-AL controller • Concurrent dual port transfers • Support for FC arbitrated loop, private and public attachment • Differential copper FC drivers and receivers • Downloadable firmware using the FC-AL interface •...

  • Page 21: Performance

    69,731,801 68,788,592 2. Seagate drives also may be used at the maximum available capacity at a given sector size, but the excess capacity above the guaranteed level will vary between 10K and 15K families and from generation to gener- ation, depending on how each sector size actually formats out for zone frequencies and splits over servo bursts.

  • Page 22: Factory-Installed Accessories

    change the capacity it is currently formatted to have. A number in the number of blocks field that is less than the maximum number of LBAs changes the total drive capacity to the value in the block descriptor number of blocks field.

  • Page 23: Performance Characteristics

    Performance characteristics This section provides detailed information concerning performance-related characteristics and features of Cheetah 10K.7 FC drives. Internal drive characteristics ST336807FC Drive capacity 36.8..Gbytes (formatted, rounded off value) Read/write data heads Bytes per track 556..Kbytes (average, rounded off values) Bytes per surface 50.5...

  • Page 24: Seek Performance Characteristics

    Read Average—Typical [2] Single Track—Typical [2] 0.45 Full Stroke—Typical [2] 4.2.2 Format command execution time (in minutes) ST336807FC Maximum (with verify) Maximum (without verify) 4.2.3 Generalized performance characteristics Minimum sector interleave 1 to 1 Data buffer transfer rate to/from disc media (one 512-byte sector):...

  • Page 25: Start/Stop Time

    Flaw reallocation performance impact (for flaws reallocated at format time using the spare sectors per sparing zone reallocation scheme.) Overhead time for head switch in sequential mode Overhead time for one track cylinder switch in sequential mode Average rotational latency *Assumes no errors and no relocated logical blocks.

  • Page 26: Caching Write Data

    The drive keeps track of the logical block addresses of the data stored in each segment of the buffer. If the cache is enabled (see RCD bit in the Fibre Channel Interface Manual), data requested by the host with a read command is retrieved from the buffer, if possible, before any disc access is initiated.

  • Page 27: Prefetch Operation

    If the number of write data logical blocks exceed the size of the segment being written into, when the end of the segment is reached, the data is written into the beginning of the same cache segment, overwriting the data that was written there at the beginning of the operation;...
  • Page 28 Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 29: Reliability Specifications

    Reliability specifications The following reliability specifications assume correct host and drive operational interface, including all inter- face timings, power supply voltages, environmental requirements and drive mounting constraints Seek error rate Read Error Rates Recovered Data Unrecovered Data Miscorrected Data Interface error rate Service life Preventive maintenance Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated.

  • Page 30: Unrecoverable Errors

    5.1.2 Unrecoverable errors Unrecoverable Data Errors (Sense Key = 03h) are specified at less than 1 sector in error per 10 ferred. Unrecoverable Data Errors resulting from the same cause are treated are 1 error for that block. 5.1.3 Seek errors A seek error is defined as a failure of the drive to position the heads to the addressed track.

  • Page 31: Hot Plugging The Drive

    5.2.3 Hot plugging the drive Inserting and removing the drive on the FC-AL will interrupt loop operation. The interruption occurs when the receiver of the next device in the loop must synchronize to a different input signal. FC error detection mecha- nisms, character sync, running disparity, word sync, and CRC are able to detect any error.

  • Page 32: Thermal Monitor

    Performance impact S.M.A.R.T. attribute data is saved to the disc so that the events that caused a predictive failure can be recre- ated. The drive measures and saves parameters once every two hours subject to an idle period on the FC-AL bus.

  • Page 33: Drive Self Test (Dst)

    If DST encounters an error during either of these tests, it reports a fault condition. If the drive fails the test, remove it from service and return it to Seagate for service. Cheetah 10K.7 36GB FC Product Manual, Rev. A...
  • Page 34 DST. It is the responsibility of the host application to determine the “not ready” cause. While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seagate as a failed drive.

  • Page 35: Product Warranty

    5.2.7 Product warranty Beginning on the date of shipment to the customer and continuing for a period of five years, Seagate warrants that each product (including components and subassemblies) that fails to function properly under normal use due to defect in materials or workmanship or due to nonconformance to the applicable specifications will be repaired or replaced, at Seagate’s option and at no charge to the customer, if returned by customer at cus-...
  • Page 36 Shipping When transporting or shipping a drive, use only a Seagate-approved container. Keep your original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty. Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in tran- sit.

  • Page 37: Physical/Electrical Specifications

    DC power requirements The voltage and current requirements for a single drive are shown below. Values indicated apply at the drive connector. Table 11: DC power requirements ST336807FC Voltage Regulation Avg idle current DC Maximum starting current (peak DC) DC...

  • Page 38: Conducted Noise Immunity

    See paragraph 6.2.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and transient response. Operating condition is defined as random 8 block reads at 254 I/Os per second. Current and power specified at nominal voltages. Decreasing +5 volt supply by 5% increases 5 volt cur- rent by <0.5%.

  • Page 39: Current Profiles

    Figures 2 and 3 identify the drive current profiles. The current during the various times is as shown: Note: All times and currents are typical. See Table 11 for maximum current requiremST336807FC Figure 2. Typical ST336807FC drive, 2 Gbit, +12V current profile Figure 3. Typical ST336807FC drive, 2 Gbit, +5V current profile...

  • Page 40: Power Dissipation

    1 .000 0.800 0.600 0.400 0.200 0.000 50.0 1 00.0 Figure 4. ST336807FC DC current and power vs. input/output operations per second 1 50.0 200.0 250.0 I/Os per Second 1 50.0 200.0 250.0 I/Os per Second Cheetah 10K.7 36GB FC Product Manual, Rev. A 1 8.00...

  • Page 41: Environmental Limits

    Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. HDA Temp.

  • Page 42: Shock And Vibration

    >600 cu in (>9,800 cu cm) Drives packaged in single or multipacks with a gross weight of 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand a drop test from 48 inches (1,070 mm) against a concrete floor or equivalent.

  • Page 43: Figure 6. Recommended Mounting

    Figure 6. Recommended mounting Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 44: Air Cleanliness

    The sil- ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%.

  • Page 45: Acoustics

    There will not be any discrete tones more than 10 dB above the masking noise on typical drives when mea- sured according to Seagate specification 30553-001. There will not be any tones more than 24 dB above the masking noise on any drive.

  • Page 46: Figure 7. Mounting Configuration Dimensions

    Figure 7. Mounting configuration dimensions Notes: Mounting holes are 6-32 UNC 2B, three on each side and four on the bottom. Max screw penetration into side of drive is 0.15 in. (3.81 mm). Max screw tightening torque is 6.0 in-lb (3.32 nm) with minimum full thread engagement of 0.12 in.

  • Page 47: Defect And Error Management

    Defect and error management The drive, as delivered, complies with this product manual. The read error rates and specified storage capaci- ties are not dependent upon use of defect management routines by the host (initiator). Defect and error management in the SCSI protocol involves the drive internal defect/error management and FC-AL system error considerations (errors in communications between the initiator and the drive).
  • Page 48 Table 12 equates the read and write retry count with the maximum possible recovery time for read and write recovery of individual LBAs. The times given do not include time taken to perform reallocations. Reallocations are performed when the ARRE bit (for reads) or AWRE bit (for writes) is one, the RC bit is zero, and the recov- ery time limit for the command has not yet been met.

  • Page 49: Fc-Al System Errors

    FC-AL system errors Information on the reporting of operational errors or faults across the interface is given in the Fibre Channel Interface Manual. The FCP Response returns information to the host about numerous kinds of errors or faults. The Receive Diagnostic Results reports the results of diagnostic operations performed by the drive. Status returned by the drive to the initiator is described in the Fibre Channel Interface Manual.
  • Page 50 Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 51: Installation

    Installation Cheetah 10K.7 FC disc drive installation is a plug-and-play process. There are no jumpers, switches, or termi- nators on the drive. Simply plug the drive into the host’s 40-pin Fibre Channel backpanel connector (FC- — SCA) no cables are required. See Section 9.5 for additional information about this connector. Use the FC-AL interface to select drive ID and all option configurations for devices on the loop.

  • Page 52: Led Connections

    LED connections A connector, J6, is provided on the printed circuit board assembly (PCBA) to provide port bypass, drive active, and drive fault LED connections (see Figure 9). See Sections 9.5.7, 9.5.8, and 9.5.9 for descriptions of LED functions. Figure 8. Physical interface Drive Front...

  • Page 53: J6 Connector Requirements

    8.2.1 J6 connector requirements Recommended mating connector part number: Berg receptacle, 6-position, Berg part number 690-006. Drive orientation The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the drive in horizontal (discs level) and vertical (drive on its side) orientations, which are the two pre- ferred mounting orientations.

  • Page 54: Drive Mounting

    (F) is applied to the fourth point. Note. Before mounting the drive in any kind of 3.5-inch to 5.25-inch adapter frame, verify with Seagate Technology that the drive can meet the shock and vibration specifications given herein while mounted in such an adapter frame.

  • Page 55: Interface Requirements

    Interface requirements This section partially describes the interface requirements as implemented on Cheetah 10K.7 FC drives. Addi- tional information is provided in the Fibre Channel Interface Manual (part number 77767496). FC-AL features This section lists the Fibre Channel-specific features supported by Cheetah 10K.7 FC drives. 9.1.1 Fibre Channel link service frames Table 13 lists the link services supported by Cheetah 10K.7 FC drives.

  • Page 56: Fibre Channel Task Management Functions

    9.1.2 Fibre Channel task management functions Table 14 lists the Fibre Channel SCSI Fibre Channel Protocol (FC SCSI FCP) task management functions sup- ported. Table 14: Fibre Channel SCSI FCP task management functions Task name Supported Terminate task Clear ACA Target reset Clear task set Abort task set...

  • Page 57: Fibre Channel Port Login

    9.1.4 Fibre Channel port login Table 16 identifies the required content of the N_Port Login (PLOGI) payload from an initiator. Table 16: N_Port login (PLOGI) payload Bytes 0-15 16-31 32-35 36-47 48-51 52-63 64-67 68-79 80-83 84-95 96-99 100-111 112-115 Indicates a four-bit (hex) field is not checked.

  • Page 58: Fibre Channel Port Login Accept

    9.1.5 Fibre Channel port login accept Table 17 identifies the N_Port Login access payload values. Table 17: N_Port Login Accept (ACC) payload Bytes 0-15 16-31 32-35 36-47 48-51 52-63 64-67 68-79 80-83 84-95 96-99 100-111 112-115 Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). Receive buffer field size.

  • Page 59: Fibre Channel Process Login Accept

    9.1.7 Fibre Channel Process Login Accept Table 19 lists Cheetah 10K.7 FC process login accept payload data. Table 19: Process Login Accept (ACC) payload Bytes 0-15 16-31 9.1.8 Fibre Channel fabric login Table 20 lists the fabric login payload from the drive. Table 20: Fabric Login (FLOGI) payload Bytes...

  • Page 60: Fibre Channel Fabric Accept Login

    9.1.9 Fibre Channel fabric accept login Table 20 lists the required content of the Fabric Login Accept (ACC) payload from the fabric. Table 21: Fabric Login Accept (ACC) payload Bytes 0-15 16-31 32-35 36-47 48-51 52-63 64-67 68-79 80-83 84-95 96-99 100-111 112-115...

  • Page 61: Fibre Channel Arbitrated Loop Options

    • If both ports are connected in the same loop and hard addressing is used, at least one port will attempt tak- ing a soft address to prevent an address conflict. Note. When a Cheetah 10K.7 FC drive is connected in loops with previous Seagate FC drive products: Barracuda 4LP FC (ST32171FC, ST34371FC, and ST34571FC) Barracuda 9FC (ST19171FC)

  • Page 62: Scsi Commands Supported

    SCSI commands supported Table 23 lists the SCSI commands supported by Cheetah 10K.7 FC drives. Table 23: Supported commands Command code Supported [4] Command name Test unit ready Rezero unit Request sense Extended sense Field pointer bytes Actual retry count bytes Format unit [1] Reassign blocks Read...
  • Page 63 Table 23: Supported commands (continued) Command code Supported [4] Cheetah 10K.7 36GB FC Product Manual, Rev. A Command name Mode sense Unit attention page (00h) Error recovery page (01h) Disconnect/reconnect control (page 02h) Format page (03h) Rigid disc drive geometry page (04h) Verify error recovery page (07h) Caching parameters page (08h) Fibre Channel interface control page (19h)
  • Page 64 Table 23: Supported commands (continued) Command code Supported [4] Command name Relative address Seek extended Write and verify Disable page out Byte check Relative address Verify Disable page out Byte check Relative address Search data high Search data equal Search data low Set limits Prefetch Synchronize cache...
  • Page 65 Table 23: Supported commands (continued) Command code Supported [4] 42-4Bh 4E-4Fh Cheetah 10K.7 36GB FC Product Manual, Rev. A Command name Read buffer Read combined header and data mode (0) Read data mode (2) Read descriptor mode (3) Read long Write long Change definition Write same...
  • Page 66 Table 23: Supported commands (continued) Command code Supported [4] 53-54h 58-59h 5B-5Dh 60-7Fh 83-8Fh C0-DFh EO-FFh Cheetah 10K.7 FC drives can format to any multiple of four bytes per logical block in the range 512 to 528 bytes. Warning. Power loss during flash programming can result in firmware corruption. This usually makes the drive inoperable.

  • Page 67: Inquiry Data

    Four ASCII digits representing the last four digits of the product firmware release number. Eight ASCII digits representing the eight digits of the product serial number. Bytes 18 through 25 reflect model of drive. The table above shows the hex values for Model ST336807FC. 9.3.2 Mode Sense data The Mode Sense command provides a way for the drive to report its operating parameters to the initiator.
  • Page 68 On drives requiring unique saved values, the required unique saved values are stored into the saved val- ues storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also. On standard OEM drives, the saved values are taken from the default values list and stored into the saved values storage location on the media prior to shipping.
  • Page 69 Table 25: Mode Sense data default and changeable values for ST336807FC drives) ST336807FC Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Mode Sense...

  • Page 70: Miscellaneous Operating Features And Conditions

    Miscellaneous operating features and conditions Table 26 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the support column indicates the feature or condition is not supported. Table 26: Miscellaneous features Supported Feature or condition...

  • Page 71: Fc-Al Physical Interface

    Figure 13 provides the dimensions of the FC-SCA. Figure 14 provides the dimensions of the J6 con- nector. Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s Fibre Channel drives are provided in the Fibre Channel Interface Manual. Figure 11. Physical interface 9.5.1...

  • Page 72: Connector Requirements

    9.5.2 Connector requirements Recommended mating SCA part number: Part description Positions AMP Vertical (SCA sequence) Berg Methode Molex The FC-AL SCA device connector is illustrated in Figure 13. The J6 connector is illustrated in Figure 14. 1.618 .003 in (41.1 0.08 mm) Pin 20 Pin 40...

  • Page 73: Electrical Description

    .787 (19.99 mm) .079 (2 mm) .079 (2 mm) .708 (17.983 mm) Figure 14. J6 connector dimensions 9.5.3 Electrical description Fibre Channel drives use the FC-SCA connector for: • DC power • FC-AL interface • Drive select (device identification) • Option selection •...

  • Page 74: Pin Descriptions

    9.5.4 Pin descriptions This section provides a pin-out of the FC-SCA and a description of the functions provided by the pins. Table 28: FC-SCA pin descriptions Signal name -EN bypass port A 12 Volts 12 Volts 12 Volts -Parallel ESI Ground Active LED out Reserved...

  • Page 75: Fc-Al Transmitters And Receivers

    9.5.5 FC-AL transmitters and receivers A typical FC-AL differential copper transmitter and receiver pair is shown in Figure 15. The receiver is required to provide the AC coupling to eliminate ground shift noise. Differential Transmitter Transfer Medium Figure 15. FC-AL transmitters and receivers 9.5.6 Power Power is supplied through the FC-SCA with support for +5 volts and +12 volts.

  • Page 76: Active Led Out

    9.5.8 Active LED Out The Active LED Out signal is driven by the drive as indicated in Table 29. Table 29: Active LED Out conditions Normal command activity Spun down and no activity Spun down and activity (command executing) Spun up and no activity Spun up and activity (command executing) Spinning up or down Format in progress, each cylinder change...

  • Page 77: Motor Start Controls

    9.5.10 Motor start controls The drive’s motor is started according to the Start_1 and Start_2 signals described in Table 30. The state of these signals can be wired into the backplane socket or driven by logic on the backplane. Table 30: Motor start control signals Case Start_2...
  • Page 78 Table 31: Arbitrated loop physical address (AL_PA) values AL_PA SEL ID Setting (hex) (hex) (dec) AL_PA SEL ID Setting (hex) (hex) (dec) Cheetah 10K.7 36GB FC Product Manual, Rev. A AL_PA SEL ID Setting (hex) (hex) (dec)

  • Page 79: Device Control Codes

    9.5.12 Device control codes The drive inputs a Device Control Code on the DEV_CTRL_CODE lines at power up to determine the link rate on the Fibre Channel ports. Both ports run at the same rate. If the backpanel does not connect to these lines, the drive has 10K ohm pull up resistors that default the device control code to 7 (1.0625 GHz).

  • Page 80: Led Driver Signals

    9.6.2 LED driver signals Fault and Active LED signals are located in the FC-SCA connector (J1) and through the indicator connector (J6). See Table 34 for the output characteristics of the LED drive signals. Table 34: LED drive signal State Current drive available LED off, high 0 <...

  • Page 81: Figure 17. Receive Eye Diagram

    Figure 17 provides the data valid eye diagram for typical and minimum requirements to recover data at the specified interface error rate. The inputs are AC coupled on the drive. Table 37 lists the data values. Bit Time RCV Eye (typical) (minimum) Figure 17.
  • Page 82 Cheetah 10K.7 36GB FC Product Manual, Rev. A...

  • Page 83: Seagate Technology Support Services

    +1-405-324-4770. Seagate Service Centers Presales Support Our Presales Support staff can help you determine which Seagate products are best suited for your specific application or computer system, as well as drive availability and compatibility. Technical Support If you need help installing your drive, consult your system's documentation or contact the dealer's support ser- vices department for assistance specific to your system.
  • Page 84 Data Recovery Services Seagate offers data recovery services for all formats and all brands of storage media. Our Data Recovery Ser- vices labs are currently located in North America. To get a free quick quote or speak with a case management representative, call 1-800-475-0143.
  • Page 85 European support services For presales and technical support in Europe, dial the Seagate Service Center toll-free number for your spe- cific location. If your location is not listed here, dial our presales and technical support call center at +1-405- 324-4714 from 8:00 .
  • Page 86 Monday through Friday, except as noted. If your location is not listed here, direct dial one of our tech- nical support locations. Warranty service is available from 9:00 November through March (Australian Eastern time) Monday through Friday. Seagate Service Centers Call center Toll-free Australia...
