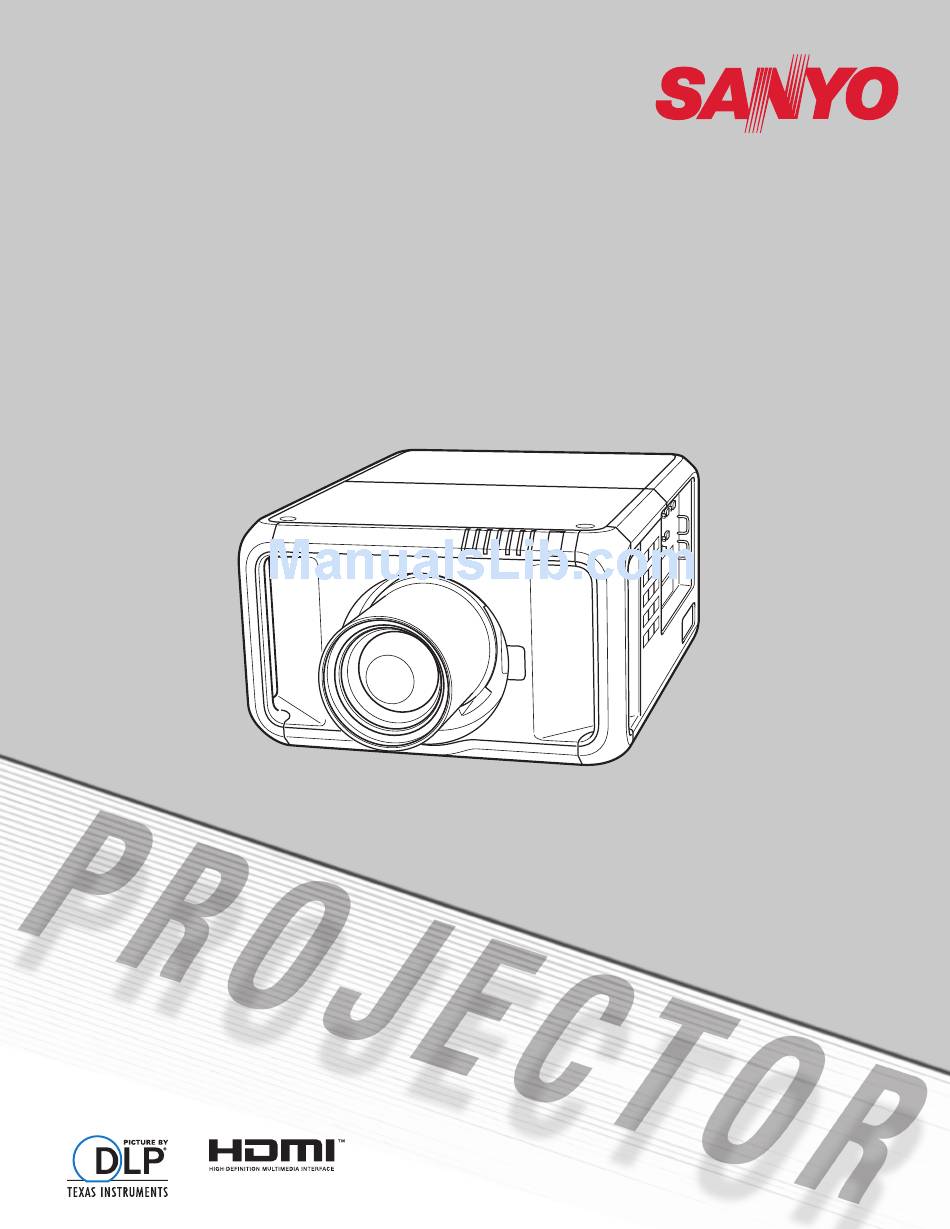

Multimedia Projector
PDG-DHT8000L
MODEL
Projection lens not included.
✽
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PDG-DHT8000L

Summary of Contents for Sanyo PDG-DHT8000L

  • Page 1 Multimedia Projector PDG-DHT8000L MODEL Projection lens not included. ✽ Owner’s Manual...

  • Page 2: Features And Design

    This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features. projector with high resolution ® ◆ This projector is compatible with Full HD signals, allowing high definition projection. It is also...

  • Page 3: Table Of Contents

    Safety Instructions . . . . . . . . . . . . . . . . . 5 Air Circulation Installing the Projector in Proper Directions Moving the Projector Compliance .

  • Page 4: To The Owner

    – Do not cover the ventilation slots on the projector. Heat build- up can reduce the service life of your projector, and can also be dangerous. SIDE and TOP 1.5’ (50cm) 3.3’...

  • Page 5: Safety Instructions

    The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

  • Page 6: Air Circulation

    – Do not put any flammable object or spray can near the projector, hot air is exhausted from the air vents. – Keep the exhaust vent at least 3’ (1 m) away from any objects.

  • Page 7: Installing The Projector In Proper Directions

    Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane.

  • Page 8: Moving The Projector

    – Do not put the projector in a case before it is cooled enough. – Do not transport the projector with a replacement lens installed.

  • Page 9: Compliance

    This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 10: Part Names And Functions

    Power Cord Connector !0 Lamp Cover ✽Kensington Security Slot This slot is for a Kensington lock used to deter theft of the projector. * Kensington is a registered trademark of ACCO Brands Corporation. !1 Infrared Remote Receiver (Rear)

  • Page 11: Terminals And Connectors

    Terminals and Connectors q USB CONNECTOR (Series B) USB connector is used to service the projector. w 5 BNC INPUT jACKS Connect the component or composite video output signal from video equipment to VIDEO/Y, Pb/Cb, and Pr/Cr jacks or connect the computer output signal (5 BNC Type [Green, Blue, Red, Horiz.

  • Page 12: Side Control And Indicators

    Part Names and Functions Side Control and Indicators Indicators Side Control ON/STAND-By button Turn the projector on or off. (pp.24,25) SHUTTER button Close and open up the built-in shutter. (p.28) e ZOOM button Zoom in and out the images. (p.28) r FOCUS button Adjust the focus.

  • Page 13: Indicators

    And it flashes green in Power Management mode. (pp.57 , 79-81) w LAMP Indicator This indicator is dim when the projector is turned on. And bright when the projector is in stand-by mode. (pp.79-81) e WARNING TEMP .

  • Page 14: Remote Control

    • For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any other chemical materials. q ON/STAND-By button Turn the projector on or off. (pp.24-25) w AUTO PC button Automatically adjust the computer image to its optimum setting. (pp.30, 36) e LIGHT button Light the buttons on the remote control for about 10 seconds.

  • Page 15: Remote Control Battery Installation

    The remote control can be used as a wired remote control. Wired remote control helps you use the remote control outside of the operating range (16.4’/ 5 m). Connect the remote control and the projector with the remote control cable (sold separately).

  • Page 16: Remote Control Code

    Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 56.

  • Page 17: Installation

    - When setting the projector after lens installation, be sure to replace a Lens Cap to protect a surface. - When carrying or holding up the projector, be careful not to put your hands on lens part. It may damage lens, cabinet, or mechanical parts.

  • Page 18: Lens Shift Adjustment

    Installation Lens Shift Adjustment Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This function makes the positioning of images easy on the screen. (See page 28) The display position can be shifted upward up to 67 .7% elevation of the display.

  • Page 19: Terminals Of Projector

    Terminals of Projector The projector has two replaceable Interface board slots. The projector's functions can be extended by installing the optional interface boards into the terminal slots. For the Optional Interface Boards, contact sales dealer where you purchased the projector.

  • Page 20: Connecting To Computer

    • VGA Cable (D-sub 15 pin) * • DVI Cable • BNC Cable (BNC x 5) • DVI/HDMI Cable ( *One cable is supplied; Other cables are not supplied with this projector.) Laptop type BNC Cable Terminals of the projector...

  • Page 21: Connecting To Video Equipment

    Signal Table (above). SCART-VGA Cable ANALOG MONITOR Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Installation Cable A cable with one end D-sub 15 and the other end (Black box) compatible with each equipment is necessary.

  • Page 22: Attaching The Cable Tie

    Installation Attaching the Cable Tie You can dress and secure all cables to a cable tie (supplied). The cable tie is reusable and can be opened and closed as many times as needed. To loosen the cable tie Pull the tab in the arrow direction and loosen the cable tie.

  • Page 23: Connecting The Ac Power Cord

    NOTE ON THE POWER CORD AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used.

  • Page 24: Basic Operation

    After the countdown, the input source that was selected the last time and the Lamp status icon (see page 67) appear on the screen. If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

  • Page 25: Turning Off The Projector

    OTHERWISE IT WILL RESULT IN SHORTENING OF THE LAMP LIFE. ✔Note: • When the On start function is set to “On, ” the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.57).

  • Page 26: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Press the MENU button on the side control or the remote control to display the On-Screen Menu.

  • Page 27: Menu Bar

    Used to adjust the size of the image. [Normal/Zoom/True/ Full/Custom/Digital zoom +/–/Keystone/Ceiling/Rear/Reset/] (pp.40-41). Setting Menu Used to set the projector’s operating configurations (pp.49-63). Information Menu Display the input source information (p.29). Network Menu See the owner's manual “Network Set-up and Operation” .

  • Page 28: Operating With Projector Control

    Light button again. ✔Note: • The buttons on the side control except for the LIGHT button and ON/STAND-BY button do not light up when the projector is in stand-by mode or during the cooling down period. Shutter Function Shutter function allows you to completely block out light to the screen.

  • Page 29: Information Menu

    Filter counter. When the filter counter reaches the value set in the filter timer setting, the time shown in the Filter counter turns red. • If the filter cartridge is not installed in the projector, '----' is shown in the Filter counter. Basic Operation...

  • Page 30: Operating With Remote Control

    Basic Operation Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. AUTO PC button Press the AUTO PC button on the remote control to operate the Auto PC Adj.

  • Page 31: Keystone Button

    SHUTTER button See pages 28 and 60 for details. FILTER button Press and hold the FILTER button for more than five seconds to replace the filter mechanically. See page 56 for details. ✔ Note: •The filter cannot be rewound. • When the filter is replaced, the total accumulated time of the filter use is automatically set to 0.

  • Page 32: Input Selection

    Input Side Control Side Control Operation Press the INPUT button on the side control. It switches to INPUT 1, INPUT 2, INPUT 3 and INPUT 4 as you press the INPUT button. Before using the INPUT button on the side control, you must select a correct input source by On-Screen Menu and the latest input source will be displayed.

  • Page 33: Computer Input Source Selection

    Computer Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 terminals Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the INPUT Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired input and then press the SELECT button.

  • Page 34: Video Input Source Selection

    The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP . • When a slot is empty, the input is displayed in grayout.

  • Page 35: Computer Input

    WXGA, UXGA, or WUXGA (refer to “Compatible Computer Specifications” on pages 82-83). If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Some computers need to be set manually.)

  • Page 36: Auto Pc Adjustment

    To store the adjusted parameters . The adjusted parameters of the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting Mode in PC SYSTEM Menu (p.35). See Manual PC Adjustment on pages 37-38.

  • Page 37: Manual Pc Adjustment

    Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those manually adjusted parameters. It allows you to recall the setting for a specific computer.
  • Page 38 Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All adjustments will return to their previous figures. Mode free To clear the adjusted data, select Mode free and then press the SELECT button.

  • Page 39: Image Level Selection

    Use the Point ed buttons to move the red frame pointer to the desired image level and then press the SELECT button. Standard Normal picture level preset on the projector. Real Picture level with improved halftone for graphics. Dynamic For viewing contrasty images in a bright room.

  • Page 40: Screen Size Adjustment

    True Provide the image in its original size. When the original image size is larger than the screen size (1920 x 1080), the projector enters to the panning mode automatically. Use the Point ed7 8 buttons to pan the image. When adjusted, the arrows will turn red.
  • Page 41 When this function is set to “On, ” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to “On, ” the picture is left/right reversed.

  • Page 42: Video Input

    When the Video System is 1035i or 1080i, select the system manually. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, 1080p, and 1080i.

  • Page 43: Image Level Selection

    Use the Point ed buttons to move the red frame pointer to the desired image level and then press the SELECT button. Standard Normal picture level preset on the projector. Cinema Picture level adjusted with fine tone. Dynamic For viewing contrasty images in a bright room.

  • Page 44: Screen Size Adjustment

    Video Input Screen Size Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.
  • Page 45 When this function is set to “On, ” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to “On, ” the picture is left/right reversed.

  • Page 46: Picture Image

    Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button to display the adjustment dialog box.
  • Page 47 COLOR SELECTION MODE (continued) COLOR M . Return to the COLOR MANAGEMENT POINTER. (If you press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.) MENU Return to the IMAGE ADJUST Menu.
  • Page 48 Off ..Progressive scan mode is “Off. ” On ..Progressive scan mode is “On. ” Film . . . For watching a film. With this function, the projector reproduces pictures faithful to the original film quality.

  • Page 49: Setting

    Setting This projector has a Setting menu that allows you to set up other various functions. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.
  • Page 50 Then the projector will turn off after 3 minutes. ✔ Note: • When either of the two lamps is out, the projector will light the other automatically even if 'Off' is selected. • When ‘AUTO’ is selected, the projector...
  • Page 51 Picture in Picture This function is used to project two videos simultaneously by placing a separate small sub screen within or next to the main screen. Use the Point ed buttons to move the red frame pointer to Picture in Picture and then press the SELECT button to display a dialog box.
  • Page 52 Setting Edge blending This function allows multiple projector images to be seamlessly overlapped. Use the Point ed buttons to move the red frame pointer to Edge blending and then press the SELECT button to display a dialog box. Use the Point ed7 8 buttons to adjust the setting value.
  • Page 53 Quit ... . .Exit the Color matching menu. DynamicBlack DynamicBlack improves the black level of the projector. Black level is the darkest part of a picture and varies between viewing devices and environments. Set DynamicBlack Off/Low/High.
  • Page 54 After capturing the projected image, go to the Logo select function and set it to “User” . Then the captured image will be displayed the next time you turn on the projector. To cancel the Capture function, select [No]. ✔...
  • Page 55 Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ..The screen logo can be changed freely from the Logo Menu. On ..The screen logo cannot be changed without a Logo PIN code.
  • Page 56 (Code 1) and the other seven codes (Code 2 to Code 8). The same code should be set on both the projector and the remote control. For example, operating the projector in “Code 7”...
  • Page 57 • Make sure that the MAIN ON / OFF switch is ON, otherwise the On start function does not work. • Be sure to turn off the projector properly (see “Turning Off the Projector” on page 25). If the projector is turned off in the incorrect sequence, the On start function does not work properly.
  • Page 58 On1 . . . Enter the PIN code every time turning on the projector. On2 . . . Enter the PIN code to operate the projector once the Main On/Off Switch is pressed to Off or the power cord is unplugged ; as long as the AC power...
  • Page 59 RS-232C terminal (serial port) of the projector. Use the Point buttons to adjust the Projector ID. Projector ID ... 1 - 999. (Factory default setting : Projector ID Enter a PIN code After a correct Logo PIN code is entered, the following dialog box appears.
  • Page 60 Remote control . . . Selecting "On" prohibits the shutter operation from the remote control. Projector ..Selecting "On" prohibits the shutter operation from the side control. It is possible to prohibit the shutter operation from both of the remote control and the side control.
  • Page 61 Video delay control When you want to make a digital processing of a projected image faster, set this function. Use the Point buttons, select an item of Off/Low/Mid/ High. Digital processing speed becomes fast by order of Low a Mid a High. High is the fastest. Closed caption Closed Caption is a function that displays the audio portion of a TV program as text on the screen.
  • Page 62 (Fig. 1) appears on the screen and the total accumulated time turns red, indicating that the filter replacement is necessary. If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig. 2 appears on the screen, indicating that the filter cartridge replacement is necessary.
  • Page 63 Test pattern Various test patterns are available for use when setting up the projector. Factory default This function returns all setting values except for the user logo, PIN code lock, Logo PIN code lock, lamp counter, filter counter and filter timer to the factory default settings.

  • Page 64: Maintenance And Care

    This projector has an electrically operated filter which helps you to replace the filter easily. The projector monitors the condition of the filter at all time and replaces a filter with a new one automatically when it detects the clogging.

  • Page 65: Replacing The Filter Cartridge

    Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet. First, clean up the dust on the projector and around the air vents. Open the filter cover. (See the right figure.) Pull out the filter cartridge.

  • Page 66: Resetting The Filter Counter

    Maintenance and Care Resetting the Filter Counter Be sure to reset the Filter counter after replacing the filter cartridge. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.

  • Page 67: Lamp Management

    The Lamp Management Function automatically changes the lighting lamp (Lamp Mode) by detecting the status of lamp. When either of the 2 lamps is out, the projector operates with 1 lamp. The Lamp Mode can be switched to 2 lamps or 1 lamp manually.

  • Page 68: Lamp Replacement

    Maintenance and Care Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP 1/2 REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP 1/2 REPLACE indicators should light is depending on the lamp mode.

  • Page 69: Lamp Handling Precautions

    Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.

  • Page 70: Optional Color Wheel Installation

    To replace the color wheels, refer to the following steps. Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet. Let the projector cool for at least 45 minutes.

  • Page 71: Cleaning The Projection Lens

    Cleaning the Projection Lens Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 72: Warning Indicators

    Maintenance and Care Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING TEMP . indicator and the LAMP indicator to take proper maintenance. The projector is shut down and the WARNING TEMP.

  • Page 73: Appendix

    A problem may be noticed with your graphics controller rather than with the projector. (When you reconnect the projector, be sure to turn the computer and monitor off before you turn on the projector. Turn on equipment in the order of the projector and computer.) 6.
  • Page 74 – Adjust the focus of the projector. – Check Projection Lens to see if it needs cleaning. ✔Note: Moving the projector from a cool temperature location to a warm temperature location may result in moisture condensation on Projection Lens. In such cases, leave the projector OFF and wait until condensation evaporates.
  • Page 75 Security PIN code. WARNING: High voltages are used to operate this projector . Do not attempt to open the cabinet . If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

  • Page 76: Menu Tree

    Lamp 1 Lamp 2 Filter counter Power management Security Key lock PIN code lock Remote control Shutter management Remote Control Projector Effect Color wheel type Release key Lens type 5 - 480 Min SERIAL NO. Network Off/On Network setting Network PIN code...
  • Page 77 Computer Input System ✽ System displayed in the System Menu varies depending on the input signal. PC Adjust Auto PC adj. Fine sync. Total dots Position H Position V Current mode Clamp Display area - H Display area - V Reset Mode free Store...
  • Page 78 On start Security 12 languages provided. Quit Position/Simple Menu/Menu size/Quit Off/Countdown Off/On Blue/User/Black 2-Lamps/Lamp1/Lamp2 Lamp control Normal/Eco1/Eco2 Projector ID Lamp life control Mode 1/Mode 2 Shutter Off/Auto/24H/200H/500H/1000H/2000H Off/User1-5 P in P/P by P Main Picture/Sub picture Input1-4 Video delay control...

  • Page 79: Indicators And Projector Condition

    LAMP 1/2 SHUTTER REP . blue orange The projector is off. (The main On/Off switch is OFF position or the AC power cord is unplugged.) The projector is in stand-by mode. Press the ON/ ✽ ✽ STAND-BY button to turn on the projector.
  • Page 80 ✽ ✽ by mode and ready to be turned on with the ON/ STAND-BY button.) When either of the 2 lamps is out, the projector ✽ ✽ operates with 1 lamp. The lamp has been used overtime. Replace the ✽...
  • Page 81 The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center. Do not leave the projector on.

  • Page 82: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy VGA 1 640x480 VGA 2...
  • Page 83 PC settings. • When you project a DVI signal, connect the cables, turn the projector on, then select the input. Finally, turn on your PC. Be sure to follow this procedure, otherwise an image may not be projected on the screen. If an image is not projected correctly, restart your PC.

  • Page 84: Supported Signal Format For Optional Board

    Appendix Supported Signal Format for Optional Board When using the optional board (DVI) “POA-AMDADI”, refer to the chart on the previous page. When using the optional board (Dual SDI) “POA-AMD17SDID” , refer to the chart below. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy 1920x1035 1035i...

  • Page 85: Technical Specifications

    Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment DLP Chip Projection System Number of Pixels Signal Compatibility Color System High Definition TV Signal Input Scanning Frequency Optical Information Projection Lamp Interface Input 1...

  • Page 86: Optional Parts

    Appendix l The specifications are subject to change without notice. l Each projector has its own characteristics. When projecting with several projectors on the same screen or side by side, you may recognize different white balance and color uniformity on each projector.

  • Page 87: Configurations Of Terminals

    Configurations of Terminals ANALOG (Mini D-sub 15 pin) Input Red Input Green Input Ground (Vert. sync) Blue Input - - - Ground (Horiz. sync.) Ground (Red) Ground (Blue) Ground (Green) Output Red Output Green Output Ground (Vert. sync) Blue Output - - - Ground (Horiz.

  • Page 88: Pin Code Number Memo

    PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No.

  • Page 89: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M8 Depth: 0.393 (10.0) 6.81(173.0) 6.81(173.0) 15.75(400.0) 5.0º 6.02(153.0) 5.63(143.0) 96.0º 19.96(507.1) 4.92(125.0) 5.79(147.0) 5.0º 6.50(165.0) 6.50(165.0)

  • Page 90: Serial Control Interface

    Appendix Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port. Operation Connect a RS-232C serial cross cable to SERIAL PORT IN on the projector and serial port on the PC.

  • Page 91: Status Read Command

    'Character string' with the format below; Command Function Status Read Temperature Read The tables on pages 90 and 91 show the typical command lists for controlling the projector. Please consult your local dealer for further information of other commands. Projector Projector status Return...

  • Page 92: How To Adjust Multiple Screens

    Green frame Image A • The blending widths of each projector (e.g., the right width of Image A and the left width of Image B) must be set to the same value. • The values in the figure are example only.

  • Page 93: Color Matching

    Mesured-Half white in the same way as Mesured-Red. 9. Adjust the values of Target again. 10. Select ‘Store’ to complete. (Apply the same adjustment to the other projector if necessary.) Set to ‘On’. Fig .1 For rich color reproduction color wheel...
  • Page 94 KE2AL SANyO Electric Co ., Ltd .
