Siemens RAA02 Series Installation Diagram

s
HVAC PRODUCTS
• The room temperature controller should be fitted in
the main living room.
• The place of installation should be chosen so that
the sensor can capture the room temperature as
accurately as possible, without being affected by
direct solar radiation or other heating or cooling
sources.
• Mounting height is approx. 1.5m above the floor.

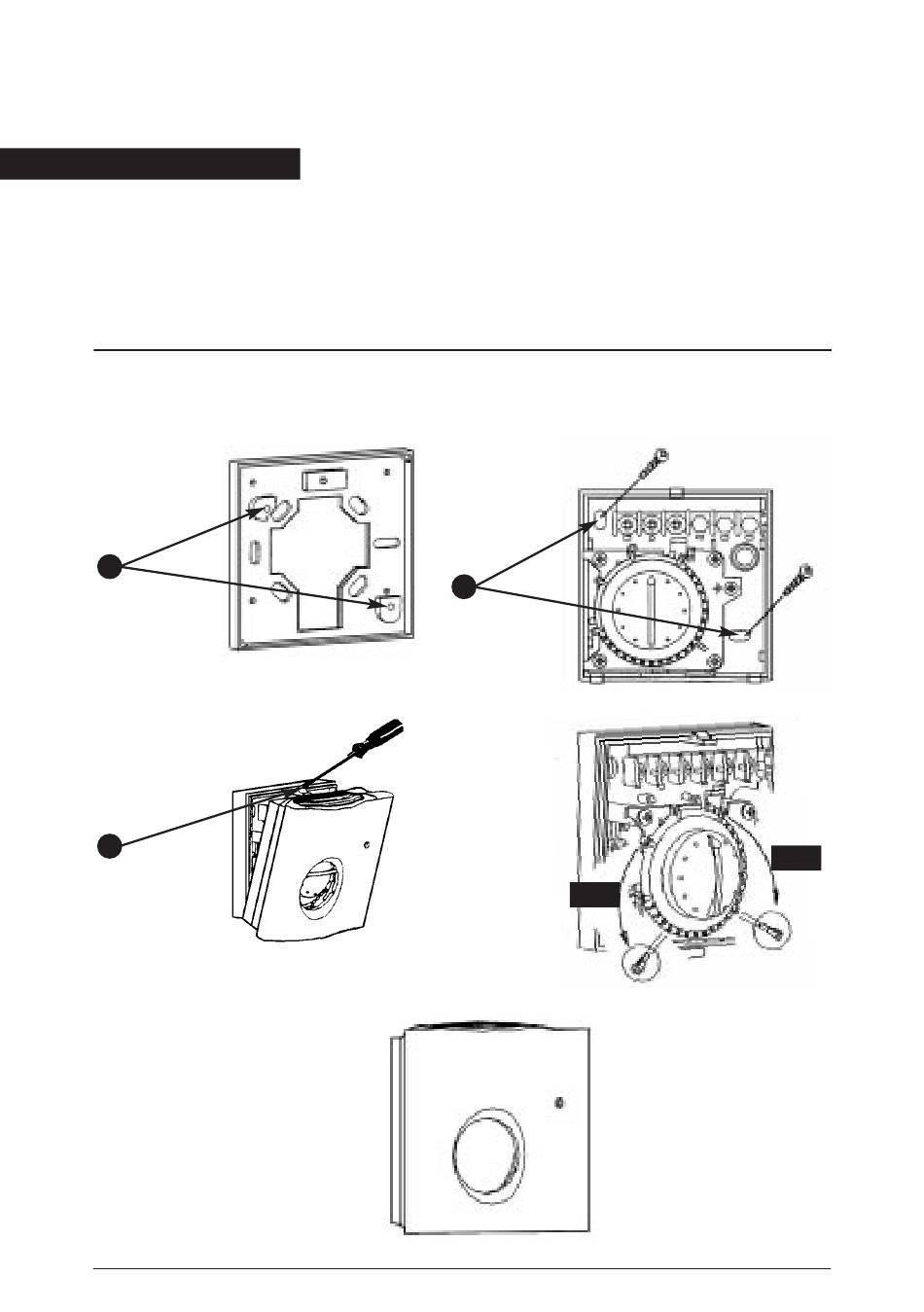

An optional sub-base is available on request, to
assemble unit just follow these five simple steps and
the information on the following page.
Step 1.
F
Step 2.
C
Step 5.
RAA02... INSTALLATION DIAGRAMS
RAA02... Installation Diagrams
• The unit can be fitted to most commercially available
recessed conduit boxes or directly on the wall.
• For the electrical installation, the local safety
regulations and standards must be complied with.
• If the reference room is equipped with thermostatic
radiator valves, they must be set to their fully open
position.
If you have any difficulty or require further
information, please contact our helpline telephone:
01527 406224
Step 3.
B
Step 4.
11°C
24°C
PAGE 1
