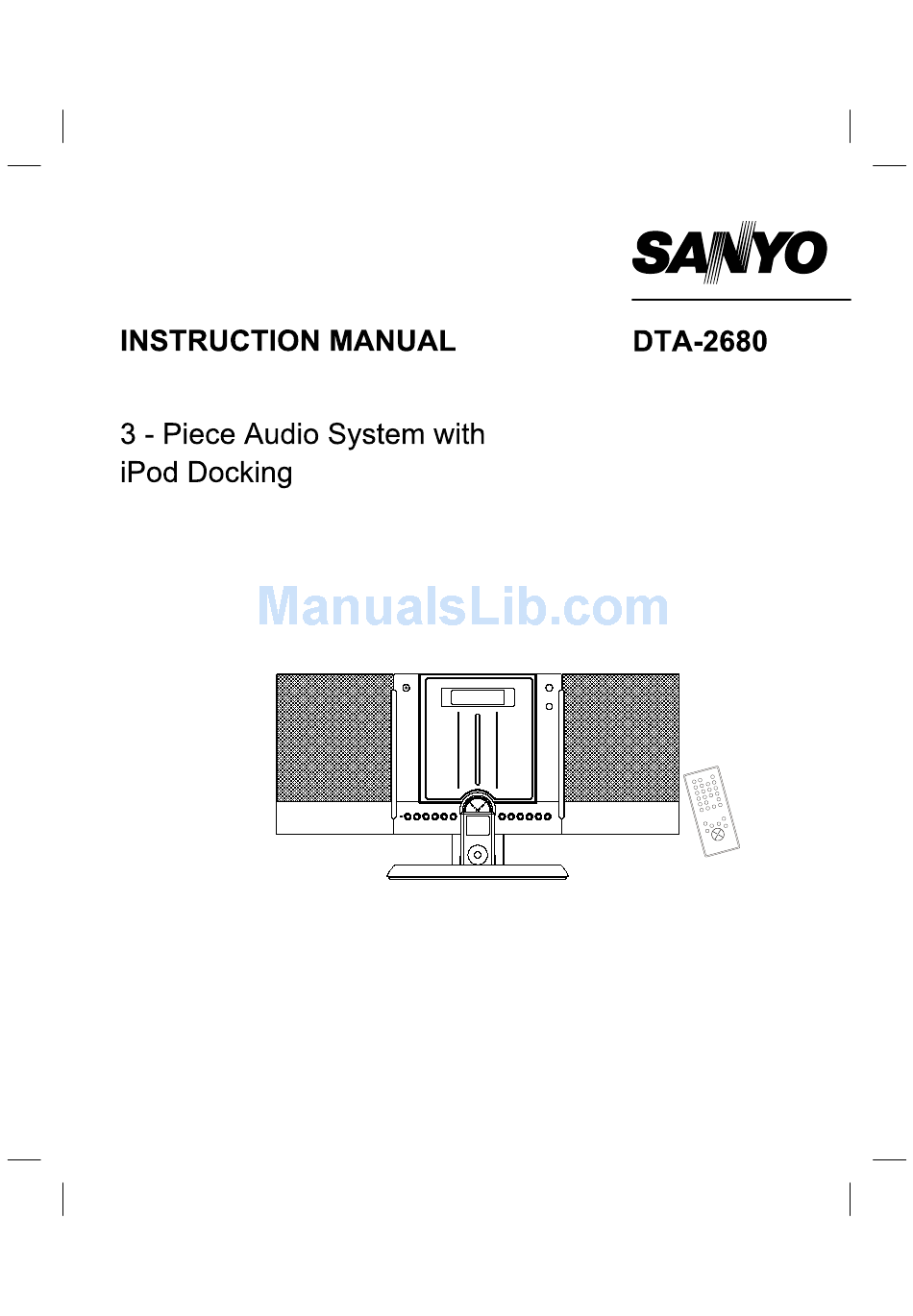

Sanyo DTA-2680 Instruction Manual

3-piece audio system with ipod docking
Hide thumbs
Table of Contents

Advertisement

Quick Links

SANYO Canada Inc.
www.sanyo.ca

Advertisement

Table of Contents
loading

Related Manuals for Sanyo DTA-2680

Summary of Contents for Sanyo DTA-2680

  • Page 1 SANYO Canada Inc. www.sanyo.ca...

  • Page 2: Safety Information

    Thank-you for choosing SANYO. This audio system includes a built-in CD player, AM/FM stereo tuner, iPod dock, alarm clock, timer, motorized CD door, removable speakers and remote control. The unit can be wall mounted in order to save desk or counter space.
  • Page 3 FCC information For CD player section: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Read Instructions - All the safety and operating instructions should be read before the product is operated. Retain Instructions - The safety and operating instruction should be retained for future reference. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
  • Page 5 Grounding or Polarization - This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
  • Page 6 Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
  • Page 7 LOCATION OF CONTROLS - UNIT...
  • Page 8 LOCATION OF CONTROLS - UNIT (cont.) Detachable Speaker (L) Insert CD Door OPEN/CLOSE Button Open or close the CD door iPod/CD-SKIP/TUNING/CLOCK Time Backward Button ( -iPod/CD-Skip/search backward -TUNER-Backward tuning or station search -Clock or Timer-Select the time -SUREWAKE vol level setting CD Door Volume UP Button (+) To increase volume level...
  • Page 9 LOCATION OF CONTROLS - UNIT (cont.) CD/iPod STOP Button ( Interrupting the CD/iPod playback/clearing the CD program iPod charging mode CD PLAY/PAUSE Button To play or pause CD playback PROG/MENU/CLOCK SETTING Button -Tuner/CD program/Clock setting button (in off mode) -iPod menu selection TUNER/BAND Button Sets to tuner (radio) mode and selects the AM or FM band...
  • Page 10 INSTALLATION (Speakers and Decorative Insert) DISASSEMBLE AND FIX THE DECORATIVE INSERT To remove the insert, release 3 pcs screws (1), then pull out the insert from the main unit. PLACE AND FIX THE SPEAKER Insert the speaker stud into the hole of the main unit (1).

  • Page 11: Tilt Angle

    ANGLE ADJUSTMENT (Speakers) Used to connect the bracket (included) to set the speaker box on an angle. VERTICAL ANGLE Insert the bracket with (A) side and push upward to adjust for vertical angle. TILT ANGLE Insert the bracket with (B) side and push upward to adjust for desired angle.

  • Page 12: Installation (Wall Mounting)

    INSTALLATION (Wall Mounting) Installation options: Wall mount To mount the center section on the wall: Position the bracket (supplied) on the wall (as show below) where you want to hang the whole unit. Drill 2 holes slightly undersized for a firm fit. Secure the bracket on the wall using 2 dowels and 2 screws (supplied).

  • Page 13: Location Of Controls - Remote Control

    Battery Installation Remove the battery tray by pressing point (1a) inside, then sliding point (1b) area at the same time. Pull out the battery tray. Install or replace the button-type battery “CR2032” (supplied). Close the battery tray. LOCATION OF CONTROLS - REMOTE CONTROL REMOTE CONTROL Note: Pull out insulation tag from the button battery tray before operating the...
  • Page 14 LOCATION OF CONTROLS - REMOTE CONTROL (Cont.) MUTE Button To mute the sound CD Door OPEN/CLOSE Button Press to open or close the CD door at CD mode SUREWAKE/TIMER Button To activate surewake/deactivate the timer Remote Control Transmitter POWER ON/STANDBY Button Switches the system on or off 0 - 9 NUMERIC Buttons Tuner: To recall preset stations...

  • Page 15: Power Supply

    AC power operation BATTERY SUPPLY (For Tuner/Clock Memory Back-up) IMPORTANT NOTE: SPENT OR DISCHARGED BATTERIES MUST BE RECYCLED OR DISPOSED OF PROPERLY IN COMPLIANCE WITH ALL APPLICABLE LAWS. FOR DETAILED INFORMATION, CONTACT YOUR LOCAL COUNTRY SOLID WASTE AUTHORITY. POWER SUPPLY The cord is fixed on main unit.

  • Page 16: Power On/Off

    OPERATING INSTRUCTIONS POWER ON/OFF When the AC power is connected, “-- -- : -- --“ shows on the LCD display. Press the POWER/STANDBY button to turn the unit 'ON'. Note: The LCD display lights up and “HELLO” greeting shows on display, the STANDBY LED light goes off. Volume at 13 (max 30).
  • Page 17 TIMER ON/OFF SETTING NOTE: The clock should be adjusted before the Timer On/Off setting. Press the SUREWAKE TIMER button on remote control once, the TIMER ON indicator and hour digit begin to flash. Press the to adjust the hour time up or down.

  • Page 18: Basic Operation

    BASIC OPERATION Electronic volume control Electronic volume control display Press VOL-DOWN ( ) button to adjust sound level down, the volume level (00 - 30) will be shown in the LCD display. Holding down the button will result in continuous decrease of the sound level. Similarly, press VOL-UP (+) button to adjust sound level up.

  • Page 19: Listening To The Radio

    LISTENING TO THE RADIO Press the POWER/STANDBY button to turn the system 'ON'. 2. Press the TUNER/BAND button to select the radio function. TUNER/ BAND Example : FM mode 3. Press the TUNER/BAND button repeatedly to select AM or FM band. Press the SKIP Forward or Backward buttons to tune to the desired station.
  • Page 20 PLAYING COMPACT DISCS Switch on the power and press the CD PLAY/ PAUSE button to select the CD mode. If there is no CD inside, a "NO DISC" display will appear. When there is no disc Loading a disc Press the CD DOOR OPEN/CLOSE button to open the CD door.

  • Page 21: Programmed Playback

    To repeat a track or disc Press REPEAT button on remote control one time, "one track repeat" will be active. “REPEAT” shows on display. One track repeat Random play function Press RANDOM button on remote control during CD play or stop mode to start random play. Pressing once again will cancel the function.

  • Page 22: Playing Mp3 Disc

    MP3 MODE button about 2 seconds. Notice: Because of none-standardized format definition/production of MP3/CD playback quality & performance are not guaranteed. SANYO is not responsible for the playability of MP3 files due to recording conditions such as PC performance, writing software, media ability etc.
  • Page 23 PROGRAMMED PLAYBACK The MP3 player enables you to program up to 64 tracks in a sequence of your choice. First select CD stop mode. Press the PROG button once. Press the SKIP buttons to select your desired folder; for example folder 3. Press the PROG button again.

  • Page 24: Ipod Operation

    When connecting an iPod to this iPod Dock, please ensure that the correct removable insert is used. iPod dock insert This iPod Dock comes with 6 removable inserts. To place a dock insert: 1. Refer to the compatibility table as that follows and select the correct dock insert for the iPod.
  • Page 25 Dock Insert Compatibility Photo 40 / 60GB 30GB 5G with 60GB Video 80GB nano (1st generation) nano (2nd generation) 20GB photo 30GB 40GB 60GB 20GB 40GB mini 10GB 15GB 20GB 30GB 40GB 20GB (Color)/ mini nano Photo 30GB 40GB 20GB...
  • Page 26 Charging your iPod Please ensure you are using the correct insert for your iPod and it is properly docked. FAILURE TO DO SO MAY CAUSE THE iPod can’t charging result in its inability to charge. Whilst the iPod is docked in the system, it will recharging (until fully charged) by power on the system unit. Once the iPod is removed from the dock, the main console will go to standby mode then turn off.

  • Page 27: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Should this unit exhibit a problem, check the following before seeking service. Symptom Radio Noise or sound distorted on AM or Station not tuned properly for AM or FM FM broadcasts. FM: Antenna wire is not extended. AM: Frame antenna is not positioned correctly.

  • Page 28: Specifications

    AC Power AC 120V, 60Hz DC 3V (1.5V x 2 “AAA” batteries for tuner and clock memory). Batteries are not supplied. Power Output 5 W/CH 10% THD Dimension of: Unit 619(W) x 200(D) x 315.5(H)mm Radio section Tuning : PLL with 40 Presets (FM 30, AM 10) Freq.

  • Page 29: Warranty

    You, the original retail purchaser, must present your original, dated bill of sale together with this warranty to SANYO Canada Inc. or to an authorized SANYO Service Depot when you make a claim under this Warranty. You, the original retail purchaser, are responsible for any costs of TRANSPORTING the product to and from SANYO Canada Inc. or an authorized SANYO Service Depot.
  • Page 30 SANYO Canada Inc. Printed in China...
