This Class B digital apparatus complies with Canadian ICES-003. SANYO recommends keeping the TV set at its factory settings or moving Energy Saver settings from “Level 1” to “Level 2” or “Level 3” to further reduce power requirements and increase energy savings.

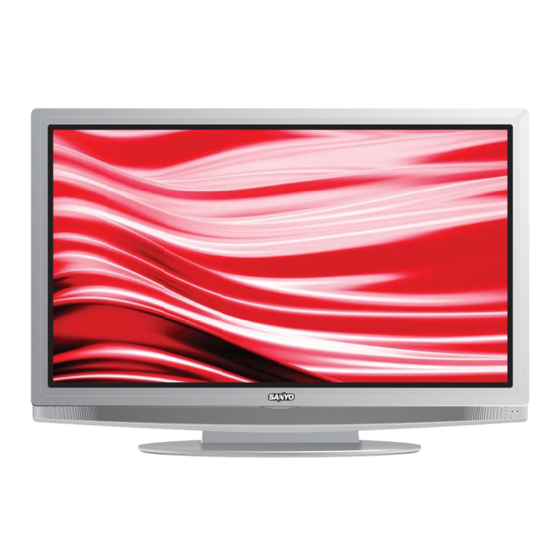

PROTECTING THE LCD SCREEN Power Requirement: Source: AC 120V, 60Hz AC Power Consumption: 255 W Dimensions: MODEL WIDTH HEIGHT DEPTH DP46819 43.7 30.1 12.7 28.1 w/o stand NOTE: Dimensions are in inches HANDLING PRECAUTIONS • Handle by the cabinet only. Never touch the screen when handling.
Laptop Display Temperature screen settings, and the Bass and Treble audio settings. When using your Sanyo HDTV to display a Laptop’s screen display, holding down the Fn (or FN) key while pressing the appropriate function key (F5, F7, F8, etc) should cycle through different display modes between the laptop and the HDTV.
BACK PANEL JACKS Digital Audio Output (Coaxial) Component Video Input (VIDEO2 or VIDEO3) Green (Y), blue (Pb), and red (Pr) Video inputs plus the white and red Audio inputs. PC Input and Stereo Audio (Mini) • MONITOR RGB (D-SUB) • AUDIO R/L (Stereo Mini Jack) Analog / Digital Antenna Input S-Video Input (VIDEO1) NOTE: An S-Video connection will override a connection to...
GETTING STARTED— INITIAL CHANNEL SEARCH Plug in AC power cord 120V AC, 60Hz Turn On TV Wait for on-screen instructions to perform an Initial Channel Search. CHANNEL SEARCH Checks Antenna and Cable signals connected to the Antenna terminal. NOTE : “Auto” detects the mode detection, Cable or Air, first, and then proceeds with the channel search.
ON-SCREEN MENU OPERATION SETUP Display the On Screen menu and use the CURSOR LM keys to select Setup. Press ENTER. Use the Setup menu to set the Menu Language, V-Chip rating settings, customize Digital Captions, set Energy Saver level, and set the current time and on- time with the Clock Timer.
ON-SCREEN MENU OPERATION SETUP ENERGY SAVER Energy saver settings control the LCD backlight brightness to save power consumption. The higher the level number, the more brightness reduction and higher power saving. Press ENTER on the desired level. L L E E V V E E L L 1 1 L L E E V V E E L L 2 2 L L E E V V E E L L 3 3 CLOCK TIMER...
ON-SCREEN MENU OPERATION SOUND Display the On Screen menu and use the CURSOR LM keys to select Sound. Press ENTER. Choose one of the four available options for your sound settings: Auto – Sound setting levels are adjusted and linked according to the current Picture option.
APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. WARRANTY APPLICATION FOR ONE YEAR from the date of original retail purchase Sanyo Manufacturing Corporation (SMC) warrants this TV to be free from manufacturing defects in materials and workmanship under normal use and conditions for parts and labor.
Este aparato digital de Clase B cumple con las normas ICES-003 de Canadá. SANYO recomienda mantener su TV en el modo de fábrica o cambiar los ajustes del Ahorrador de Energía de “Nivel 1” a “Nivel 2” o “Nivel 3” para reducir el requerimiento de potencia y elevar el ahorro de energía.
COLOCANDO LA HDTV DE LCD PARA COMENZAR Siempre utilice una superficie firme y plana INSTALACIÓN DE BATERÍAS al colocar su HDTV. No se coloque la HDTV en áreas confinadas. Mantenga suficiente Instale baterías en el control remoto espacio para una buena ventilación. (2 ”AAA”, no incluídas).
CONECTORES DEL PANEL TRASERO Salida de Audio Digital (Coaxial) Entrada de video Componente (VIDEO2 o VIDEO3) Entradas verde (Y), azul (Pb) y roja (Pr) de video; además de las entradas de audio roja y blanca. Entrada para PC y estéreo audio (mini) •...
PARA COMENZAR— BÚSQUEDA DE CANALES INICIAL Conecte el cable de corriente 120V AC, 60Hz Encienda la TV Espere las instrucciones en pantalla para realizar la Búsqueda Inicial de Canales. BÚSQUEDA DE CANALES Revisa señales de Antena y Cable conectados a la terminal ANT. NOTA: “Auto”...
OPERACIÓN DEL MENÚ EN PANTALLA CONFIGURACIÓN Despliegue el menú en pantalla. Utilice las teclas CURSOR LM para seleccionar Configuración. Presione ENTER. Utilice el menú de Configuración para establecer el Lenguaje del menú, configurar clasificaciones V-Chip, personalizar Subtítulos digitales, establecer el nivel de Ahorrador de energía, establecer el Tiempo actual y activar el Reloj temporizador.
OPERACIÓN DEL MENÚ EN PANTALLA CONFIGURACIÓN AHORRADOR DE ENERGÍA Las configuraciones de Ahorrador de Energía controlan el brillo de las lámparas del panel para ahorrar consumo de energía. Mientras más alto el número, será mayor la reducción de brillo y el ahorro de consumo. Presione ENTER en el nivel deseado.
OPERACIÓN DEL MENÚ EN PANTALLA SONIDO Despliegue el menú en pantalla. Utilice las teclas CURSOR LM para seleccionar Sonido. Presione ENTER. Elija una de las cuatro opciones disponibles para su configuración de sonido: Auto – Utiliza valores predeterminados de acuerdo al modo actual de Imagen.
APLICACIÓN DE LA GARANTÍA POR UN AÑO, desde la fecha de la compra original, Sanyo Manufacturing Corporation (SMC) garantiza esta televisión de estar libre de defectos de manufactura en materiales y mano de obra bajo uso y condiciones normales para partes y trabajo.
Page 19
3333 Sanyo Road, Forrest City, AR 72335 Printed in Mexico SMC, September 2009 US1-K For assistance: For assistance: Visit our Web site: www.sanyoctv.com www.sanyoctv.com or call toll free: 1-800-877-5032 1-800-877-5032 We’ll be glad to Help We’ll be glad to Help Sanyo Manufacturing Corp.
