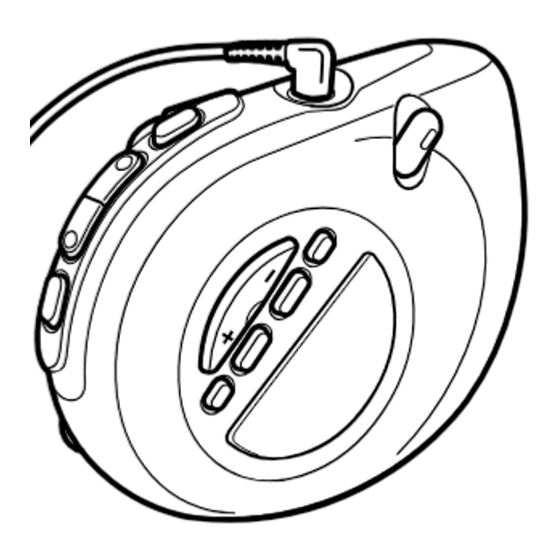

Sony Walkman SRF-M85 Operating Instructions

2-585-437-11(1)
FM Stereo/AM
PLL Synthesized Radio
English
Operating Instructions
Mode d'emploi (au verso)
Features
• FM/AM 2 band PLL (phase locked loop) synthesized armband radio.
"WALKMAN" is a registered trademark of Sony Corporation to represent Headphone Stereo • A total of 20 stations can be preset, 15 FM stations and 5 AM stations.
products. is a trademark of Sony Corporation.
• Stopwatch, split and pitch timer functions.
« WALKMAN » est une marque déposée par Sony Corporation pour représenter les produits • Wearable round design for armband and belt-holder use.
stéréo dotés d'écouteurs. est une marque de Sony Corporation.
• Splash-resistant for all –weather use.
• MEGA BASS for dynamic bass sound.
FM/AM WALKMAN Printed on 100% recycled paper using
SRF-M85 VOC (Volatile Organic Compound)-
free vegetable oil based ink.
Precautions
© 2004 Sony Corporation Printed in China
• Operate the unit only on 1.5 V DC with one R03 (size AAA) battery.
• Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust
or mechanical shock. Never leave the unit in a car parked under the sun.
• Should anything fall into the unit, remove the battery and have the unit checked
by qualified personnel before operating it any further.
MB
• To clean the casing, use a soft cloth dampened with a mild detergent solution.
RADIO ON STPW PITCH
SPLIT TIMER
• In vehicles or buildings, radio reception may be difficult or noisy. Try listening
FM
near a window.
AM
PM
Notes on Headphones/Earphones
i (headphones/
Road safety
earphones) jack
Do not use headphones/earphones while driving, cycling, or operating any
HOLD lever
POWER
motorized vehicle. It may create a traffic hazard and is illegal in many areas. It
START/STOP
can also be potentially dangerous to play your headphones/earphones at high
volume while walking, especially at pedestrian crossings. You should exercise
SPLIT/RESET
extreme caution or discontinue use in potentially hazardous situations.
MEGA BASS
Preventing hearing damage
ENTER
Avoid using headphones/earphones at high volume.
MODE
Hearing experts advise against continuous, loud and extended play. If you
TUNE/TIME SET +/– * 1 BAND experience a ringing in your ears, reduce volume or discontinue use.
DISPLAY
Caring for others
* 1 The TUNE/TIME SET + has a tactile dot. Keep the volume at a moderate level. This will allow you to hear outside sounds
and to be considerate to people around you.
VOL* 2
Warning
Belt clip
If there is lightning when you are using the unit, take off the headphones/earphones
immediately.
Cautions on Splash-resistance
This unit is designed so that it can be used with slight exposure to rain, snow and other
forms of moisture, but there are several points on which caution should be observed.
FM SENS
• Do not allow it to come in contact with large amounts of water.
DX/LOCAL
• Do not immerse it in water.
• If water should get on it or if it should fall into water, take it out immediately
and wipe it off with a dry cloth. The interior of the battery compartment
* 2 There is a tactile dot beside VOL to show the direction to turn up
has no splash-resistance. The battery may corrode, so wipe out the
the volume.
interior of the battery compartment as follows.
– Open or close the battery compartment with dry hands in a place without
exposure to any water.
B
– Wipe off the battery and the inside of the battery compartment. Give special
Connector
attention to the contacts so that no water remains on them.
If you have any questions or problems concerning your unit, please
consult your nearest Sony dealer.
Troubleshooting
Should any problem persist after you have made the following checks, consult
your nearest Sony dealer.
All buttons do not operate at all.
• "-" is displayed. Slide down the HOLD lever so that "-" disappears.
Very weak or interrupted sound, or unsatisfactory reception
• Weak battery.
• In a vehicle or in a building, move closer to a window.
Display is dim, or no indication is displayed.
Rubber belt
• Weak battery.
Wraparound arm
• The unit is being used in extremely high or low temperatures or in a place with
band
excessive moisture.
The station cannot be received when the preset was tuned.
• You chose the wrong preset number.
• The memory of the station has been initialized. Preset the station again.
The power cannot be turned on, and "
• The battery has been completely exhausted.
The preset stations may be initialized, if a maintenance service is performed.
Please note down your settings in case you want to preset them again.
Rubber belt
Specifications
Time display
12-hour system
Frequency range
Model for North and South America
Band
FM
AM
Model for other countries / regions
C
Band
* The supplied stereo headphones/stereo earphones
varies depending on the model you own.
FM
AM
* Output
i i i i i (headphones/earphones) jack (ø 3.5 mm stereo mini jack) 16 Ω
Power output
5 mW + 5 mW (at 10 % harmonic distortion)
Power requirements
1.5 V DC, one R03 (Size AAA) battery
Dimensions
Approx. 95.5 × 69.3 × 37.5 mm (w/h/d)
× 2
7
(3 /
8
Mass
Approx. 88.3 g (3.1 oz.) incl. battery
D
Supplied accessories
Stereo headphones (1) : North American model
Stereo earphones (1) : Other models
Arm band (1)
Design and specifications are subject to change without notice.
Installing the Battery
(See Fig. A– )
1
Open the battery compartment lid and install one R03 (size AAA)
battery (not supplied) with correct polarity.
When a battery is first installed, "AM 12:00" flashes in the display. Once the
current time is set, the flashing stops.
2
Close the lid.
Battery Life (Approx. hours)
When using
Sony alkaline LR03 (size AAA)
Sony R03 (size AAA)
* Measured by JEITA (Japan Electronics and Information Technology Industries
Association) standards. The actual battery life may vary depending on the
circumstance of the unit.
When to replace the battery
You can check the remaining battery power that appears in the display. The
indicators are as follows:
Indicator
Full strength*
x
Weakening*
x
When the battery becomes exhausted, the unit will turn off. Replace
with new battery. When you press POWER after installing the new
battery, the indicator changes to "
* Displayed only when the radio is turned on.
Note
Do not take more than 30 seconds to replace the battery, otherwise, your clock,
pitch timer and countdown timer settings and preset stations will be initialized.
Should that happen, reset the functions again.
Notes on battery
• Do not charge the dry battery.
• Do not carry the dry battery together with coins or other metallic objects. It can
generate heat if the positive and negative terminals of the battery are
accidentally come into contact with metallic objects.
• When you are not going to use the unit for a long time, remove the battery to
avoid damage from battery leakage and corrosion.
To attach the battery compartment lid if it is
accidentally detached (See Fig. A– )
The battery compartment lid is designed to come off when opened with excessive
force. To put it back on, see the illustration.
1
Insert one side of the lid as illustrated.
2
Push the other side to attach.
A
Using the Arm Band
" is flashing in the display.
(See Fig. B– )
1
Slide the connector onto the unit until you hear a click.
2
Unwind and straighten the wraparound arm band.
To more easily straighten the band, slightly bend the tip of the band in the
opposite direction.
3
Hold the body of the unit and attach the straightened band to your
arm.
The band will wind by itself.
4
Tighten the band with the rubber belt.
To remove the arm band from the unit (See Fig. B–
Range Channel step
While holding down "PUSH RELEASE" (1), slide the connector to remove the
87.5 – 108 MHz 0.1 MHz
arm band (2).
530 – 1 710 kHz 10 kHz
The arm band can be attached either on left or right arm by changing up side
down. The unit can also be removed with the arm band attached on your arm, as
instructed above.
Range Channel step
To vary the length of the rubber belt to fit your arm (See Fig. B–
87.5 – 108 MHz 0.1 MHz
Move the velcro fastener to the proper position.
531 – 1 710 kHz 9 kHz
If the rubber belt and wraparound arm band becomes dirty
Remove the rubber belt from the unit and clean them.
Cautions (See Fig. B–
• Avoid bending the wraparound arm band forcibly in the opposite direction. It
may break.
• The straightened band will wind easily when you touch or wiggle it. Be sure to
treat it carefully.
× 1
3 1
/ / inches) incl. projecting parts and controls
Preventing Accidental
4 2
Change
— HOLD Function
When you slide HOLD in the direction of the arrow, "-" appears in the
display. All the other buttons on the radio will become inoperative.
This function prevents the radio from being unintentionally turned on, or the
radio frequency from being accidentally changed.
Lead-free solder is used for soldering.
Halogenated flame retardants are not used in printed wiring boards.
To cancel HOLD, slide HOLD in the opposite direction of the arrow so that
PVC is not used in Stereo headphones/Stereo earphones cord.
" -" disappears.
Setting the Clock
The display will flash "AM 12:00" when the battery is first inserted.
1 Press DISPLAY repeatedly to select the clock mode when the
clock mode is not on.
2
Hold down ENTER for more than 2 seconds.
The beep sounds and the hour flashes in the display.
3
Press TUNE/TIME SET + or – until the correct hour appears in
(JEITA*)
the display.
FM AM
Each press changes the digit(s) by one.
27 36
When you keep the button pressed, the digit(s) change rapidly.
4
10 16 Press ENTER.
The beep sounds and the minute starts to flash.
Repeat step 3 to set the minute. After setting the minute,
press ENTER again. The two beeps sound and the clock
starts from 0 seconds.
Notes
• One you start setting the clock, you must perform each step within 65 seconds,
or the clock setting mode will be canceled.
• 12-hour system: "AM 12:00" = midnight, "PM 12:00" = noon.
Changing AM Channel Step
The AM channel step differs depending on areas. The channel step of this unit is
factory-set to 9 or 10 kHz. Change the settings as shown below to be able to
listen to the radio.
Area
".
North and South American countries / regions
Other countries / regions
Note
When the AM channel step is changed, the preset stations for AM will be
initialized.
1
Press POWER to turn off the power.
2
Press DISPLAY repeatedly to select the clock mode when the
clock mode is not on.
3
While holding down TUNE/TIME SET + or –, keep pressing
MODE for more than 5 seconds.
Two short beeps sound, and the AM channel step will be changed.
"AM 9" (or "AM 10") is displayed for about 2 seconds.
If you proceed to step 3 again, the channel step changes again.
Selecting the Mode
You can use this unit as a radio, clock, stopwatch, pitch timer or countdown
timer.
The functions of clock, stopwatch, pitch timer, countdown timer are available
even if the power is off.
Press DISPLAY to select a function mode.
Each function mode can be selected as follows:
Insert the E side of
the battery first. Radio frequency* Clock
R03
(Size AAA ) × 1
Countdown timer
* Selected only when the power is on.
Operating the Radio
— Manual Tuning
1
Connect the headphones/earphones to the i (headphones/
earphones) jack.
2
Press POWER to turn on the radio.
"RADIO ON" appears in the display.
3
If "P" is displayed, press MODE so that "P" disappears.
Pressing MODE will switch over between manual tuning mode and preset
tuning mode.
4
Press BAND to select the band.
Each press changes the band as follows:
AM
5
Press TUNE/TIME SET + or – to select the desired frequency.
If you hold down TUNE/TIME SET + or –, the frequency or channel
changes rapidly.
When the frequency matches the broadcast frequency, the broadcast will be
)
received.
6
Adjust the volume using VOL.
To turn off the radio, press POWER.
Improving the Reception
)
FM: Extend the stereo headphones/stereo earphones cord
which functions as the FM antenna (See Fig. C-
AM: Rotate the unit horizontally for optimum reception. A
ferrite bar antenna is built-in the unit (See Fig. C-
)
Set FM SENS to LOCAL if interference is prevalent and
reception is too strong. Under normal conditions, set it to
DX.
Obtain Powerful Bass Sound
Press MEGA BASS.
"MB" indication appears in the display when the MEGA BASS function is on.
The MEGA BASS function intensifies the bass sound for richer quality audio
reproduction.
Presetting Your Favorite
Station
— Preset Tuning
You can preset up to 15 stations in FM and 5 stations in AM. Also, you can
delete the preset station whether it is factory-set or preset by yourself.
Presetting a Station
1
Follow steps 1 to 5 in "Operating the Radio" and manually tune in
to the station you wish to preset.
2
Hold down ENTER until the preset number flashes.
If there is a preset number that has no preset station, that preset number
flashes.
When all the preset numbers are set to certain stations, the following occurs:
• Initialized (factory-set): "1" flashes and "P" appears.
• After tuning in a preset station: The next preset number after the one last
preset flashes and "P" appears.
3 Press TUNE/TIME SET + or – to select the number you wish to
preset, then press ENTER.
When you select the preset number using TUNE/TIME SET + or –, "P"
appears if that number has a preset station. If it has no preset station, only the
number flashes and "P" does not appear.
When you press ENTER, the selected preset number lights up in the display.
Example: Display window when you preset FM 90.0 MHz in preset
number 2.
Channel step
10 kHz
9 kHz
To preset another station, repeat these steps.
To change the preset station, preset a new station. The previous station will
be canceled.
To cancel the presetting mode, press MODE.
Note
If you do not press TUNE/TIME SET + or –, or ENTER within 65 seconds, the
preset tuning mode will be canceled.
Tuning in to a Preset Station
1
Press POWER to turn on the radio.
2 Press MODE so that "P" and preset number appear.
3
Select the band with BAND.
4
Press TUNE/TIME SET + or – to select the desired preset
number.
5
Adjust the volume using VOL.
To turn off the radio, press POWER.
Note
If you hold down MODE for more than 2 seconds, the unit enters the preset
station deleting mode. Press MODE again to return to the previous mode.
Stopwatch
Deleting a Preset Station
1
Follow steps 1 and 2 in "Tuning in to a Preset Station".
2
Select the band with BAND.
3
Press TUNE/TIME SET + or – to select the preset number to be
deleted.
4
Hold down MODE for more than 2 seconds until "P", "
Pitch timer
the preset number flash.
preset number to
be deleted
5
While the letters and the preset number are flashing, press
ENTER.
The station set to the preset number just before the deleted station will be
displayed.
To delete other stations, repeat steps 2 to 5.
If all the preset stations are deleted, "P -" appears in the display.
To cancel deleting, press MODE while "P", " " and the preset number
are flashing.
Using the Stopwatch
The stopwatch can time up to 99 hours 59 minutes and 59.99 seconds, in 1/100-
second increments.
1
Press DISPLAY to select the stopwatch.
FM
"STPW" flashes in the display.
2 Press START/STOP to start.
The display shows the elapsed time.
3
Press START/STOP to stop.
To reset to zero, press SPLIT/RESET when the stopwatch is in the stop
status.
The stopwatch comes with two display modes. To switch to the hour-minute-
second display, press ENTER.
To switch to the minute-second-split second display, press ENTER again.
When the count time exceeds "59:59 99" during the minute-second-split
). DX LOCAL second display, the display switches to the hour-minute-second display.
To switch to the other modes during counting, press DISPLAY.
).
"STPW" stops flashing if changed to other mode while the stopwatch counts
down.
FM SENS
To listen to the radio while the stopwatch is running, press POWER. The
display will switch to the radio frequency for a few seconds.
Displaying the Split Time
To display the current split time, press SPLIT/RESET while the stopwatch is
running. "SPLIT" flashes in the display.
The stopwatch keeps counting during the display.
To return to the count display, press SPLIT/RESET again while the split time is
being displayed.
Using the Pitch Timer
The pitch timer allows setting the timer with an identical length of time
repeatedly. The functions of the radio, the stopwatch, and the countdown timer
are available even while the pitch timer is being used.
1
Press DISPLAY to select the pitch timer.
"PITCH" flashes in the display.
2
Hold down ENTER for more than 2 seconds.
The beep sounds and the countdown duration flashes in
the display.
3
Press TUNE/TIME SET + or – to set the desired countdown
duration for the pitch timer.
The countdown duration can be set from 1 second to 59 minutes 59 seconds,
in 1-second increments.
4
Press ENTER.
The beep sounds and the number of times flashes in the
display.
5
Press TUNE/TIME SET + or – to set the desired number of
times.
The number of times can be set up to 99.
6
Press ENTER.
The two beeps sound and the number of times stops flashing.
7
Press START/STOP.
Countdown starts. After the preset countdown duration, the two beeps sound
three times.
When the last pitch timer setting is finished, the display switches to the pitch
timer display even in another display mode and a long beep sounds, and then
returns to the previous display.
To stop the long beep, press any button.
To pause the countdown on the pitch timer, press START/STOP while counting
down.
At this time, the countdown is reset by pressing SPLIT/RESET. The display will
show the set-up countdown duration and number of times.
To switch to the other modes, press DISPLAY.
"PITCH" stops flashing if changed to other mode while the pitch timer counts
down.
Using the Countdown Timer
You can use the built-in countdown timer to turn off the radio automatically after
a preset duration.
1
Press DISPLAY to select the countdown timer.
"TIMER" flashes in the display.
2 Hold down ENTER for more than 2 seconds.
The beep sounds, and the countdown duration starts flashing.
3
Press TUNE/TIME SET + or – to set the desired countdown
duration for the timer.
The countdown duration can be set from 1 minute to 2 hours, in 1-minute
increments.
4
Press ENTER.
The two beeps sound and the countdown duration stops flashing.
5
Press START/STOP.
Countdown starts. The radio is automatically turned on when the radio is off.
After the preset countdown duration, the four beeps sound five times and the
radio is turned off.
To stop the beeps, press any button.
To turn off the radio before the preset time, press POWER.
" and
To pause the countdown on the countdown timer, press START/STOP while
counting down.
At this time, the countdown is reset by pressing SPLIT/RESET. The display will
show the set-up countdown duration.
To switch to the other modes, press DISPLAY.
"TIMER" stops flashing if changed to other mode while the countdown timer
counts down.
Using the Belt Clip
(See Fig. D)
Use the belt clip when attaching the unit to your belt.
