Chapter 2. Installation

2.5 Loop Power Flowmeter Wiring Connections

WARNING!
local code when wiring this unit to a power source and to peripheral devices. Failure to do so could
result in injury or death. All wiring procedures must be performed with the power off.
The Type 4X enclosure contains an integral wiring compartment with one dual strip terminal block located in the
smaller end of the enclosure (see Figure 19 below). Two 3/4-inch female NPT conduit entries are available for separate
power and signal wiring. For all hazardous area installations, make sure to use an agency-approved fitting at each
conduit entry. If conduit seals are used, they must be installed within 18 inches (457 mm) of the enclosure.
32
To avoid potential electric shock, follow National Electric Code safety practices or your
Loop
Pulse
Power
Output
+ – + –

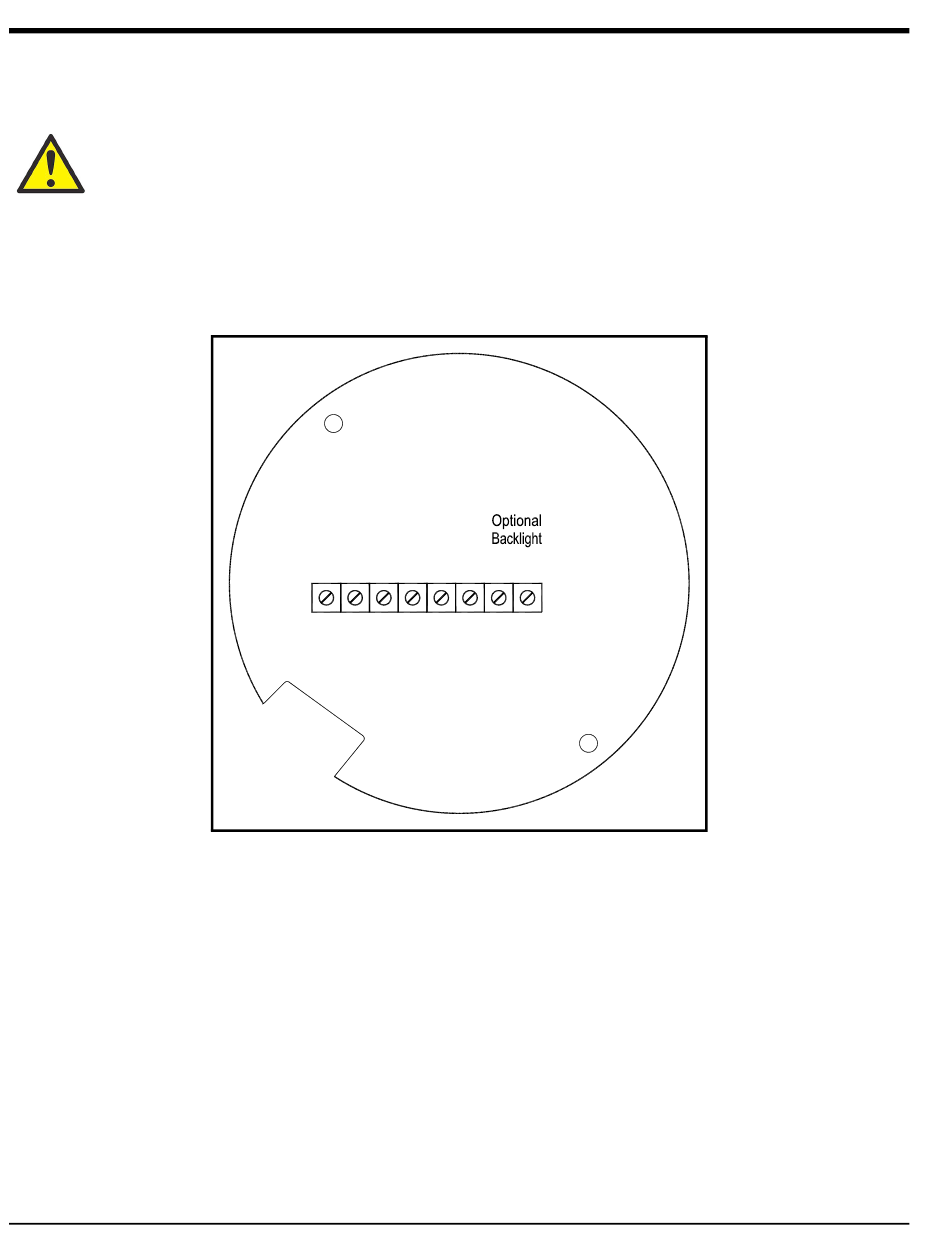

Figure 19: Loop Power Wiring Terminals
Freq.
Output
Power
+ –
+ –
PanaFlow™ MV80 & MV82 User's Manual
