Curtis Acuity 1030 Manual

Battery monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Manual
Model 1030
Acuity
Battery Monitoring System
®
Read Instructions Carefully!
Specifications are subject to change without notice.
© 2017 Curtis Instruments, Inc. ® Curtis is a registered trademark of Curtis Instruments, Inc.
© The design and appearance of the products depicted herein are the copyright of Curtis Instruments, Inc.
Curtis Instruments, Inc.
200 Kisco Avenue
Mt. Kisco, NY 10549
www.curtisinstruments.com
38442, Rev C 11/17

Advertisement

Table of Contents
loading

Related Manuals for Curtis Acuity 1030

Summary of Contents for Curtis Acuity 1030

  • Page 1 Specifications are subject to change without notice. © 2017 Curtis Instruments, Inc. ® Curtis is a registered trademark of Curtis Instruments, Inc. © The design and appearance of the products depicted herein are the copyright of Curtis Instruments, Inc. 38442, Rev C 11/17...

  • Page 2: Table Of Contents

    7. DEVICE PARAMETER OBJECTS ........20 Definitions ............... 21 Configuring parameters ............ 22 Resetting the SoC ............22 8. DEVICE MONITOR OBJECTS .......... 23 Historical records ............. 23 Retrieving historical records ..........26 9. SPECIFICATIONS ..............23 Curtis 1030 Acuity Manual, Rev. C...
  • Page 3 FIGURES / TABLES FIGURES . 1: Curtis Acuity ................1 . 2: Mounting dimensions ............. 3 . 3: Typical installation ..............4 TABLES Communication profile objects ........... 19 table Device parameter objects ............. 20 table Device monitor objects ............23 table Specifications ...............

  • Page 4: Overview

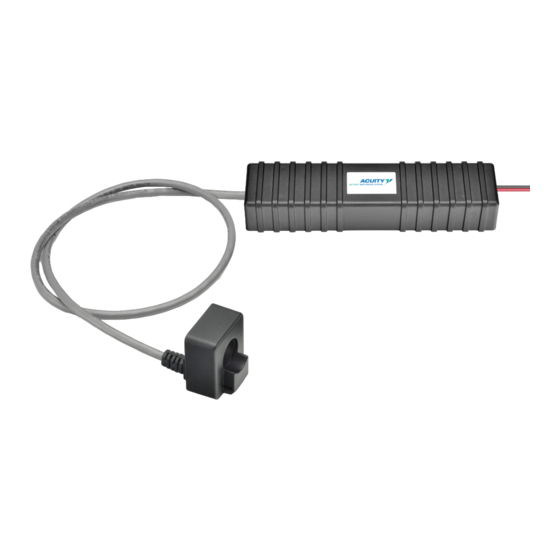

    The Curtis Acuity is ideal for use in electric vehicles with applications such as material handling, airport ground support, floor cleaning, light-on-road, golf/utility, and aerial work platforms. Features include:...
  • Page 5 Battery information is displayed in real time on the Curtis enGage ® or any other CAN-based display. Familiarity with your Curtis Acuity system will help you install and operate it properly. We encourage you to read this manual carefully. If you have questions, please contact your local Curtis office.

  • Page 6: Installation And Wiring

    B– : Black PIN 1: CAN Hi — White Mates with Molex 19038-0001. 960±15 PIN 2: CAN Low — Black mates TEMP SENSOR CABLE with Molex 19034-0005. 5/16" RING TERMINALS TYP 3X Dimensions in millimeters Curtis 1030 Acuity Manual, Rev. C...

  • Page 7: Connecting B+, B-, And The Temperature Sensor

    Insert a tie wrap into each of the slots in the current sensor and pull the battery cable tight against the side of the current sensor in which the slots are located. Curtis 1030 Acuity Manual, Rev. C...

  • Page 8: Can Connections

    120 Ω resistors for termination. If you place multiple devices along the cable, only devices at the ends of the cable need termination. You can specify whether the Acuity will include the 120 Ω termination resistor (see Specifications, page 28). Curtis 1030 Acuity Manual, Rev. C...

  • Page 9: Acu-Set Software

    Acu-Set software is license-based and will only run on the PC on which it is originally installed. After the software is purchased, instructions will be emailed from Curtis to define the download and activation procedure. Acu-Set is not transferrable. If it is required that Acu-Set be loaded on a different computer, a new license is required.

  • Page 10: Establishing Communication Between Acuity And Computer

    1 and 127 that is not already in use. The Node ID List shows the Node IDs of all devices that are transmitting in that network at the selected baud rate. Curtis 1030 Acuity Manual, Rev. C...

  • Page 11: Configuring The Acuity

    This function is used when copying parameters Copy Values from an Acuity to a computer. After the parameters are read from the Acuity, the button activates the copying of Copy Values Curtis 1030 Acuity Manual, Rev. C...

  • Page 12: Power Prover

    Ampere Hours Discharged, and “C” represents Ampere Hours Charged. This is an identifier unique to that Acuity and therefore to that Battery ID battery. Time of day as reported by the host computer. Time-of-Day Curtis 1030 Acuity Manual, Rev. C...

  • Page 13: Handling Historical Data

    20%. Displays a bargraph showing the ranges over Battery Current Profile which the ampere hours were consumed. Examples of these three data displays are shown on the next page. Curtis 1030 Acuity Manual, Rev. C...
  • Page 14 View Historical Data Battery Cycles History Battery Current Profile Curtis 1030 Acuity Manual, Rev. C...

  • Page 15: Programming The Acuity

    Programming the Acuity The Program screen is used to re-program the Acuity with updated firmware. ” Retrieves the hex file from the computer’s folder. Open Hex File Downloads the file to the Acuity. Program Curtis 1030 Acuity Manual, Rev. C...

  • Page 16: Canopen Communications

    The Acuity adheres to the industry standard CANopen communication pro- tocol and thus will easily connect into many CAN systems, including those using the Curtis AC and Vehicle System controllers (1234/36/38, 1298, 1310, and enGage VII). Any CANopen-compatible master can be programmed to control the Acuity.

  • Page 17: Standard Message Identifiers

    These messages have 1 byte of data sent by the master; the slave does not respond with any data to an NMT. The Acuity state value is trans- mitted with each heartbeat message. Value State Initialization (or “boot-up”) StoppedXx OperationalXx Pre-OperationalXx Curtis 1030 Acuity Manual, Rev. C...

  • Page 18: Heartbeat Messages

    The heartbeat message has only one data byte. The top bit is reserved and should be set to zero. The bottom 7 bits hold the current NMT device state as defined previously. Curtis 1030 Acuity Manual, Rev. C...

  • Page 19: Pdo Communications

    5 — PDO COMMUNICATIONS PDO COMMUNICATIONS The Curtis Acuity is easily controlled and monitored through two fixed com- munication packets. Each data packet contains 8 bytes. CANopen calls these packets Process Data Objects (PDOs). PDO messages have a medium priority.

  • Page 20: Sdo Communications

    5 and the upper 8 bits appear in data byte 6; bytes 7 and 8 are undefined (set to 0). The case of a 32-bit transfer follows the same strategy, with the least signifi- cant byte placed in data byte 5 and the most significant byte placed in data byte 8. Curtis 1030 Acuity Manual, Rev. C...
  • Page 21 RO = Read Only access. RW = Read/Write access. Access The CAN address that is used to access this object. Index Some objects have several associated values. In these cases, Sub-index a sub-index is used to access each component of the object. Curtis 1030 Acuity Manual, Rev. C...

  • Page 22: Table 1 Communication Profile Objects

    101Bh Identity Object. Number of entries = 5. Identity Object. Vendor ID = 00004349h. Identity Object. Model Number; four ascii characters. Identity Object. Model Number sequential code; Four ascii characters. Identity Object. Serial Number. Curtis 1030 Acuity Manual, Rev. C...

  • Page 23: Device Parameter Objects

    ‘F’ PDO1, PDO2, and Heartbeat Tx frequency. Resolution 100 ms. Value of 0 disables PDO. 5113h 00h ‘R’ ‘n’ ‘g’ Sets binned Ah range. For low range, set Byte8 to 0h. For high range, set Byte8 to 1h. 5114h 00h sec min hour ‘T’ Time of day. 01h day month year ‘D’ Date. 02h DoW ‘W’ Day of week. (Sunday = 1) Curtis 1030 Acuity Manual, Rev. C...

  • Page 24: Definitions

    If the battery discharge profile for the Custom discharge parameters (5109h) battery used in the application is not available, enter 65534 (Custom parameters) in 5102h and then create a custom discharge profile in 5109h. Curtis 1030 Acuity Manual, Rev. C...

  • Page 25: Configuring Parameters

    The following object is used to reset the SoC of the battery to 100%. INDEX SUB-INDEX ACCESS BYTE 5 BYTE 6 BYTE 7 BYTE 8 DESCRIPTION 4000h 00h ‘R’ ‘S’ ‘T’ Resets state of charge to 100%. Byte 8 is a zero. Curtis 1030 Acuity Manual, Rev. C...

  • Page 26: Device Monitor Objects

    BYTE 6 BYTE 7 BYTE 8 DESCRIPTION 5300h 00..15h HIstorical record request. Bytes 6+5 = record number. Sub-index = index to 4 bytes within record. 5301h 00h LSB MSB Number of records saved; 16-bit number. 5302h 00h LSB MSB Bytes 6–5 battery cycle number. Returns historical record index. Curtis 1030 Acuity Manual, Rev. C...
  • Page 27 07h byte 28 Lowest 1 second Avg Battery Voltage (LSB). 07h byte 29 Lowest 1 second Avg Battery Voltage (MSB). byte 30 1 second Avg Current measured at highest Avg Voltage. byte 31 1 second Avg Current measured at lowest Avg Voltage. 08h byte 32 Activity_TimerD (LSB). byte 33 Activity_TimerD. Curtis 1030 Acuity Manual, Rev. C...
  • Page 28 0 = lowest Avg temperature occurred before highest Avg temperature. bit 4 0 = lowest voltage occurred before highest voltage. bit 5 1 = end of charge event. bit 6 1 = power up event. bit 7 0 = battery cycle event. Curtis 1030 Acuity Manual, Rev. C...

  • Page 29: Retrieving Historical Records

    SDO object Historic Record Request (5300h), along with the appropriate sub-index. INDEX SUB-INDEX ACCESS BYTE 5 BYTE 6 BYTE 7 BYTE 8 DESCRIPTION 5300h 00..15h Record number Record number Read historical record. (LSB) (MSB) Curtis 1030 Acuity Manual, Rev. C...
  • Page 30 The Acuity response to this request is as follows. Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Historical Historical Historical Historical Record Record Record Record Byte 8 Byte 9 Byte 10 Byte 11 Curtis 1030 Acuity Manual, Rev. C...

  • Page 31: Specifications

    9 — SPECIFICATIONS SPECIFICATIONS The specifications for the Curtis Model 1030 Acuity are presented in Table 4. Table 4 Specifications: 1030 Acuity Electrical Operating voltage range 24 – 48 VDC; 72 –144 VDC Electrical isolation 500 VAC, per UL 583 Transients IEC 6100-4-4, test level 2 Reverse voltage Acuity will not be damaged if connected to the battery protection with inverted polarity.
