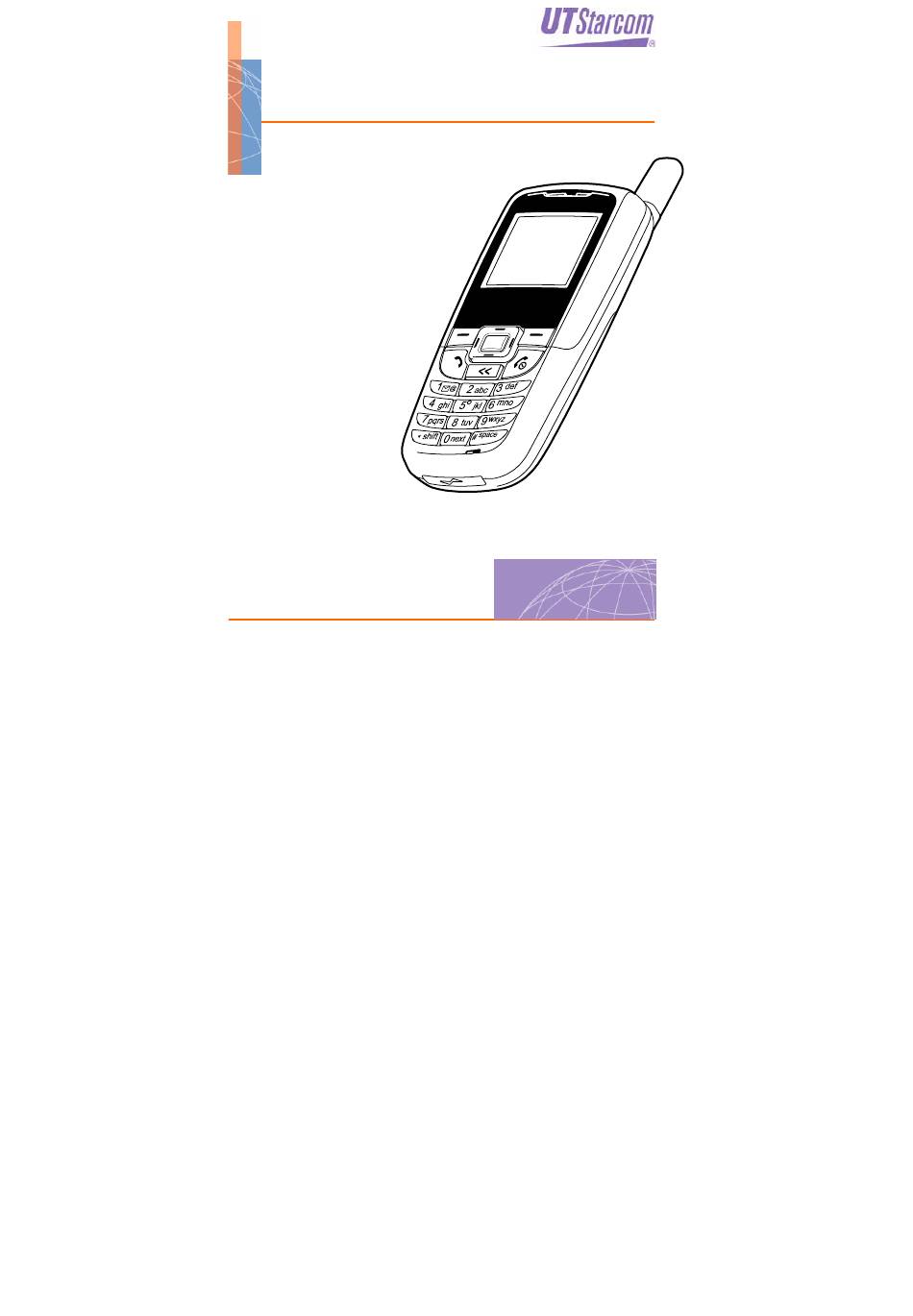

  • Page 1 C1100 USER GUIDE...
  • Page 3 _______________________________________ Trademark Statement: “‘UTStarcom’, ‘iPAS’, and the UTStarcom logo are trademarks of UTStarcom, Inc.” Copyright Statement: “©UTStarcom, Inc. 2005. All rights reserved. No part of this publication may be reproduced in any form or by any means without the prior written permission of UTStarcom, Inc.”...

  • Page 4: Table Of Contents

    Table of Contents SAFETY PRECAUTIONS............ 1 ........1 ANDLING THE HONE ATTERY AND HARGER ................2 ANDLING THE HONE ..............3 ANDLING THE ATTERY ..............4 ANDLING THE HARGER 1. GETTING STARTED ............5 1.1 P ..............5 ACKAGE ONTENTS 1.2 P ..............5 HONE PECIFICATIONS 1.3 H ..............7 ANDSET...
  • Page 5 2.11 M ............23 ASTER OLUME ONTROL 3. STORING A PHONE NUMBER TO CONTACTS... 24 3.1 A ............24 CCESS TO AVING ONTACTS 3.2 C ............25 REATING ONTACT 3.3 U ..............25 PDATING ONTACT 4. CALL LOG APPLICATION..........26 4.1 A ...........26 CCESSING THE 4.2 S .............27 OG TO...
  • Page 6 5.6 M ..............38 ESSAGING ETTINGS 5.6.1 Callback Number ................38 5.6.2 Delivery Confirmation..............39 5.6.3 Duplicate Detection................39 5.6.4 Auto Erase ..................39 6. CONTACTS APPLICATION .......... 41 6.1 E ..............41 DITING ONTACTS 6.1.1 Adding Contact ................42 6.1.2 Searching Contact .................45 6.1.3 Re-editing Contact .................45 6.1.4 Re-editing Fields in Contact ............46 6.1.5 Setting Number/Email as Default ...........46 6.2 D...
  • Page 7 8.6 S ...................48 ECURITY 8.6.1 Voice Privacy .................48 8.6.2 Default Reset .................48 8.7 A ..................48 BOUT 9. BREW APPLICATION ........... 48 9.1 M ................48 OBILE 9.2 S ...................48 ETTINGS 9.2.1 Order Apps..................48 9.2.2 Move Apps ..................48 9.2.3 Manage Apps.................48 9.2.4 Menu View ..................48 9.2.5 Screen Savers ................48 9.2.6 View Log..................48 9.3 H...
  • Page 8 14. TROUBLESHOOTING..........48 15. SAFETY AND WARRANTY ........48 15.1 S ..48 AFETY NFORMATION FOR IRELESS ANDHELD HONES 15.1.1 EXPOSURE TO RADIO FREQUENCY SIGNALS .......48 15.1.2 ANTENNA CARE .................48 15.1.3 DRIVING SAFETY ...............48 15.1.4 ELECTRONIC DEVICES .............48 15.1.5 OTHER SAFETY GUIDELINES ...........48 15.1.6 PRECAUTIONS................48 15.2 SAFETY INFORMATION FOR FCC RF EXPOSURE....48 15.2.1 CAUTIONS ..................48...

  • Page 9: Safety Precautions

    Safety Precautions SAFETY PRECAUTIONS Handling the Phone, Battery and Charger DANGER Only use the battery and charger specified for the phone. Failure to do so can result in damage to the phone, electric shock or fire. CAUTION Do not store or operate the phone or charger in hot, damp, or dusty areas, which can damage electrical and mechanical components.

  • Page 10: Handling The Phone

    Safety Precautions Handling the Phone DANGER Do not use the phone while operating a vehicle. Observe local regulations specialized areas (hospital, aircraft, etc) when using the phone. Do not use the phone near electronic equipment prone to interference. Radio frequency interference may result in electronic equipment malfunction.

  • Page 11: Handling The Battery

    Safety Precautions Handling the Battery DANGER Do not dispose of the battery pack in a fire. It may explode. Check with local waste management codes for disposal instructions. Do not force the battery pack into the phone. Improper installation can cause malfunctions or damage the battery pack.

  • Page 12: Handling The Charger

    Safety Precautions Handling the Charger DANGER Only use a power source that provides the appropriate voltage (AC100-240V) for the charger. An unsuitable power source can result in damage to the charger, electric shock or fire. Do not use the charger if the power supply cord or plug is damaged or frayed (exposed or broken wires, etc).

  • Page 13: Getting Started

    Please check the package contents by comparing them with the following list. If you find anything missing or if the documentation set is incomplete, contact your local phone dealer immediately Model C1100 (with one battery) Charger (one) User Guide (one) 1.2 Phone Specifications...
  • Page 14 Getting Started IS 95A/B CDMA 2000 1x SCI 1, Backlight OFF, LCD SCI 1, Backlight OFF, Standby LCD OFF Time 180 Hours 270 Hours -10dBm,Voice Activity Talk -10dBm,Voice Activity 44% Time 230 min 210 min Standby time refers to the state in which the phone is continuously on without being used for calls or moved to different service areas The standby time depends on the network conditions, phone usage and surrounding area.

  • Page 15: Handset Description

    Getting Started 1.3 Handset Description 1. Earpiece Navigation Key: Press to adjust the ringer volume, move cursor, or scroll up and down within menus Left Soft Key: Press to perform the function indicated on the screen above it Talk Key: Press to make or receive a call Shift Key: Press to access master volume control (by pressing and holding the...
  • Page 16 Getting Started 7. Screen Select Key: This key is used to access main menu, to confirm a selection or to switch text entry mode Right Soft Key: Press to perform the function indicated on the screen above it Power Key: Press to turn the phone on and off, to end a call, or to return to idle state Back Key:...

  • Page 17: Display Indicators

    Getting Started 1.4 Display Indicators The C1100 display includes four primary areas: the top annunciator row, the context area, the main area, and the soft key area 1.4.1 Annunciators The annunciators occupy the top row of the display area and include: Indicates the current signal strength.

  • Page 18: Context Area

    Getting Started zero or the master volume is set to “Off” Indicates the phone is roaming. This annunciator may blink, based on certain parameters communicated to the phone by a specific network Depending on network availability, this annunciator may or may not appear depending on network availability.

  • Page 19: Replacing The Battery

    Getting Started 2. Connect the lead from the charger to the charging socket of the phone. If the phone is on, the battery indicator bar starts to scroll ). If the phone is off, a charging animation appears on the screen 3.
  • Page 20 Getting Started 1. In idle state, switch the phone off by pressing and holding (otherwise, some user settings might be lost) 2. Remove the battery cover With the back of the phone facing you, press the top of the battery cover and slide the cover off 3.
  • Page 21 Getting Started 4. Install the new battery Connect the cord of the new battery by firmly inserting the connector into its place as illustrated. Do not reverse the connector...

  • Page 22: Conventions In This Guide

    Getting Started 5. Slide the battery cover until it clicks into place 1.7 Conventions in This Guide In this guide, “press the key” means to release the key after you press it; “press and hold the key” means to press the key for 3 seconds or longer before releasing it The text displayed on the screen is indicated in bold in this guide, for example Contacts...

  • Page 23: Accessing Main Menu Options

    Getting Started To save battery power, when the phone is not in use, press return the phone to idle state. In most occasions, pressing will immediately return to idle state. However, there are occasions an intermediary note will be displayed. In this case, follow the instructions on the screen 1.8 Accessing Main Menu Options 1.
  • Page 24 Getting Started 3. Repeat step 2 to reach the desired option and then press access this option If there is a rightward arrow beside the option, you can also press to access this option Note: To return to the previous menu, press .

  • Page 25: Basic Operations

    Basic Operations 2. BASIC OPERATIONS 2.1 Turning the Phone On/Off Press and hold . The phone will display the power-on/off animation 2.2 Making a Call 1. Key in the phone number As you enter digits, entry proceeds left to right, top to bottom (if more than one line) Press to move the cursor.

  • Page 26: I Ncall Operations

    Basic Operations to terminate the hard pause and continue with pause insertion as normal. Press to terminate the call 3. To end the call, press If you are in a single-party call and the number you dialed does not match any record in Contacts, you are given 10 seconds to press the left soft key (Save) save the entry to Contacts (see “Storing a Phone Number to Contacts”...

  • Page 27: Mute

    Basic Operations 2.3.2 Mute Select this option to mute the microphone. When activated, the Mute label is changed to Unmute, and the icon in context area changes to indicating that the phone is in a mute state. When de-activated, the label returns to its original state.

  • Page 28: Speed Dialing A Phone Number

    Basic Operations initiate a three-party call 2.6 Speed Dialing a Phone Number If you know the speed dial location of the telephone number (see "Adding Contact” on page 42 for instructions on assigning a speed dial key) you want to call, Press and hold to call the Voicemail number Press any key...

  • Page 29: Call Waiting

    Basic Operations To silence the ring tone/vibrator, press the Silence soft key. The display still shows the call as if the call is still ringing. Therefore, the call is still active and you can still answer the phone call. Only once the call has been rerouted to voicemail or the incoming signal is terminated does the phone return to idle state 2.8 Call Waiting...

  • Page 30: Ringer Volume Control

    Basic Operations When Keyguard is activated, you can still answer a call as usual. During the call, you can operate the phone normally. However, the Keyguard will automatically be activated when the call ends or if the call is rejected The Keyguard state can also be invoked from auto keyguard, a feature set in the Settings application.

  • Page 31: Master Volume Control

    Basic Operations application. Refer to "Ringer Volume” on page 48 for details 2.11 Master Volume Control This function enables you to define how the phone will notify you of events such as incoming calls, new messages/pages and alarm, countdown, notes, and so on. Master volume affects all sounds except for voice To change the master volume: 1.

  • Page 32: Storing A Phone Number To Contacts

    Storing a Phone Number to Contacts 3. STORING A PHONE NUMBER TO CONTACTS You can store frequently used phone numbers and email addresses to the memory of the phone (Contacts). Contacts can store up to 100 contacts. Each contact may contain information such as first name, last name, home phone, work phone, mobile phone, unknown phone, pager, email, speed dial key, and ring tone 3.1 Access to Saving Contacts...

  • Page 33: Creating New Contact

    Storing a Phone Number to Contacts 3.2 Creating New Contact After accessing the Contacts saving option as described in page 24 ”Access to Saving Contacts”, select the New contact option to add new entries into Contacts If 100 contacts have been saved, a note appears, stating space is not available to add a new contact and you should try deleting an old one 1.

  • Page 34: Call Log Application

    Call Log Application 4. CALL LOG APPLICATION The Call Log maintains a list of all calls initiated by or received by the phone. A call initiated by the phone is an outgoing call. Received calls are classified as either incoming or missed. An incoming call is a call that has either been answered or actively rejected by the user.

  • Page 35: Save Call Log To Contacts

    Call Log Application 4.2 Save Call Log to Contacts In the Call Log list view, the left soft key (Save) appears only when the highlighted phone number has no match in Contacts. Press the left soft key (Save) to save the number to Contacts or update a number that has already been stored in Contacts (see "Storing a Phone Number to Contacts”...

  • Page 36: Deleting Call Log

    Call Log Application 4.3.3 Deleting Call Log To delete a Call Log, select Delete from the Call Log options menu. A note appears asking you to confirm the deletion. Press the left soft key (Yes) to delete the Call Log entry or press the right soft key (No) or to return to the Call Log list 4.3.4 Showing Call Types...

  • Page 37: Messaging Application

    Messaging Application 5. MESSAGING APPLICATION Select this application to read, edit, save and send short messages and pages 5.1 Composing Message Msging Compose The maximum size of a message is 140 characters A message can be sent to up to 5 recipients simultaneously 1.
  • Page 38 Messaging Application 4) After the selection, press the left soft key (Done) to return to the Recipients box. The selected numbers appear in the box, with a comma and a space automatically inserted as separators between multiple numbers To enter numbers directly from the keypad, refer to “Text Entry” on page 48 for text entry methods - To enter multiple numbers directly from the keypad, press enter a comma and a space before entering the next numbers...
  • Page 39 Messaging Application - If the current message’s priority is marked as “urgent”, then the “Mark urgent” is replaced with “Mark normal” 7. To preview the message, press the right soft key (Options) and select Preview - The preview mode displays the recipient list followed by the text of the message.

  • Page 40: Inbox

    Messaging Application If you receive an incoming call while composing a message, you can press to answer the call or press the soft key to reject the call. If you answer the call, the message is automatically saved to the Draft box if the box is not full or the “auto erase”...

  • Page 41: Reply

    Messaging Application Normal read messages have a icon on the leftmost column; while normal unread messages have a icon. Once you view a message, it is marked as read. Urgent messages, however, whether read or unread, have an exclamation mark preceding them If the Inbox is empty, “(no messages)”...

  • Page 42: Forward

    Messaging Application 5.2.2 Forward This option, allows you to edit and forward the message. The steps to forward a message are similar to those for composing a message (see ”Composing Message” on page 29). The difference is that the message automatically appears in the message edit box 5.2.3 Message Details Message Details fields include: From: The origination address.

  • Page 43: Add Contact

    Messaging Application 5.2.5 Add Contact This option is only available if the number in the “From” field is not currently stored in your Contacts. Select this option to edit the sender’s address and store it to Contacts The sender might have set the callback number. In this case, after accessing this option, choose one number from the origination number and the callback number.

  • Page 44: Forward

    Messaging Application To perform operations to a message in the Sent box, press to reach the desired message then press . Press to view the message; press the left soft key (Delete) to delete the message; press the right soft key (Options) to select from the following options: 5.3.1 Forward This option, allows you to edit and forward the message.

  • Page 45: Add Contact

    Messaging Application 5.3.4 Add Contact This option is only available if the number in the “To” field is not currently in your Contacts. Select this option to edit the receiver’s address and store it to Contacts After reaching this option, press to display New contact and Update contact.

  • Page 46: Delete

    Messaging Application After the message has been sent, it will be deleted from the Draft box 5.4.2 Delete When you access this option, “The message will be deleted” will appear. Press the left soft key (Yes) to complete the deletion 5.5 Pages The page text contains only the numeric page: no additional text is included...

  • Page 47: Delivery Confirmation

    Messaging Application 5.6.2 Delivery Confirmation Msging Settings Delivery Conf This setting allows you to turn delivery confirmation on or off. When delivery confirmation is on, the phone will display a delivery confirmation report. When off, no report will be displayed The following options are available: Highlight the desired option and press to confirm...
  • Page 48 Messaging Application messages/pages in the mailbox to make room for the incoming messages/pages. Auto Erase does not apply if all the messages are unread. The Sent and Draft box will also be affected if this setting is on: if you send a message and there is no more room in the Sent box, the oldest message is deleted to make room for the new one This setting allows you to turn the Auto Erase feature on or off The following options are available:...

  • Page 49: Contacts Application

    Contacts Application 6. CONTACTS APPLICATION The Contacts application allows you to store phone numbers and email addresses into your phone, and to use when placing phone calls or creating messages 6.1 Editing Contacts The Contacts can store a maximum of 100 contacts. Each contact can store four phone numbers, one pager and one email address.

  • Page 50: Adding Contact

    Contacts Application 6.1.1 Adding Contact 1. Press to open the main menu, then select Contacts - If there are no contacts, the text “(no contacts)” is displayed - The contacts are displayed in alphabetical order by last name - The Contacts list items might contain an icon. The icon is the default number/email for that contact.
  • Page 51 Contacts Application 5. Press to move the highlight down to the Email field. Enter an email address of the contact - Refer to “Text Entry” on page 48 for text entry methods - The Email field can contain only 32 characters - To correct the input, press to delete the previous character 6.
  • Page 52 Contacts Application currently been chosen. Press to select one ring tone and then press to confirm the selection - The ring tone list is displayed alphabetically, with “Default” being the exception, listed at the top - In the ring tone list, press the left soft key (Play) to play the ring tone.

  • Page 53: Searching Contact

    Contacts Application For other methods to create a new contact, refer to "Storing a Phone Number to Contacts” on page 24 6.1.2 Searching Contact 1. Press to open the main menu, then select the Contacts application to access the contacts list 2.

  • Page 54: Re-Editing Fields In Contact

    Contacts Application 1. Refer to steps 1-2 in “Searching Contact” on page 45 to find the contact to be modified 2. Press the right soft key (Options) and then select Edit to enter the editing screen. The First Name field is highlighted 3.

  • Page 55: Deleting Contact

    Contacts Application page 48 for details 1. Refer to steps 1-3 in “Searching Contact” on page 45 to display the detailed information of the selected contact - The default phone number/email is underlined 2. To move the highlight to the desired phone number/pager/email to be set as default, press .

  • Page 56: Erasing Number/Email/Speed Dial/Ring Tone From Contact

    Contacts Application 6.3 Erasing Number/Email/Speed Dial/Ring Tone From Contact 1. Refer to steps 1-2 in “Searching Contact” on page 45 to locate the contact whose entries are to be deleted 2. To display the detailed contact information, Press . Press move the highlight to the number/email/speed dial/ring tone to be deleted - If the ring tone is set as “Default”, the ring tone entry is not...
  • Page 57 Contacts Application 3. To make a call, press to highlight the desired phone number, then press To create a message or email, press to highlight the desired address then press or the left soft key (Send Msg). The address automatically appears in the Recipients box. Refer to steps 4-8 in “Composing Message”...

  • Page 58: Calculator Application

    Calculator Application 7. CALCULATOR APPLICATION This function permits 10-digit arithmetic operations, with a series of operators, both simple (for example, addition) and advanced (for example, reciprocal). The calculator also includes simple memory functions To access the calculator application from the idle state, press access main menu, and then select Calc The screen appears as an old-style simple calculator, with the key mappings shown on the calculator...
  • Page 59 Calculator Application 5. When starting a new calculation, if the result from the last calculation is not “0”, press to initialize Press to return to idle state. Contents of the current calculation are erased, but the memory is preserved To delete the character you just entered, press .

  • Page 60: Settings Application

    Settings Application 8. SETTINGS APPLICATION The Settings application allows you to change the following phone settings: sound, display, buttons, network, phone features, and security. An additional “about” option is available to display phone specific information To access Settings application, press to access the main menu then select Settings Many menu entries have a right soft key labeled “Info”...

  • Page 61: Sound Effects

    Settings Application 8.1.2 Sound Effects Settings Sound Sound Effects Any non-voice sound that is also not a ring tone is considered to be a sound effect. Traditional “clicks”, “tones”, and other DTMF sounds are grouped under sound effects. The sounds are played through the earphone if it is attached;...
  • Page 62 Settings Application such as incoming calls, new messages/pages and alarm, countdown, notes, and so on. Master volume affects all sounds except for voice You can also access this option by pressing and holding from idle state. Refer to "Master Volume Control” on page 23 Press to select the desired option then press to confirm the...
  • Page 63 Settings Application played through the speaker To adjust the volume, press . There are eight volume levels (0-7). If the value is not zero, press the right soft key (Play) to listen to the volume. Press the left soft key (Save) to save the setting When the volume is set to zero, the silent annunciator is shown;...

  • Page 64: Display

    Settings Application 8.2 Display This menu allows you to set screen properties and formatting 8.2.1 Properties Settings Display Properties This menu enables you to set the contrast, backlight timer and application timeout value 8.2.1.1 Contrast Settings Display Properties Contrast This option enables you to specify the contrast level for the screen. After you access this option, pressing will display the current setting in the pop-up selector...
  • Page 65 Settings Application After 10 sec The backlight will last for 10 seconds after the last keystroke After 30 sec The backlight will last for 30 seconds after the last keystroke After 60 sec The backlight will last for 60 seconds after the last keystroke Always off The backlight will always be off Always on...

  • Page 66: Formatting

    Settings Application The following options are available: After 60 sec The phone will return to idle state 60 seconds after the last action in an application After 2 min. The phone will return to idle state 2 minutes after the last action in an application After 5 min.
  • Page 67 Settings Application Spanish Portuguese Default: English 8.2.2.2 Name Order Settings Display Formatting Name Order This setting enables you to determine the formatting of names in Contacts and other places where contact names are displayed (for example: Call Log, Messaging) The radio button before the current setting is selected. Press move the highlight and then press to confirm the selection The following options are available:...
  • Page 68 Settings Application YYYY/MM/DD Default: MM/DD/YYYY Separator This setting determines the date separator formatting The radio button before the current setting is selected. Press move the highlight and then press to confirm the selection The following options are available: Slash “/” Period “.”...

  • Page 69: Shortcuts

    Settings Application After accessing this option, enter the banner text (up to 11 alphanumeric characters can be entered), then press the left soft key (Save) to complete the operation. For text entry, refer to "Text Entry" on page 48 8.3 Shortcuts Settings Shortcuts The shortcuts setting allows you to access an application with a single key...

  • Page 70: Features

    Settings Application Default: On 8.5 Features Settings Features This setting allow you to set phone features such as text input, any key answer, auto keyguard, call timers, touch tone and service tones 8.5.1 Text Input Settings Features Text Input This menu enables you to clear the phone dictionary, set the text entry method and the text language 8.5.1.1 Clear Dictionary Settings...

  • Page 71: Anykey Answer

    Settings Application The radio button before the current setting is selected. Press move the highlight to the desired option then press to confirm the selection The following options are available: Multitap eZiText Numeric For details of the text entry methods, refer to "Text Entry" on page 48 Default: Depends on type of text entry field 8.5.1.3 Text Language Settings...

  • Page 72: Auto Keyguard

    Settings Application is "On", you can answer incoming calls by pressing any key on the keypad except the Reject soft key, Silence soft key or the The radio button before the current setting is selected. Press move the highlight to the desired option then press to confirm the selection The following options are available:...

  • Page 73: Call Timers

    Settings Application Default: Off 8.5.4 Call Timers Settings Features Call Timers This setting allows you to view and reset the call timers for incoming, outgoing and all calls After you access this menu, press to access its sub-menu. Press to select the type of call timer then press .

  • Page 74: Security

    Settings Application state, and they will be played through the speaker. The volume is scaled based on the ringer volume. If the earphone is connected, then the tones are played through the earphone, and they are scaled using the earphone volume, and further scaled by the ringer volume The radio button before the current setting is selected.

  • Page 75: Default Reset

    Settings Application 8.6.2 Default Reset Settings Security Default Reset This setting allows you to reset the phone’s settings to their original configuration. No other information (such as Contacts, messages) will be erased Press and a note will be displayed, asking whether you want to continue to reset the default values.

  • Page 76: Brew Application

    Brew Application 9. BREW APPLICATION This application requires network support 9.1 MobileShop Mobileshop allows you to download your favorite ring tone, screen saver, games, etc via Application Server access 1. Press to access the main menu then select Brew 2. Select MobileShop Catalog: Shows available MobileShop application Download Help: Detailed information on the downloadable application list, downloading cost, how to download, memory status and more...

  • Page 77: Move Apps

    Brew Application 9.2.2 Move Apps To move an application to a selected folder: 1. Select Move Apps then select a folder from the Main Menu, Favorites, Work or Fun list, then press 2. Select the application to be moved to another folder 3.
  • Page 78 Brew Application 2. Press to move the highlight to Help then press to access the menu...

  • Page 79: Voicemail Application

    Voicemail Application 10. VOICEMAIL APPLICATION The voicemail function requires system connection When the phone is switched off, outside of the service area range or unavailable, incoming calls will be redirected to the voicemail system. The system will automatically answer the calls and prompt the callers to leave a message By voicemail application, you can see how many voicemails are on the network and dial in to listen / retrieve the message(s).

  • Page 80: Clock Application

    Clock Application 11. CLOCK APPLICATION This application enables you to set the alarms for a specified time, and use timer and countdown functions To access the clock application from the idle state, press to access main menu, then select Clock Note: This function requires network support.
  • Page 81 Clock Application After an alarm sounds, the alarm annunciator is removed from the display, unless the alarm is repeating, in which case it remains on the screen If the phone is off when the alarm time expires, nothing will be displayed when the phone is powered back on When the alarm time expires, if a call is ongoing, a simple tone is played through the earpiece or earphone (whichever the voice channel...
  • Page 82 Clock Application - If the alarm is uninitialized, the default date is the current date - The cursor is on the digit which is not highlighted. It will advance automatically as you enter the date - The year that can be set for alarm clock is 63 years later than the current time, otherwise, the phone will prompt "The date is not valid, but it can still be saved".

  • Page 83: Timer

    Clock Application - The options are: Never, Every day, Once a week, Every week day or Every weekend. The last option is context-sensitive. If the day of the alarm falls on a week day, then the “Every week day” item is visible, and there is no “Every weekend” item. If the day of the alarm falls on a Saturday or Sunday, then the “Every weekend”...

  • Page 84: Countdown

    Clock Application 1. After accessing the clock application, select Timer 2. If the timer is stopped or has a zero value, press the left soft key (Start) or to start the timer. The left soft key changes to “Stop” 3. When the timer is running, you can press the left soft key (Stop) to stop the timer - If the timer is running, press...

  • Page 85: Set Countdown

    Clock Application The countdown annunciator is removed from the display when the countdown expires If the phone is off when the countdown expires, nothing will be displayed when the phone is powered back on. The countdown annunciator is removed from the screen When the countdown expires and if a call is ongoing, a simple tone is played through the earpiece or earphone (whichever the voice channel is playing through) instead of the assigned ring tone.

  • Page 86: Start /Stop The Countdown

    Clock Application - The tens digit for the minute and second field is restricted so that no entry above "6" is permitted - Press to reset the previous character to zero. Press return to idle state and no changes are saved to the countdown duration 4.
  • Page 87 Clock Application Once the countdown is started, you can press the left soft key (Cancel) to stop the countdown and reset the value to the last set duration...

  • Page 88: Poker Application

    Poker Application 12. POKER APPLICATION The poker (Video Poker) application is a game provided for your enjoyment. Video poker is a simplified version of poker, wherein you only get one “turn” to swap any desired cards with ones dealt from the deck If the game was previously terminated by pressing or due to application timeout, the phone automatically saves the game...
  • Page 89 Poker Application to select the desired bet amount then press to confirm the change or press to cancel the change - Select Payouts to view the “win” payout table. While browsing, press to scroll the screen. Press or the left soft key (Done) to hide the table - To quit the current game and restart a game, select Game restart.
  • Page 90 Poker Application 8. To continue the game, press the left soft key (Continue). The screen displays your bank amount and current bet. Repeat steps 5-8 - If your Bank Amount falls below $5, the screen will display the result as “Game over”, and you can press the left soft key (Again) to start a new game...

  • Page 91: Text Entry

    Text Entry 13. TEXT ENTRY The phone supports three text entry methods or modes, including numeric, multitap and eZiText In text entry screen (for example, message edit box), press to switch between the available modes. The current text entry mode indicator will be displayed on the screen directly above the key: Entry Mode...

  • Page 92: Numeric Mode

    Text Entry 13.1 Numeric Mode This mode is primarily used for entering phone numbers In numeric mode, the keys are mapped directly to numbers. You are able to enter only numbers, symbols, or the space character 1. Press to switch between the text entry modes until the visual indicator 123 appears on the screen directly above - Pressing and holding switches to alphanumeric mode;...

  • Page 93: Ezitext Mode

    Text Entry - In "smart" mode, the phone operates using basic intelligence about capitalization. The very first letter of a text entry is capitalized but the others are automatically in lowercase. When you enter a period (or an exclamation mark or a question mark) and a space, then the first letter after the space is capitalized with the remaining letters in lowercase 3.
  • Page 94 Text Entry - Pressing and holding will display the text language selection menu. This allows you to changes input language temporarily 2. Press repeatedly to switch between the three capitalization modes: smart mode (indicator: Ez), uppercase (indicator: EZ), lowercase (indicator: ez) - In "smart"...

  • Page 95: Restricted Text Fields

    Text Entry Change upper/lowercase: Press repeatedly to switch between the three capitalization modes 5. Enter the selected word: Press to confirm the selected word and to remove the highlight; or press to confirm the word and to add a space - When no word is highlighted, press to enter a space;...

  • Page 96: Name

    Text Entry A single key press, pressing and holding of is mapped to the pound character (‘#’) A single key press of is mapped to the star character (‘*’) 13.4.2 Name In name restricted text entry, you are expected to enter a name. Since proper nouns are not in the eZitext database, you are not allowed to enter eZitext mode.
  • Page 97 Text Entry Default Text Application Text Field Restrictions Mode Multitap Name restricted Contacts First name, Last name Numeric Numeric restricted Contacts Phone numbers, pager Email Multitap Contacts Email address restricted Messaging Numeric Messaging Email address Recipients restricted fields Messaging text Multitap Unrestricted Messaging...
  • Page 98 If the malfunction symptoms are not listed in the above table, or the corresponding solution is invalid, please contact your local UTStarcom Customer Service Center. For Technical Support and Assistance please visit the UTStarcom website...
  • Page 99 Troubleshooting http://www.utstar.com Select “Support” and be directed to the Toll Free number of the UTStarcom International Professional Service Regional Center that serves your area. Or you can call the UTStarcom North America Professional Service organization at 1-(866) 663-3266.

  • Page 100: Safety Information For Fcc Rf Exposure

    Safety and Warranty 15. SAFETY AND WARRANTY This chapter addresses the safety guidelines and precautions to follow when operating your phone. Before operating your phone, please be aware of all the safety details This chapter contains the terms and conditions of services and the warranty for your phone.
  • Page 101 Safety and Warranty and industry reviewed the available body of research to develop the ANSI Standard (C951) The design of your phone complies with the FCC guidelines (and those standards) 1* : American National Standards Institute. 2* : National Council on Radiation protection and measurements. 3* : International Commission on Nonionizing Radiation Protection.
  • Page 102 Safety and Warranty 15.1.4 ELECTRONIC DEVICES Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone 15.1.4.1 Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker.
  • Page 103 Safety and Warranty 15.1.5 OTHER SAFETY GUIDELINES 15.1.5.1 Aircraft FCC and Transport Canada Regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft 15.1.5.2 Blasting Areas To avoid interfering with blasting operations, turn your phone OFF when in a “blasting area”...

  • Page 104: Body-Worn Operation

    Safety and Warranty repair is required, return unit to an authorized UTStarcom cellular service center. If unit is disassembled, the risk of electric shock or fire may result DO NOT short-circuit the battery terminals with metal items etc 15.2 SAFETY INFORMATION FOR FCC RF...
  • Page 105 Safety and Warranty FCC website at www.fcc.gov...

  • Page 106: Sar Information

    SAR Information 16. SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S.
  • Page 107 SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on O6Y-C1100 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) website http://www.wow-com.com...

  • Page 108: Fda Consumer Update

    FDA Consumer Update 17. FDA CONSUMER UPDATE FDA: U.S. Food and Drug Administration -Center for Devices and Radiological Health Consumer Update on Wireless Phones 1. Do wireless phones pose a health hazard? The available scientific evidence does not show that any health problems are associated with using wireless phones.
  • Page 109 FDA Consumer Update Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level.
  • Page 110 FDA Consumer Update which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits 4. What are the results of the research done already? The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods.
  • Page 111 FDA Consumer Update because the interval between the time of exposure to a cancer- causing agent and the time tumors develop - if they do -may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones.
  • Page 112 FDA Consumer Update consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body’s ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects.
  • Page 113 FDA Consumer Update If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna Again, the scientific data do not demonstrate that wireless phones are harmful.
  • Page 114 FDA Consumer Update wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that that no interference occurs when a person uses a “compatible”...
  • Page 115 12 Month Limited Warranty 18. 12 MONTH LIMITED WARRANTY UTStarcom/Audiovox Communications (the Company) warrants to the original retail purchaser of this Audiovox handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or...
  • Page 116 12 Month Limited Warranty The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g.
  • Page 117 IN USA : UTStarcom/Audiovox Communications 555 Wireless Blvd. Hauppauge, NY 11788 (800) 229-1235 IN CANADA : UTStarcom Canada Company 5155 Spectrum Way, Unit #5 Mississauga, Ontario L4W 5A1 (800) 465-9672...
  • Page 120 UTStarcom, Inc. USA 1275 Harbor Bay Parkway Alameda, CA 94502, USA Tel: 510-864-8800 Fax: 510-864-8802 http://www.utstar.com...
