Broadata LBH-H-T/R-EAD-ICP Manual

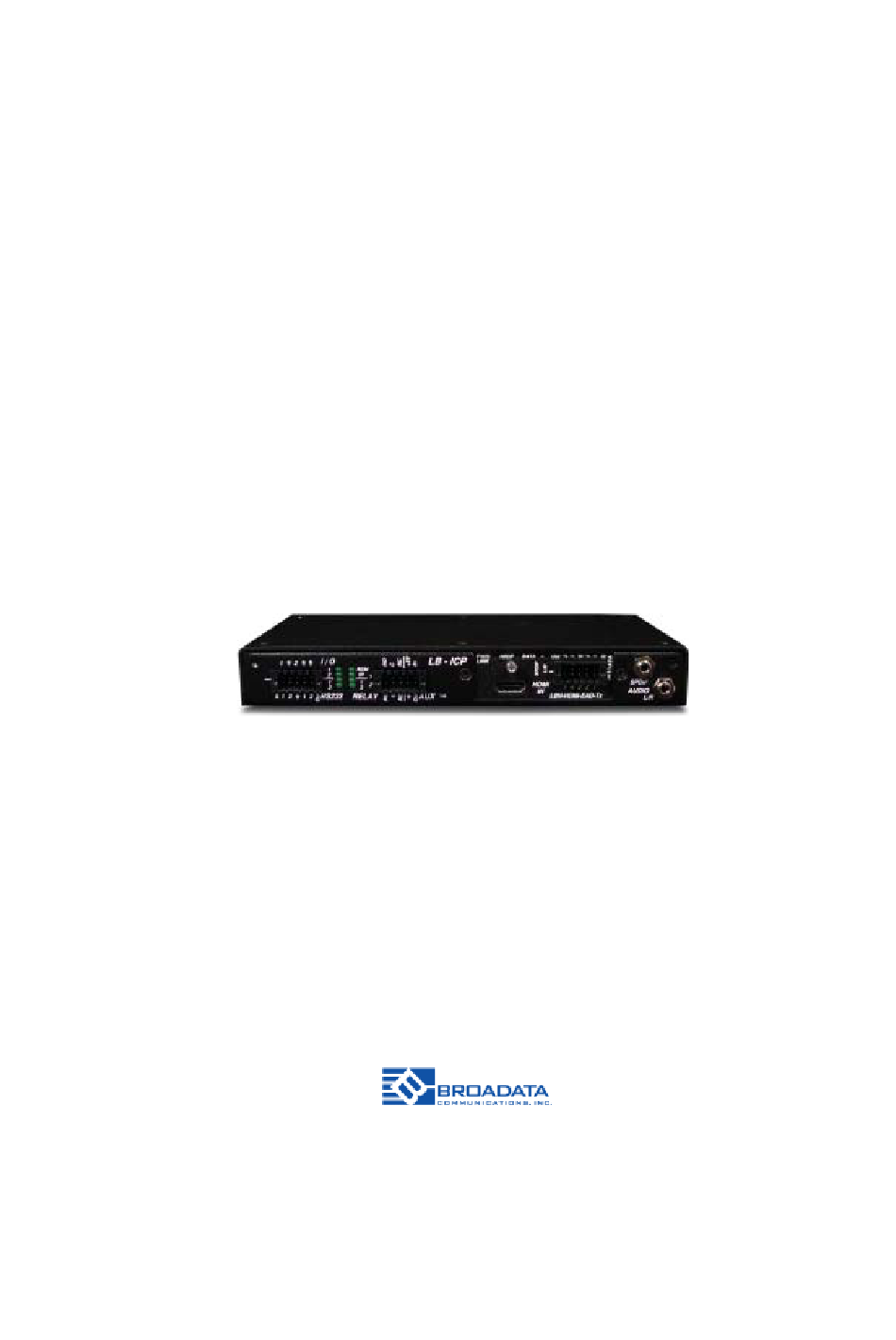

Link bridgetm hbaset hdmi transmission system with external audio and inline control processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LBH-H-T/R-EAD-ICP
TM
L
B
HB
T HDMI
INK
RIDGE
ASE
T
S
E
RANSMISSION
YSTEM WITH
XTERNAL
A
I
C
P
UDIO AND
NLINE
ONTROL
ROCESSOR
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2015 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Summary of Contents for Broadata LBH-H-T/R-EAD-ICP

  • Page 1 UDIO AND NLINE ONTROL ROCESSOR BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2015 Broadata Communications, Inc.
  • Page 2 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Table Of Contents

    3.3 LB-KP8 ................12 4.0 LB-ICP WEB SERVER DESCRIPTION ......14 5.0 SPECIFICATIONS ............34 6.0 SERVICE PROCEDURE ..........37 6.1 REPLACEMENT POLICY ..........37 6.2 RETURN AND REPAIR SERVICE ......... 37 7.0 LIMITED WARRANTY ............ 38 Broadata Technical Support, (800) 214-0222...

  • Page 4: Product Description

    LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor 1.0 PRODUCT DESCRIPTION Overall • An HDBaseT HDMI extender with external audio ports and multimple control I/O ports • Not only extend HDMI video, but also provide in-line control...

  • Page 5: Operation Control And Functions

    TX or RX Rear 2.1 Transmitter Extender Front and Rear Panel Extender/Front Extender/Rear 1. Power/Link: The red LED indicates the unit is powered up. The green LED indicates that the unit has a good HDBT connection. Broadata Technical Support, (800) 214-0222...

  • Page 6: Receiver Extender Front And Rear Panel

    LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor 2. HDCP LED: The blue LED is lighted when HDCP video is present. The blue LED blinks when non-HDCP video is present. 3. SPDIF LED: Lighted when corresponding SPDIF audio is active.

  • Page 7: Icp Front And Rear Panel

    7. RELAY LED: Light when the corresponding, normally open pins, are closed. 8. RELAY: Normally open and normally closed relay ports. 9. AUX-In and AUX-Out: Reserved. 10. DC12V: DC power input connector. 11. IR Out: IR blaster port. Broadata Technical Support, (800) 214-0222...

  • Page 8: Connector Pinout Assignment

    LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor 12. SW: The unit configuration dip switch 13. IR Learner: Built-in IR receiver for IR learning. 14. IR Learner LED: Lighted when the unit is IR learning mode.

  • Page 9: Status Leds

    PWR/ PWR/ DATA HDCP DATA HDCP LINK LINK SPDIF SPDIF HDMI HDMI AUDIO AUDIO LBH-HDMI-EAD-Rx LBH-HDMI-EAD-Tx SPDIF & L/R detect LED. It will be on when the unit detect the audio input signal. Broadata Technical Support, (800) 214-0222...

  • Page 10: Icp

    LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor 3.2 LB-ICP Front Broadata Technical Support, Sales@Broadatacom.com...

  • Page 11: Lb-Kp8

    8 - N/C 3.3 LB-KP8 Rear RJ-45 Control Pin 1: RS-232 OUT Pin 2: RS-232 IN Pin 3: --no connect-- Pin 4: +12v Pin 5: +12v Pin 6: --no connect-- Pin 7: GND Pin 8: GND Broadata Technical Support, (800) 214-0222...
  • Page 12 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor The cable connection between LB-KP8 and LB-ICP is shown below. 1. White/Orange +12VDC IR Out Learner 2. Orange 3. White/Green 4. Blue CONFIG RESET 5. White/Blue 6.

  • Page 13: Lb-Icp Web Server Description

    Type in the unit’s IP address in the web browser. The ICP Virtual Keypad page will be displayed. All 8 keys of the Virtual Keypad are un- programmed by default. The keys are configured in the Configure Key Action page. Broadata Technical Support, (800) 214-0222...
  • Page 14 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Before configuring the Virtual Keypad, the system first needs to be set up using the Configure System page. On the top menu bar, click Configure and then click System. This brings up the ICP Login page.
  • Page 15 The Configure System page is used to configure the local unit’s virtual keypad, RS-232 channels, Digital IO channels and remote unit types. On the top menu bar, click Configure and then click System. The following page will be displayed. Broadata Technical Support, (800) 214-0222...
  • Page 16 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Local Unit The first two lines in this panel show the Local unit type and software version. Below that are the pull down menus for selecting the virtual keypad size and enabling Auto Action Triggers.
  • Page 17 RS-232 pass-through channel. None of the remote unit control outputs will be available once Disable is selected. Remote Unit: Select the remote unit type. The available remote unit types are LBx without ICP, LBx with ICP and EAD/SCL with ICP. Broadata Technical Support, (800) 214-0222...
  • Page 18 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Configure Key Action The Configure Key Action page is used to configure the keys virtual on the virtual keypad. On the 8-key keypad, each function key can be defined as a macro for up to 10 different actions.
  • Page 19 Select the action type. Available types are None, Relay, Digital Output, RS-232, IR, and Telnet. Relay Options Relay Channel: Select the relay channel 1 or 2. Relay State: Select the relay channel state, On (energized) or Off (de-energized). Broadata Technical Support, (800) 214-0222...
  • Page 20 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Digital Output Options Digital Output Channel: Select the digital output channel 1 or 2. Note: this option is not available if both Digital IO channels are set to Inputs in Configure System page.
  • Page 21 Transmit String: Type in the text string to be transmitted. Strings are terminated with CR+LF, depending on the selection made in Configure System page. Characters enclosed by <> will be treated as hex. For example to transmit 00h enter <00>. Broadata Technical Support, (800) 214-0222...
  • Page 22 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor IR Options IR Preset: Select from list of IR commands stored in memory. IR commands must be learned via Configure IR Code page or imported via Configure IR Import page.
  • Page 23 IP Address: Enter IP address of telnet server. IP Port: Enter port number of telnet server. The default port number is UserName Prompt: Enter username prompt from telnet server. Leave blank if there is no username prompt. Broadata Technical Support, (800) 214-0222...
  • Page 24 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor UserName: Enter user name required for log in. Leave blank if there is no username. Password Prompt: Enter password prompt from telnet server. Leave blank if there is no password prompt.
  • Page 25 Note: A telnet trigger needs to be associated with one or more telnet actions. The check box under the Commands box in Configure Key Action, Telnet Options panel must be checked. Refer to the Configure Key Action sections for the rest of the pull down menu descriptions. Broadata Technical Support, (800) 214-0222...
  • Page 26 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Configure IR Code The Configure IR Code page is used to learn and manage IR codes in the ICP. To learn an IR code, type in the label of the IR code in New Label and click the Learn button.
  • Page 27 On the top menu click Configure and then click IR Code Import. The following page will be displayed. New Label: Enter a label for the IR code. Pronto Code: Enter the pronto code to be imported. Broadata Technical Support, (800) 214-0222...
  • Page 28 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor View and Manage Settings The View and Manage Settings page shows the current settings of the Key Action Definitions, Auto Action Definitions and IR Code Definitions.
  • Page 29 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Click the Key Action Definitions Details button and the following will be displayed: Broadata Technical Support, (800) 214-0222...
  • Page 30 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Click the Auto Action Definitions Details button and the following will be displayed: Click the IR Code Definitions Details button and the following will be displayed: Broadata Technical Support, Sales@Broadatacom.com...
  • Page 31 Relay channel 1. On the top menu click Configure and then Key Action. Configure F1 Key toggle-press action, to turn Relay channel 1 On as follows: Click Submit Changes. Broadata Technical Support, (800) 214-0222...
  • Page 32 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Configure F1 Key toggle-release action, to turn Relay channel 1 Off as follows: Click Submit Changes. On the top menu click Keypad. The following virtual keypad should be displayed: Broadata Technical Support, Sales@Broadatacom.com...

  • Page 33: Specifications

    Connector 3.5mm Stereo Jack SERIAL DATA (TRANSMISSION) Channel Capacity Signal Format RS-232/IR Data Rate Up to 57.6kbaud Connector Terminal block HDBT (TRANSMISSION) Cable Type CAT 5e/6 or higher Number of Cables Connector/Distance RJ-45/Up to 100m Broadata Technical Support, (800) 214-0222...
  • Page 34 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor ETHERNET (CONTROL) Channel Capacity Connector Female RJ-45 (integrated Activity and Link LEDs) Data Rate 10/100Base-T, half/full duplex with autodetect Protocols DHCP, HTTP, TCP/IP, UDP/IP, AUTOIP, Telnet...
  • Page 35 Relay Contact Rating 24 VDC, 1A Connector Terminal block PHYSICAL Dimensions 8.36” (W) x 4.23” (D) x 1.12” (H) Power Consumption 24 VDC @ 1.25A Operating Temperature 0 to 50-deg C Humidity 0 to 95%, non-condensing Broadata Technical Support, (800) 214-0222...

  • Page 36: Service Procedure

    U.S. Please call Customer Service at 800-214-0222 for information. 6.2 Return/Repair Service The Link Bridge LBH-H-T/R-EAD-ICP System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc.

  • Page 37: Limited Warranty

    HBaseT HDMI Transmission System w/External Audio and Inline Control Processor 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole...
  • Page 38 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Broadata Technical Support, Sales@Broadatacom.com...
  • Page 39 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Broadata Technical Support, (800) 214-0222...
  • Page 40 LBH-H-T/R-EAD-ICP User Manual Link Bridge HBaseT HDMI Transmission System w/External Audio and Inline Control Processor Broadata Technical Support, Sales@Broadatacom.com...
  • Page 41 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBHHEADICP...
