welcome
Congratulations on your new phone purchase!
This guide will help you to quickly setup and
understand the important features on your new
San Diego from
Orange.
Note: Screen images and icons are simulated for the purpose of this guide.
Actual displays may vary. Instructions in this guide may change depending
on the software version on your device.

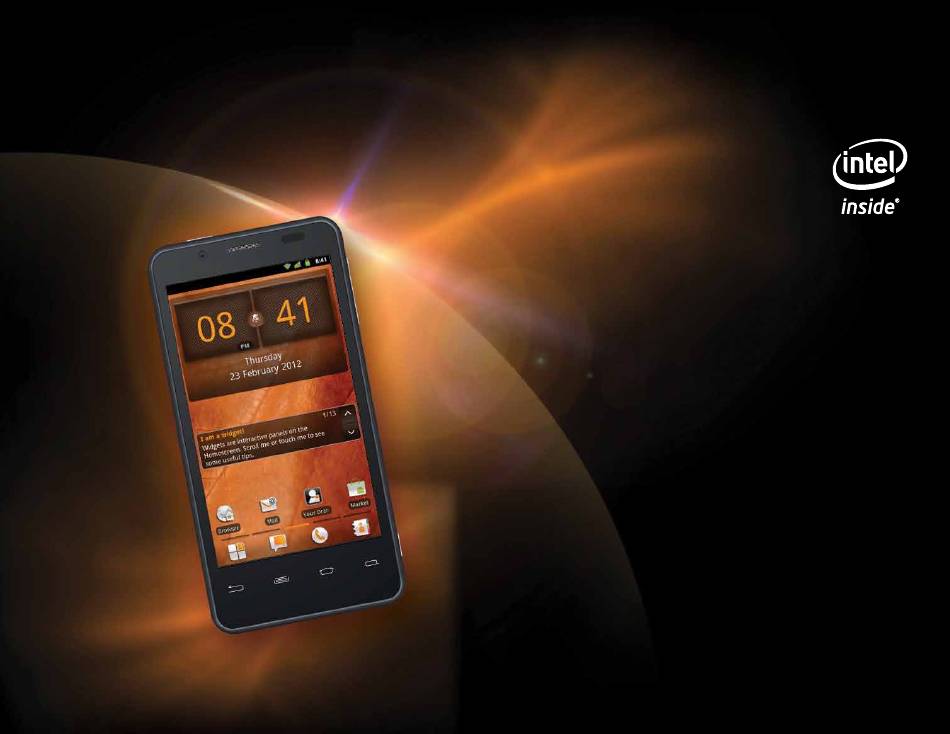

a fast processor
Featuring the 1.6 GHz Intel
that delivers great performance for speedy
application and web page loading, advanced
multi-tasking, and smooth video playback.
intelligent camera
An advanced 8MP HD camera that lets you capture images
quickly - up to 10 photos a second so you'll never miss
the best shot, even in challenging environments. Featuring
advanced image processing for quality, color accuracy and
low-light capture.
These smart features mean that no matter how you capture
your images, they come out exactly how you want them.
great entertainment
Easily create and share superb [or true] HD-quality video,
and with super-smooth playback, your phone becomes a
personal theatre you can take with you anywhere.
To maximize your entertainment experience you can easily
project your smartphone screen to your HDTV through
an HDMI cable.
®
Atom
processor
™
Advertisement
Table of Contents
Related Manuals for Intel AZ210
Summary of Contents for Intel AZ210
- Page 1 Congratulations on your new phone purchase! This guide will help you to quickly setup and Featuring the 1.6 GHz Intel ® Atom processor ™ understand the important features on your new that delivers great performance for speedy San Diego from Orange.
-
Page 2: Table Of Contents
Table of Contents Contents 6 take photos and videos ................27 6.1 change picture & video settings ............28 Table of Contents ..................2 6.2 view your pictures and video ............. 30 contents ....................2 7 browse the web ..................32 1 get started .................... - Page 3 15 changing phone settings ..............53 15.1 wireless & networks settings ............53 15.2 call settings ..................55 15.3 sound settings ................55 15.4 display settings ................55 15.5 wireless display ................55 15.6 location & security settings ............. 55 15.7 applications settings ...............
-
Page 4: Get Started
1 get started Congratulations on your new phone purchase. This guide will help you to quickly come up to speed on the important features of your phone. 1.1 your phone Power Button 3.5 mm Audio Jack Front-Facing Speaker Camera Rear-Facing Flash Camera Volume... -
Page 5: Phone Buttons
1.2 phone buttons 1.4 charge the battery Before using your phone for the first time, charge the phone for eight hours. Buttons Press to go back to the previous screen or to close a menu or dialog box. To charge the battery: Press to display actions and settings specific to the Attach one end of the USB cord to the phone’s micro-USB port and the current screen. -
Page 6: Insert Micro-Sim Card
1.5 insert micro-SIM card 1.6 turn on the phone If your micro-SIM card is not already installed in your phone, follow these To turn on the phone: procedures to insert a micro-SIM card. • Hold down the power button to turn the phone on. To insert the micro-SIM card: Open the micro-SIM card tray with the SIM eject tool (included). -
Page 7: Set Up Your Phone
1.7 set up your phone To wake the phone: Press the Power button. The first time you turn on your phone, you will be prompted through the Double-tap configuration of the phone. Your phone’s screen will resume display. NOTE: If your phone is secured, you must enter your password, pin, or pattern 1.8 sleep and wake to wake it. -
Page 8: Touchscreen
1.9 touchscreen Use your fingers on the touchscreen to perform actions, open objects, slide the screen, and more. Below are the different ways of interacting with your touchscreen. • Touch and hold an object, then drag the object to a new location. For Drag: example, drag any icon on the Homescreen to a new location. -
Page 9: Homescreen And Basic Features
2 homescreen and basic features TIP: The orange bar at the bottom of the screen indicates which one of the five panels is displayed. The Homescreen is a gateway to all of your phone’s applications and features, and it displays whenever you turn on your phone. To quickly access your phone’s main functions: Touch and hold an empty spot to add shortcuts and... -
Page 10: Customize Your Homescreen
2.1 customize your homescreen TIP: Rearrange items on your screen by touching and holding them and then dragging them to a new location. You can also delete them by touching and You can easily customize your Homescreen—add and remove items, organize holding and then dragging them to the trash. - Page 11 Touch to clear notifications. Below are the status and notification icons. Installed apps may use their own unique notification icons. NOTE: Drag down to display notifications. 2.2.1 status icons Icon Description Icon Description Connected to mobile Speakerphone on network Touch a notification to respond.
-
Page 12: Search
2.2.2 notification icons 2.3 search Search on your phone and on the web with the built-in Search function. Icon Description Icon Description New text or Call in progress multimedia message Problem with text Call in progress using a or multimedia Bluetooth headset message delivery New voicemail... -
Page 13: Secure Your Phone
2.3.1 search settings 2.5 use the app launcher You can change the default Search settings. Apps are small programs that add features to your phone. Many apps come preinstalled, and additional apps can be purchased in the Play Store. To change Search settings: You can use the App Launcher to easily access all of your installed apps. -
Page 14: Use The Play Store
2.6 use the play store Many apps are available for download from the Play Store. Many are free! To use the Play Store: • Touch , then touch Search or browse for apps. You’ll be able to confirm that you want to purchase an app, and see the permissions it requires, before installing it on your phone. -
Page 15: Onscreen Keyboard Basics
3 onscreen keyboard basics Onscreen Keyboard Options While using the onscreen keyboard, the following options are available. The onscreen keyboard lets you use your touchscreen to dial numbers, type emails, enter URLs, and more. Switch keyboard display Touch the ?123 key to enter numbers and symbols or the key to enter letters. -
Page 16: Swype Keyboard
To use the suggestions feature: 3.2 swype keyboard Begin entering text in a text field or message. Swype(TM) is a powerful tool that lets you ‘swipe’ your finger across the Your phone displays suggested words and punctuation directly above the keyboard to spell out and enter words. -
Page 17: Make And Answer Calls
4 make and answer calls 4.1 use the phone tab The Phone app’s Phone tab lets you make and manage calls. Use the Phone app to make calls and to store and find your contacts. To make a call: From the Homescreen, touch Touch the numbers on the dial pad to dial a number, using to make corrections. - Page 18 4.1.1 work with multiple calls You can make another call while on a call. To add a call: • While on a call, touch Add Call and dial another number. The following actions are available while you are on a call. To hold a call Touch Hold...
-
Page 19: Answer And Reject Calls
4.2 answer and reject calls When you receive a call, you will see the following screen. The following options are available when on a conference call. To drop a Touch Manage, then touch participant To accept a call: To talk privately Touch Manage, then touch .When you are done • Slide... -
Page 20: Using The Call Log Tab
4.3 using the call log tab To remove all entries Press Clear Call Log. from the call log The call log lists calls you have made, missed, and received. It also lets you call entries, send messages, and add caller information to contacts. 4.4 use the contacts tab To use the call log: The Contacts Tab displays the contacts from your accounts along with any... - Page 21 To communicate with contacts: • Touch the contact, then touch one of the following icons: Touch to call a contact. Use the following controls to add information about the contact: Touch to send a text message. • Touch to add another field of the same kind, such as multiple phone numbers or email addresses.
-
Page 22: Quick Contacts
4.5 quick contacts To delete a contact: From the Contacts tab, touch and hold a contact, then touch Delete contact. Touch to confirm. NOTE: Read-only contact information—such as that from an external app—will only be hidden, not deleted. Some applications use Quick Contacts to easily call, message, or otherwise To join contacts: communicate with a contact. -
Page 23: Contact Settings
4.6 contact settings 4.7 use the Favorites tab You can fine-tune how contacts are displayed with the following settings. To set display options: • From the Contacts tab, touch Display Options. Only contacts with phones Display only contacts with phone numbers. Sort list by Sort contacts by first or last name. -
Page 24: Send And Receive Messages
5 send and receive messages 5.1 send messages The Message app sends and receives text and multimedia messaging threads (groups of sent and received messages). To open the messaging app: • From the Homescreen, touch To send a message: From the Message app, touch Message. -
Page 25: Manage Messages
5.2 manage messages To attach multimedia to a message: Press Attach. To delete a messaging thread: Select the desired type of attachment (for example, a music file or a • Open the messaging window, and touch and hold a messaging thread. Then captured picture), then follow the prompts to send the message. -
Page 26: Message Settings
5.3 message settings Notification Settings Receive a notification whenever a new message is Notifications To specify message settings: received. • From the main Messaging window, press Settings. Select ringtone Select the ringtone that plays when you receive a message notification. The following settings are available. TIP: Select the ringtone “silent”... -
Page 27: Take Photos And Videos
6 take photos and videos Camera buttons and icons Once opened, the Camera app displays the following icons and buttons: The Camera app lets you take and share pictures and videos. Touch the to switch between camera and video To start the Camera app mode. -
Page 28: Change Picture & Video Settings
6.1 change picture & video settings To optimize settings for Touch (second from the right) and select specific scenes You can use the Camera app’s settings to help capture the perfect photo. from a list of common photographic subjects, such as fireworks or the beach. The Camera app Most of these settings are available only on the back-facing camera. - Page 29 To change focus To change advanced The following advanced settings are available: Touch to control how the camera focuses. settings settings • Touch to select the exposure time in The following settings are available: seconds. This setting only takes effect when AE •...
-
Page 30: View Your Pictures And Video
6.2 view your pictures and video • Attempt to save the GPS coordinates with Pictures and videos you take with the camera app are stored in the Gallery app, each picture. and can be previewed within the main camera screen. • Enable to correct the lighting in photos The Gallery app displays the pictures and videos you’ve taken on your phone, where the subject is standing in front of a... - Page 31 6.2.1 work with a photo or video 6.2.2 working with albums After opening a photo or video, you can share it, delete it, and more. You can share albums, delete them, and view their details. Zoom in and out of a Select an album Press twice.
-
Page 32: Browse The Web
7 browse the web To navigate the browser: • Press to move to the previous page. Surf the web on your Android phone using the Browser App. • Press Forward to move to the next page. To open the browser application: • Press Refresh to refresh a page. -
Page 33: Bookmarks, Most Visited, And History
7.1 bookmarks, most visited, and history 7.3 set your home page You can bookmark frequently-visited sites, as well as viewing your bookmarks, Your home page opens when the browser is first launched, or when you open a history, and most-visited sites. new browser window. - Page 34 Accept cookies Uncheck to prevent sites from storing cookies on your phone. NOTE: Many webpages store, read, and update files (called cookies) on your phone. These can be used for anything from storing passwords to remembering your preferences. Touch to clear all cookies from your phone. Clear all cookie data Enable location Permit websites with location-specific content to...
-
Page 35: Play Music
8 play music TIP: To use a song as a ringtone, touch and hold the song, then touch Use as phone ringtone. Use the Music app to listen to your music, see your music library, and create To play music: and listen to playlists. -
Page 36: Work With Playlists
8.3 manage music on your phone To see the current Touch playlist You can search for and delete music on your phone. To play your songs in Touch To search for music on your phone random order • In the main Music screen, touch , then type the name of an artist, album To repeat a playlist or Touch... -
Page 37: Wi-Fi/Bluetooth/Vpn
9 Wi-Fi/Bluetooth/VPN To remove or modify a saved network: From the Homescreen, press Settings Wireless & networks Your Android phone can connect to Wi-Fi networks, Bluetooth wireless Wi-Fi settings. technology-enabled products (such as headsets), and your computer. You can Touch and hold the network, then touch Forget network Modify also connect to virtual private networks (or VPNs) and use your phone as a... -
Page 38: Transfer Files Between Your Phone And Computer
To unpair a device Touch Turn on USB Storage, then touch OK. From the Homescreen, press Settings Wireless & networks Once connected, your phone’s storage will appear as an accessible drive on Bluetooth settings. your computer. You can open the drive and copy files from it and to it just as you would with a flash drive or memory card. -
Page 39: Share Your Phone's Data Connection
USB cable. The VPNs you have added are listed at the bottom of the screen. Go to intel.com/software/android for the latest drivers. Touch the desired VPN. Enter any requested information. 9.5.2 share your phone’s data connection as a Wi-Fi Hotspot Touch Connect. -
Page 40: Wireless Display
9.6 wireless display Wireless Display streams from your phone to your Wireless Display-enabled devices, such as a TV or computer monitor. Before using Wireless Display on your phone, first make sure you’ve turned on a properly configured Wireless Display-capable device. See your device’s manual for help on configuring it for Wireless Display. -
Page 41: Accounts
10 accounts You can only remove your first Google account by deleting all personal information from your phone. You can add accounts to your phone such as Google, email and corp accounts To remove an account from your phone: as well as synchronizing contacts with other applications. From Accounts &... -
Page 42: Email
11 email If you have more than one email account, you will be able to work with an account’s inbox or a combined inbox. This is described under Using the The Email app allows you to access your web-based email (such as Yahoo Accounts Screen. - Page 43 To read a message: To send a message: Press Compose. • Touch a message to open it. The following actions are available while working with a message. Enter the recipient, subject, and message text. Add a Cc or Bcc recipient by pressing Add Cc Bcc.
-
Page 44: Working With Accounts
11.1 working with accounts Default Select the default email account. account If you have more than one Email account, you can switch between inboxes NOTE: The default email account is used by default using the Accounts screen. whenever you send an email without specifying which account to send it from, such as when you click on a NOTE: Adding and removing accounts is described in Accounts. -
Page 45: Calendar
12 calendar 12.1 view your events The Calendar has four views and you can touch to see a days events. All day The Calendar app creates and manages events, meetings and appointments. and multiday events display at the top of the agenda, day and week views. By default, your Calendar app automatically synchronizes with any Google or Slide up and down to move backwards and forwards. -
Page 46: Store And Display Calendars
To create an event: If you have more than one calendar, you can choose the calendar to which to add the event. In any of the calendar views, press More Event. ALTERNATE: In Day, Week, or Month view, touch and hold a spot on the calendar, then touch Event. -
Page 47: Change Calendar Settings
12.3 change calendar settings To change calendar settings: • Press More Settings. You can change any of the following settings: Hide declined Hide events which you have declined to attend. events Use home When travelling, continue to show events in your home time zone time zone rather than the local time zone. -
Page 48: Gmail
13 Gmail The following actions are available while working with a message. To preview or Touch Preview Download to open or save an You can create a Gmail account for your phone, or sync your phone with your download an attachment. -
Page 49: Other Phone Functions
14 other phone functions 14.3 manage applications The Manage Applications screen manages all the installed applications in your Your phone has additional functions, including downloads, navigation, and phone. You can install new applications, make the necessary changes to the automatic updates. applications, and uninstall them as and when required. -
Page 50: Clock
To stop an application: device memory. 14.4 clock From the Manage Applications screen, touch the Downloaded tab to view all applications you have downloaded. The Clock app displays the time and allows you to set alarms. Touch the application you want to stop. To open the Clock app: Touch Force... -
Page 51: Calculator
14.5 calculator 14.5.1 maps Google Maps lets you find any location using your phone. The calculator app lets you use your phone as a calculator. To use Google Maps: To use the calculator app: Touch in the App Launcher. • Touch , then touch Enter an address, a city, a business name, or a type of establishment in the You can use the touchscreen to enter numbers, perform operations, and clear... - Page 52 14.5.2 Nav Google Nav turns your phone into a GPS navigation device. To use Google Nav: Touch in the App Launcher. Enter an address. Touch TIP: Select a contact or starred place to quickly navigate to a favorite location. 14.0 other phone functions PAGE : 52...
-
Page 53: Changing Phone Settings
15 changing phone settings 15.1 wireless & networks settings The Wireless & networks section configures your phone’s connections, such as The settings window displays all of the settings that effect how your phone Wi-Fi and Bluetooth wireless technology. looks and works. Airplane mode Disable all wireless connections, including Bluetooth To open the settings window:... - Page 54 Bluetooth settings Configure your Bluetooth connection with the Touch to enable Near Field Communications, which following settings. allows you to exchange information with other nearby smartphones and similar devices. • Give your phone a custom Device name. device name, visible on some Bluetooth wireless Mobile networks Configure your mobile network using the following technology-enabled products.
-
Page 55: Call Settings
15.2 call settings 15.4 display settings Call settings let you configure features related to making calls, such as call The Display settings configure your phone’s screen, such as its brightness or forwarding and voicemaill. rotation. Fixed dialing Touch to manage fixed dialing number settings. Brightness Adjust the screen’s brightness automatically, or select numbers... -
Page 56: Applications Settings
15.8 accounts & sync settings Visible passwords Briefly display each character of your password. Otherwise, only asterisks display. The Accounts & Sync settings screen adds, removes, and manages your Credential storage Store credentials for accessing VPNs or SSL web accounts (including Google and Microsoft Exchange accounts.) For more servers. -
Page 57: Privacy Settings
15.9 privacy settings 15.11 language & keyboard settings Use the Privacy settings to manage your personal information. The Language & keyboard settings sets the default language for your phone, and configures how your Onscreen Keyboard displays and functions. For more Back up my data Back up certain personal data to Google servers. -
Page 58: About Phone
This publication is protected by copyright. No part of the publication may be used, reproduced, or translated, in any form, without the prior written consent of Intel Corporation. Intel, Intel Inside, and the Intel Inside logo are trademarks of Intel Corporation in the U.S. and/ or other countries. - Page 59 FCC Regulations: This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ...
- Page 60 FCC ID: O2Z-AZ210. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.
