Panasonic PHK-12 Installation Instructions

Installation Instructions

SPECIFICATIONS
Dimensions: 4.6"(w) x 3.81"(h) x 11.4"(d)
Weight: 6.4 oz.
Power Source: 24V AC, 50/60 Hz
28 watts
Heater: On 32° (0°C), Off 46° (8°C)
GENERAL INSTRUCTIONS

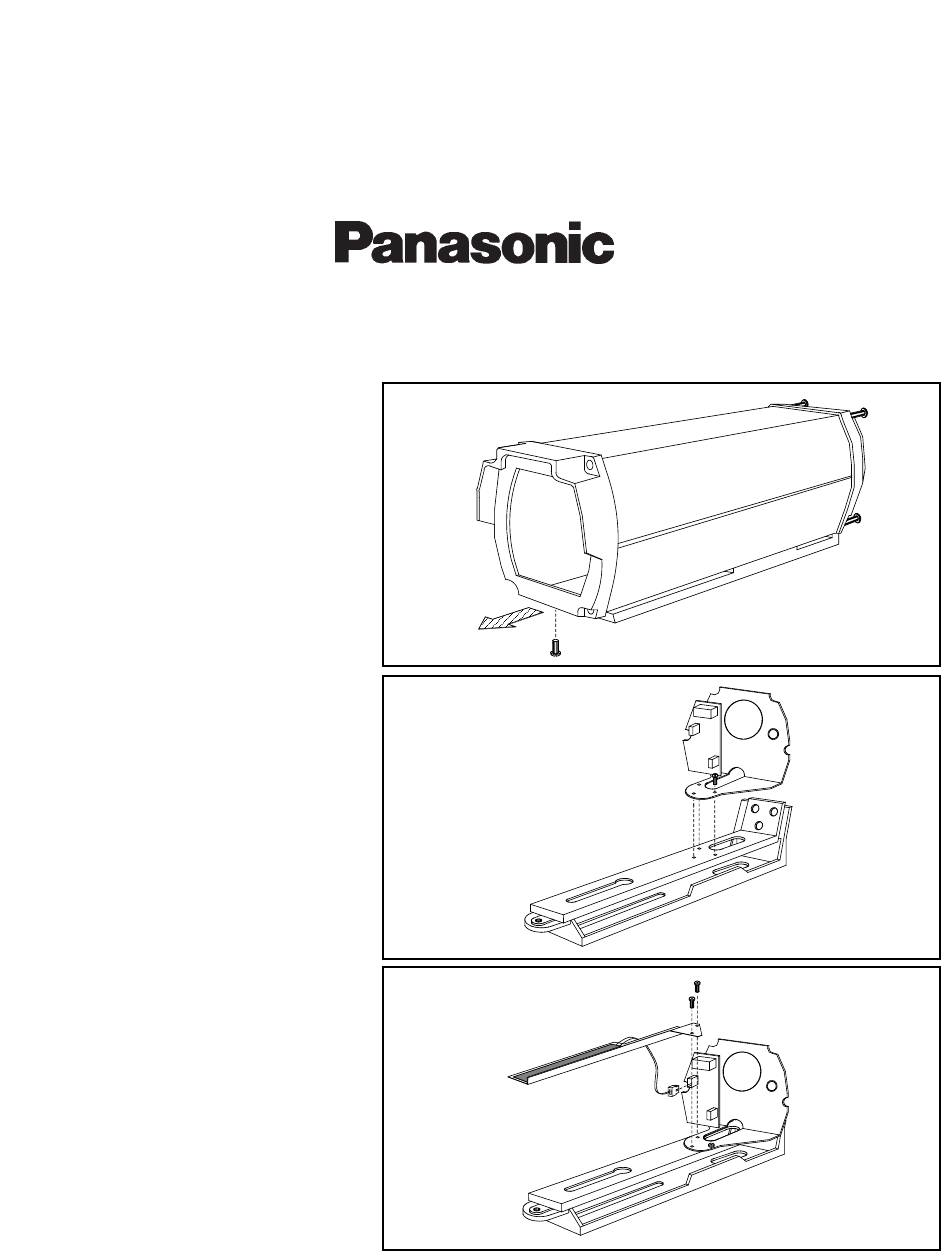

1. Carefully remove the housing body
from the unit by first removing the (1) #10
bolt located on the bottom front of the
housing. Next, loosen the (4) bolts on the
rear cap of the housing. Then, remove the
housing body and front cap assembly by
pulling forward on the housing.
assembly completely away from the hous-
ing mount and set aside. (fig. 1)
2. Place the powerboard bracket at the
indicated position and secure in place with
(1) screw. (fig. 2)
3. Next, place the heater assembly in the
appropriate location and mount both the
heater and powerboard bracket using (2)
screws. Connect the heater plug to the
powerboard. (fig. 3)
Before attempting to connect or operate this product,
please read these instructions completely.
Slide
Heater Kit
PHK-12
®
fig. 1
fig. 2
fig. 3
