Telex Model TR-80N Beltpack
Owners / Users Manual
(Preliminary Information)

General Description:

The Telex model TR-80N beltpack transceiver is a
component of the BTR-80N wireless intercom system.
The TR-80N is intended for use as a belt worn wireless
full duplex portable intercom radio for use in a
professional installation such as television or cinema
production.
Each BTR-80N base station can be used with one to
four TR-80N beltpacks. The TR-80N transmits within
the 614 to 722 MHz range (TV Channels 38-55). It
receives in the 482 to 608 MHz range (TV Channels
16-36). The TR-80N transmitter operates on a single
frequency within an 18 MHz wide section of the
transmit frequency range. The receiver also operates
on a single frequency within an 18 MHz wide section
of the receiver frequency range.
The RF coverage range of the TR-80N communicating
to a base station may be up to 200 meters (656 ft).
The transmitter has three selectable conducted output
power output levels; 5mW, 50mW and 100 mW. The
transmit power can also be set to automatically
reduced to the above listed power levels when the unit
is close-in to the base station to aid in intermodulation
reduction and unnecessary transmit power.
Operating frequencies can be selected from pre-set
groups or the user can select special operating
frequencies within the 18 MHz wide allotments.
The LCD display and buttons are located on the back
panel.
From the LCD display and buttons the following
menus may be obtained:
• Group and Channel
• Transmit Frequency
• Receive Frequency One
• Receive Frequency Two
• Microphone Gain Setting
• Battery Life
• Transmit power level (5mW, 50mW 100mW
or Auto between the values)
• Receiver Squelch Level
• Push-to-Talk / Push-to-TX mode
• Top Panel LEDs on or off.

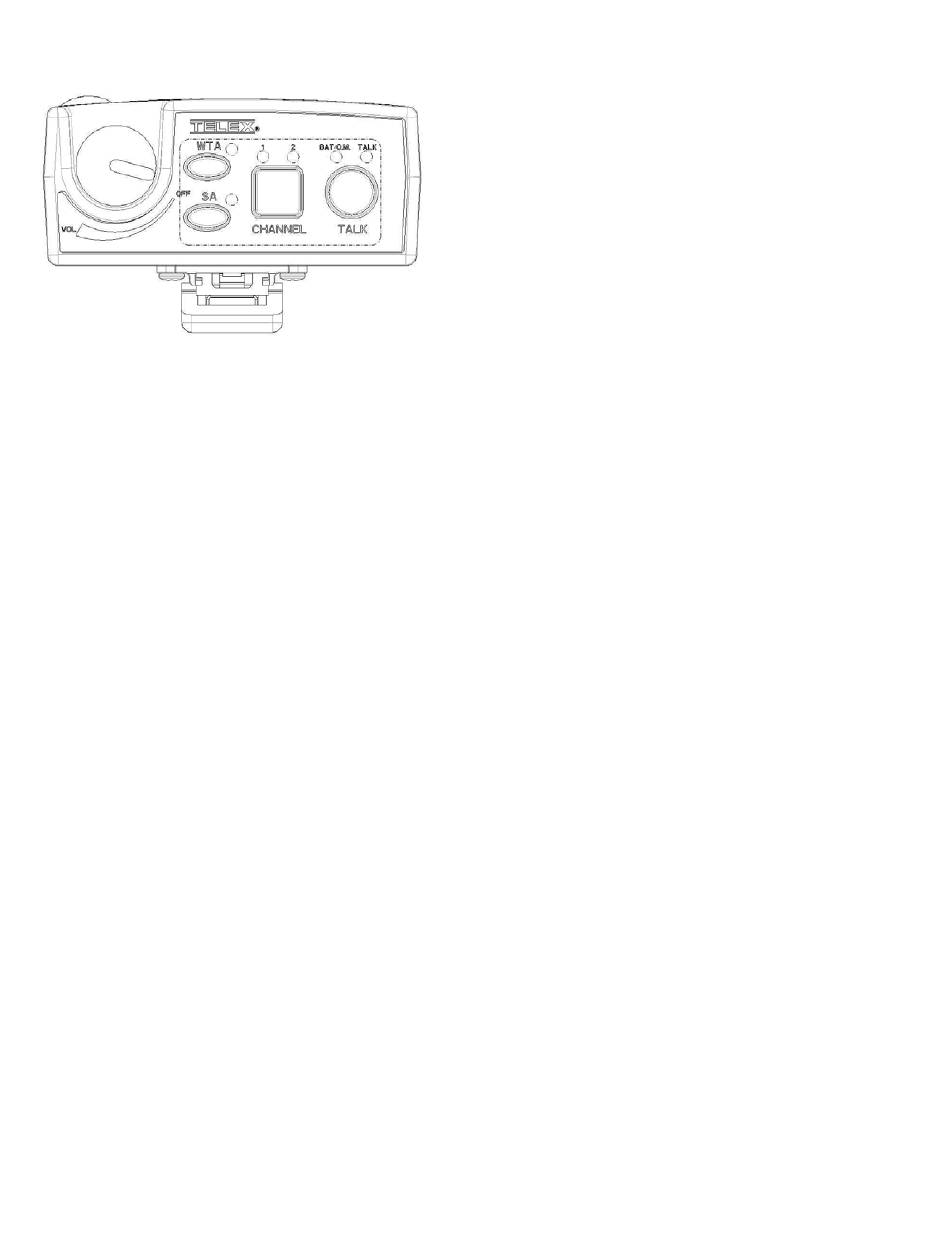

The on/off/volume control, talk button, talk light, low
battery indicator, microphone overmod. light, audio
channel 1 or 2 button and lights, wireless talk around
(WTA) and stage announce (SA) buttons are located
on the top panel.
Transmit and receive antennas are attached to the TR-
80N. Either or both unscrew for field replacement but
are not coaxial connectors.
The TR-80N beltpack can be powered by AA Alkaline
or a Nickel-Metal Hydride Battery pack.
