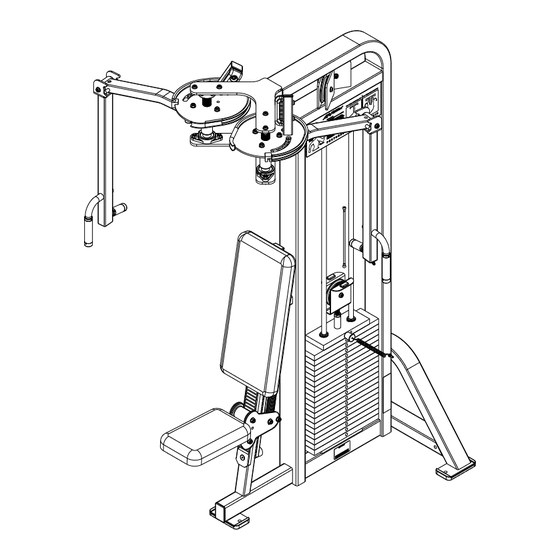

PRO 2 SERIES
PSFLYSE PECTORAL FLY/REAR DELTOID
Customer Support Services
PARTS MANUAL
11/12/2018

Advertisement

Table of Contents
loading

Related Manuals for Life Fitness PRO 2 SERIES

Summary of Contents for Life Fitness PRO 2 SERIES

  • Page 1 PRO 2 SERIES PSFLYSE PECTORAL FLY/REAR DELTOID Customer Support Services PARTS MANUAL 11/12/2018...

  • Page 2: Table Of Contents

    PSFLYSE PECTORAL FLY/REAR DELTOID CONTENTS ________________________________________ Page COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND STACK FRAME ASSEMBLY STACK FRAME ASSEMBLY LEGEND RIGHT WORK ARM ASSEMBLY RIGHT WORK ARM ASSEMBLY LEGEND LEFT WORK ARM ASSEMBLY LEFT WORK ARM ASSEMBLY LEGEND 90° ROLLER SEAT ASSEMBLY 90°...

  • Page 3: Component Assembly

    PSFLYSE PECTORAL FLY/REAR DELTOID COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3...

  • Page 4: Component Assembly Legend

    PSFLYSE PECTORAL FLY/REAR DELTOID COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION SEE PADE 6 ASSY, PSFLY STACK FRAME SEE PAGE 7 ASSY, PSFLY W ORKARM - RT SEE PAGE 9 ASSY, PSFLY W ORKARM - LT 73988XX PAD, BACK 25 X 11-1/4 3236601 W ASHER, 3/8 SAE SS...

  • Page 5: Stack Frame Assembly

    PSFLYSE PECTORAL FLY/REAR DELTOID STACK FRAME ASSEMBLY ________________________________________ SEE PAGE 6 FOR LEGEND Page 5...

  • Page 6: Stack Frame Assembly Legend

    W ELDMENT, FLOATING PULLEY 7352301 CAP, END 2 X 3 7352201 CAP, END 1-1/2 X 2 7422004 LABEL, 2" ASTM W ARN 7348001 LABEL, LIFE FITNESS LOGO 3238101 NUT, BLIND INSERT M10 X 1.5 7570801 GUARD, PAINT 1.25"x.75"x.25" 7571301 LABEL, SERIAL NUMBER 3236902...

  • Page 7: Right Work Arm Assembly

    PSFLYSE PECTORAL FLY/REAR DELTOID RIGHT WORK ARM ASSEMBLY ________________________________________ Refer to bulletin ST18111201 PS-HS Fly-Rear Deltoid Vertical Arm Update when ordering Item #3. SEE PAGE 8 FOR LEGEND Page 7...

  • Page 8: Right Work Arm Assembly Legend

    PSFLYSE PECTORAL FLY/REAR DELTOID RIGHT WORK ARM ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8514201 W LDMT, PSFLY/PEC CAM - RT 8315001 W LDMT, PSFLY TOP W ORKARM 1008715-0000 W LDMT, PSFLY SW INGARM - RT 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7352201 CAP, END 1-1/2 X 2 3236601...

  • Page 9: Left Work Arm Assembly

    PSFLYSE PECTORAL FLY/REAR DELTOID ________________________________________ LEFT WORK ARM ASSEMBLY Refer to bulletin ST18111201 PS-HS Fly-Rear Deltoid Vertical Arm Update when ordering Item #3. SEE PAGE 10 FOR LEGEND Page 9...

  • Page 10: Left Work Arm Assembly Legend

    PSFLYSE PECTORAL FLY/REAR DELTOID ________________________________________ LEFT WORK ARM ASSEMBLY LEGEND ITEM NO. QTY. PART NO. DESCRIPTION 8514301 W LDMT, PSFLY/PEC CAM - LT 8315001 W LDMT, PSFLY TOP W ORKARM 1008716-0000 W LDMT, PSFLY SW INGARM - LT 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7352201 CAP, END 1-1/2 X 2 7351501...

  • Page 11: 90° Roller Seat Assembly

    PSFLYSE PECTORAL FLY/REAR DELTOID 90° ROLLER SEAT ASSEMBLY ________________________________________ SEE PAGE 12 FOR LEGEND Page 11...

  • Page 12: 90° Roller Seat Assemblylegend

    PSFLYSE PECTORAL FLY/REAR DELTOID 90° ROLLER SEAT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7396801 WELDMNT, 90 DEG ROLLER SEAT 7564201 ASSY, SEAT ROLLER 7387595 WELDMNT, PS-ROLLER SEAT HANDLE 3236217 SCREW, M10 X1.5 100MM 3236601 WASHER, 3/8 SAE SS 3236801 NUT, M10 HEX NYLOCK SS 7352301...

  • Page 13: 5Lb Increment Weight Assembly

    PSFLYSE PECTORAL FLY/REAR DELTOID 5LB INCREMENT WEIGHT ASSEMBLY ________________________________________ ITEM NO PART NO DESCRIPTION 8047001 BODY, PS INCREMENT WEIGHT 7446901 PIN, RETAINING 7447001 SPRING, COMPRESSION 8045001 BEARING, INCREMENT WEIGHT 8048201 BEARING, PS, INCREMENT WEIGHT 8048001 KNOB, TULIP STYLE Page 13...

  • Page 14: Increment Weight Assembly W/Striker

    PSFLYSE PECTORAL FLY/REAR DELTOID INCREMENT WEIGHT W/STRIKER ________________________________________ ITEM NO. QTY. PART NUMBER DESCRIPTION 8047001 ASSY, PS, INCREMENT WEIGHT 8700801 PLATE, INCR. WT STRIKER 3236202 SCREW, M10 X1.5 25MM 3236801 NUT, M10 HEX NYLOCK SS 3237401 PLUG, 7/16" HOLE Page 14...

  • Page 15: Weight Stack (300Lb)

    PSFLYSE PECTORAL FLY/REAR DELTOID WEIGHT STACK ASSY 300LB ________________________________________ WEIGHT STACK LABELS PART NO. DESCRIPTION 7987201 LABEL, 300 LB STACK 7987401 LABEL, 138 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7353901 HEADPLATE, W T. STACK 7356601 STEM, PRO2 19 HOLE 7338001 BUSHING, HEADPLATE 7353001 ASSY, SELECTOR PIN 7356501 PLUG, LANYARD ATTACHMENT...

  • Page 16: Rear Shroud Kit

    PSFLYSE PECTORAL FLY/REAR DELTOID REAR SHROUD KIT STD-TALL ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7600895 GUARD, PSFLY KNEE 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM 7376806 SHIELD, PS REAR 7655301 BRACKET, PS REAR SHIELD Page 16...

  • Page 17: Optional Full Shroud Kit

    PSFLYSE PECTORAL FLY/REAR DELTOID OPTIONAL FULL SHROUD KIT STD-MED ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7376806 SHIELD, PS REAR 7655301 BRACKET, PS REAR SHIELD 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM 3236203 SCREW, M10 X1.5 30MM 7376601 BRACKET, PS FRONT SHIELD 7376906 SHIELD, PS - FRONT 7570901 PLATE, PS SHIELD STAND-OFF...

  • Page 18: Image

    PSFLYSE PECTORAL FLY/REAR DELTOID IMAGE ________________________________________ Page 18...
