Summary of Contents for Alcatel-Lucent Konftel EGO 8105s OmniSound

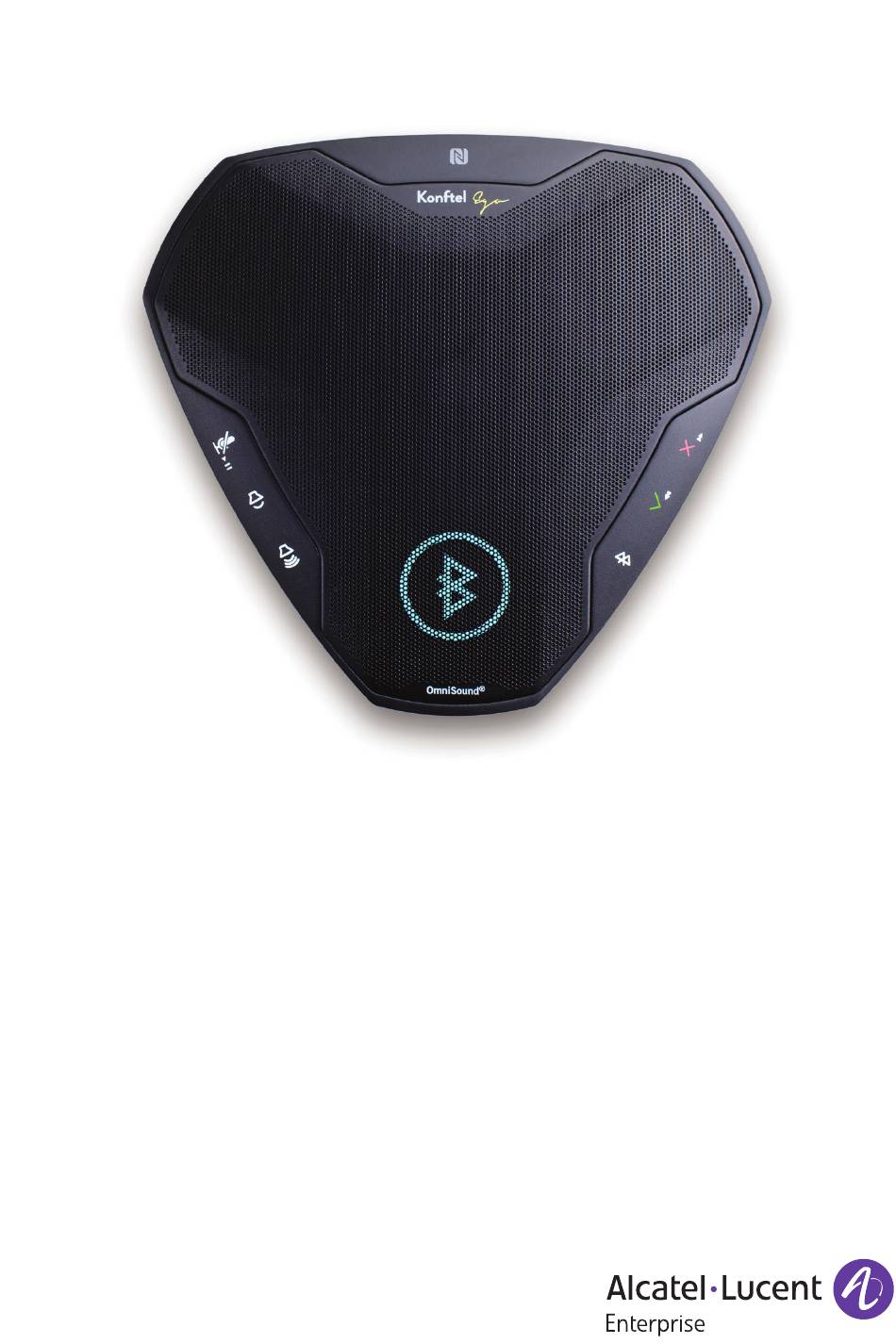

Page 1
Alcatel-Lucent 8105s EGO User Manual 8AL90358ENAA...
Page 2
Alcatel-Lucent 8105s EGO OmniSound – superior audio quality ® OmniSound 's patented audio optimisation technology guarantees impressive, ® crystal-clear, full-duplex audio in both directions for efficient and effective virtual meetings.The sound is powerfully transmitted to all attendees thanks to two hyper- sensitive microphones with 360°...
Alcatel-Lucent 8105s EGO Contents Introduction ..................2 Maintenance ................... 2 Description .................... 3 Connections and buttons ................ 3 Information on the LCD display .............. 4 Turning off and on................... 5 Using with a computer ................. 6 Connecting to a computer ..............6 Using as a computer speaker (music mode) ..........
Alcatel-Lucent 8105s EGO Introduction The 8105s EGO is a conference unit that can be connected to your mobile phone, tablet and computer to obtain crystal-clear, powerful OmniSound audio in your ® virtual meetings. • OmniSound audio optimisation technology with full duplex, echo cancellation ®...
Alcatel-Lucent 8105s EGO Description Connections and buttons Connections NFC symbol for simple Bluetooth connection ® Off/on button Headset (3.5 mm) Music buttons Start/pause Previous Next Audio control Call control buttons buttons Microphone off Answer Volume + Volume - LEDs Button for pairing...
Alcatel-Lucent 8105s EGO Information on the LCD display The icons are normally displayed for a couple of seconds on connection. The same symbol is displayed in red when the connection is broken. USB device connected Incoming call or call in progress via USB...
Alcatel-Lucent 8105s EGO Turning off and on The 8105s EGO starts automatically when it is connected with a USB cable to a powered-up computer. The three LEDs show a yellow light to indicate that it is switched on. The battery is simultaneously trickle charged.
Alcatel-Lucent 8105s EGO Using with a computer The 8105s EGO transforms your computer into high-quality conferencing equipment with OmniSound . Unlike normal computer speakers and microphones, the 8105s ® EGO provides full duplex (two-way audio) and efficient echo cancellation and static reduction.
Page 9
Alcatel-Lucent 8105s EGO The computer normally only activates the speaker in the 8105s EGO if no other software is running that can use the microphone. This means that the 8105s EGO acts as a computer speaker and that the audio processing in OmniSound is turned ®...
Alcatel-Lucent 8105s EGO Using as a conference unit The 8105s EGO microphone will be automatically enabled when you start a VOIP call or a recording using audio recording software on the computer. OmniSound ® now handles full duplex and echo cancellation.
Alcatel-Lucent 8105s EGO Using with a Bluetooth device ® The 8105s EGO can be connected to a mobile phone or a tablet via Bluetooth ® We are using a mobile phone in these examples. Bluetooth must be enabled in the ®...
Page 12
Alcatel-Lucent 8105s EGO Pairing without NFC Turn Bluetooth on in your mobile phone. ® This normally makes the phone visible to other Bluetooth devices and even starts a search on ® some phones. Hold down for two seconds on the 8105s EGO.
Alcatel-Lucent 8105s EGO Reconnecting already paired devices A pairing means that the phone and the 8105s EGO save information about one another. This information is saved, even if the connection is broken. The connection is broken if: • The devices are far apart (Bluetooth has a range of about 10 metres).
Alcatel-Lucent 8105s EGO Using as a conference unit When you make or take a call, music mode automatically stops and the 8105s EGO microphone is enabled. OmniSound now handles full duplex and echo cancellation. ® Making calls Dial the number on your mobile phone.
Page 15
Alcatel-Lucent 8105s EGO Holding a call Press to put the call on hold. Press once again to return to the call. Adjusting the volume during calls Press to adjust the volume. ...
Alcatel-Lucent 8105s EGO Using a headset Warning! Use of headphones/earbuds at high volumes can damage your hearing. Connect the headset to the port on the 8105s EGO. The sound automatically transfers to the headset. Unplug the headset. The sound automatically transfers to the 8105s EGO speakers.
Alcatel-Lucent 8105s EGO Settings Keypad tone Hold down for five seconds to disable or enable the button clicking sound on the 8105s EGO. icon indicates that the keypad tone feature is enabled. The icon indica- tes that the keypad tone feature is disabled.
Alcatel-Lucent 8105s EGO Technical data Item number 3MG08017AA. Size 145 x 134 x 32 mm. Weight 230 g. Display 1.77" Colour LCD, 128x160 pixels. Power supply Power supply and battery charge via the USB. Battery 1000 mAh Li-ion. Stand-by 72 hours battery only...
Alcatel-Lucent 8105s EGO Regulatory Statements Europe This equipment complies with the essential requirements of following directives: 2014/30/EU (EMC), 2014/35/EU (LVD), 2009/125/EC (ErP), 2011/65/EU (RoHS). Declaration of Conformity may be obtained from: ALE International 32 avenue Klé- ber – 92700 Colombes, France ebg_global_supportcenter@al-enterprise.com USA and Canada Phones with Bluetooth®...
Page 20
Web site: http://enterprise.alcatel-lucent.com?pr oduct=All&page=Directory. Legal notice The Alcatel-Lucent name and logo are trademarks of Nokia used under license by ALE. To view other trademarks used by affiliated companies of ALE Holding, visit: www.al-enterprise.com/en/legal/trademarks-copyright. All other trademarks are the property of their respective owners.
