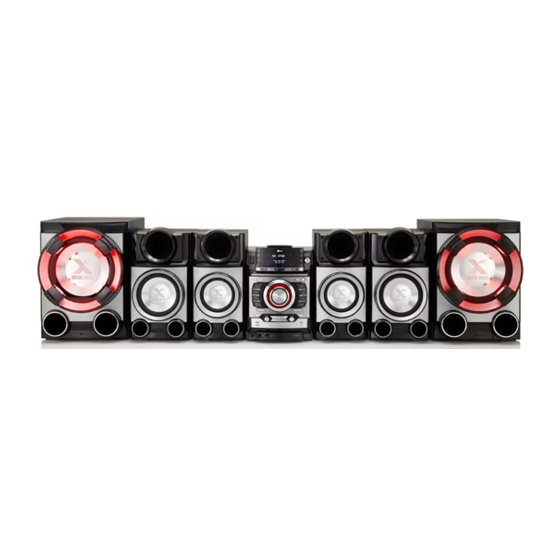

- Page 1 OWNER’S MANUAL Mini Hi-Fi System Please read this manual carefully before operating your set and retain it for future reference. CM9520 (CM9520, CMS9520F/S/W) CM9520-AP.DJORMLK_ENG.indd 1 2012-04-10 3:15:32...
- Page 2 This product shall not be placed in a built- in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. CM9520-AP.DJORMLK_ENG.indd 2 2012-04-10 3:15:32...
- Page 3 You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.
-
Page 4: Table Of Contents
– Playing the iPod/iPhone – Antenna Connection – Compatible iPod/iPhone – Listening to music from your portable player or external device – Changing the lighting effect – Changing the woofer lighting – Woofer ON/OFF – Recording to USB CM9520-AP.DJORMLK_ENG.indd 4 2012-04-10 3:15:32... - Page 5 Table of Contents Troubleshooting Troubleshooting – General Appendix Trademarks and Licenses General specifications Speaker specifications Maintenance – Notes on Discs – Handling the Unit CM9520-AP.DJORMLK_ENG.indd 5 2012-04-10 3:15:32...
-
Page 6: Getting Started
1 000 or more. y External HDD, Card readers, Locked devices, or hard type USB devices are not supported. y USB port of the unit cannot be connected to PC. The unit cannot be used as a storage device. CM9520-AP.DJORMLK_ENG.indd 6 2012-04-10 3:15:33... -
Page 7: Remote Control
: The button is not available for - Searches for a section within a any function. track/file. Remove the battery cover on the rear of the Remote Control, and insert two (size AAA) batteries with 4 and 5 matched correctly. CM9520-AP.DJORMLK_ENG.indd 7 2012-04-10 3:15:33... -
Page 8: Front Panel
Getting Started Front panel CM9520-AP.DJORMLK_ENG.indd 8 2012-04-10 3:15:33... - Page 9 - Shows demo. f BASS BLAST q WOOFER ON/OFF Selects the BASS BLAST or BYPASS sound directly. r USB g LG EQ Selects the USB function. Chooses locally special equalizer. T ST./MONO h BEAT VOL./SELECT Starts or pauses playback. Selects Stereo/Mono.
-
Page 10: Rear Panel
Getting Started Rear panel a Cooling fan d AUX IN connectors (L/R) b SPEAKERS terminal e ANTENNA (FM, AM) c WOOFER SYSTEM connectors f Power cord (Woofer Light Cable) CM9520-AP.DJORMLK_ENG.indd 10 2012-04-10 3:15:34... -
Page 11: Connecting
3. Put the stacking board on the subwoofer. 4. Place the front and the rear speakers on the stacking board firmly. 5. Attach the non-skid pads between the front and the rear speakers for preventing scratchs. CM9520-AP.DJORMLK_ENG.indd 11 2012-04-10 3:15:34... -
Page 12: Attaching The Speakers To The Unit
Front R White Front L > Caution y Make sure arrows on the ends of cables should be toward the to upper side. y Make sure to connect the cables to connectors tightly on the unit. CM9520-AP.DJORMLK_ENG.indd 12 2012-04-10 3:15:34... -
Page 13: Optional Equipment Connection
AUX IN Connection Connect an output of auxiliary device(Camcoder, TV, Player, etc) to the AUX IN (L/R) connector. If your device has only one output for audio(mono), connect it to the left (white) audio jack on the unit. CM9520-AP.DJORMLK_ENG.indd 13 2012-04-10 3:15:34... -
Page 14: Usb Connection
To prevent noise pickup, keep the AM Loop antenna away from the unit and other components. y Be sure to fully extend the FM wire antenna. After connecting the FM wire antenna, keep it horizontal. CM9520-AP.DJORMLK_ENG.indd 14 2012-04-10 3:15:35... -
Page 15: Operating
(2) By using FILE SEARCH knob : Rotate FILE SEARCH on the unit and press d/M to play the track/ file. Press REPEAT(MENU) on the Play remote control repeatedly. Refer repeatedly or to the note for details about the randomly display change. CM9520-AP.DJORMLK_ENG.indd 15 2012-04-10 3:15:35... -
Page 16: Selecting A Folder And An Mp3/Wma File
Do not extract the USB device during operation. (play, delete, etc.) y Regular back up is recommended to prevent data loss. y The delete function may not be supported according to the USB status. (lock, etc.) CM9520-AP.DJORMLK_ENG.indd 16 2012-04-10 3:15:35... -
Page 17: Other Operations
During recording, AUTO DJ function is not pressing INFO. available. y If you change a disc while the AUTO DJ function is activated, the function is deactivated. CM9520-AP.DJORMLK_ENG.indd 17 2012-04-10 3:15:35... -
Page 18: Listening To Music With Latin Beat
According to the original sound, LATIN BEAT level by using the MIC VOL.. may not be outputted in AUTO BPM mode. y If sound through the microphone is extremely loud, it may be distorted. In this case, rotate MIC VOL. to minimum. CM9520-AP.DJORMLK_ENG.indd 18 2012-04-10 3:15:35... -
Page 19: Radio Operations
Press T ST./MONO on the unit or d/M on the seconds. remote control. This will change the tuner from “ERASE ALL” will flash up on the unit display. stereo to mono and usually improve the reception. 2. Press PROGRAM/MEMORY to erase all saved radio stations. CM9520-AP.DJORMLK_ENG.indd 19 2012-04-10 3:15:35... -
Page 20: Sound Adjustment
MP3 - OPT for compressible MP3 file. It improves the treble sound. Reinforces the treble, bass and BASS BLAST surround sound effect. Improves the bass and treble LOUDNESS sound. You can enjoy the sound BYPASS without equalizer effect. CM9520-AP.DJORMLK_ENG.indd 20 2012-04-10 3:15:35... -
Page 21: Setting The Clock
CLOCK even when the player is turned off. y If you set the clock time and alarm, you can check the alarm icon “(“ and setting informaiton by pressing TIMER even when the unit is turned off. CM9520-AP.DJORMLK_ENG.indd 21 2012-04-10 3:15:35... -
Page 22: Sleep Timer Setting
2. Press AUX/PORT. IN/IPOD on the unit or FUNCTION on the remote control to select iPod function. You can operate your iPod/iPhone through an iPod/iPhone’s display by using the supplied remote control and also control on your iPod/iPhone. CM9520-AP.DJORMLK_ENG.indd 22 2012-04-10 3:15:36... -
Page 23: Compatible Ipod/Iphone
1 G, 2 G, 3 G, 4 G, 5 G, 6 G y iPod mini y iPod with click wheel y iPhone 4S y iPhone 4 y iPhone 3GS y iPhone 3G Depending on your iPod/iPhone’s software version, you may not control your iPod/iPhone from the unit. CM9520-AP.DJORMLK_ENG.indd 23 2012-04-10 3:15:36... -
Page 24: Listening To Music From Your Portable Player Or External Device
4. Turn the portable player or external device and start it playing. You can power on or off the woofer by pressing WOOFER ON/OFF on the unit. Note Woofer sound is not outputted in AM function. And WOOFER ON/OFF button’s light is turned off. CM9520-AP.DJORMLK_ENG.indd 24 2012-04-10 3:15:36... -
Page 25: Recording To Usb
USB REC on the unit or USB REC on recording. Press it again to restart recording. the remote control. (TUNER/AUX/PORTABLE only) 4. To stop recording, press I on the unit or Z ENTER on the remote control. CM9520-AP.DJORMLK_ENG.indd 25 2012-04-10 3:15:36... - Page 26 The making of unauthorized copies of copy- protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes. Be responsible Respect copyrights CM9520-AP.DJORMLK_ENG.indd 26 2012-04-10 3:15:36...
-
Page 27: Troubleshooting
Check the woofer status and press WOOFER ON/OFF. y Check whether the woofer cables are connected to the unit correctly. Connect the woofer cables to the unit correctly. No woofer lighting y Check the woofer lighting effects by pressing WOOFER LIGHTING/DEMO. CM9520-AP.DJORMLK_ENG.indd 27 2012-04-10 3:15:36... -
Page 28: Appendix
Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. CM9520-AP.DJORMLK_ENG.indd 28 2012-04-10 3:15:36... -
Page 29: General Specifications
200 W + 200 W (8 Ω at 1 KHz, THD 15 %) Subwoofer 350 W + 350 W (4 Ω at 60 Hz, THD 15 %) Frequency Response 40 to 20 000 Hz Signal-to-noise ratio 75 dB Dynamic range 80 dB CM9520-AP.DJORMLK_ENG.indd 29 2012-04-10 3:15:36... -
Page 30: Speaker Specifications
Rated Input Power 350 W Max. Input power 700 W Net Dimensions (W x H x D) 375 x 502 x 478 mm Net Weight 15.3 kg y Design and specifications are subject to change without notice. CM9520-AP.DJORMLK_ENG.indd 30 2012-04-10 3:15:37... -
Page 31: Maintenance
Maintaining the Unit The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center. CM9520-AP.DJORMLK_ENG.indd 31 2012-04-10 3:15:37... - Page 32 CM9520-AP.DJORMLK_ENG.indd 32 2012-04-10 3:15:37...
