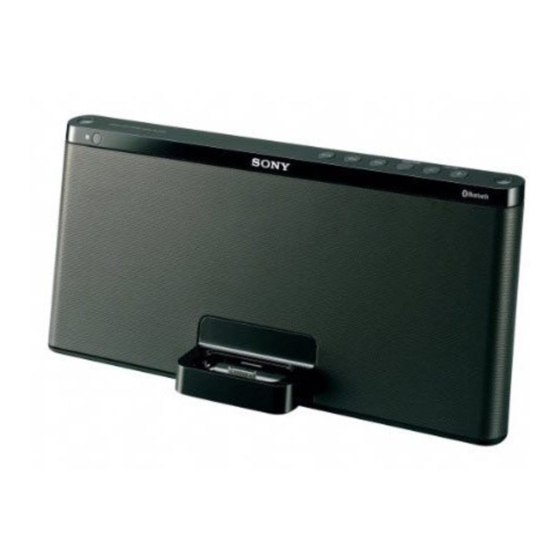

Sony RDP-X60iP Operating Instructions

Personal Audio
Docking System
Operating Instructions
RDP-X60iP
©2011 Sony Corporation
Printed in China
RDP-X60iP_4-278-207-11(1)_U8
Owner's Record
The model number and the serial number are located on the
4-278-207-11(1)
bottom.
Record the serial number in the space provided below. Refer to
them whenever you call upon your Sony dealer regarding this
product.
Model No. RDP-X60iP
Serial No. ________________________________
For customers in the USA
Please register this product on line at
http://www.sony.com/productregistration
Proper registration will enable us to send you
periodic mailings about new products, services,
and other important announcements. Registering
your product will also allow us to contact you in
the unlikely event that the product needs
adjustment or modification. Thank you.
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation of
the apparatus with newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not expose
this apparatus to dripping or splashing, and do not place
objects filled with liquids, such as vases, on the
apparatus.
Do not install the appliance in a confined space, such as
a bookcase or built-in cabinet.
Do not expose the batteries (battery pack or batteries
installed) to excessive heat such as sunshine, fire or the
like for a long time.
As the main plug is used to disconnect the unit from the As the main plug of AC power adaptor is used to
disconnect the AC power adaptor from the mains,
mains, connect the unit to an easily accessible AC outlet.
connect it to an easily accessible AC outlet. Should you
Should you notice an abnormality in the unit, disconnect
notice an abnormality in it, disconnect it from the AC
the main plug from the AC outlet immediately.
outlet immediately.
The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even
if the unit itself has been turned off.
The nameplate and important information concerning
safety are located on the bottom exterior of the main unit
and on the surface of the AC power adaptor.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
This equipment must not be co-located or operated in
conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules.
This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it
should be installed and operated keeping the radiator at
least 20cm or more away from person's body (excluding
extremities: hands, wrists, feet and ankles).
Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same type.
NOTE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician
for help.
WARNING
Replace the battery for the remote commander with a

Sony CR2025 lithium battery. Use of another battery
may present a risk of fire or explosion.
 Battery may explode if mistreated. Do not recharge,
disassemble or dispose of in fire.
Dispose of used battery promptly. Keep away from

children.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat. The following conditions may affect the sensitivity of

9) Do not defeat the safety purpose of the polarized or Bluetooth communication.
grounding-type plug. A polarized plug has two blades
– There is an obstacle such as a person, metal, or wall
with one wider than the other. A grounding type plug has
between this unit and iPod.
two blades and a third grounding prong. The wide blade
– A device using 2.4 GHz frequency, such as a wireless
or the third prong are provided for your safety. If the
LAN device, c ordless telephone, or microwave oven,
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet. is in use near the unit.
10) Protect the power cord from being walked on or pinched – The unit is installed on a shelf made of steel.
particularly at plugs, convenience receptacles, and the
Because Bluetooth devices and wireless LAN

point where they exit from the apparatus.
(IEEE802.11b/g) use the same frequency, microwave
11) Only use attachments/accessories specified by the
interference may occur and resulting in communication
manufacturer.
speed deterioration, noise, or invalid connection if this
12) Use only with the cart, stand, tripod, bracket, or table
unit is used near a wireless LAN device. In such as case,
specified by the manufacturer, or sold with the apparatus.
perform the following.
When a cart is used, use caution when moving the
– Use this unit at least 10 m (about 30 ft) away from
cart/apparatus combination to avoid injury from tip-over.
the wireless LAN device.
– If this unit is used within 10 m (about 30 ft) of a
wireless LAN device, turn off the wireless LAN device.
– Install this unit and iPod as near to each other as
possible.
13) Unplug this apparatus during lightning storms or when
Microwaves emitting from a Bluetooth device may
unused for long periods of time. 
affect the operation of electronic medical devices. Turn
14) Refer all servicing to qualified service personnel. Servicing
off this unit and iPod in the following locations, as it
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
may cause an accident.
has been spilled or objects have fallen into the apparatus,
– where inflammable gas is present, in a hospital, train,
the apparatus has been exposed to rain or moisture, does
airplane, or a petrol station
not operate normally, or has been dropped.
– near automatic doors or a fire alarm
For the state of California USA only
This unit supports security capabilities that comply

Perchlorate Material –special handling may apply, see
with the Bluetooth standard to provide a secure
www.dtsc.ca.gov/hazardouswaste/perchlorate
connection when the Bluetooth wireless technology is
Perchlorate Material: Lithium battery contains perchlorate
used, but security may not be enough depending on the
setting. Be careful when communicating using
The validity of the CE marking is restricted to only those
Bluetooth wireless technology.
countries where it is legally enforced, mainly in the
We do not take any responsibility for leakage of

countries EEA (European Economic Area).
information during Bluetooth communication.
 Connection with all Bluetooth devices cannot be
guaranteed.
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European – A device featuring Bluetooth function is required to
conform to the Bluetooth standard specified by
Union and other European countries
Bluetooth SIG, Inc. and be authenticated.
with separate collection systems)
– Even if the connected device conforms to the above
mentioned Bluetooth standard, some devices may
not be connected or work correctly, depending on
On Copyrights and Licenses
the features or specifications of the device.
The Bluetooth word mark and logos are owned by the
Depending on the device to be connected, it may

Bluetooth SIG, Inc. and any use of such marks by Sony
require some time to start communication.
Corporation is under license. Other trademarks and
trade names are those of their respective owners.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are
Power sources
trademarks of Apple Inc., registered in the U.S. and other
countries.
"Made for iPod, " and "Made for iPhone" mean that an
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has been Preparing a power source
certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of
1 Connect the AC power cord (supplied) to the AC
this device or its compliance with safety and regulatory
power adaptor (supplied).
standards. Please note that the use of this accessory with
2
iPod or iPhone may affect wireless performance. Connect the AC power adaptor to the
jack on the back of this unit firmly and plug it into a
wall outlet.
Features
Wireless Music Streaming

 
 Compatible with iPod and iPhone
 MEGA BASS
Wireless remote commander supplied

AUDIO IN
Precautions
To disconnect the AC power cord (mains lead), pull it

out by the plug, not the cord.
Since a strong magnet is used for the speaker, keep

credit cards using magnetic coding or spring-wound
watches, CRT-based TVs, or projectors, etc., away from
the unit to prevent possible damage from the magnet.
Do not leave the unit in a location near a heat source such

as a radiator or airduct, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or shock.
AC power adaptor
Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on a surface (a rug, a
Note on the AC power adaptor
blanket, etc.) or near materials (a curtain) which might
 Use the supplied Sony AC power adaptor only. The polarity of the
block the ventilation holes.
plugs of other manufactures may be different. Failure to use the
Should any solid object or liquid fall into the unit, supplied AC power adaptor may cause the unit to malfunction.

unplug the unit and have it checked by qualified
personnel before operating it any further.
 Do not handle the unit with wet hands.
 Do not place the unit anywhere near water.
NOTES ON LITHIUM BATTERY
Preparing the remote
Wipe the battery with a dry cloth to assure a good contact.

commander
Be sure to observe the correct polarity when installing

the battery.
Before using the remote commander for the first time,
 Do not hold the battery with metallic tweezers,
remove the insulation film.
otherwise a short-circuit may occur.
Note
 In these Operating Instructions, "iPod" is used as a
general reference to functions on an iPod or iPhone,
unless otherwise specified by the text or illustrations.
When to replace the battery
If you have any questions or problems concerning your
unit, please consult your nearest Sony dealer.
With normal use, the battery (CR2025) should last for
about 6 months. When the remote commander no longer
On Bluetooth communication operates the unit, replace the battery with a new one.
 Bluetooth wireless technology operates within a range
of about 10 meters (about 30 feet).
Maximum communication range may vary depending
on obstacles (human body, metal, wall, etc.) or
electromagnetic environment.
The unit
Stell cabinet
Optimal performance
Limited performance
Notes
 Do not attempt to charge the battery.
 If you are not going to use the remote commander for a long time,
remove the battery to avoid any damage that may be caused by
leakage and corrosion.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 4 ohm loads both channels driven, from
150 Hz -10,000 Hz; rated 18 watts per channel minimum
RMS power, with no more than 10 % total harmonic
distortion.
Section for iPod
DC out: 5V
MAX: 500mA
General
Speaker
Approx. 7.6 cm (3 inches) dia. 4 Ω
Input
AUDIO IN jack (ø 3.5 mm stereo minijack)
Power output
20 W + 20 W (at 1% harmonic distortion)
Power requirements
DC IN 20V
Dimensions
Approx. 356.0 mm × 158.1 mm × 151.9 mm (w/h/d)
(14 1 / inches × 6 1 / inches × 6 inches) (incl. projecting
16 4
parts and controls)
Mass
Approx. 1.8 kg (3 lb 15 oz)
Output
Bluetooth Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (30 ft)*
Frequency band
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Communication System
Bluetooth Specification Version 2.0 + EDR (Enhanced
Data Rate)
Compatible Bluetooth Profiles*
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile) Volume
UP/DOWN
3
Supported codec*
4
SBC*
Supported contents protection
SCMS-T
* 1
The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven,
static electricity, reception sensitivity, antenna's performance,
DC IN 20V
operating system, software application, etc.
* 2 Bluetooth standard profiles indicate the purpose of Bluetooth
communication between devices.
* 3
Codec: Audio signal compression and conversion format
* 4
Subband Codec
Supplied accessories
Remote commander (1)
AC power adaptor (1)
AC power cord (1)
Universal Dock Adapter  for iPhone (1)
DC IN 20V
Universal Dock Adapter  for iPhone 3G/iPhone 3GS
(1)
Universal Dock Adapter  for iPhone 4 (1)
Design and specifications are subject to change without
notice.
To wall outlet
AC power cord

the  side facing up
RDP-X60iP_4-278-207-11(1)_U8
1
2
