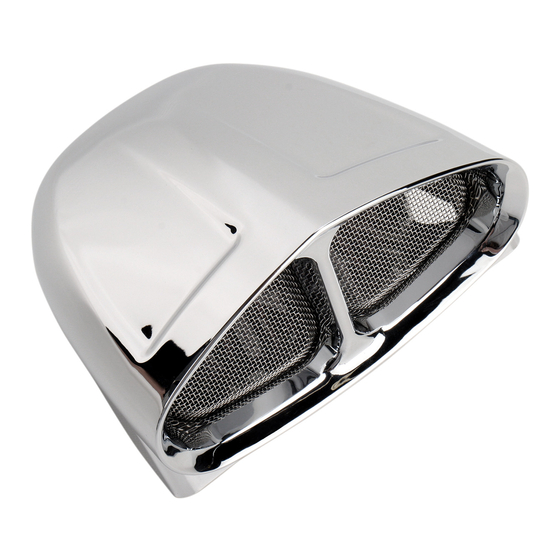

Cobra POWRFLO Instruction Manual

Items Supplied >
1 – INTAKE COVER W/ INTAKE SCREEN ASSEMBLY
1 – K&N® VENTURI AIR FILTER
1 – BILLET VELOCITY STACK
1 – MOUNTING PLATE
1 – SUPPORT BRACKET
1 – INTAKE GASKET
2 – O-RING, SILICONE
2 – BREATHER BOLT, 3/8"-16 X 1"
3 – BOLT, 1/4"-20 X 7/8", BUTTONHEAD W/ LOCK PATCH
3 – BOLT, 1/4"-20 X 5/8", HEX FLANGE
3 – LOCK WASHER, 1/4" TOOTHED
Instruction Manual >
Read all instructions carefully and completely before installing your new POWRFLO
Remove the allen bolt from the center of the stock air cleaner to remove the cover. Remove the (3)
1.
bolts securing the formed bracket located on top of the air filter. Then remove and discard the air filter,
air box and seals/gaskets.
Remove and discard the (2) stock breather bolts and (2) stock o-rings from the cylinder heads; save
2.
the breather hoses for reuse during installation.
Insert (3) supplied 1/4"-20 x 3/4" buttonhead bolts with lock washers through the mounting holes in
3.
the velocity stack and mounting plate. While holding that assembly together with one hand, insert the
(2) breather hoses through the mounting plate and into the velocity stack with the hoses rotated
outward, as shown in Figure 1. Make sure the hoses are bottomed out in the back of the velocity
stack.
Join together the assembly from Step 3 with the supplied support bracket and gasket then start
4.
threading the (3) buttonhead bolts into the throttle body, but do not tighten.
VELOCITY
STACK
(3) LOCK
WASHERS
(3) 1/4"-20 x 3/4"
BUTTONHEAD
BOLTS W/
LOCK PATCH
* Cobra recommends you always wear a helmet while riding. Please never operate your motorcycle while under
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. A
05/10
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180, Fax. 714.692.5016
®
SUPPORT
(2) SUPPLIED
BRACKET
BREATHER
BOLTS
MOUNTING
PLATE
Application(s) >
HARLEY:
SOFTAIL
ROCKER
DYNA
606-0102B
(2) STOCK
BREATHER
HOSES

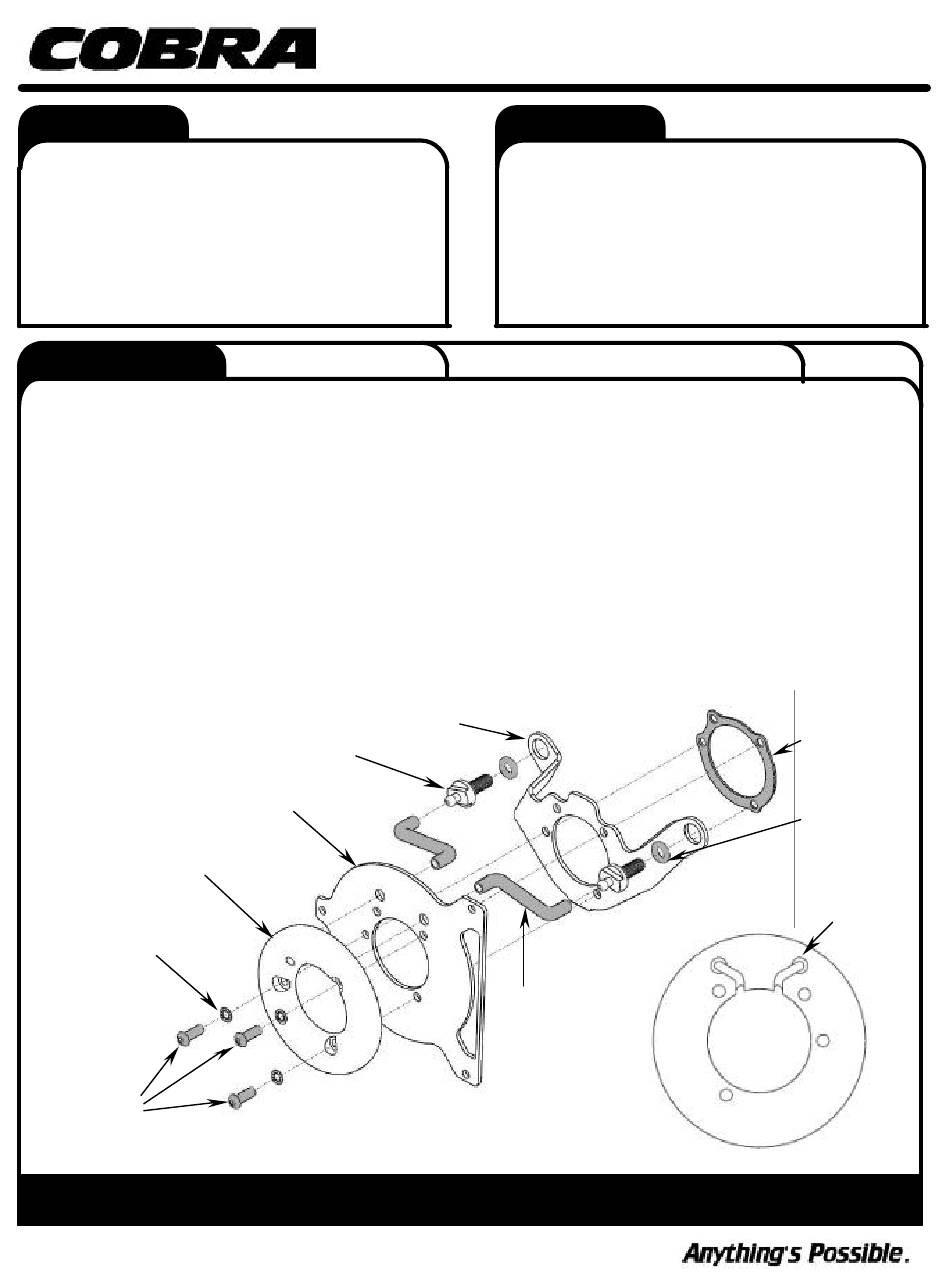

FIGURE 1
1
www.cobrausa.com
2000-10
2008-10
2000-10
Page 1 of 2
TM
Intake.
SUPPLIED
INTAKE
GASKET
(2) SUPPLIED
O-RINGS
BREATHER SLOTS
ORIENT TO TOP
WHEN ASSEMBLED
VELOCITY STACK BACKSIDE
®
