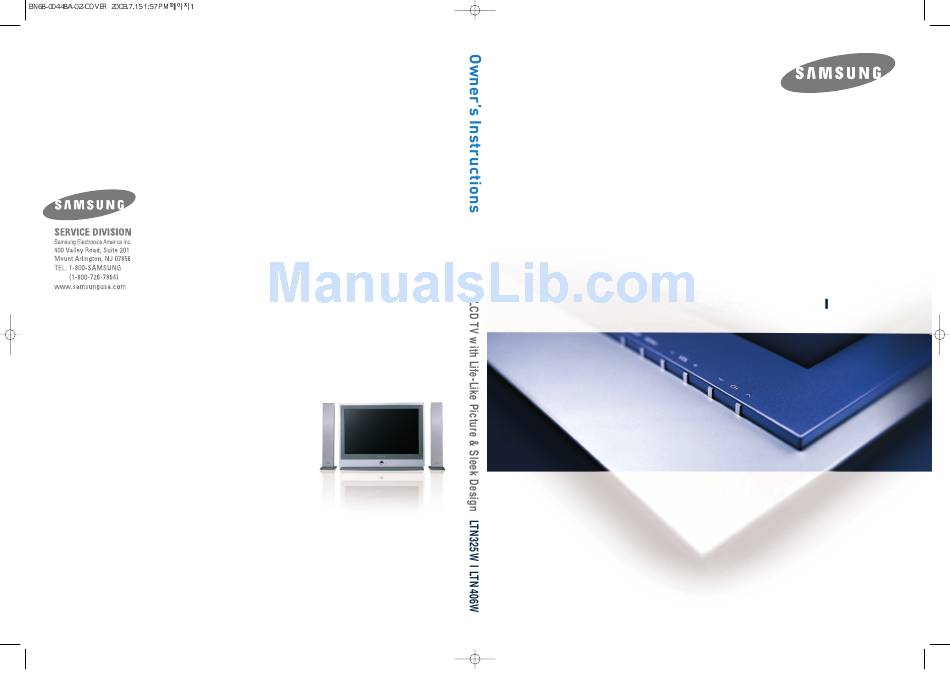

- Page 1 Owner’s Instructions LTN325W LTN406W LCD TV with Life-Like Picture & Sleek Design BN68-00448A-02...
-
Page 2: Important Safety Information
TV receiver on a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If you place the TV receiver on a rack or bookcase, ensure that there is adequate ventilation and that you’ve followed the manufacturer’s instructions for mounting. - Page 3 6/28/03 8:14 AM Page 2 • Protect the power cord. Power supply cords should be routed so that they won’t be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
- Page 4 Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it. Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.
- Page 5 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause unesired operation.
- Page 6 The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature, and constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on non-expanded standard format television video and programming, should be limited to no more than 15% of the total television viewing per week.
-
Page 7: Table Of Contents
Turning the TV On and Off ........16... - Page 8 Setting the Sleep Timer ........54...
-
Page 9: Chapter 1: Your New Tv
C h a p t e r O n e O U R List of Features Your TV was designed with the latest technology. This TV is a high-performance unit that includes the following special features: • Easy-to-use remote control •... -
Page 10: Familiarizing Yourself With Your New Tv
O U R Familiarizing Yourself with Your New TV Front Panel Buttons The buttons on the front panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. POWER Press to turn the TV on and off. -
Page 11: Rear Panel Jacks
Page 3 O U R Rear Panel Jacks Use the rear panel jacks to connect an A/V component that will be connected continuously, such as a VCR or a DVD player. For more information on connecting equipment, see pages 7-15. -
Page 12: Remote Control
Page 4 O U R Remote Control You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. POWER Turns the TV on and off. -
Page 13: Sleep Timer
Press to select channels over 100. For example, to select channel 121, press “+100”, then press “2” and “1”. (See Page 24) SLEEP TIMER Press to select a time for the TV to turn off automatically. (See Page 54) AUTOMATIC CHANNEL BUTTON Press to automatically store selected TV/cable channels. -
Page 14: Installing Batteries In The Remote Control
2. Are the plus and minus ends of the batteries reversed? 3. Did the battery run out? 4. Is the power out, or is the power cord unplugged? 5. Is there a special fluorescent light or a neon sign nearby? English- Make sure to match the “... -
Page 15: Chapter 2: Installation
VHF and UHF Antennas” on page 8. Antennas with 300-ohm Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300-ohm twin flat leads, follow the directions below. Place the wires from... -
Page 16: Antennas With 75-Ohm Round Leads
Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires a an optional combiner-adaptor (available at most electronics shops). -
Page 17: Connecting To A Cable Box That Descrambles All Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of coaxial cable. (These items are available at most electronics stores.) - Page 18 Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B,” you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)
-
Page 19: Connecting A Vcr
TV. If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook up to the left and right audio input jacks of the TV. If your VCR is stereo, you must connect two cables. -
Page 20: Connecting An S-Vhs Vcr
Connecting an External Input Source Connect the Input/AUDIO cables to the Input/AUDIO OUT jacks on the TV and the Input/AUDIO IN jacks on the VCR (Connect the cables to the jacks of the same color.) Connect a set of audio cables... -
Page 21: Connecting A Dvd Player
Page 13 N S TA L L AT I O N Connecting a DVD Player The rear panel jacks on your TV make it easy to connect a DVD player to your TV. Connect a set of audio cables between the... -
Page 22: Connecting The Speakers
5.1. Channel system: 5 Channels – 2 Channels for the front (left and right), How to Connect 1. Connect the speaker cables to the Speaker OUT jacks on the TV and the IN jacks on the speakers. 2. Connect the Subwoofer OUT jack on the TV to the Subwoofer. -
Page 23: Connecting A Pc
6/28/03 8:15 AM Page 15 N S TA L L AT I O N Connecting a PC Note: This figure shows the Standard Connector-jack panel. The actual configuration on your TV may be different, depending on the model. DVI-D TV rear panel... -
Page 24: Chapter 3: Special Features
You can also use the Power button on the front panel. [Note] 1. Use of the 'Power' button on the remote is possible only when the TV is in 'Power Saving' (stand-by) mode. If the TV is powered off, the remote cannot be used to turn the TV on. -
Page 25: Using Mute
P E C I A L E AT U R E S Using Mute At any time, you can temporarily cut off the sound using the Mute button. Press MUTE and the sound cuts off. The word “ ” will appear in the lower-left corner of the screen. -
Page 26: Setting Up Your Remote Control
E AT U R E S Setting Up Your Remote Control After it has been set up properly, your remote control can operate in four different modes: TV, VCR, Cable, or DVD. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose. - Page 27 Setting Up the Remote to Operate Your Cable Box Note on Using Remote Control Modes: Cable Box When your remote control is in “Cable Box” mode, the volume buttons still control your TV’s volume. Turn off your cable box. Press the MODE button and make sure that the Cable LED is illuminated.
- Page 28 Setting Up the Remote to Operate Your DVD Note on Using Remote Control Modes: DVD When your remote control is in “DVD” mode, the volume buttons still control your TV’s volume. Turn off your DVD. Press the MODE button and make sure that the DVD LED is illuminated.
- Page 29 6/28/03 8:15 AM Page 21 Remote Control Codes VCR Codes Admiral 015,088 Aiwa Audio Dynamics 022,025 Bell&Howell Broksonic Candle 016,018,022,054,055,061 Canon 017,062 Citizen 016,018,022,054,055,061 Colortyme Craig 016,021 Curtis-Mathes 009,016,017,023,024,055,062,073,076 Daewoo 003,004,005,006,007,008,022,054,085 Dimensia Dynatech Electrohome 017,018,019,022,024,029,032,036,043, Emerson 050,051,056,058,066,071,074,076,077,079 011,021,027,028,052,057,067 Fisher...
-
Page 30: Chapter 4: Operation
C h a p t e r F o u r P E R AT I O N Plug & Play Feature When the TV is initially powered On, two basic customer settings proceed automatically and subsequently: Setting Auto program, Clock. Press the POWER button on the remote control. -
Page 31: Memorizing The Channels
Selecting the Video Signal-source Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e., an antenna or a cable system). Press the MENU button to display the menu. -
Page 32: Storing Channels In Memory (Automatic Method)
6/28/03 8:16 AM Page 24 P E R AT I O N Storing Channels in Memory (Automatic Method) First, select the correct signal source (Air, STD, HRC, IRC). See steps 1~2 on previous page. Press the MENU button. Press the UP/DOWN buttons to select “Channel”,... -
Page 33: Adding And Erasing Channels (Manual Method)
Press the ENTER “Add and Delete”. Press the MENU button to exit. Use the number buttons to directly select the channel that will be added or erased. Press the ADD/ERASE button. Repeatedly pressing this button will alternate between “Added” and “Erased.”... -
Page 34: To Edit The Input Source Name
Page 26 P E R AT I O N To Edit the Input Source Name Name the input device connected to the input jacks to make your input source selection easier. Press the MENU button to display the on-screen menu. -
Page 35: Using Automatic Picture Settings
Your TV has four automatic picture settings (“Custom”, “Dynamic”, “Standard”, and “Movie”) that are preset at the factory. You can activate either Custom, Dynamic, Standard, or Movie by pressing P.MODE (or by making a selection from the menu). Or, you can select “Custom” which automatically recalls your personalized picture settings. -
Page 36: Customizing The Picture
You can use the on-screen menus to change the contrast, brightness, sharpness, color and tint according to personal preference. (Alternatively, you can use one of the “automatic” settings. See the previous page.) Press the MENU button to display the menu. -
Page 37: Using Automatic Sound Settings
Using Automatic Sound Settings Your TV has five automatic sound settings (“Custom”, “Standard”, “Music”, “Movie” and “Speech”) that are preset at the factory. You can select “Sound Mode”, which automatically recalls your personalized sound settings. Press the MENU button to display the menu. -
Page 38: Customizing The Sound
P E R AT I O N Customizing the Sound The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the “automatic” settings. See the previous page.) Press the MENU button to display the menu. -
Page 39: Selecting A Menu Language
6/28/03 8:16 AM Page 31 P E R AT I O N Selecting a Menu Language Press the MENU button to display the menu. Press the UP/DOWN buttons to select “Setup”, then press the ENTER button. Press the UP/DOWN buttons to select Language. -
Page 40: Setting The Blue Screen Mode
P E R AT I O N Setting the Blue Screen Mode If no signal is being received or the signal is very weak, a blue screen automatical- ly replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue screen”... -
Page 41: To Select An External Input Device
• If a VCR is connected to the output jacks, you can record the signals coming from the source of your choice. • If the output is set to TV and the PIP window function is on, you can select the audio from the PIP window. The output audio is automati- cally changed to the audio from the PIP window. -
Page 42: Lna (Low Noise Amplifier)
P E R AT I O N LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). Press the MENU button to display the menu. -
Page 43: Fine Tuning Channels
6/28/03 8:16 AM Page 35 P E R AT I O N Fine Tuning Channels Use fine tuning to manually adjust a particular channel for optimal reception. Select the appropriate channel. Press the MENU button to display the menu. -
Page 44: Viewing Picture-In-Picture
P E R AT I O N Viewing Picture-in-Picture This product has one tuner built-in, which does not allow PIP to function in the same mode. Please see 'PIP Settings' below for details. You can use the PIP feature to simultaneously watch two video sources. -
Page 45: C Ontents
Press the SIZE button to alternate between a smaller and larger PIP window. • You cannot select the PIP window function when the TV set is in energy saving mode. You will see the “Check the cable connection” or “Out of input range” message on the screen in PC mode. -
Page 46: Changing The Screen Size
Press the P.SIZE button to change the screen size. • Wide : Sets the picture to 16:9 wide mode. • Panorama : Use this mode for the wide aspect ratio of a panoramic picture. • Zoom 1,2 : Magnifies the size of the picture on screen. •... -
Page 47: Adjusting The Background Color
6/28/03 8:16 AM Page 39 P E R AT I O N Adjusting the Background Color You can change the color of the entire screen according to your preference. Press the MENU button to display the menu. Press the UP/DOWN buttons to select “Picture”,... -
Page 48: Setting The Dnie
DNIe items. Press the MENU button to exit. • DNIe Demo: The screen shows the improved image on the left-hand side and the original • DNIe On: Improved picture mode demonstrated by DNIe Demo is activated. •... -
Page 49: To Enjoy Dolby Digital Sound
Press the UP/DOWN buttons to select “ON”, then press the ENTER Press the MENU button to exit. Turn the Dolby ProLogic II on while the TV is receiving mono or stereo signals to • enjoy the 5.1-channel Dolby surround sound. button. English-... -
Page 50: Turning The Dynamic Range On
“Dynamic Range”, then press the ENTER button. Press the UP/DOWN buttons to select “ON”, then press the ENTER Press the MENU button to exit. Reduces the difference between the high and low volume. Suitable for nighttime • listening. button. English-... -
Page 51: Speaker Settings
• When the Dolby ProLogic II is on: Turn the subwoofer on and choose the small speakers as your left and right front speakers to hear the bass sounds. •... -
Page 52: Level
Press the MENU button to exit. You can choose On/Off for a test. The output levels of the left and right front • speakers, the center speaker and the left and right rear speakers are adjustable within the range of –10 ~ +10dB. -
Page 53: Time Delay
The sound coming out of the speakers does not reach the listener at the same time; the tim- ing varies depending on the location of the speakers. This gap is adjustable by changing the delay time of the rear speakers. -
Page 54: Trademark & Lavel License Notice
45-degree angle from where the listener is seated. Center Speaker Although, ideally, it should be at the same height as the front speakers, you can also place it on or below the TV set. Rear Speakers Place the speakers behind the listener at a certain distance away so that they are placed 23.6 inch – 35.4 inch higher than the listener’s ears and face downwards. -
Page 55: Changing The Stereo Settings
P E R AT I O N Changing the STEREO Settings If you live in an area that has poor reception (due to weak frequency), you may hear noise and experience poor sound quality during the channel selection. Set the stereo setting to Off to eliminate the noise. -
Page 56: Selecting The Sound
6/28/03 8:16 AM Page 48 P E R AT I O N Selecting the Main or Sub Sound You can select either Main or Sub when PIP is On. Press the MENU button to display the menu. Press the UP/DOWN buttons to select “Sound”,... -
Page 57: To Select An External Input Device
• Optical cable: Changes electric pulses into optical signals for transmission. This transmission system transmits the digital audio signals in the S/PDIF format, in which the glass conductor transmits the signals in the form of light. • Coaxial cable: Uses copper wires to transmit the digital signals. -
Page 58: Adjusting The Headphone Sound
6/28/03 8:16 AM Page 50 P E R AT I O N Adjusting the Headphone Sound The headphone option is especially useful when simultaneously watching the main screen and the PIP window. Press the MENU button to display the menu. -
Page 59: Setting The Clock
P E R AT I O N Setting the Clock Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press DISPLAY.) Press the MENU button to display the on-screen menu. -
Page 60: Setting The On/Off Timer
English- Before using the timer, you must set the TV’s clock. (See “Setting the Clock” on page 51) When you set the hours, make sure the correct time of day (am or pm) appears to the right of the hour. - Page 61 'Timer on' situation. This function will prevent the leakage accident or dissipation caused by the occation that your TV will be left in turned on situation for a long time due to 'Timer on'. (when you are away on holiday for example)
-
Page 62: Setting The Sleep Timer
Page 54 P E R AT I O N Setting the Sleep Timer Set the timer for the TV to turn off at the preset time automatically. Setting the On/Off Timer Using the Menu Press the MENU button to display the on-screen menu. -
Page 63: Using The V-Chip
Using the V-Chip The V-Chip feature automatically locks out programming that is deemed inappropriate for children. The user must first enter a Pin (personal ID number) before any of the V-Chip restrictions can be set up or changed. Setting Up Your Personal ID Number (PIN) Press the MENU button to display the menu. -
Page 64: How To Enable/Disable The V-Chip
How to Set up Restrictions Using the ‘TV guidelines’ First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. - Page 65 When the color of the “U” or “B” is changed, press the ENTER A TV-Rating will be highlighted. To exit this screen, press the MENU again. To select a different TV-Rating, press the UP/DOWN buttons and then repeat the process.
-
Page 66: How To Set Up Restrictions Using The Mpaa Ratings
Next, while the TV-Rating is selected, repeatedly press the ENTER This will cycle through the available sub-ratings (FV,L, S, D or V). A highlight letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is highlight, press the ENTER Press MENU once to save the TV guidelines. -
Page 67: How To Reset The Tv After The V-Chip Blocks A Channel ("Emergency Escape")
How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: “Excessive rating”. -
Page 68: Chapter 5: Pc Display
The Windows display-settings for a typical computer are shown below. However, the actual screens on your PC will probably look different, depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in most cases. -
Page 69: Adjusting The Screen Quality
The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmost and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen. -
Page 70: Changing The Screen Position
Page 62 PC D I S P L AY Changing the Screen Position Press the PC button on the remote control to select the PC mode. Press the MENU button to display the menu. Press the UP/DOWN buttons to select “Setup”, then press the ENTER button. -
Page 71: To Initialize The Screen Settings
6/28/03 8:17 AM Page 63 PC D I S P L AY To Initialize the Screen Settings Use to return the screen settings to the default values. Press the MENU button to display the menu. Press the UP/DOWN button to select “Setup”, then press the ENTER button. -
Page 72: How To Dvi Select
. Even if the cables are connected properly, you may have selected the wrong DVI signal if you do not see the banner on the screen. Choose the right DVI signal for your computer. Image Lock... -
Page 73: How To Auto Adjust
I S P L AY How to Auto Adjust Use the Auto Adjust function to have the TV set automatically adjust the video signals the monitor receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. -
Page 74: Chapter 6: Troubleshooting
R O U B L E S H O O T I N G If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. - Page 75 6/28/03 8:17 AM Page 67 R O U B L E S H O O T I N G Problem “Not Supported Mode!” message. The image is too light or too dark. Horizontal bars appear to flicker, jitter or shimmer on the image.
-
Page 76: Appendix
P P E N D I X Installing Stand Lower the TV set in the direction of the arrow (at a right angle) and fix the stand. Use the four screws to tightly fix the stand. Maintenance of Your LCD TV WARNING: To avoid risk of electric shock, do not disassemble the TV cabinet (except for gaining access to the cable connectors as described on Chapter 2). -
Page 77: Using The Anti-Theft Kensington Lock
Using the Anti-Theft Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. -
Page 78: How To Install The Wall Bracket
/right pair.) How to Adjust the Angle of the Bracket Note: Please adjust the angle of the bracket to 0 degrees before you fix it to the wall. Make sure you put the right hinge to the right side of the bracket and vice versa. - Page 79 How to Attach the LCD TV to the Bracket The LCD TV in the picture may not look exactly like yours. (You assemble the plastic screw anchors and the screws the same way regardless of the model of your TV.) Assemble the plastic screw anchors and the screws.
-
Page 80: Pin Assignments
Using Your TV in Another Country If you plan to take your TV with you to a foreign country, please be aware of the different television systems that are in use around the world. A TV designed for one system may not work properly with another system due to differences in the TV channel frequencies. -
Page 81: Specifications
39.88 X 8.58 X 24.60 inch With Stand (1013.0 x 218.0 x 625.0mm) 22 kg Operating Temperature 50 °F to 104 °F (10 °C to 40 °C) Operating Humidity 10% to 80% Storage Temperature -13 °F to 113 °F (-25 °C to 45 °C) -
Page 82: Display Modes
P P E N D I X Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your Videocard user guide; otherwise there may be no video.
