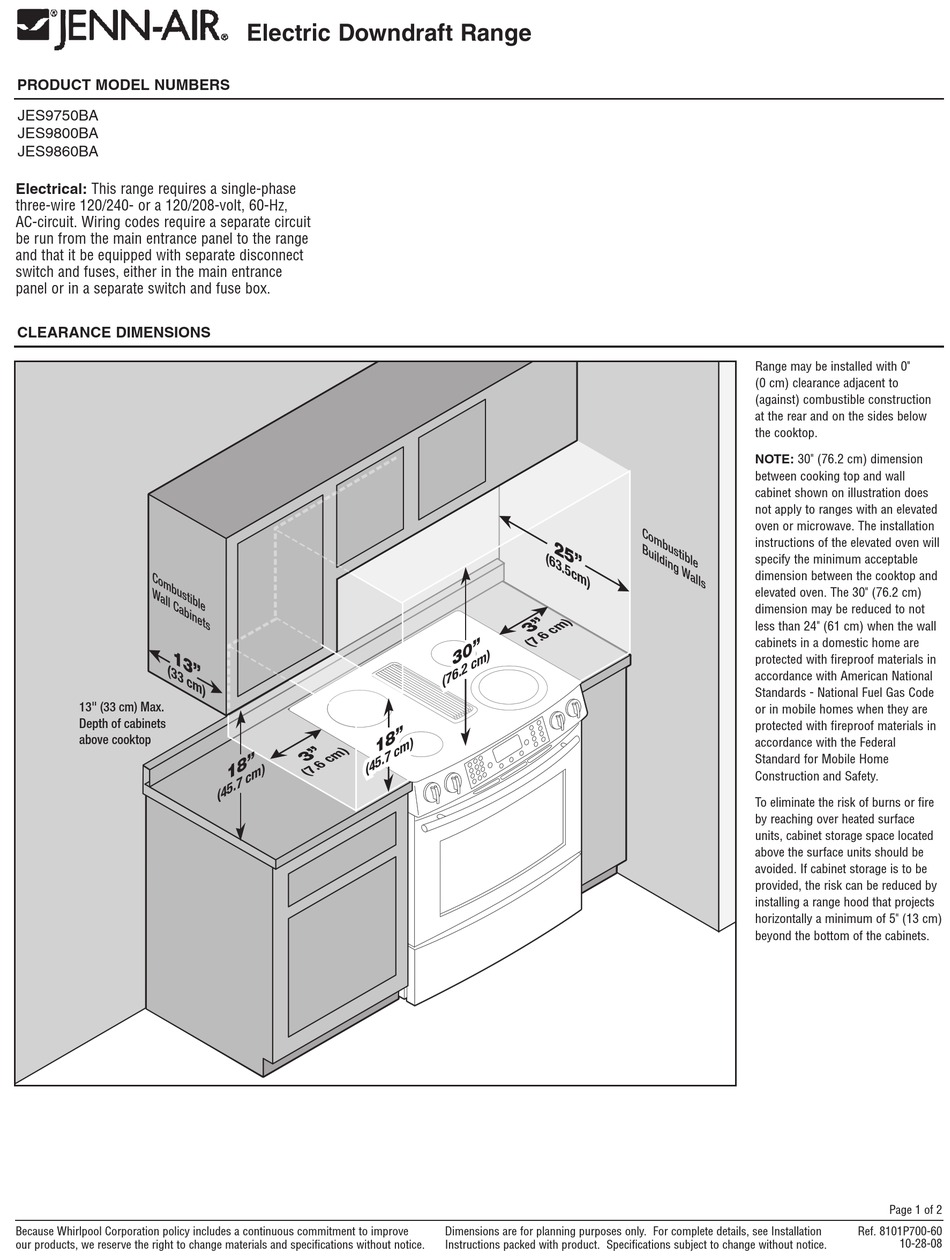

Jenn-Air JES9750BA Planning Dimensions

PRODUCT MODEL NUMBERS
JES9750BA
JES9800BA
JES9860BA
Electrical: This range requires a single-phase
three-wire 120/240- or a 120/208-volt, 60-Hz,
AC-circuit. Wiring codes require a separate circuit
be run from the main entrance panel to the range
and that it be equipped with separate disconnect
switch and fuses, either in the main entrance
panel or in a separate switch and fuse box.
CLEARANCE DIMENSIONS
C o m
b u s
W a
t i b l
l l C
a b i
n e t
1 3
"
( 3 3
c m
13" (33 cm) Max.
Depth of cabinets
above cooktop
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Electric Downdraft Range
e
s
)
3 0 3 0 1 8
. 7 c . 2 c . 2 c
"
( 7 6 ( 4 5 ( 7 6
1 8
m )
. 7 c
( 4 5
2 5
( 6 3 "
. 5 c
" " "
3 0 3 0 3 0
m ) m ) m )
. 2 c . 2 c . 2 c
( 7 6 ( 7 6 ( 7 6
" " "
m ) m ) m )
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Range may be installed with 0"
(0 cm) clearance adjacent to
(against) combustible construction
at the rear and on the sides below
the cooktop.
NOTE: 30" (76.2 cm) dimension
between cooking top and wall
cabinet shown on illustration does
not apply to ranges with an elevated
oven or microwave. The installation
C o m
instructions of the elevated oven will
b u s
B u
t i b l
i l d i
specify the minimum acceptable
e
n g
W a
m )
dimension between the cooktop and
l l s
elevated oven. The 30" (76.2 cm)
dimension may be reduced to not
less than 24" (61 cm) when the wall
cabinets in a domestic home are
protected with fireproof materials in
accordance with American National
Standards - National Fuel Gas Code
or in mobile homes when they are
protected with fireproof materials in
accordance with the Federal
Standard for Mobile Home
Construction and Safety.
To eliminate the risk of burns or fire
by reaching over heated surface
units, cabinet storage space located
above the surface units should be
avoided. If cabinet storage is to be
provided, the risk can be reduced by
installing a range hood that projects
horizontally a minimum of 5" (13 cm)
beyond the bottom of the cabinets.
Page 1 of 2
Ref. 8101P700-60
10-28-08
