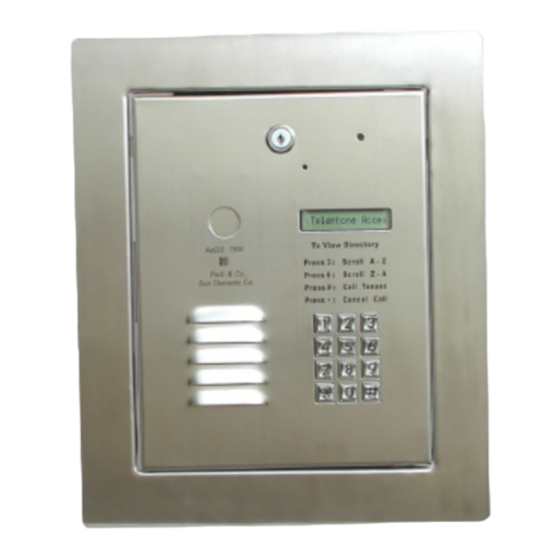

PACH & COMPANY Aegis 7000 Plus Quick Manual

Exit program, clear field,
reset keystroke.
Save program
Change master code
00
(0000 is default)
01 Add new tenant
02 Edit existing tenant
Delete existing tenant
03
04 Clear all tenants
Manual unlock/lock relay
1 with timer (01-98 hours,
05
99 hours unlock hold, 00
hours to lock)
Directory Digit
Select 2, 3 or 4 digit
06
Default= 3-digit
Single or multi system
07
(single is default)
System ID number (n/a)
08
Edit scrolling message
10
40 Master code mask.
Warning: Master code
cannot be recovered if
masked. Board must be
replaced.
Two ways call from the system
1. Press to scroll name from A-Z or
Z-A then press to call name selected.
2. Press wait for dial tone then press the directory no.
Opening the door remotely
Opening the door using the access code
screen will stop scrolling) then press a valid 4-digit access
code.
Extending talk time tenant must press
after the time out warning beep.
Calling into the system: incase you are not available when
your visitor call you. Follow steps below to use this feature
1. Function 74 (auto answer must be enabled).
2. Call the system's phone no., you will hear "TWO BEEP", then
press to talk to your visitor. Press
door
Enable PBX: if the system is connected to one of the PBX
extension and 9 is required to call an outside line, then enable
the PBX using function code 77. Select pause between 1-5
seconds.
Display system's
46
information
Clear memory to
50
factory default
Enable Phone Bill
51
Must be set to 0
Change talk time
70 (010-180 seconds)
60 seconds is default
Change door open
71 interval (04-99
seconds)
Invalid code lock-out
72 count (1-9). 3 is
default
73 N/A
Enable/disable auto
74 answer. Enable is
default
Enable/disable
75 keypad press beep.
Enable is default
Enable/disable
76 speaker beep.
Enable is default
Enable/disable PBX.
77
Disable is default
View name and
78
directory
91 Total number of
tenant. Tenant with
no name will not be
included
to scroll name from
press
press (display
from the phone
to release the
PACH AND CO 1-888-678-7224
 Missing Parts, contact Pach and Company 1-888-678-7224
 Defective system under manufacturer warranty,
call 1-888-678-7224 for advance replacement

24 Months warranty for complete system

6 Months warranty for Printed Circuit Board
Log on to programming: Press
simultaneously then release, the
welcome message will stop scrolling
(repeat if screen still scrolls) enter 4-digit
"MASTER
screen will show:
Select the
What is Master Code: 4- digit code to log-on to programming
mode (0000 is default)
What is Dir (directory code): 2, 3, or 4 digit number see function
code 09. The number can be associated to apartment no., first
three digit of phone no., last four digit of phone no. , or any random
no. assigned to each tenants. Every tenant must have different
directory code no..
What is Access Code: 4-digit code for tenant to open the door or
gate.
HOW TO ENTER A CHARACTER
1. Press the associated button to enter a character then
2. Press
3. You have 30 seconds to enter each letter or character.
4. Letter QZ, numeric 0-9 and punctuations press
5. Press space and
WARNING:
DO NOT USE ON BOARD
12VDC and GND TO POWER A DOOR STRIKE
OR MAGNETIC LOCK
SEPARATE POWER MUST BE USED TO
POWER A DOOR STRIKE OR MAGNETIC
LOCK.
TECHNICAL SUPPORT IS AVAILABLE MON-FRI
7:30AM-3:30PM PST AT 1-888-678-7224
Quick Guide
CODE" (0000 is default), the
"Function Code" from the table
for backspace
